Photoelectric Band Edge Finder Center Finders Set of Double End Single End

Description:

Photoelectric band finder is divided into rods, clamped on the machine tool and close to the workpiece to find the exact position. The photoelectric feedback information is given to the operator.

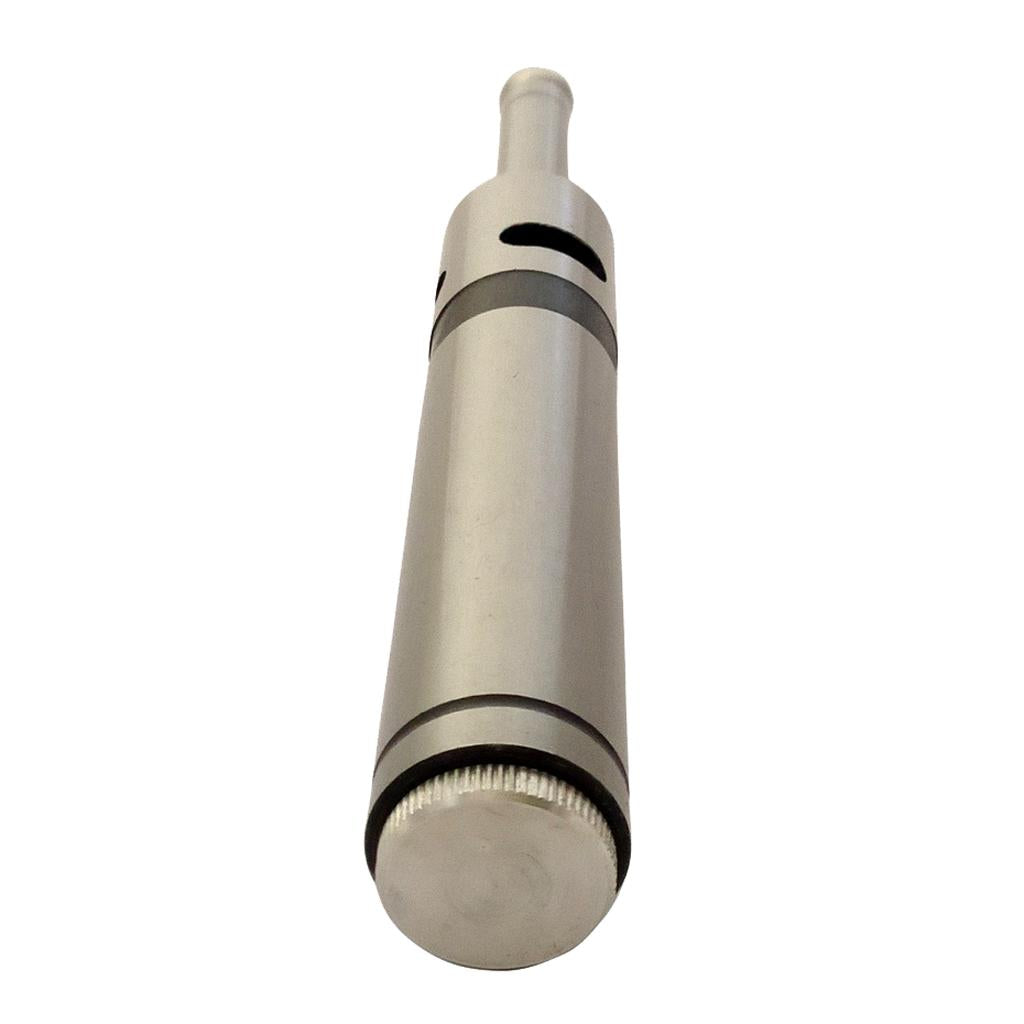

Edge finder spring does not fall, and it is more convenient to install the battery. With a 12V battery, the power is sufficient, the sound is louder and the light is brighter.
Features: 1. No need for rotary measurement 2. Quickly explore the working position. 3. For milling machines, end beds, and other mechanical equipment, it can effectively save the time required to find the position. 4. It can be applied to the edge, surface and inside. High efficiency measurement of outer diameter. 5. When the steel ball is detached, there is a safety spring that can accurately pull it back to its original position. 6. Accuracy: 0.005m/m.

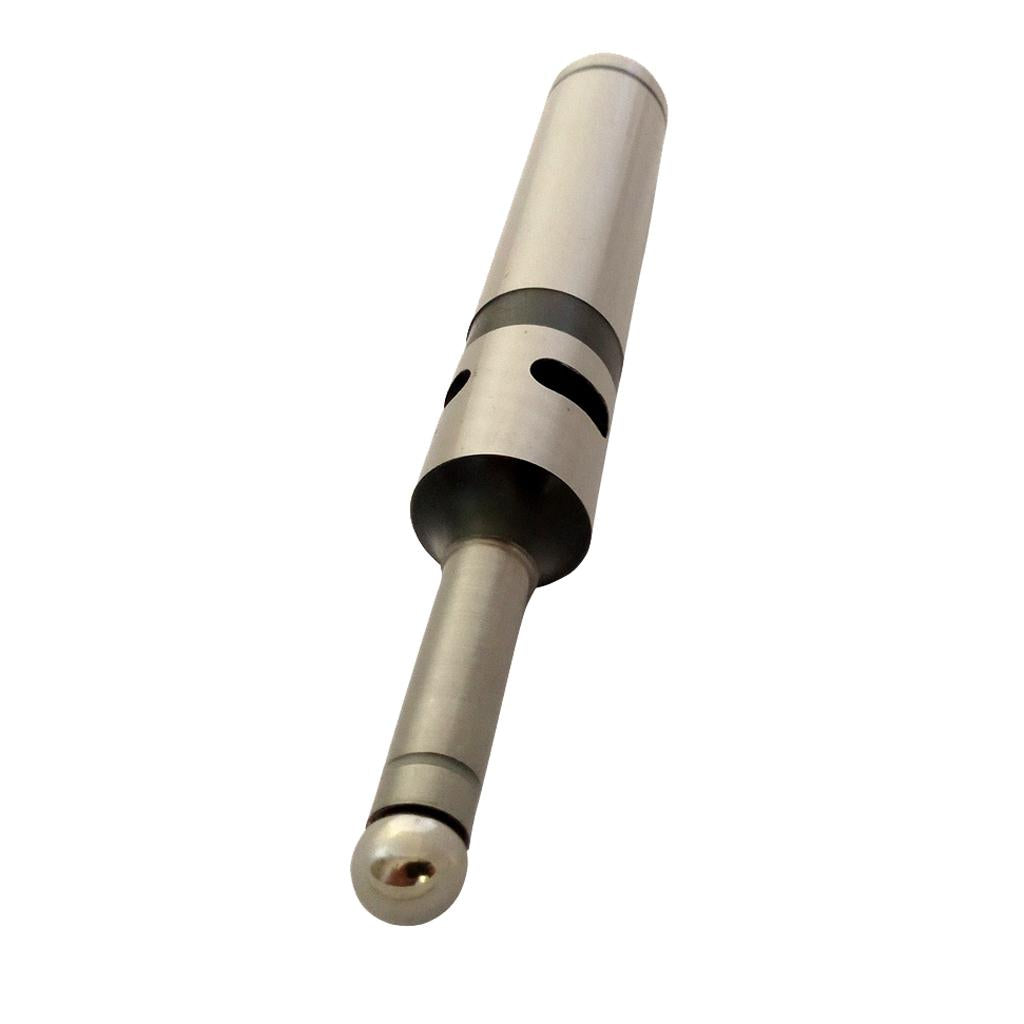

Probe of the photoelectric edge finder is generally mm steel ball with a shank diameter of 20 mm. The spring is tensioned on the measuring rod of the photoelectric edge finder, and when the workpiece is hit, it can be retracted, and the circuit is turned on to emit an optical signal.
Coordinate position of the surface to be measured can be obtained by the indication of the photoelectric edge finder and the machine coordinate position. With the symmetry of the probe, you can also measure some simple dimensions.

Specification:

Material: steel

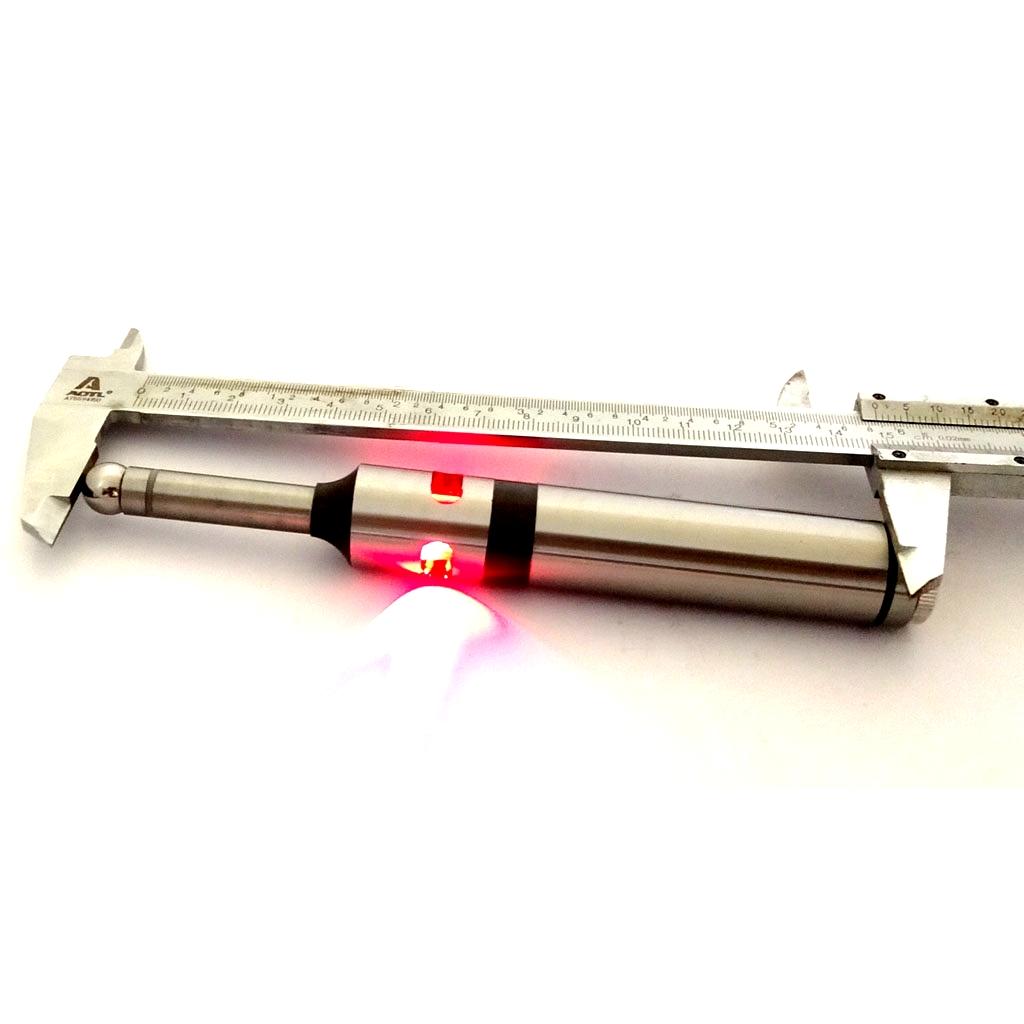

Product detailed size: The diameter of the photoelectric edge finder is 20mm/0.79inch and 10mm/0.39inch

Package Includes:

1 Piece Photoelectric Band Edge Finder
