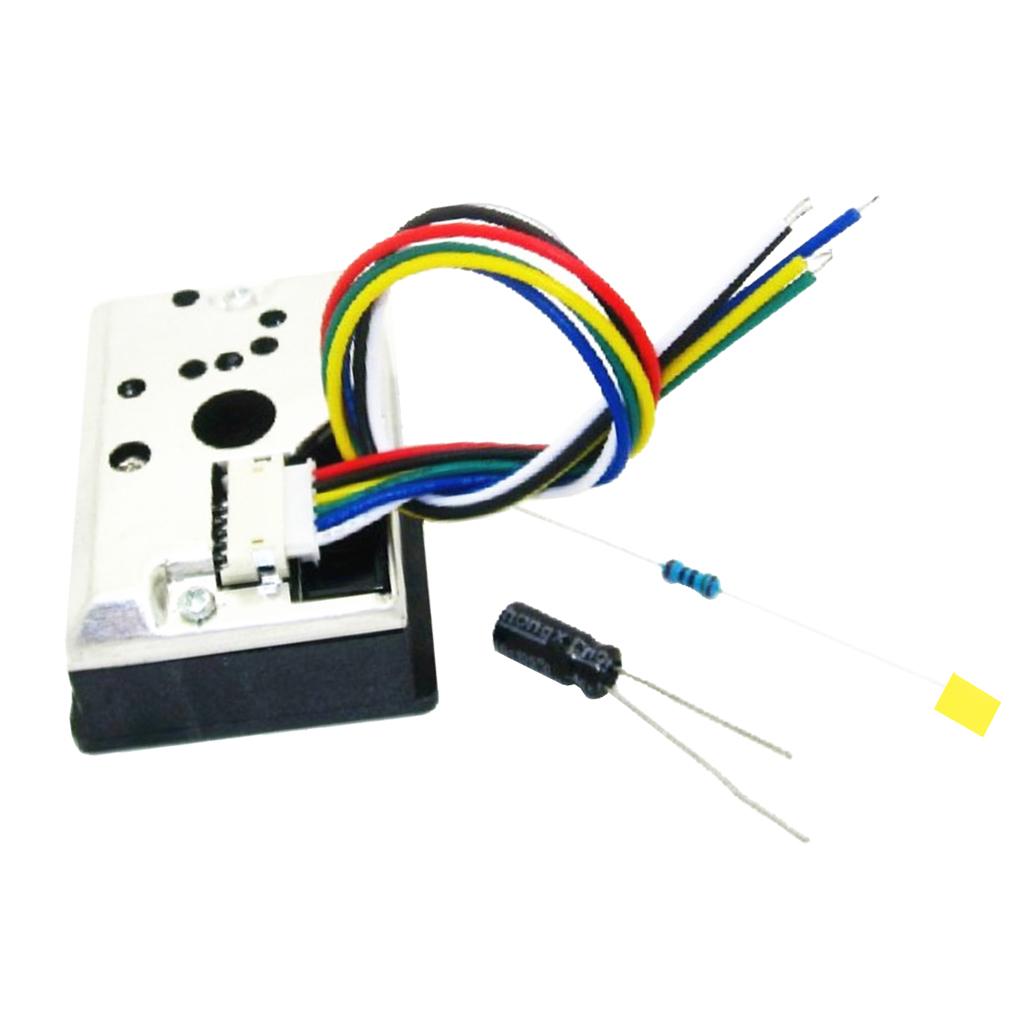

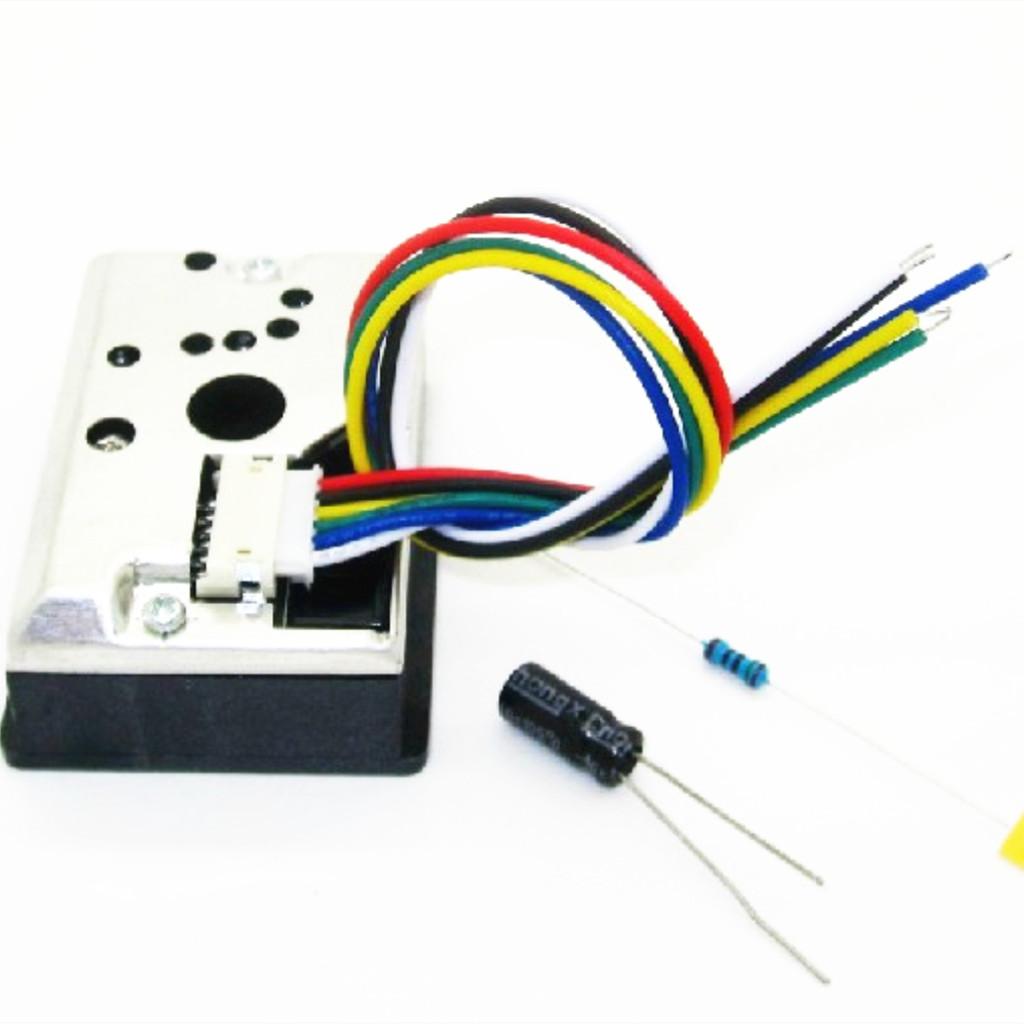

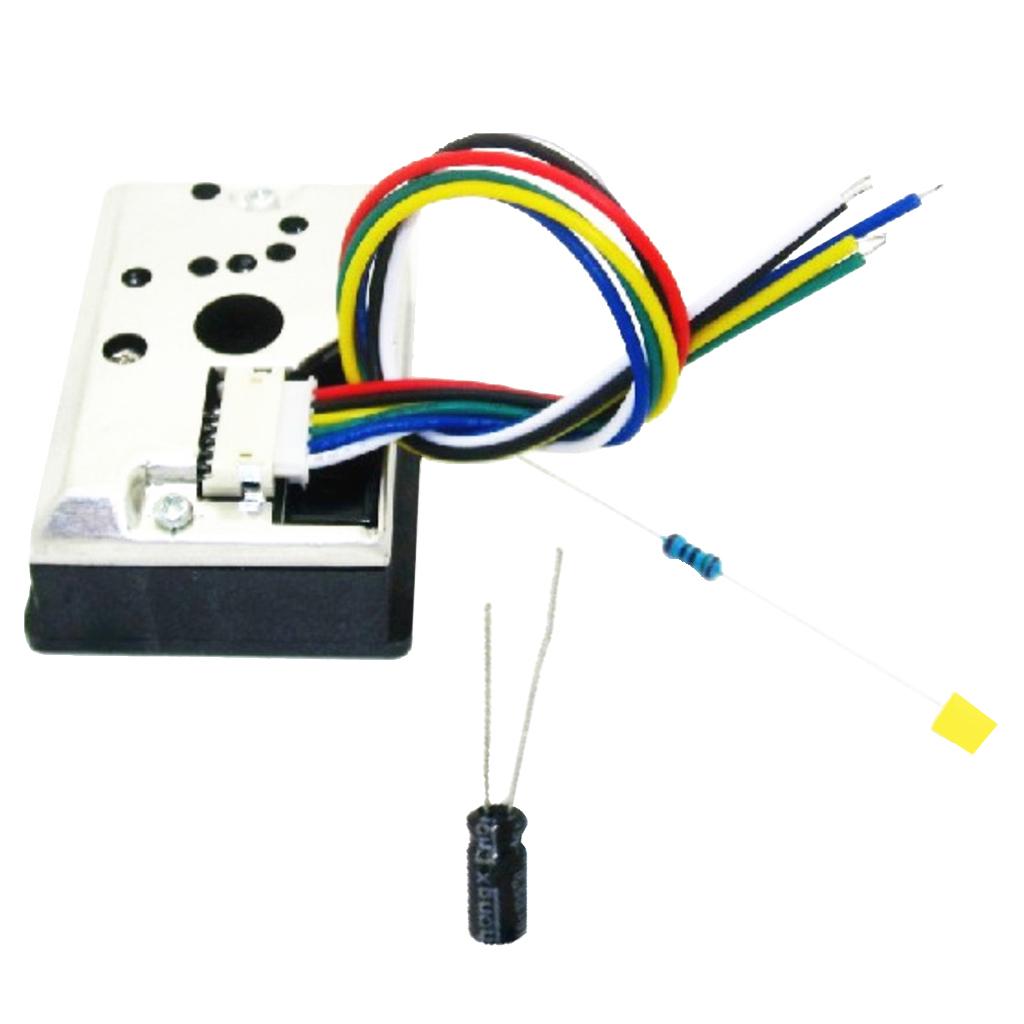

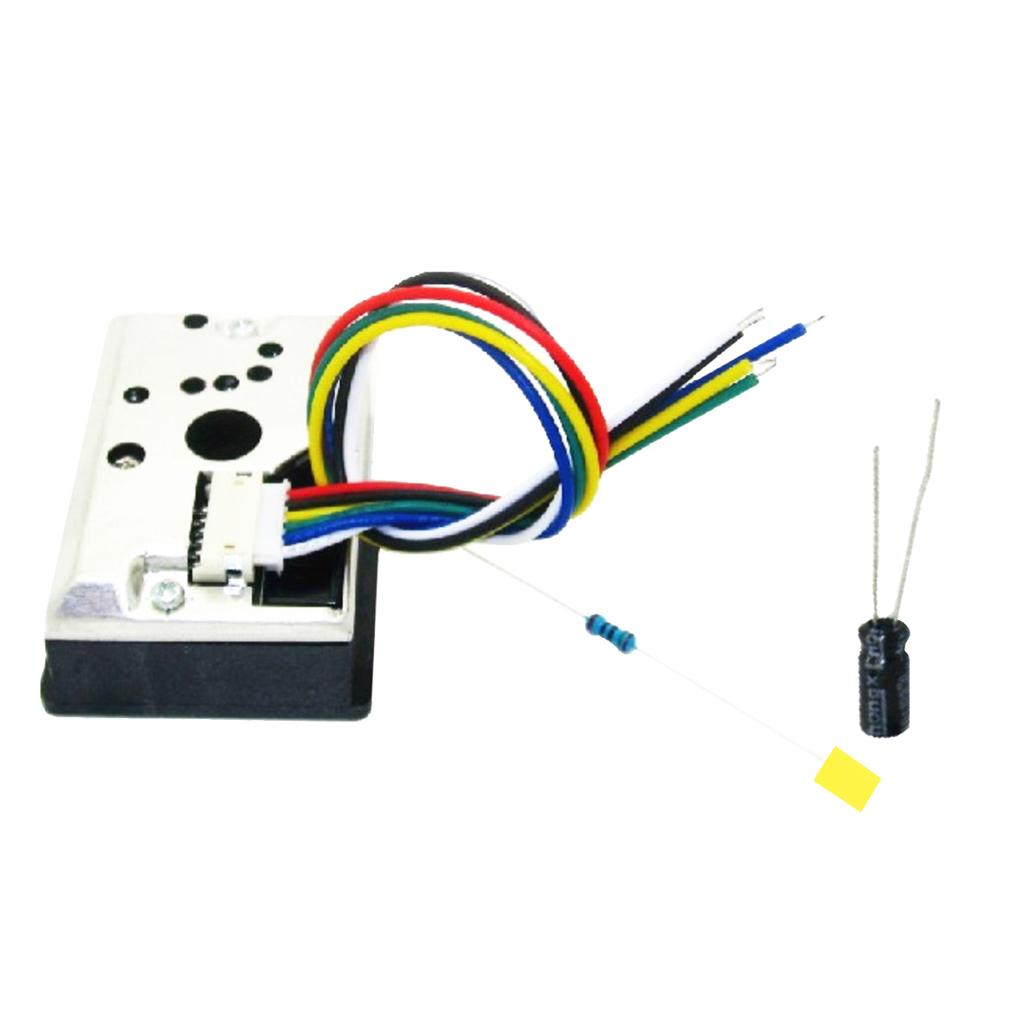

PM2.5 Sensor Dust Sensor Module used in air purifier systems

Description:

Optical air quality sensor, designed to sense dust particles
Very low current consumption
High sensitivity
Commonly used in air purifier systems
RoHS Compliant

Specification:

Power supply voltage: 5-7V
Current consumption: 20mA (max)
Min. particle detection value: 0.8 microns
Sensitivity: 0.5V/(0.1mg/m3)
Clean air voltage: 0.9V typical
Working temperature: -10~65℃
Storage temperature: -20~80℃
Service life: 5 years
Size: 46x30x17.6mm / 1.81x1.18x0.69inch

Package Includes:

1 Piece Dust sensor
1 Piece 150ohm resistor
1 Piece 220uF capacitor
1 Piece 6-pin cable
