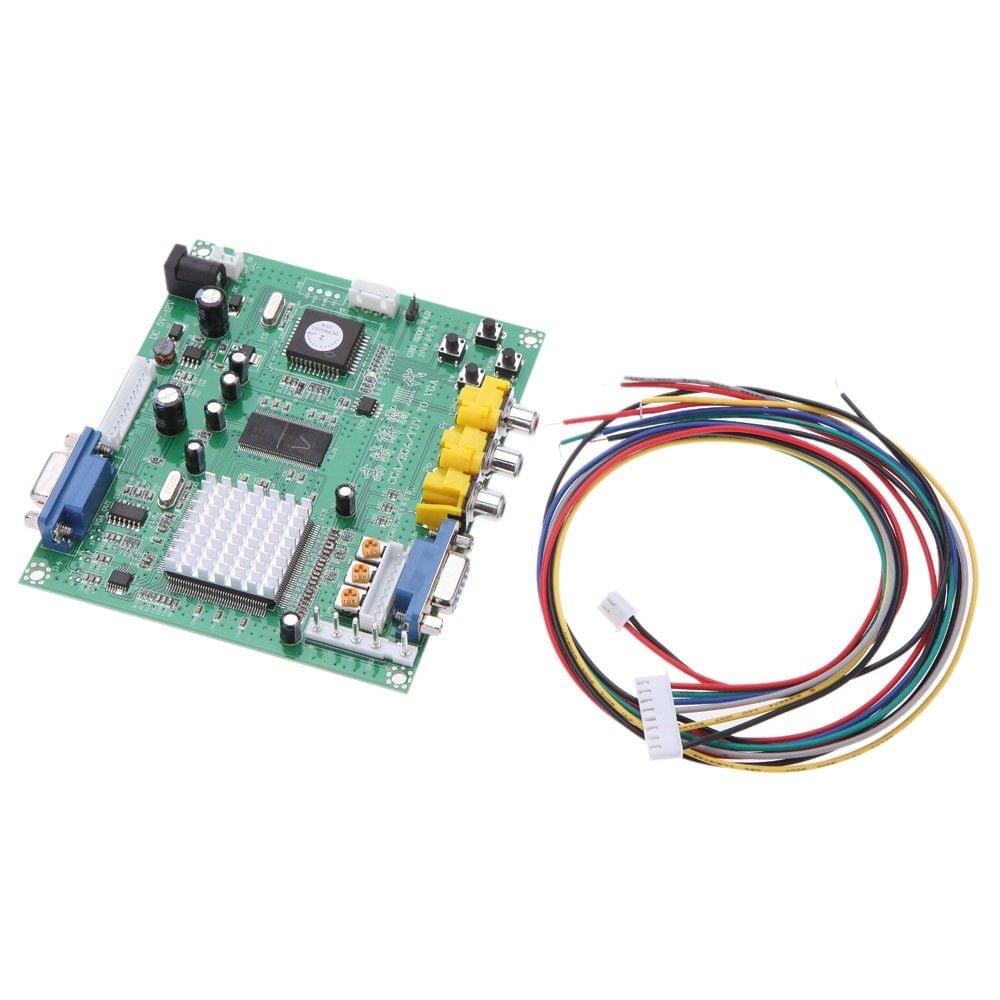

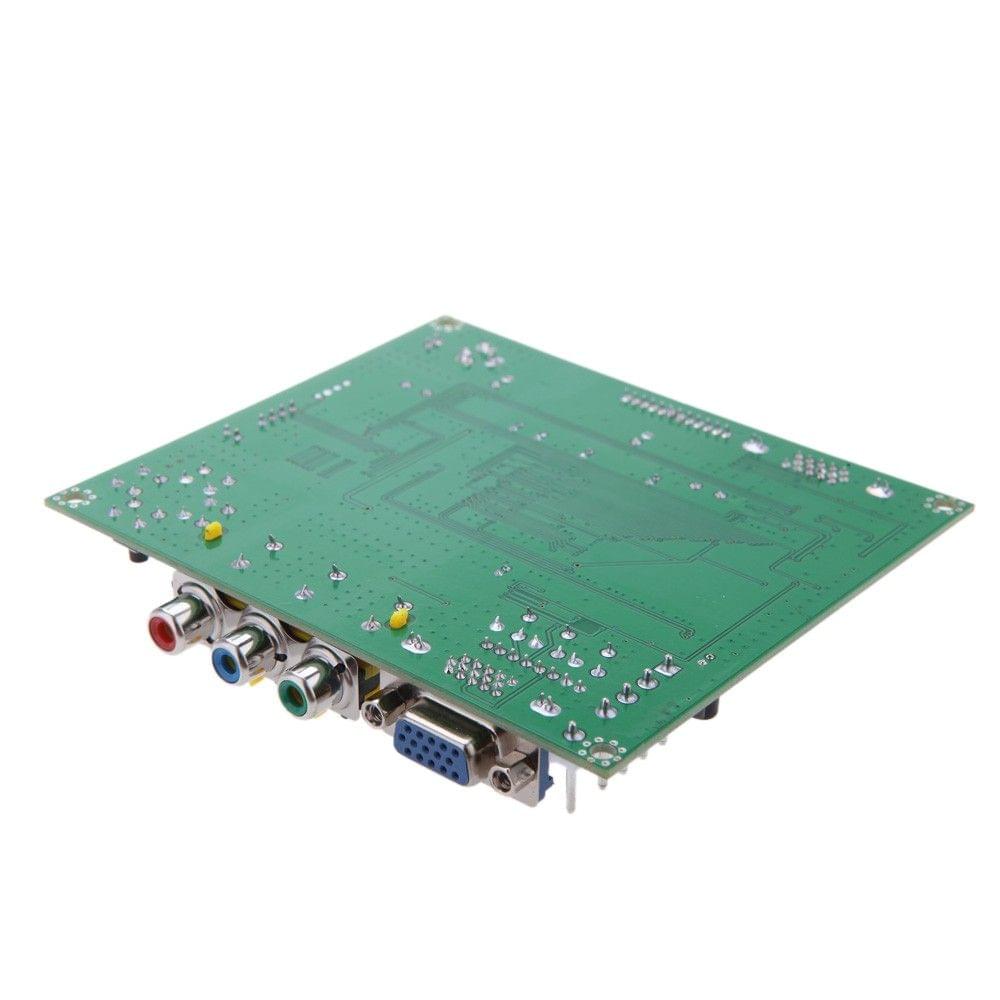

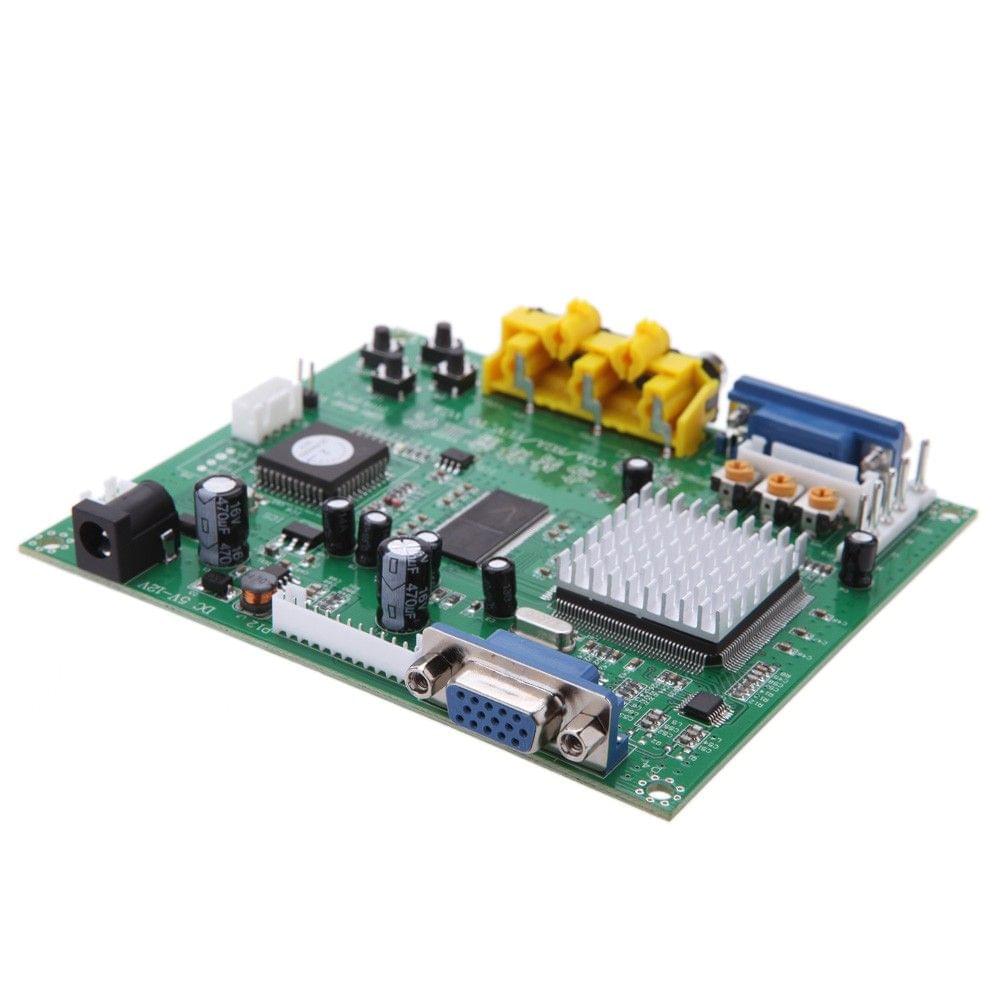

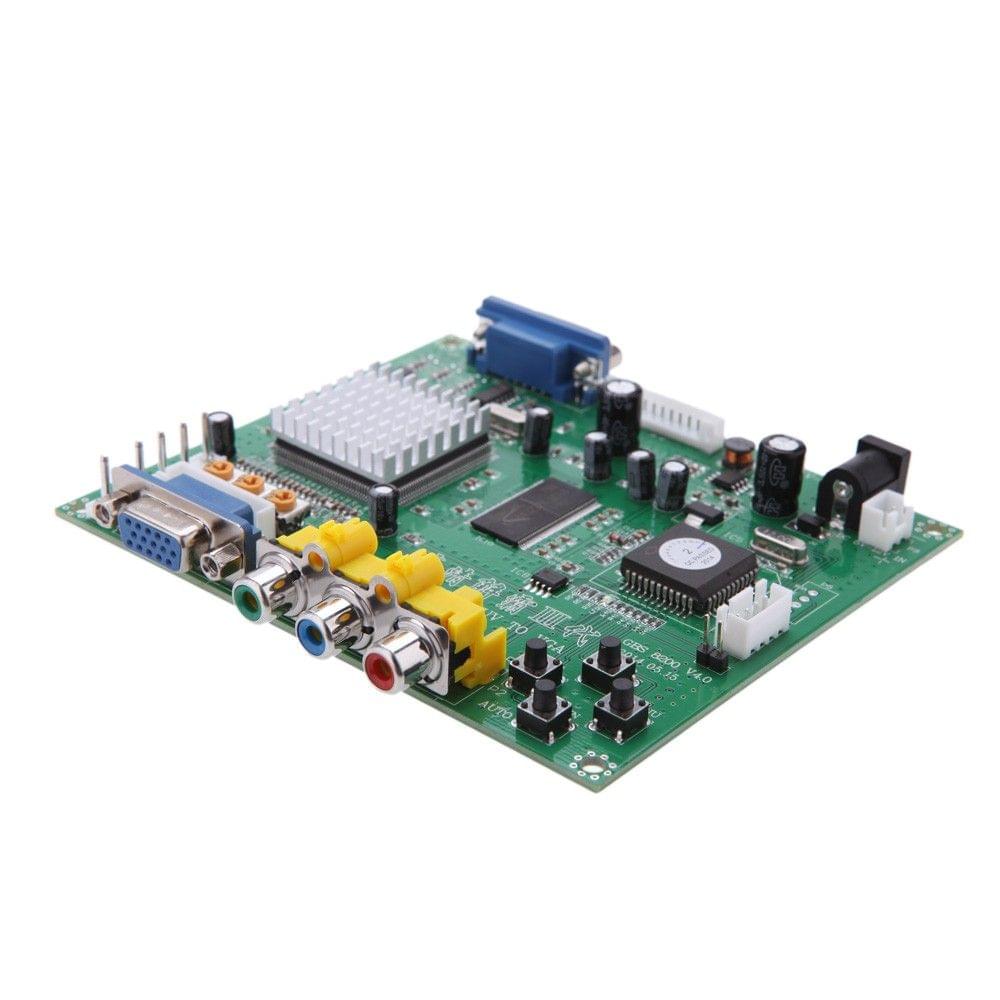

The high definition GBS-8200 Video converter is a professional game converter, which support all games such as, Amusement, Play station, for Xbox, wii, etc. It can convert CGA/EGA/VGA/YUV Component input Signal to the HD Monitors (CRT Monitor LCD Monitor PDP Monitor) with VGA interface (VGA video signal), and automatically scan CGA / EGA / YUV signal, VGA output signals. It will bring you much fun and convenience. Features: Convert CGA/EGA/VGA/YUV Component input Signal to VGA video signal Supports CGA/EGA/VGA/YUV Component Signal Input. Supports VGA Output (640 x 480, 800 x 600, 1024 x 768, 1360 x 768). CGA/EGA/VGA signal auto scan (15KHz, 24KHz, 31KHz). YUV Component signal auto scan (480i, 576i, 720i, 1080i, 480p, 576p, 720p, 1080p). On Screen Display (English and Chinese). Supports image position control & image zoom control. True digital 24-bit A/D converter for true 16.7-million color conversion. Supports all types of VGA monitors (CRT, LCD, PDP, Projector, etc). Specifications: Input Power: DC 5V ±0.5V (2A) P7 or P9 Input signal: CGA / EGA: 14.5kHz ~ 16.5kHz / 23.5 ~ 25.5kHz / 30.5 ~ 32.5 kHz (Auto scan) P3 or P11 or P10 RGBHV: 30.5 ~ 32.5 kHz (Auto scan) P10 or P11 VGA: 30.5 ~ 32.5 kHz (Auto scan) P10 or P11 Ypbpr: 480p, 576p, 720p, 1080p (Auto scan) P2 Ycbcr: 480i, 576i, 720i, 1080i (Auto scan) P2 Output signal: VGA: 640 * 480, 800 * 600, 1024 * 768, 1360 * 768 P4 and P13 User controls: Input Switch, Image Zoom, Input Zoom, Image Position, Output resolution, R/G/B gain adjust. MENU KEY R/G/B VR Color: Green Main item size: 11.8 * 10.8 * 1.4 cm / 4.65 * 4.25 * 0.55in Package Weight: 87g / 3.06oz Package size: 15.5 * 12.5 * 3.0cm / 6.10 * 4.92 * 1.18in Package weight: 116g / 4.09oz MENU CONTROL: “MENU” open OSD menu, and enter. “UP” up and increase. “DOWN/AUTO” down and reduce. Press this key: auto scan CGA/EGA signal Press this key over 5 second and release: reset system (this operation is invalid when you open OSD menu) “SW” switch input signal Ypbpr/RGBS/RGBHV (this operation is invalid when you open OSD menu). “Clamp sp” & “Clamp” please don’t adjust this button, except the monitor has black item or picture discoloration. For more functions control, please look at OSD to operate. Package list: 1 * CGA/EGA/RGB To VGA Game Video Converter Board 1 * 6pin signal wire 1 * 2pin power supply wire
