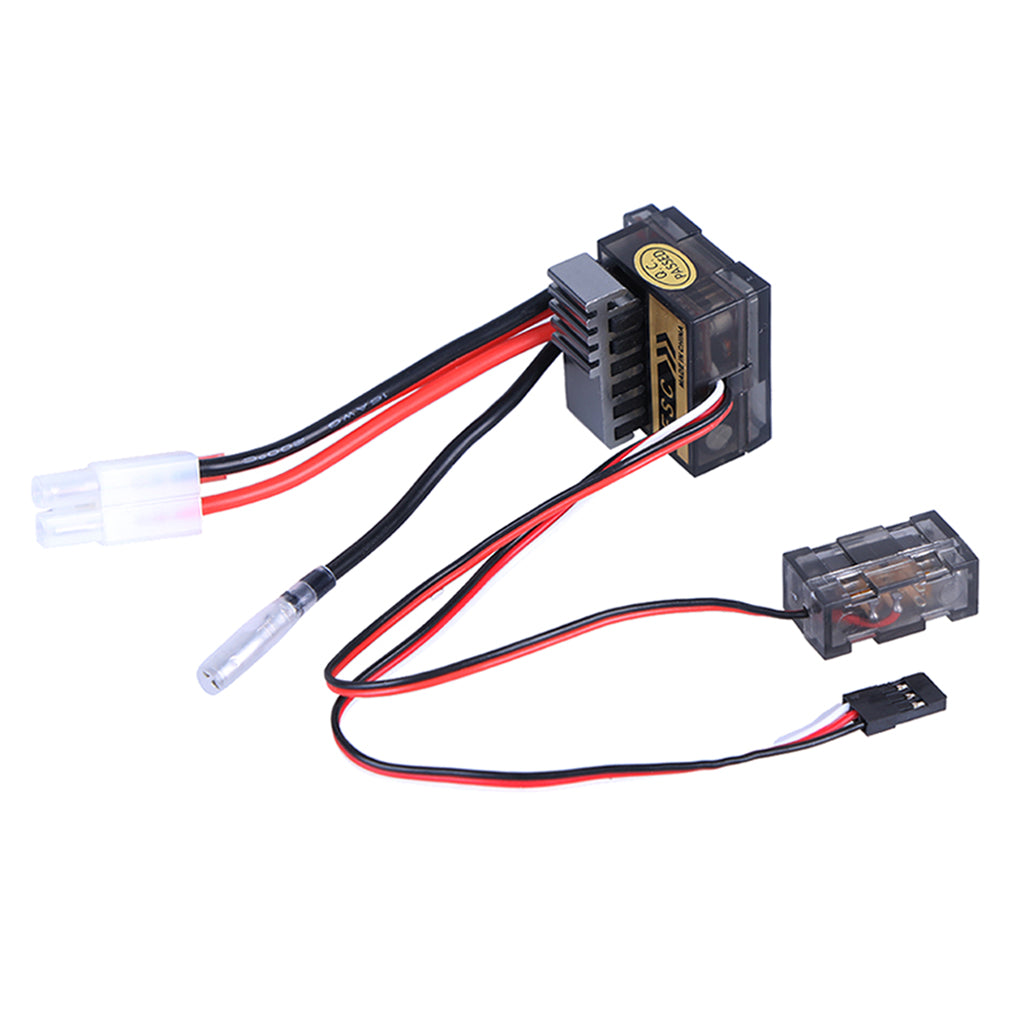

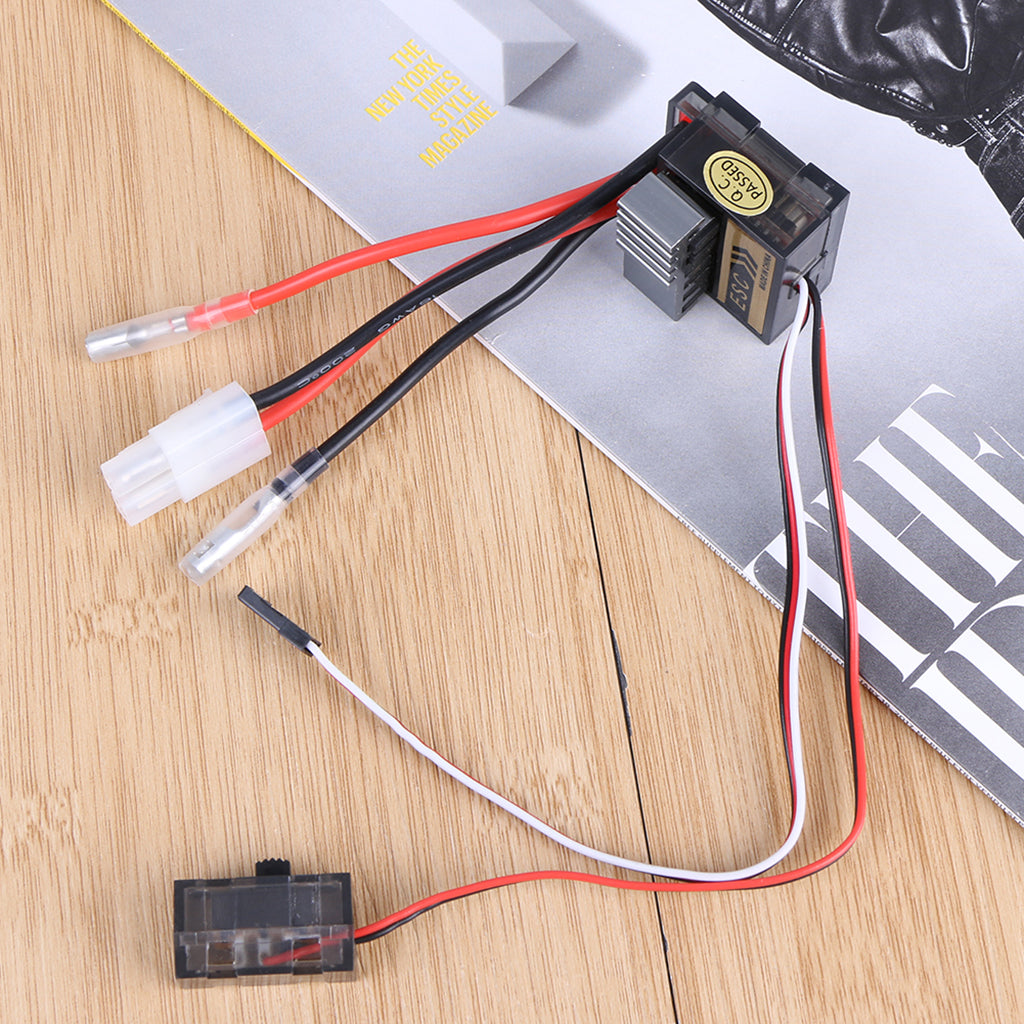

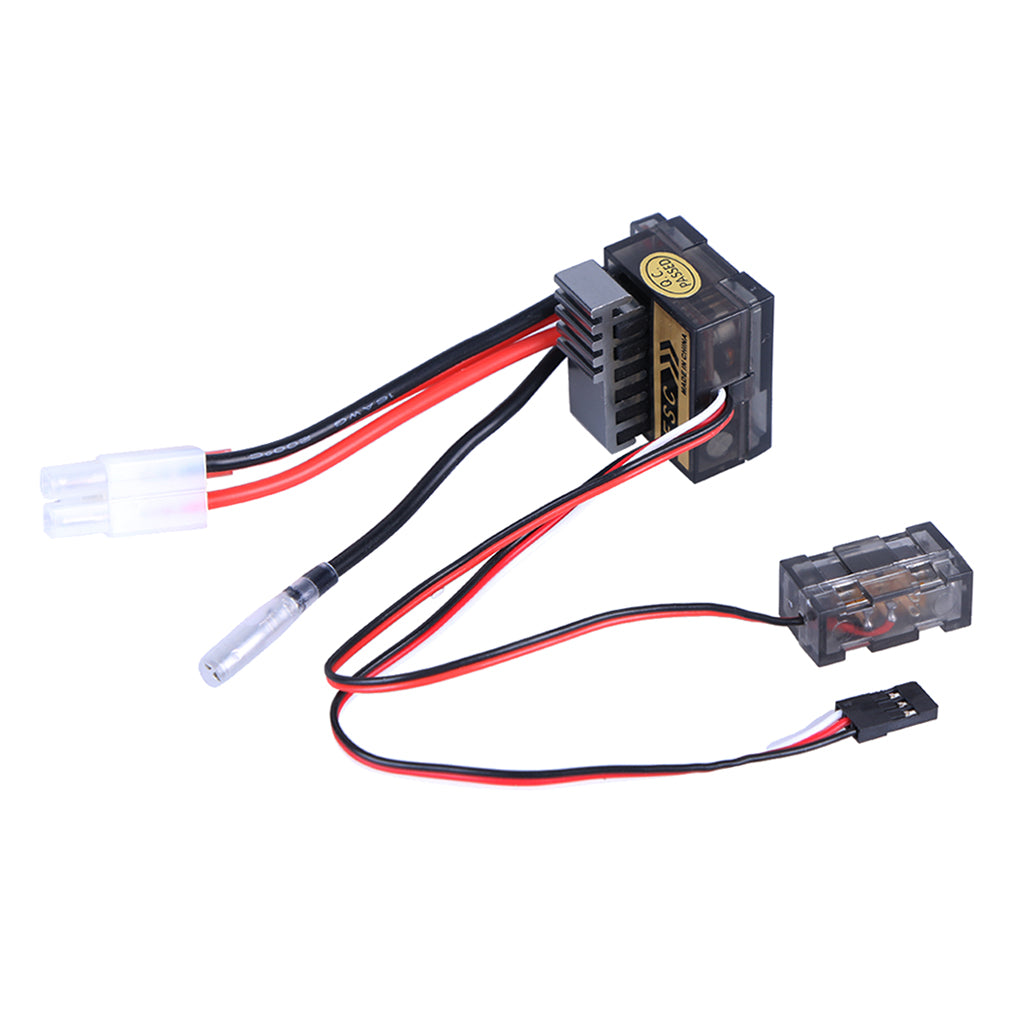

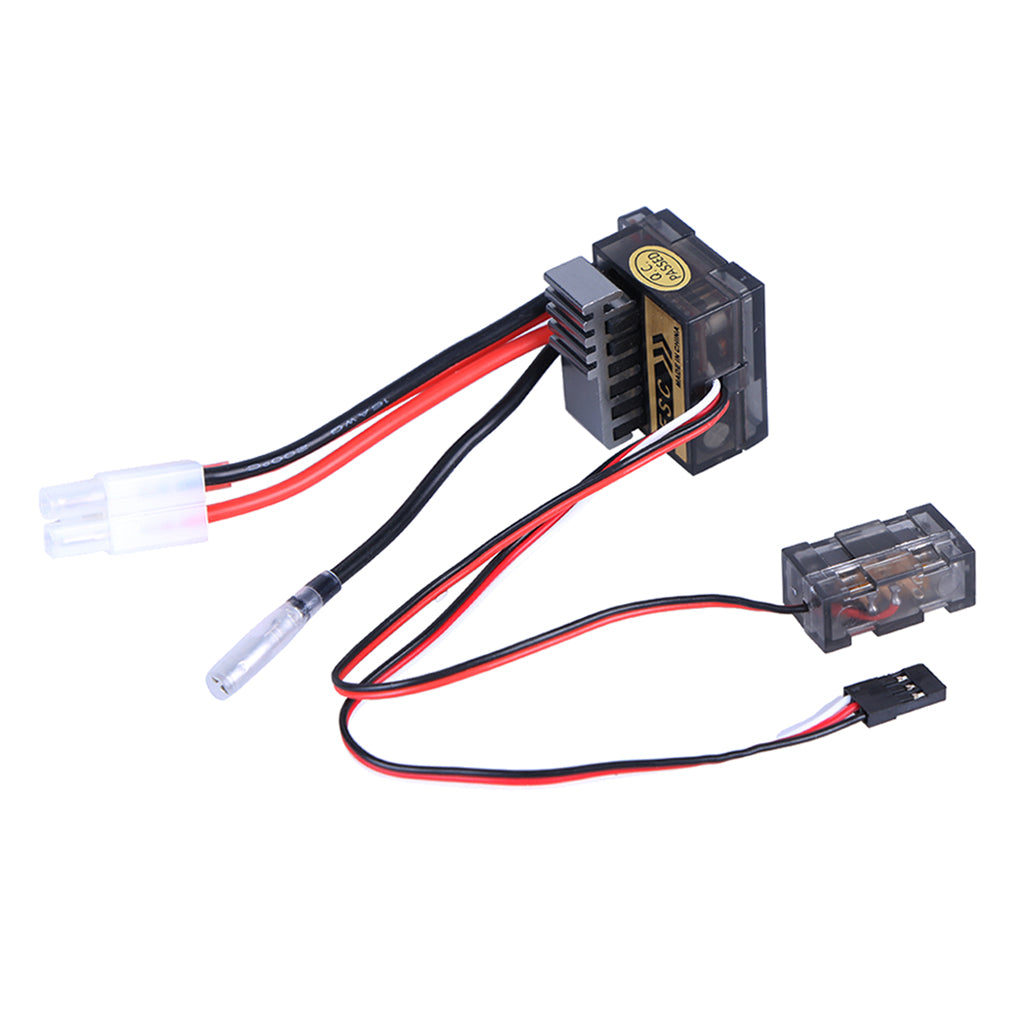

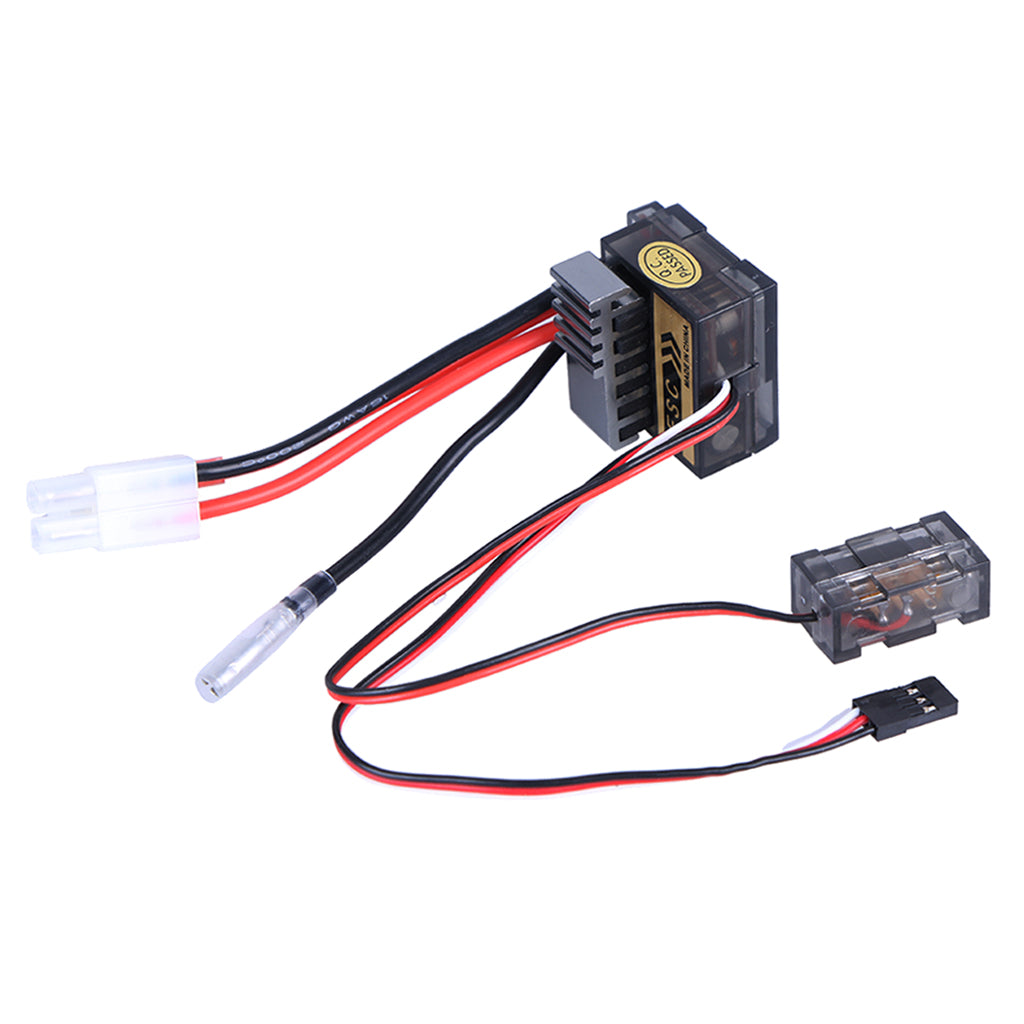

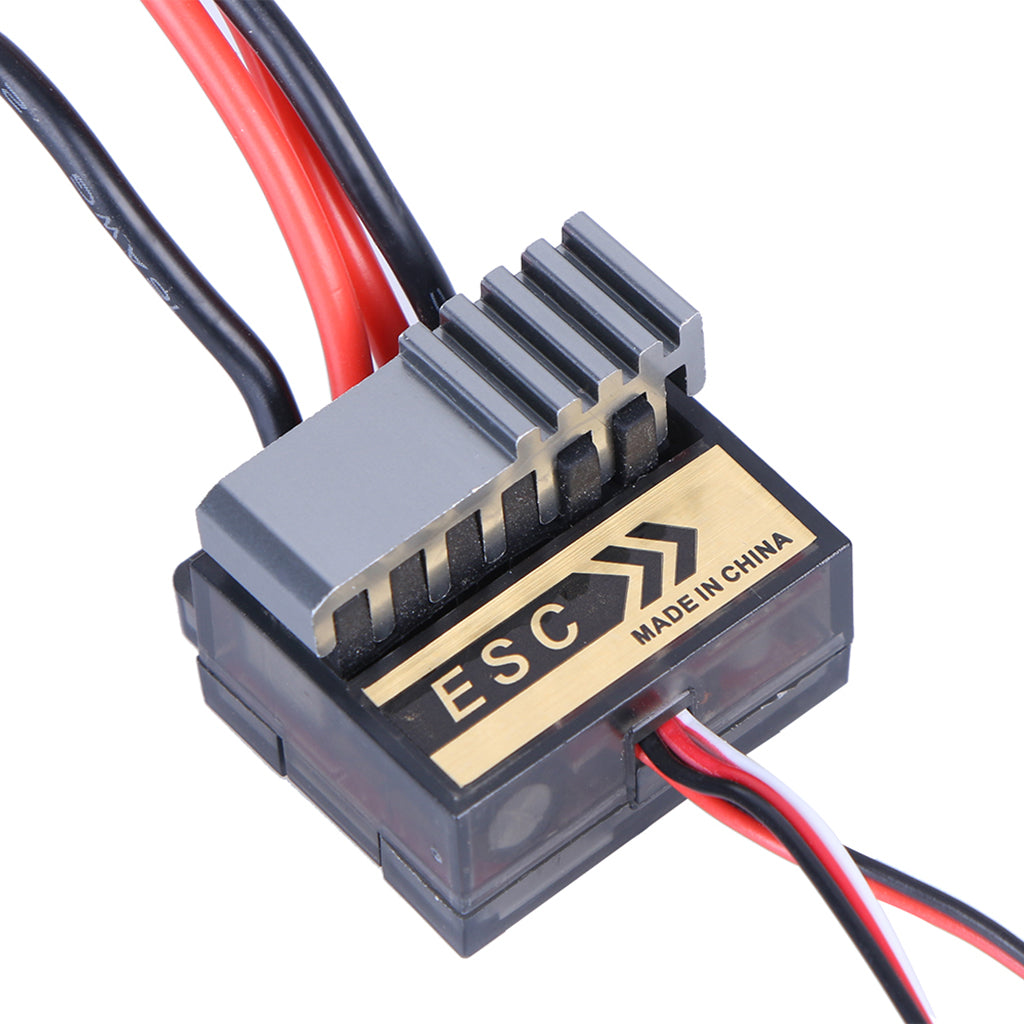

Pro 320A Brushed Motor ESC Speed Controller fit for HSP 1/8 1/10 Car Buggy

Description:

High precision manufacturing ensures stable performance and excellent function.
Automatically find center position, high frequency drive system.
Overheating protection function, low voltage protection function, use low resistance field-effect tube, have the functions of forward and backward.
Suitable for 1/8 1/10 cars, truck buggy ship rc hobby spare parts.
Note: ban flow into the water or power supply are negative reverse connection. under a 320 brush with electrically controlled the barge out external current is 2A.

Specification:

Material: Composite Material
Forward Current: 320A
Back Current: 240A
Voltage Range: 4.8 to 8.4V
PWM Frequency: 1.5KHZ
BEC Voltage: 5V

Size Chart:

Size: 30x20x40mm / 1.18x0.79x1.57inch

Package Includes:

1 Piece ESC

Note:

Color might be slightly different due to the color calibration of each individual monitor.
Please allow slightly measuring deviation due to manual measurement.
Operational Guidelines:
Correctly connect to power battery. Strips on both ends of the red line is positive, black for negative.(or connect standard DC battery plug)
Open power switch. If no signal input, motor will make an alarm sound of "beep, beep, beep". When there is a normal signal injection, alarm sound will stop.
Open the remote control, adjust the fine tuning into the median, red and green light is put out. Hand into the green light to move forward at this time.
The legislature back over the hand again for and enter a state of brake, pullback larger brake is tight.
Hand in the back and back again into the reverse condition turns red, with around 550 motor.
