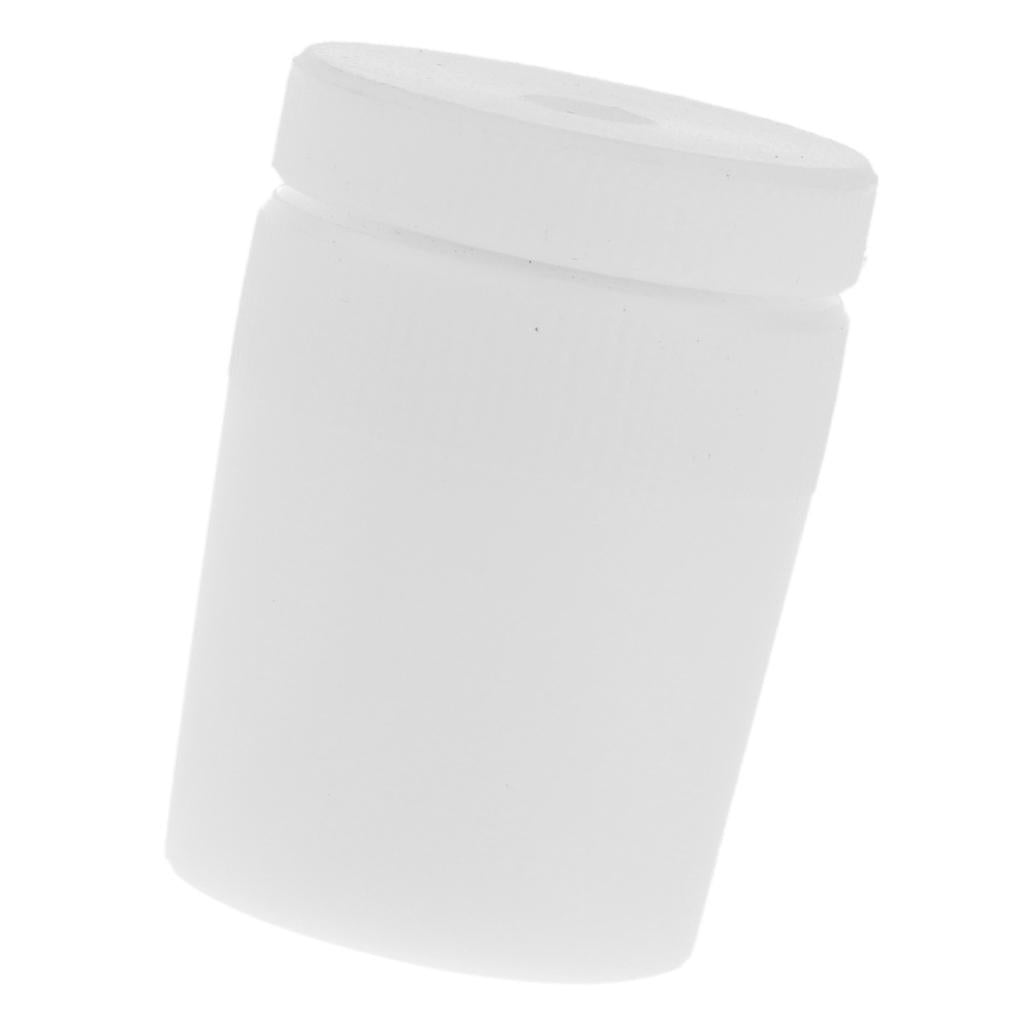

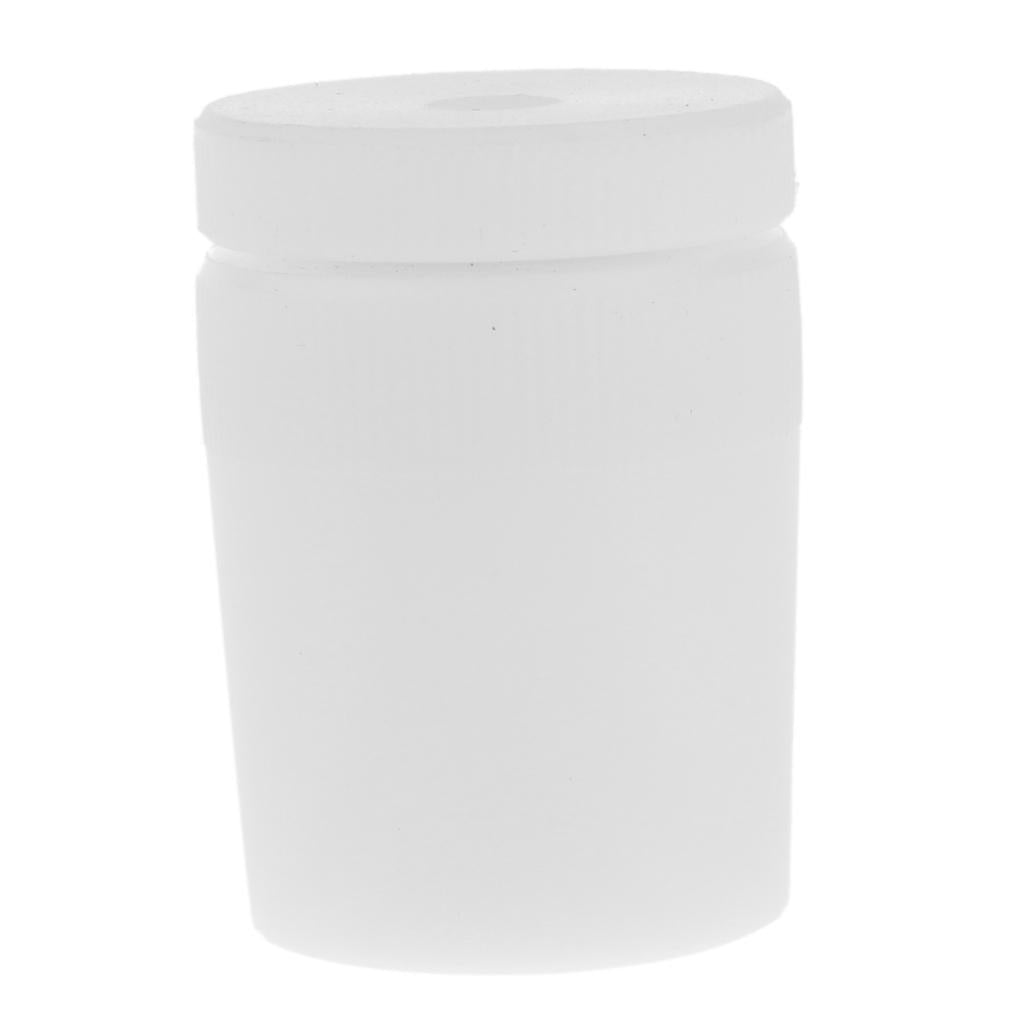

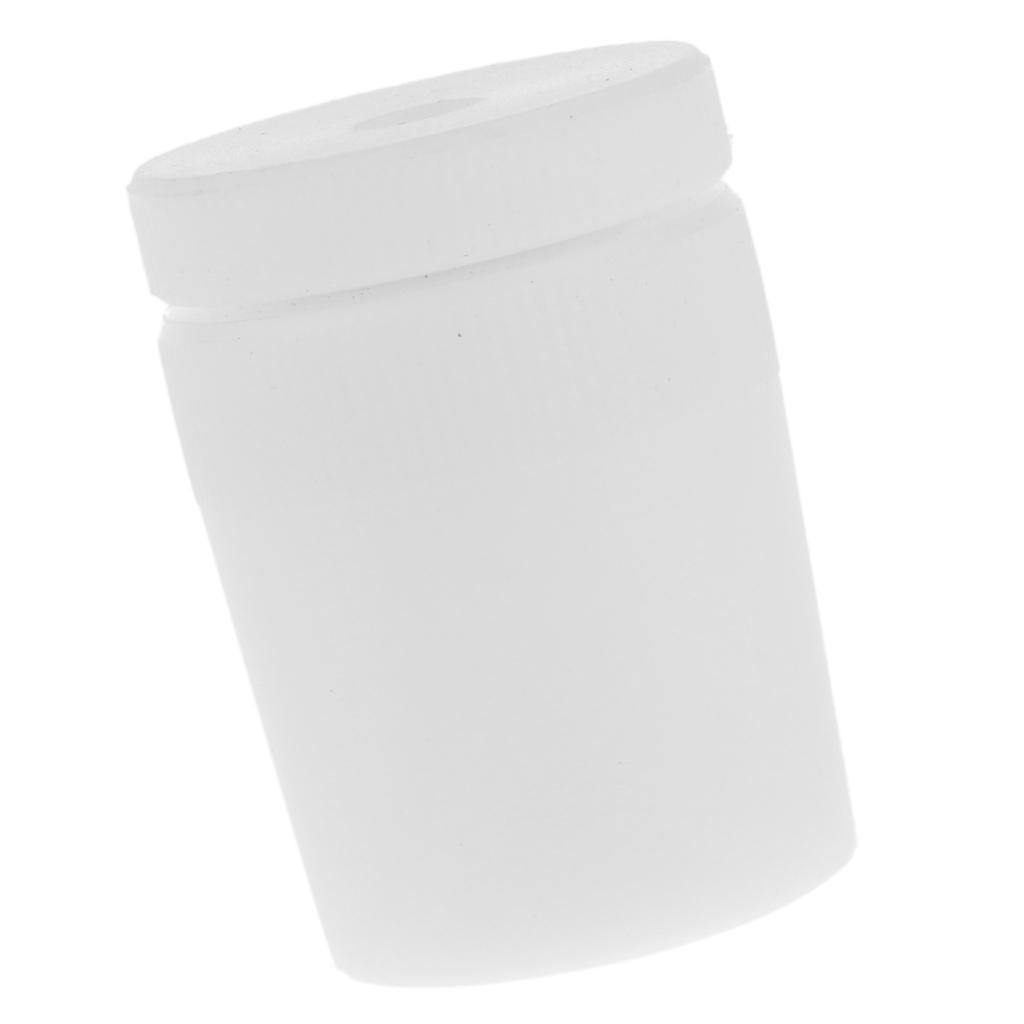

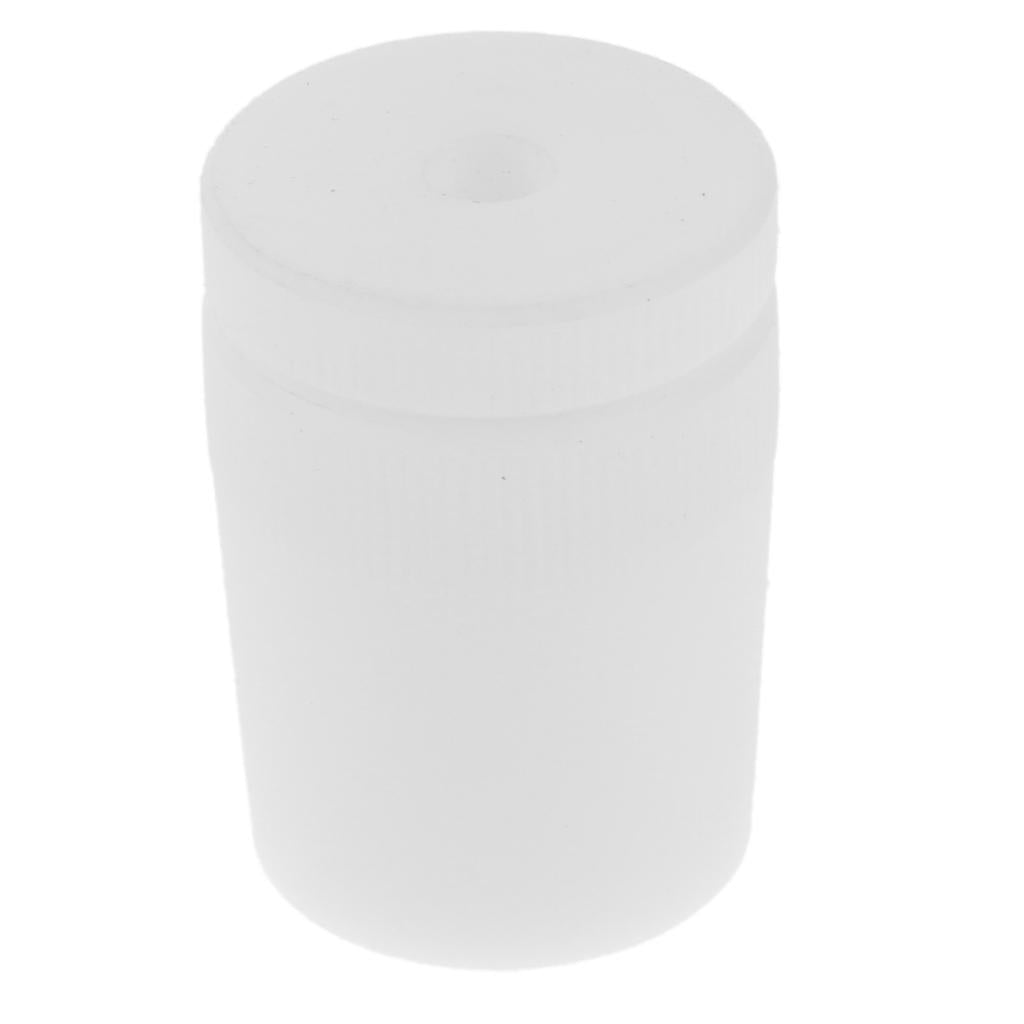

PTFE Standard Stopper Stirring Rod Bearing Adapter Plug 8mm No. 34

Description:

Made of pure PTFE/Polytetrafluoroethylene

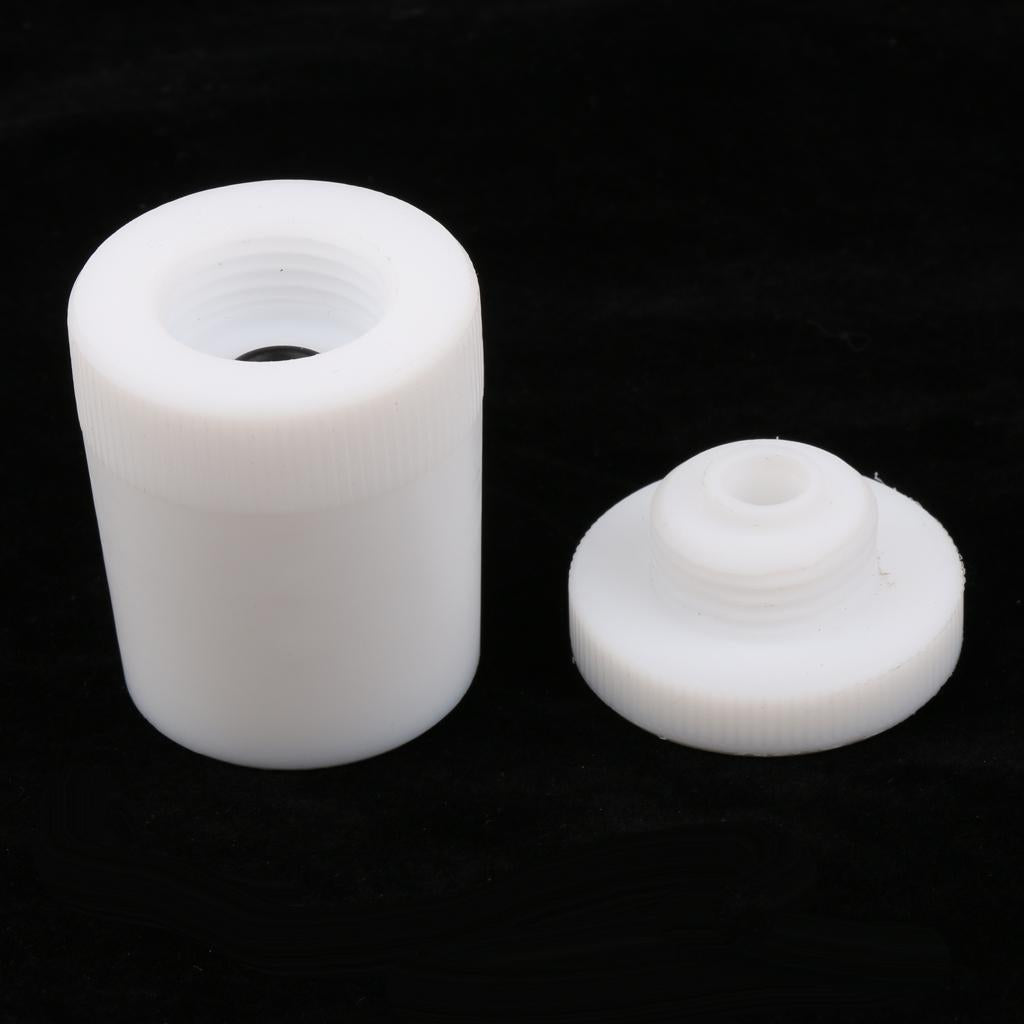

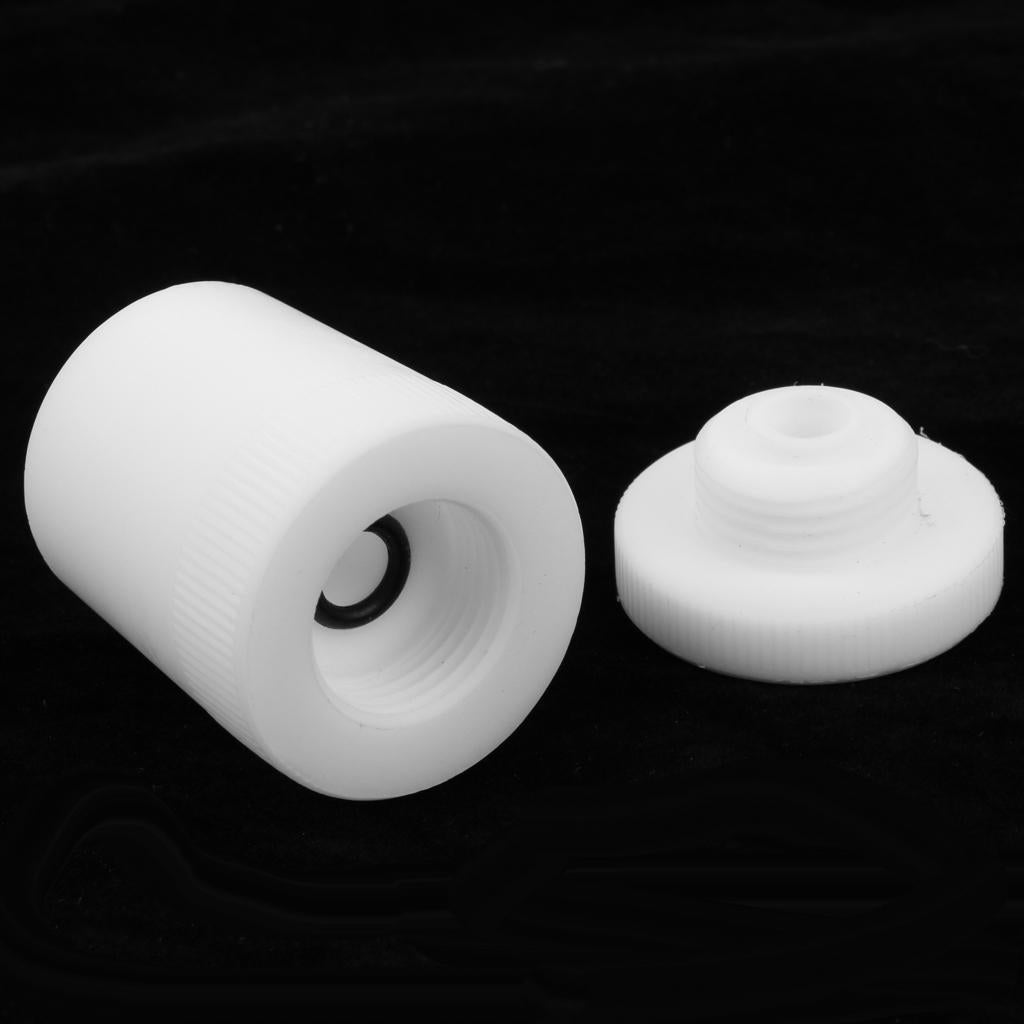

Generally used with double-paddle PTFE stirring rod (the PTFE stopper/plug is separated, and lower plug, sealing ring, upper cover are placed on the stirring rod and screwed to an appropriate tension)

Also the sealing ring of the interlayer can be wound around PTFE tape to be a sealed PTFE standard plug

Extremely free from chemical corrosion, durable in use

Inner Diameter:8mm; 5 Sizes of different outer diameters are available

Specification:

Minimum Working Temperature: -196℃

Max Working Temperature: +250℃

Melting Point: 600K

Size Details:

14#:

Inner diameter: 8mm / 0.3inch; Length: 45mm / 1.8inch

Minimun Outer Diameter: 12mm / 0.5inch; Maximum Outer Diameter: 15mm / 0.6inch

19#:

Inner diameter: 8mm / 0.3inch; Length: 50mm / 2.0inch

Minimun Outer Diameter: 16mm / 0.6inch; Maximum Outer Diameter: 20mm / 0.8inch

24#:

Inner diameter: 8mm / 0.3inch; Length: 48mm / 1.9inch

Minimun Outer Diameter: 21mm / 0.8inch; Maximum Outer Diameter: 24mm / 0.9inch

29#:

Inner diameter: 8mm / 0.3inch; Length: 50mm / 2.0inch

Minimun Outer Diameter: 26mm / 1.0inch; Maximum Outer Diameter: 30mm / 1.2inch

34#:

Inner diameter: 8mm / 0.3inch; Length: 50mm / 2.0inch

Minimun Outer Diameter: 31mm / 1.2inch; Maximum Outer Diameter: 36mm / 1.4inch

Package Includes:

1 Piece PTFE Stopper( lower plug, sealing ring, upper cover are included)

Note:

Please allow 0-1mm error due to manual measurement. Thanks.
