PWM Signal Generator Speed Controller Duty Cycle for Controller Engineering

Description:

Dual mode: normal mode and fine mode, the duty cycle step in fine mode is 0.1%.

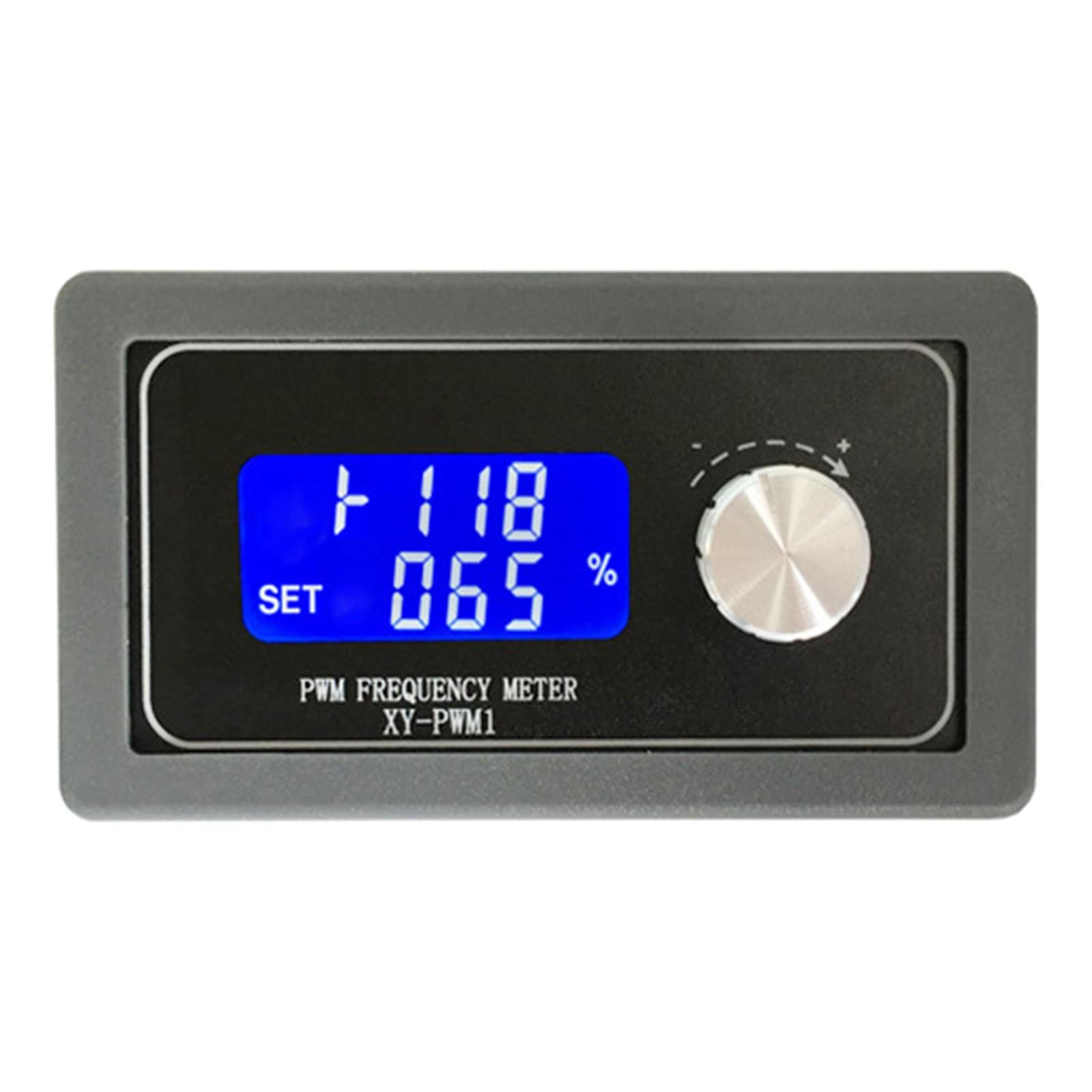

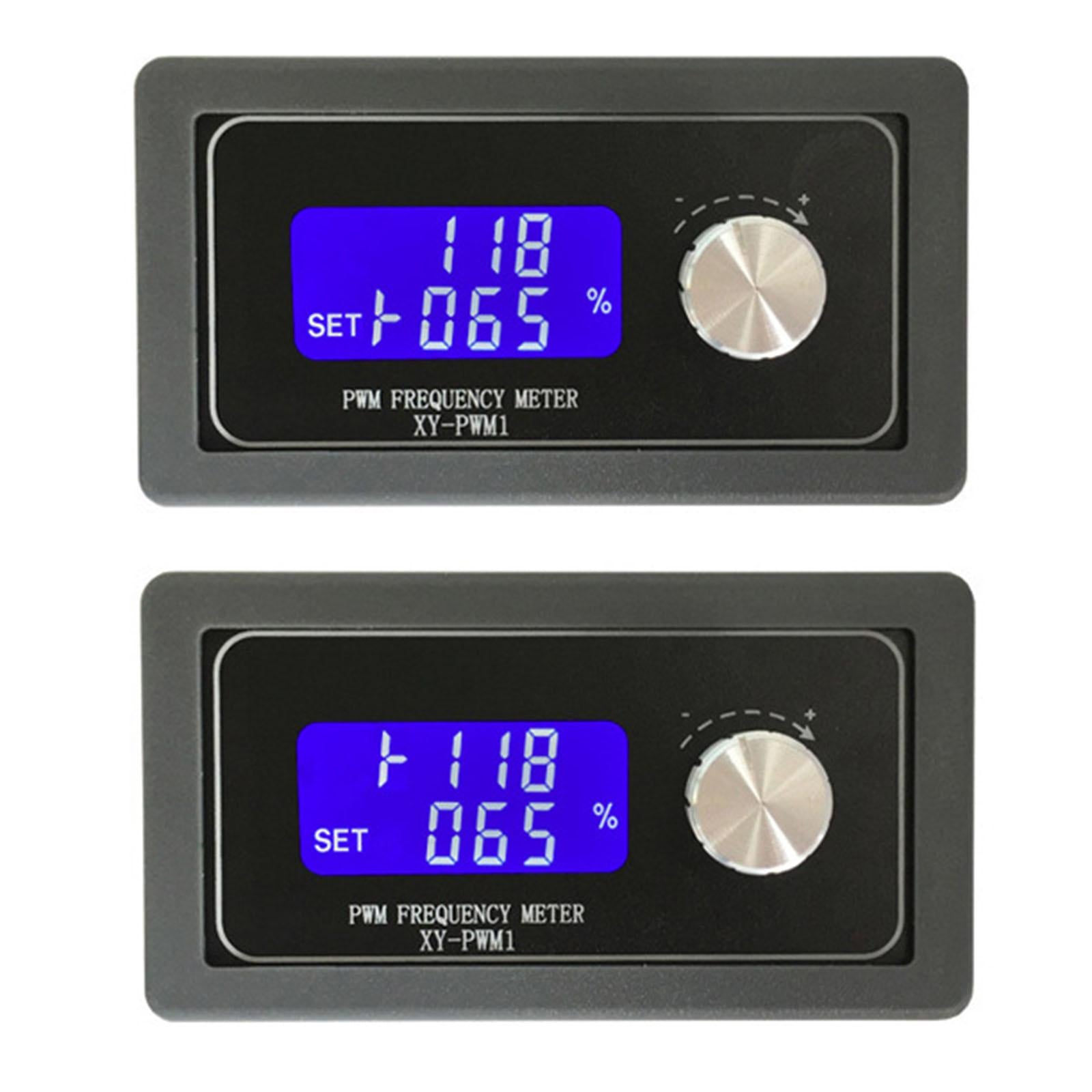

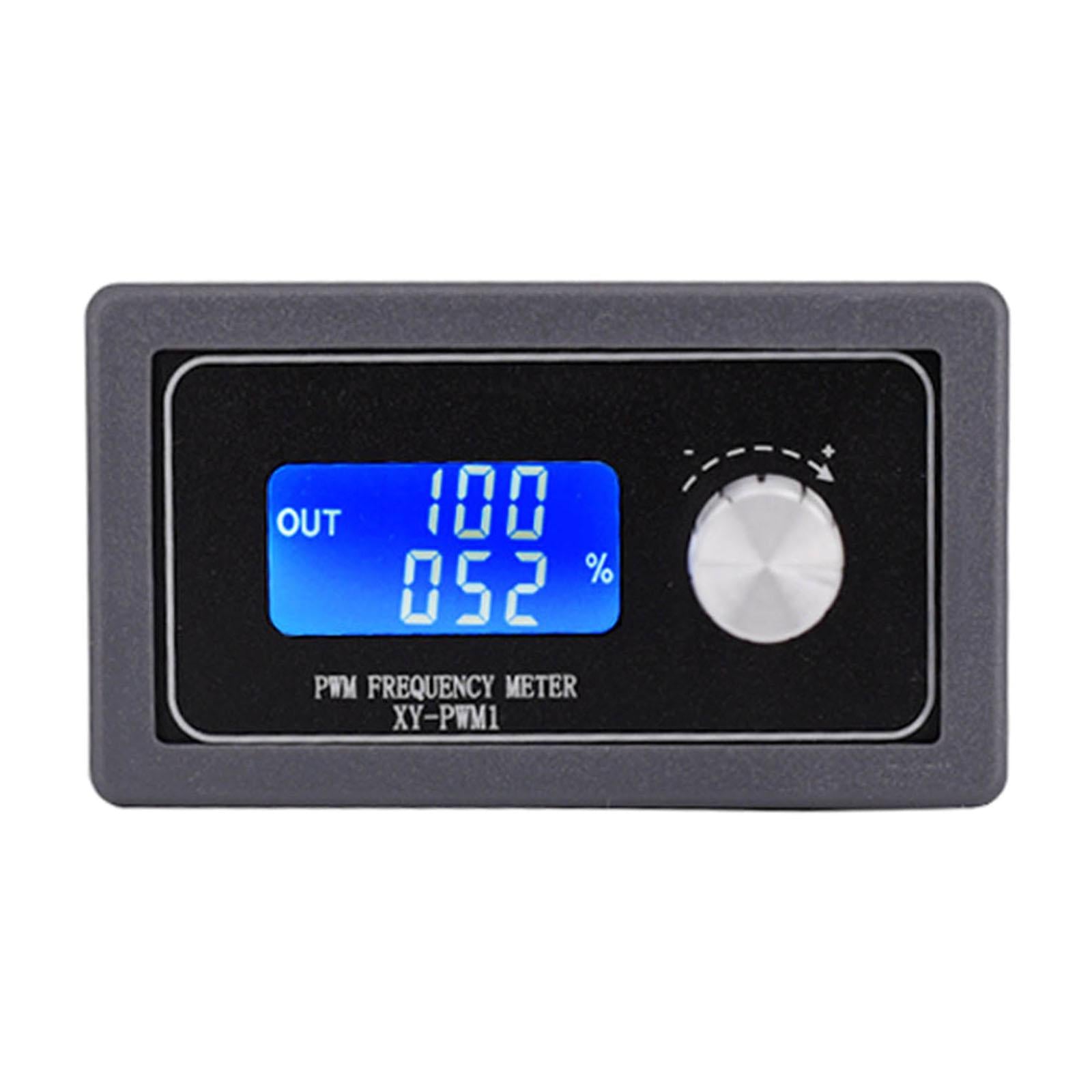

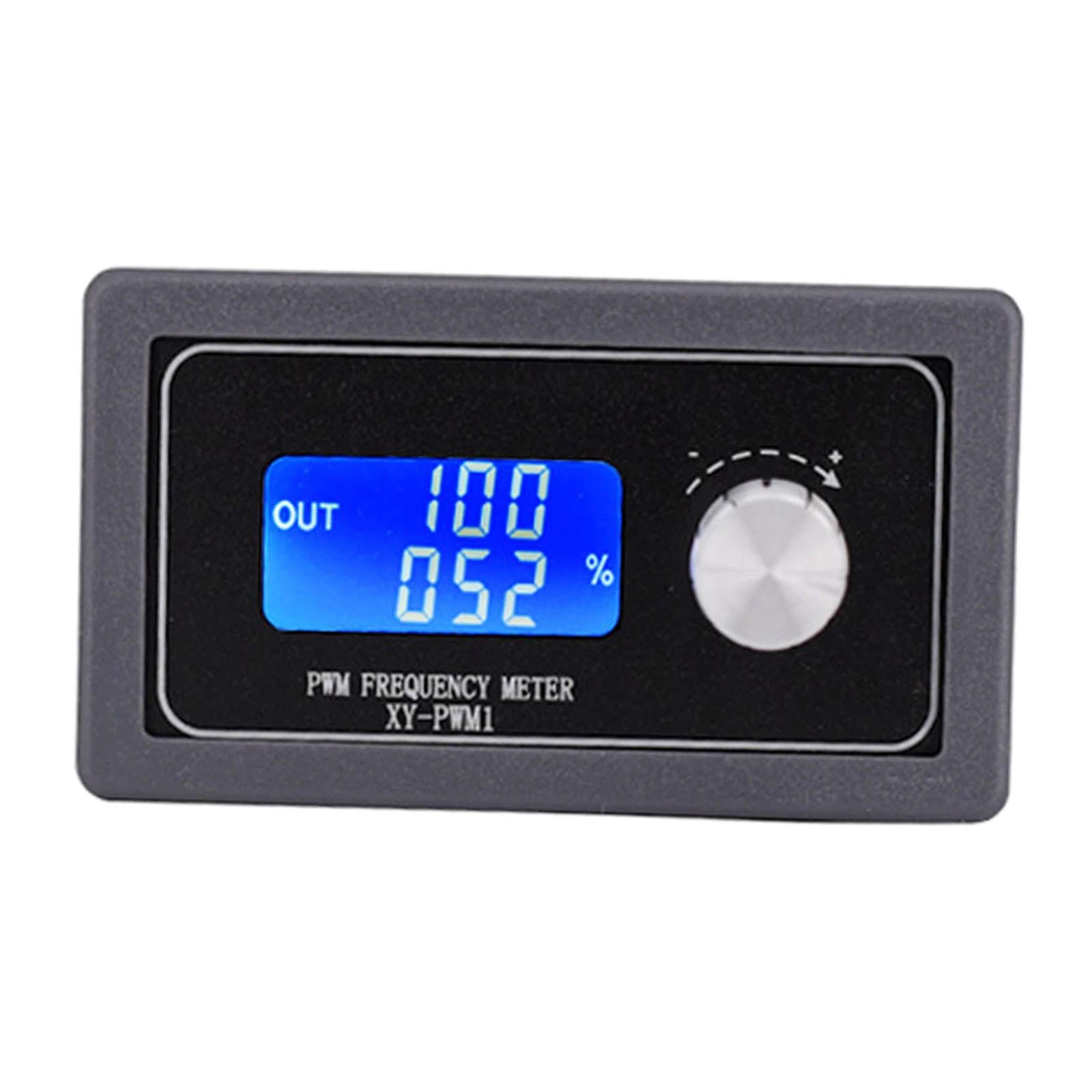

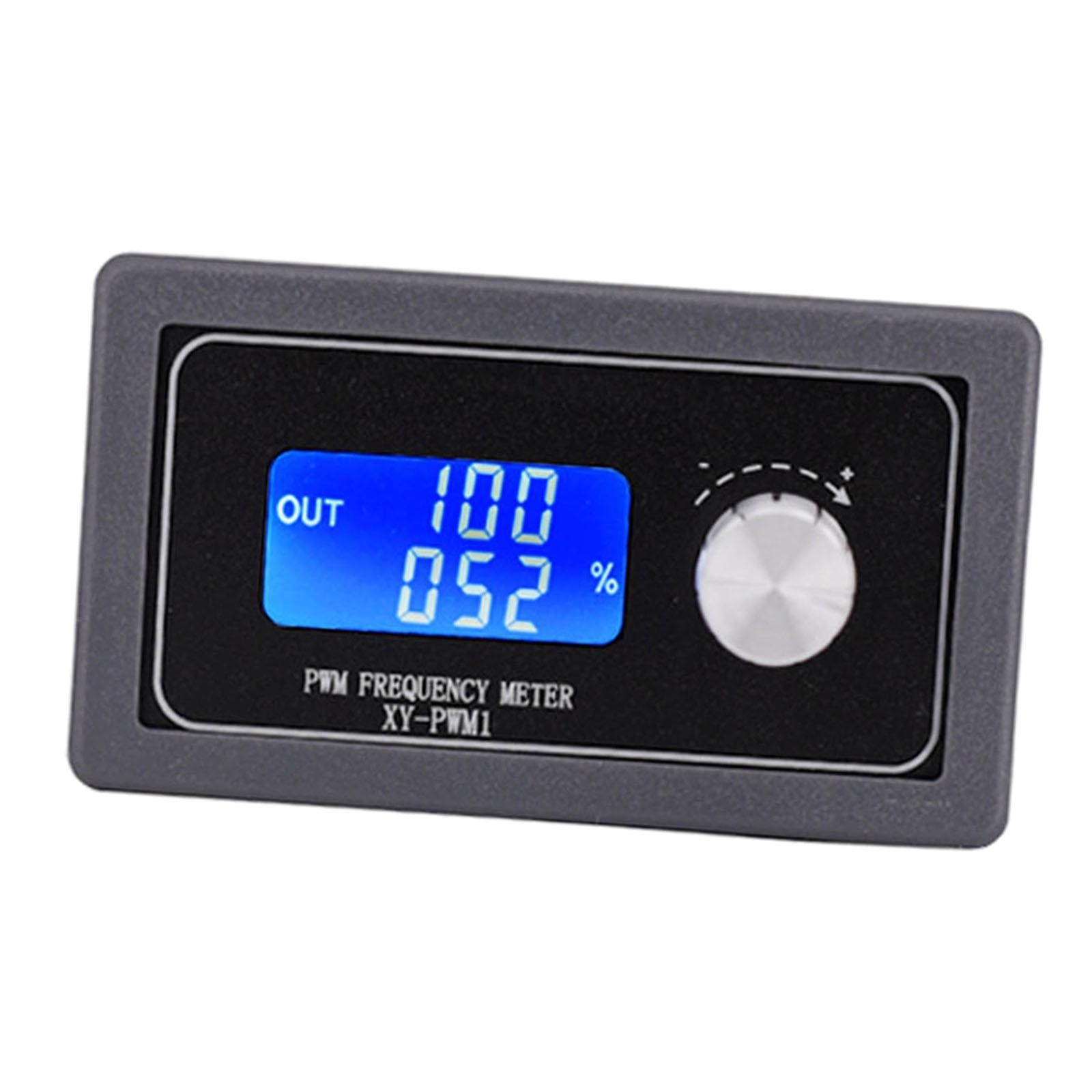

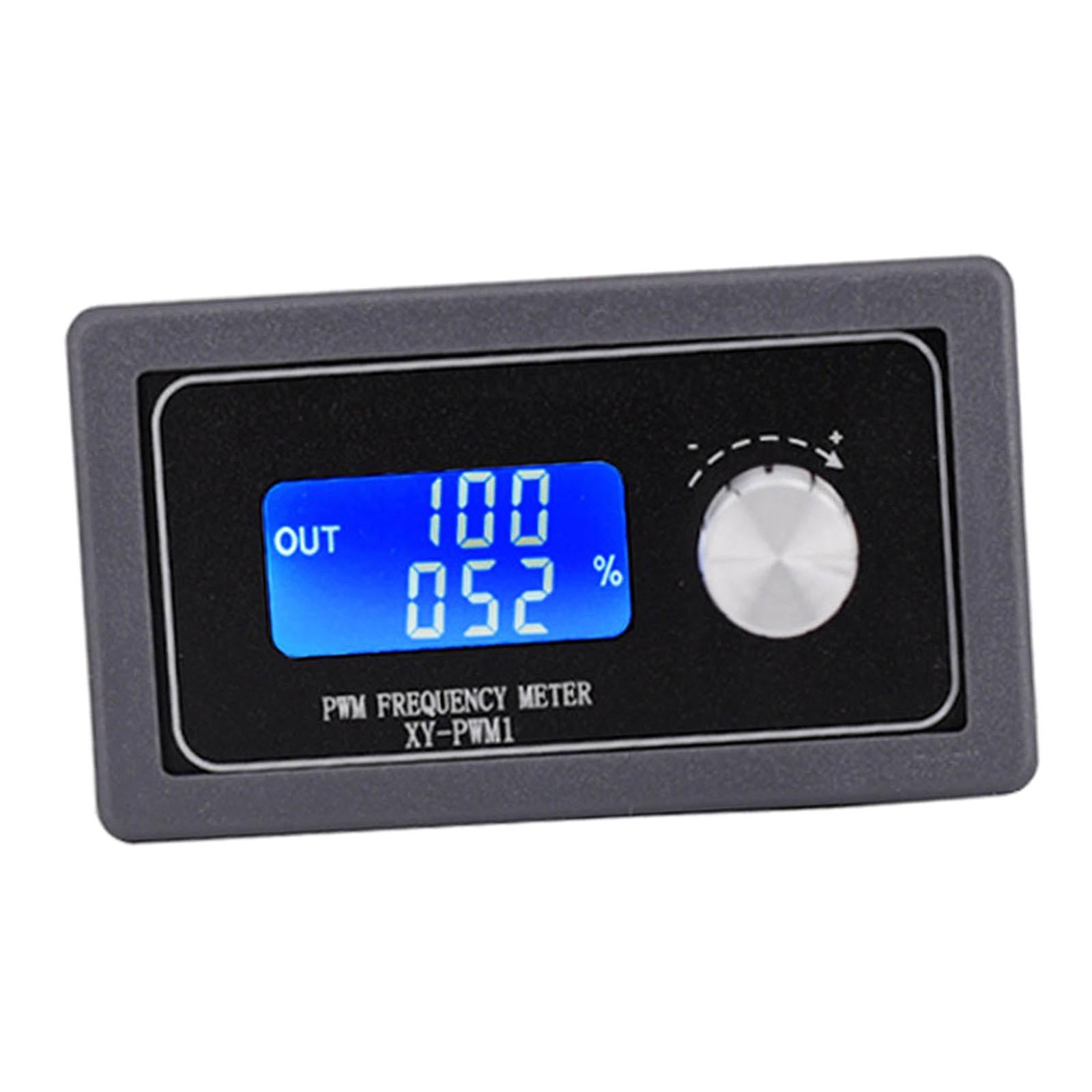

LCD: LCD liquid crystal display frequency and duty cycle, very clear, using encoder potentiometer to adjust, very convenient; PWM output can set frequency and duty cycle separately.
Locking function: with locking function to prevent misoperation.
Frequency: Wide frequency range and high precision.
Serial communication is possible.

Specification:

Material: Plastic
Working voltage: 3.3~30V.
Frequency range: normal mode 1Hz~150KHz; fine mode 1HZ~15KHZ.
Frequency accuracy: the accuracy on each range is about 2%.
Signal load capacity: the output current can be around 5~30ma.
Output amplitude: The PWM amplitude is equal to the supply voltage.
Ambient temperature: -20~+70°C.
Weight: 42g

Size Chart:

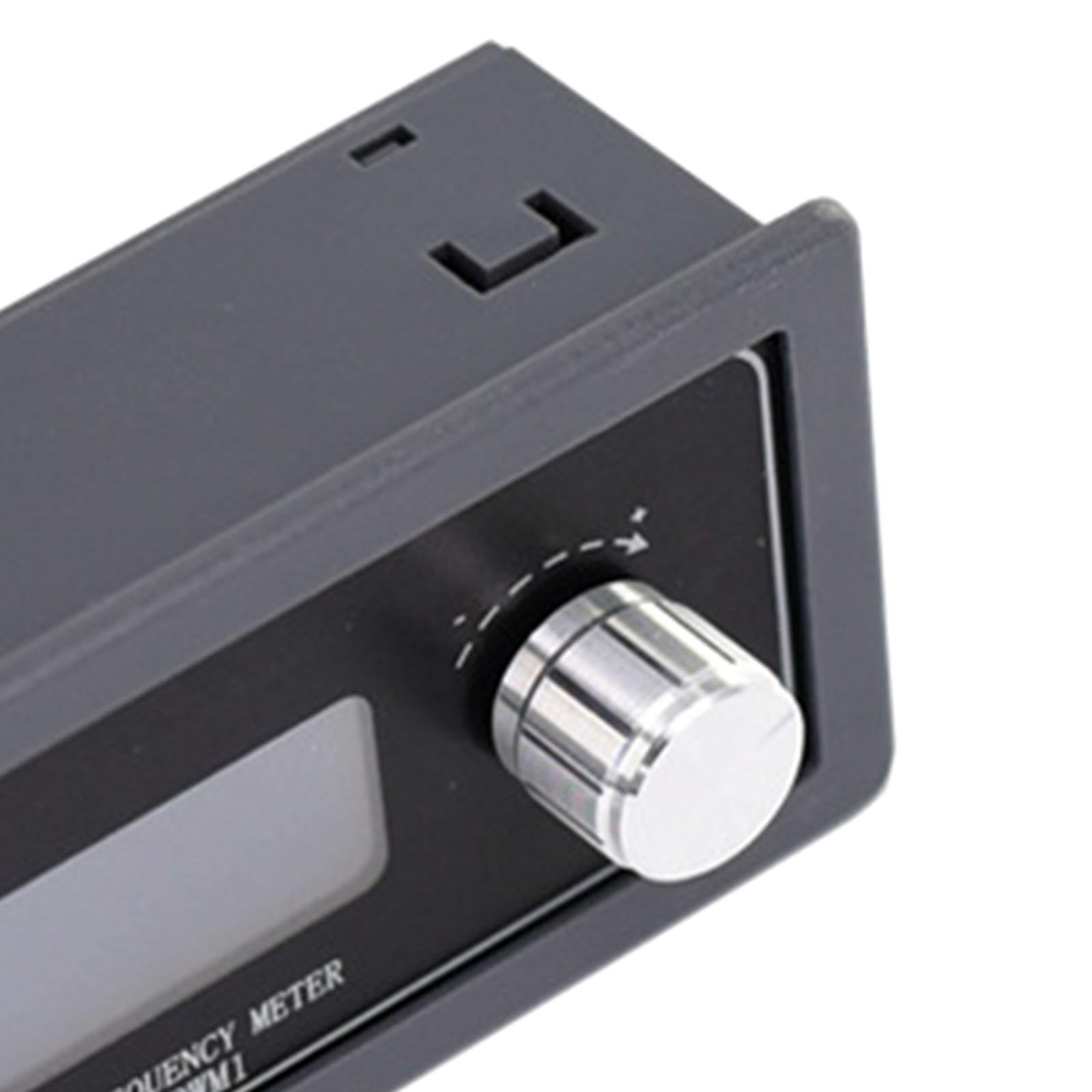

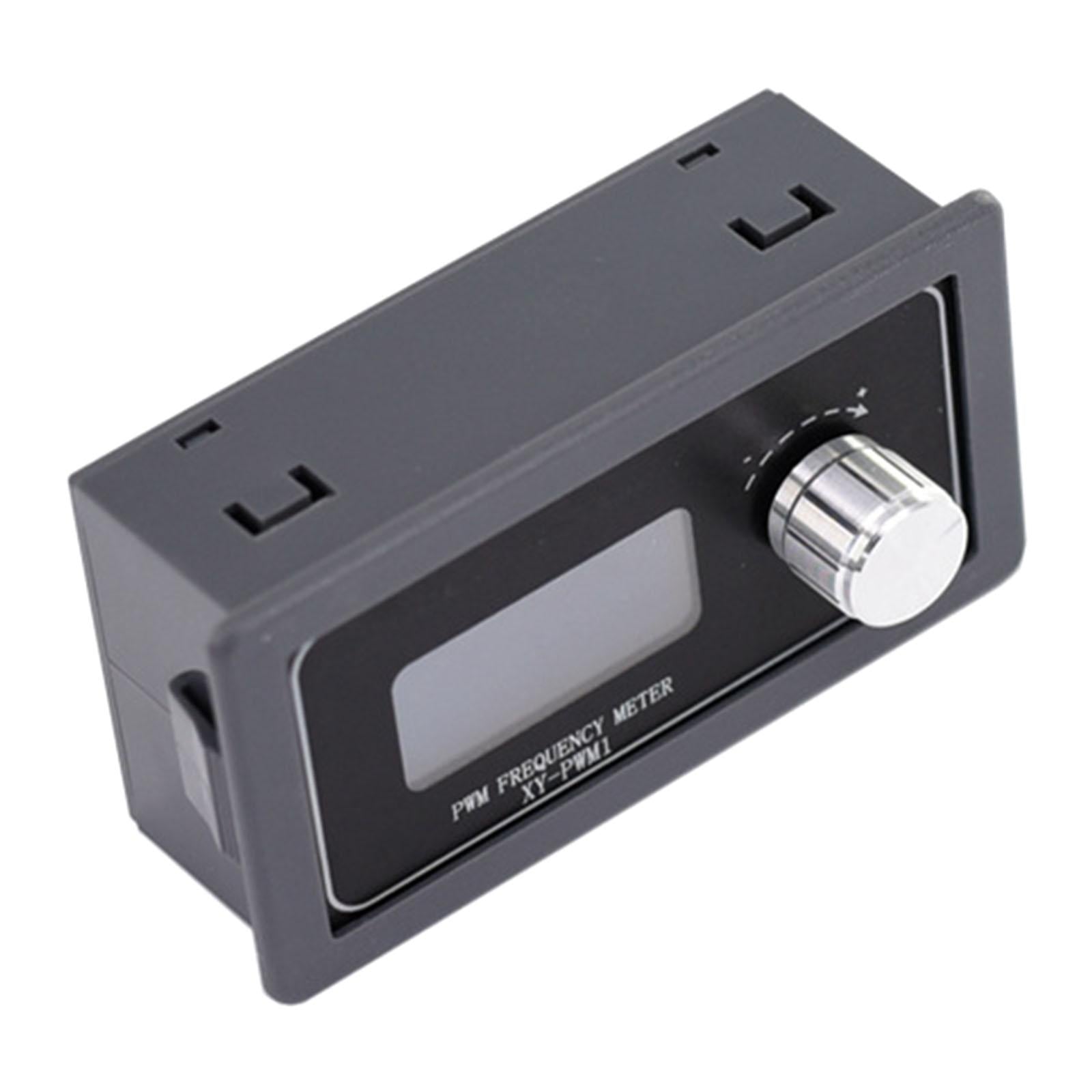

Frame Size: 79x42mm/3.11x1.65inch
Appropriate Opening Size: 74x39.5mm/2.91x1.56inch

Package Includes:

1x PWM Signal Generator
