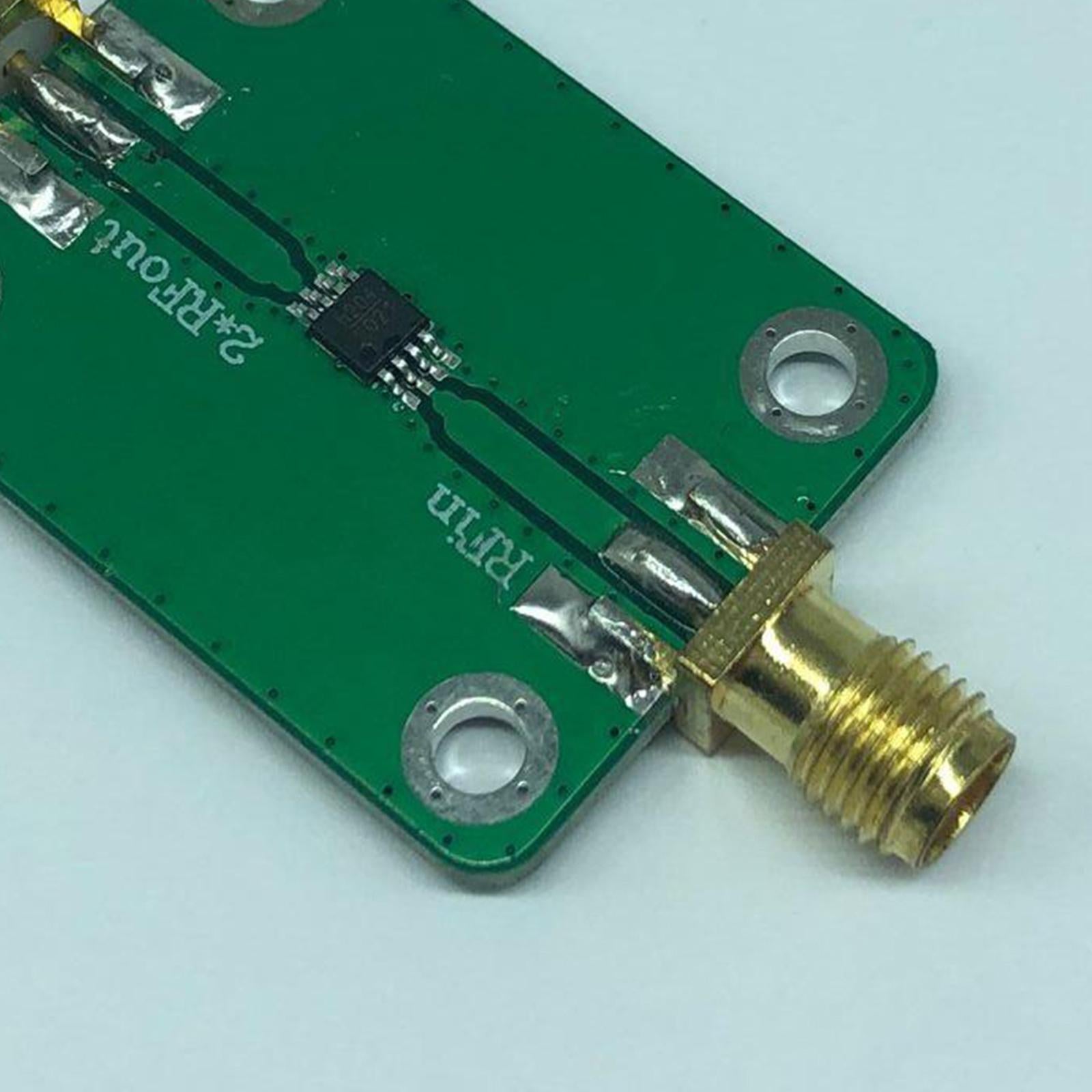

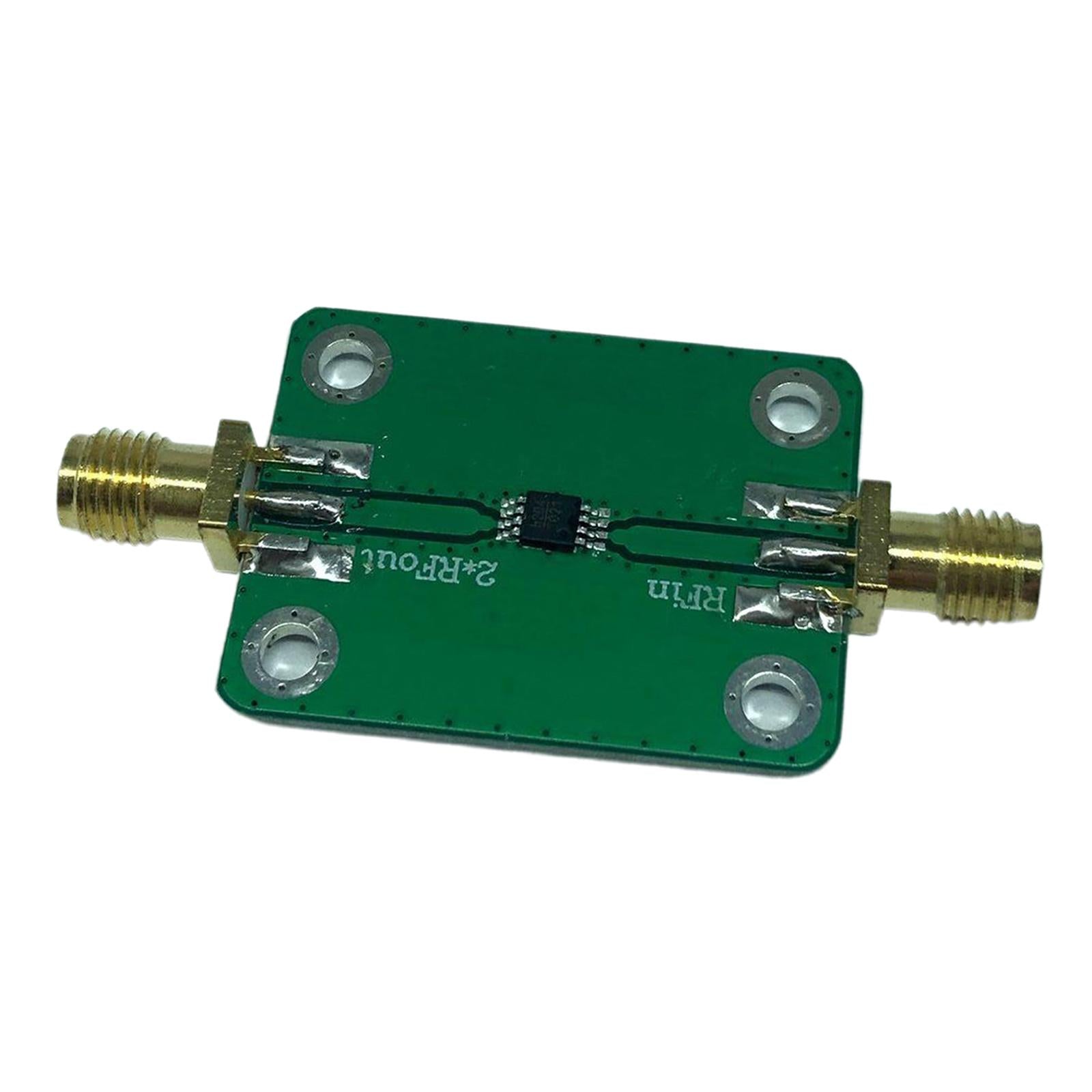

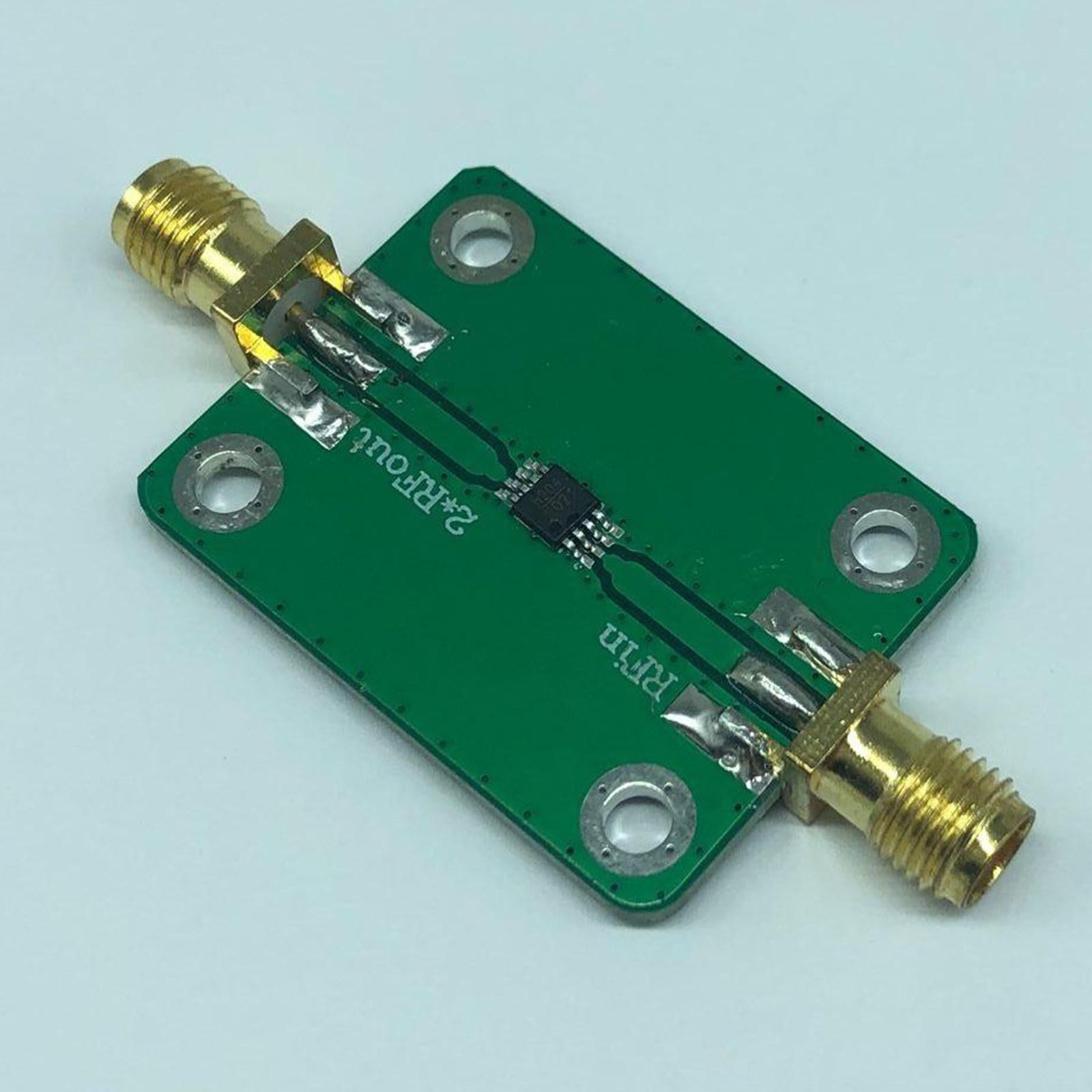

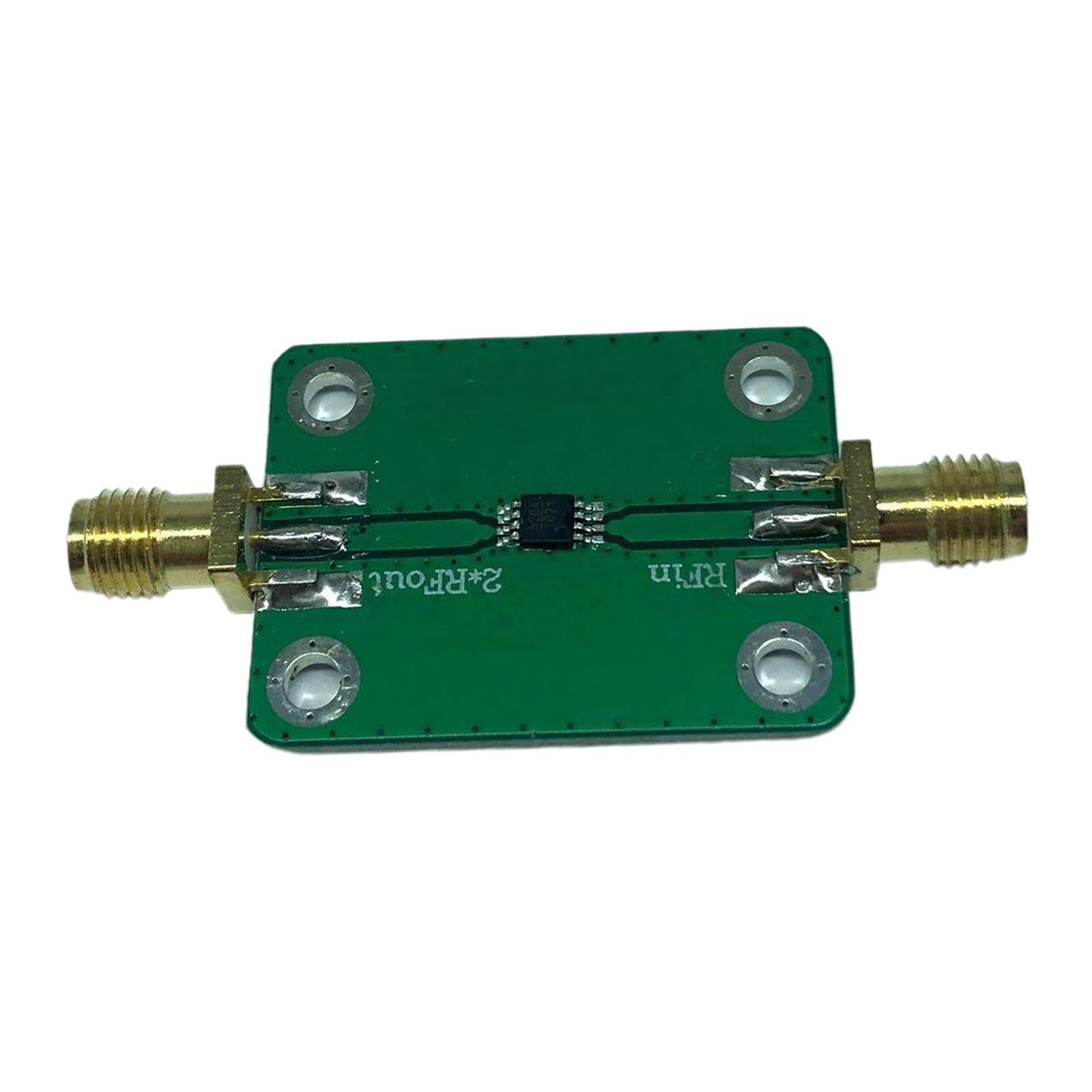

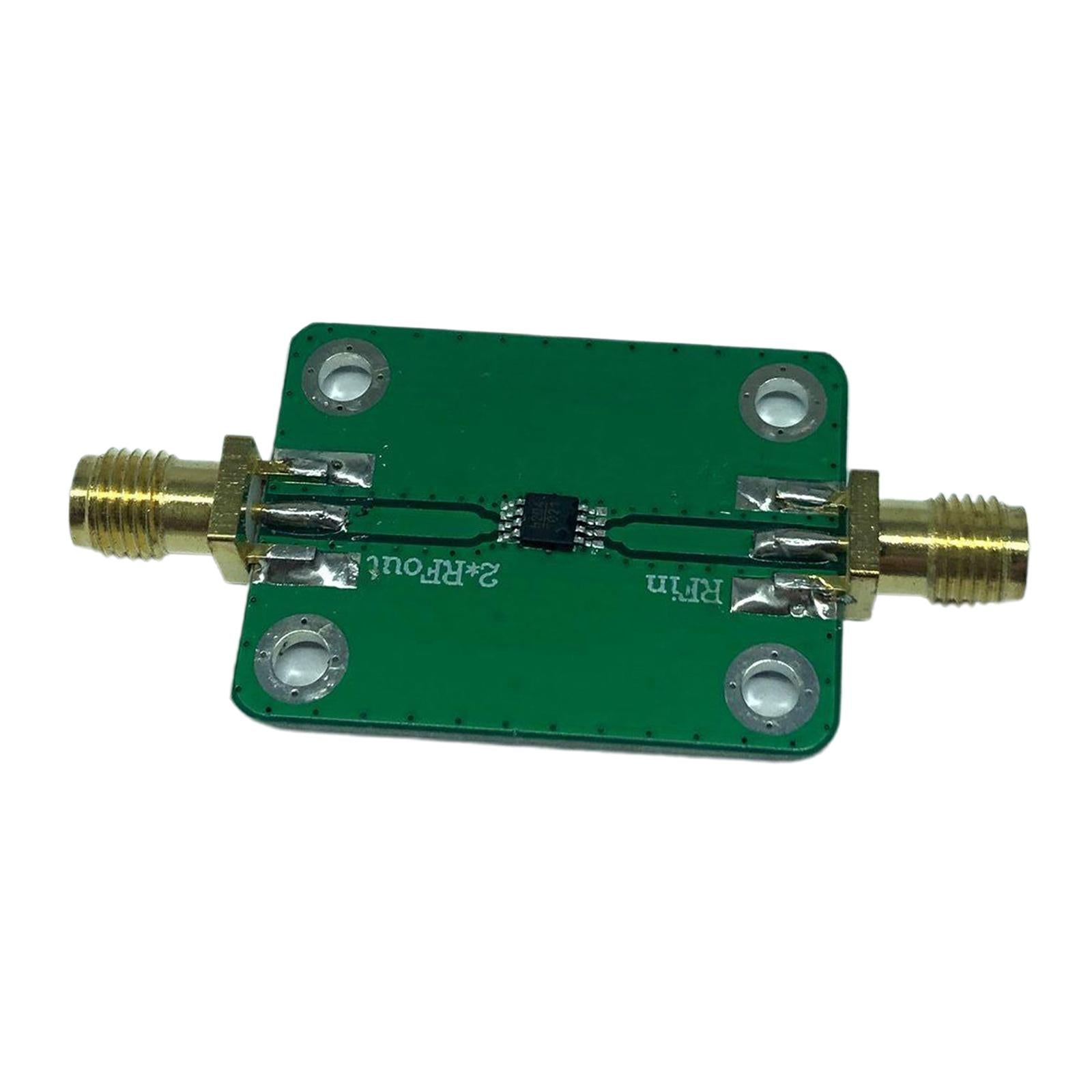

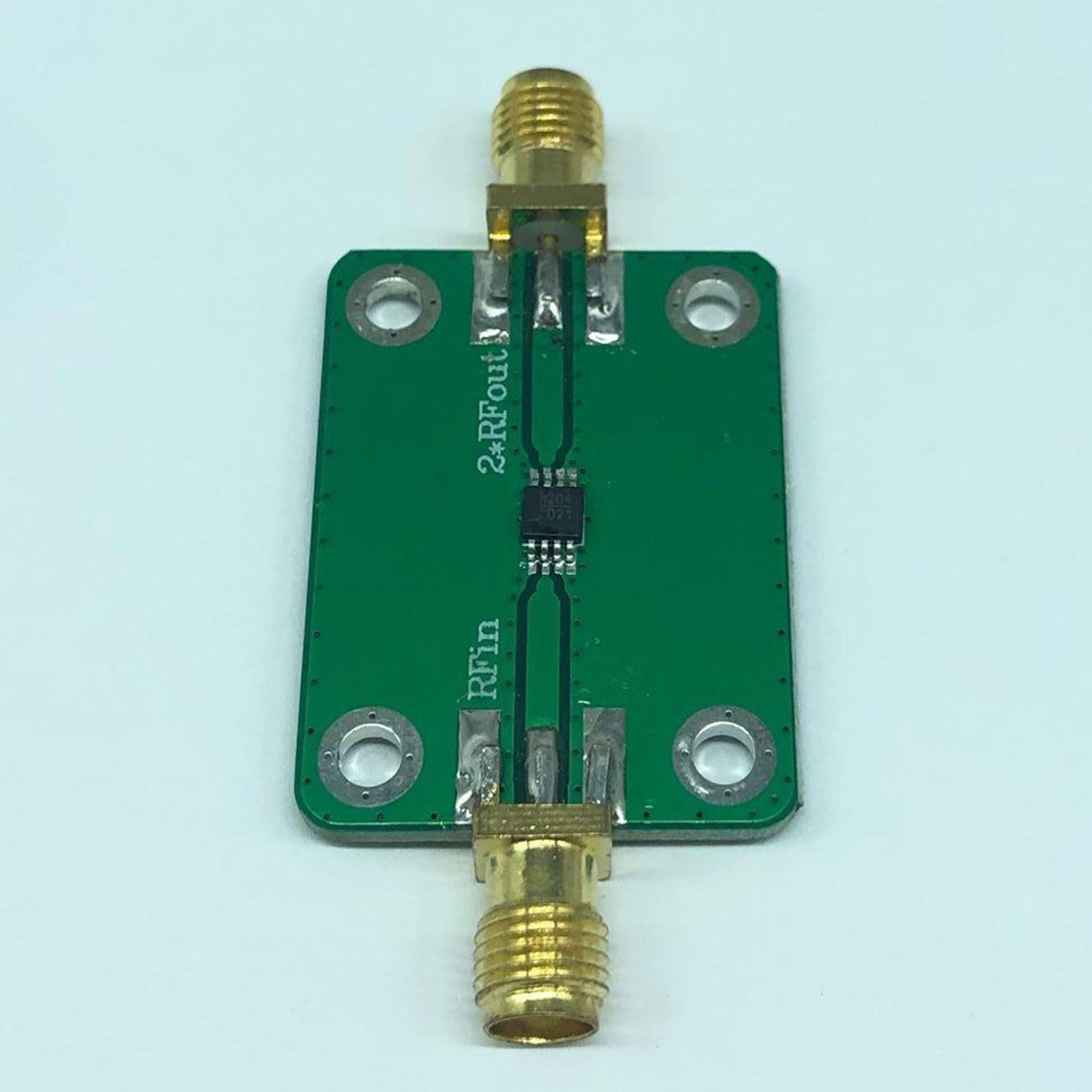

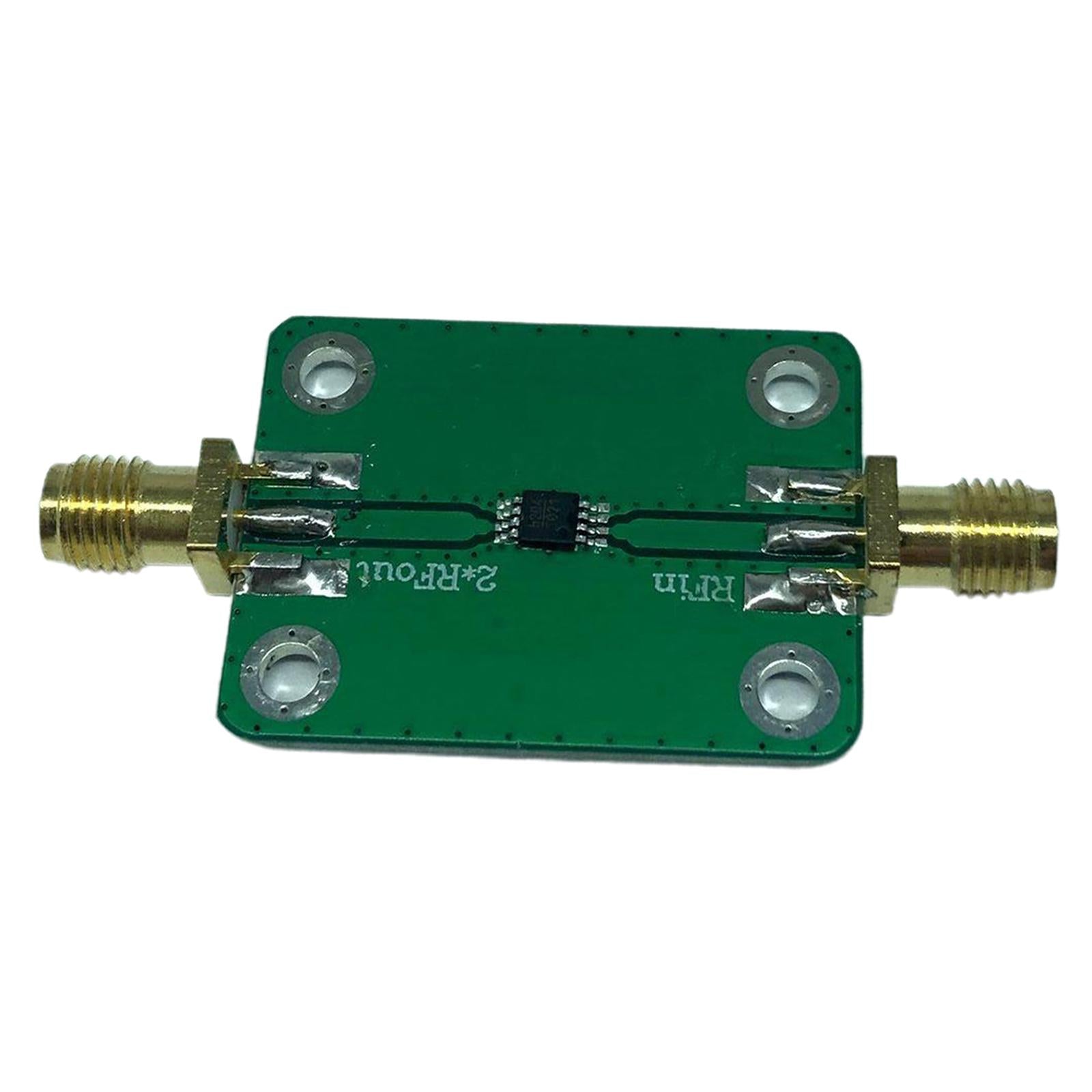

RF Microwave Amplifiers Frequency Multiplier Input power: +10dBm--+15dBm

Description:

Frequency multiplier (frequency multiplier) makes the output signal frequency equal to an integer multiple of the input signal frequency.
The input frequency is f1, then the output frequency is f0=nf1, and the baby coefficient n is 2.
The frequency multiplier is widely used. For example, after the transmitter adopts the frequency multiplier, the main oscillator can oscillate at a lower frequency to improve the frequency stability; the frequency modulation equipment uses the frequency multiplier to increase the frequency offset; in the phase keying communication machine Among them, the frequency multiplier is an important component of the carrier recovery circuit.
Size:Approx.33x25x10mm/1.30x0.98x0.39inch
Color:Green

Specification:

1.Power supply voltage: no power supply is required, and passive frequency multiplication devices are used.
2.Input frequency: 4.0-8GHz input, output frequency range 8.0--16.0GHz.
3.Input power: +10dBm--+15dBm, typically +13dBm input.
4.Frequency doubling loss: 17dB
5. Isolation: 42dB (1F0, 3F0, 4F0)

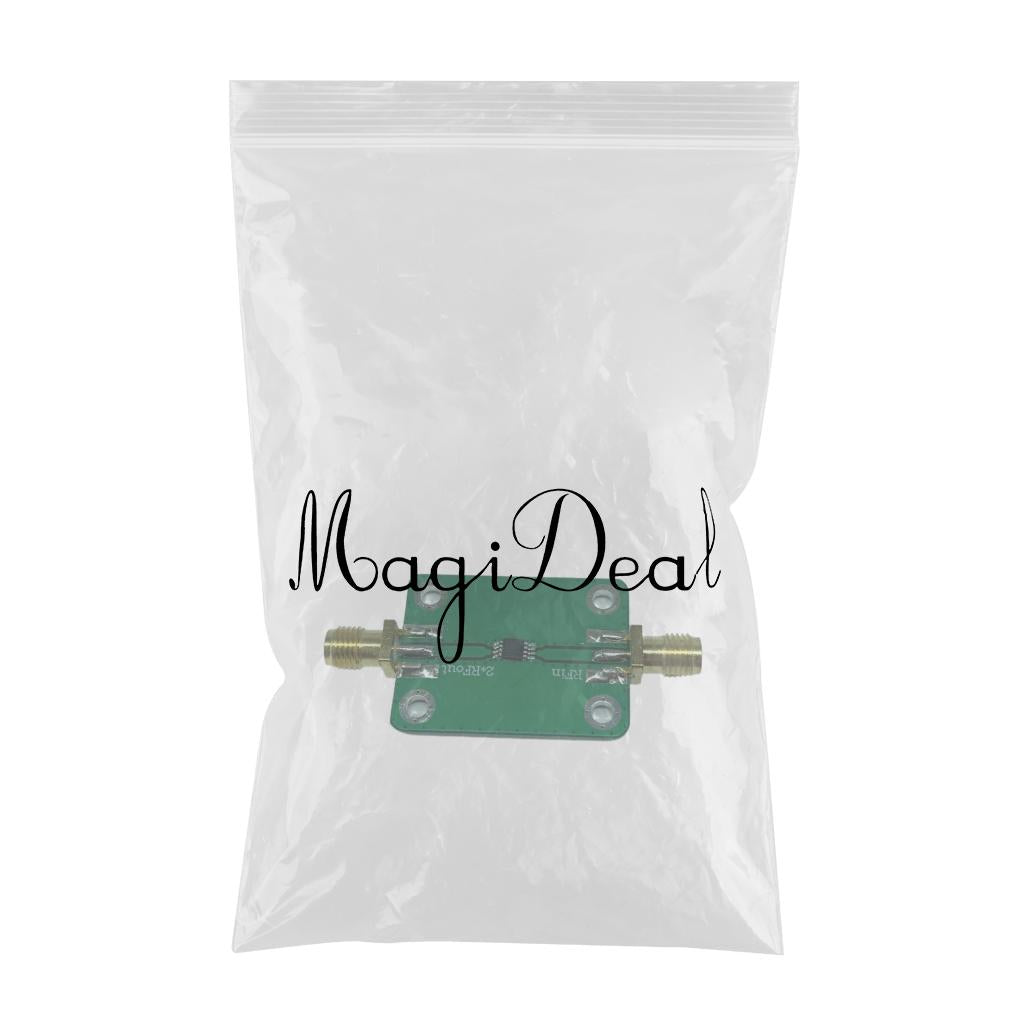

Package Includes:

1 Piece Frequency Multiplier

Note:

Due to the difference between different monitors, the picture may not reflect the actual color of the item.
Due to manual measurement, there may be 1-2cm error in size.
