S6609 Stepstick Stepper Motor Driver Module UART Silent Drive for 3D Printer

Description:

The maximum continuous current is 2A, and the peak current is 3A. The current can be adjusted by adjustable resistance or software
Based on GC6609, S6609 Stepper Uart Motor Driver, 4 layers 2OZ immersion gold TG155PCB .STEP/DR interface, input pulse 2/4/8/16 subdivisions are optional, and the internal automatically increase to 256 subdivisions.Super low motor noise.
The built in automatic gain control loop (AGC) realizes automatic adjustment and compensation of torque for variable loads to ensure consistent torque.
It can work in a wide operating voltage range of 4~36V, comprehensive output protection,including over temperature
protection,under voltage protection,output short circuit protection etc.
FLAG function abnormal indication, StepStick module pin compatible, support Uart mode. When the motor is on hold,the automatic power saving function is turned on.

Specification:

Operating Mode: STEP / DIRORUART
Power Voltage (VM): 4-36V
Peak Current: 3A
Current RMS: 2A
Max Microsteps: 256
Microstep Setting: 2, 4, 8, 16 (can be divided into 256)
S6609 stepper motor silent driver module, fully compatible with 2208

Size Chart:

Material: electronic components
Size: 20x15mm/0.79x0.59inch

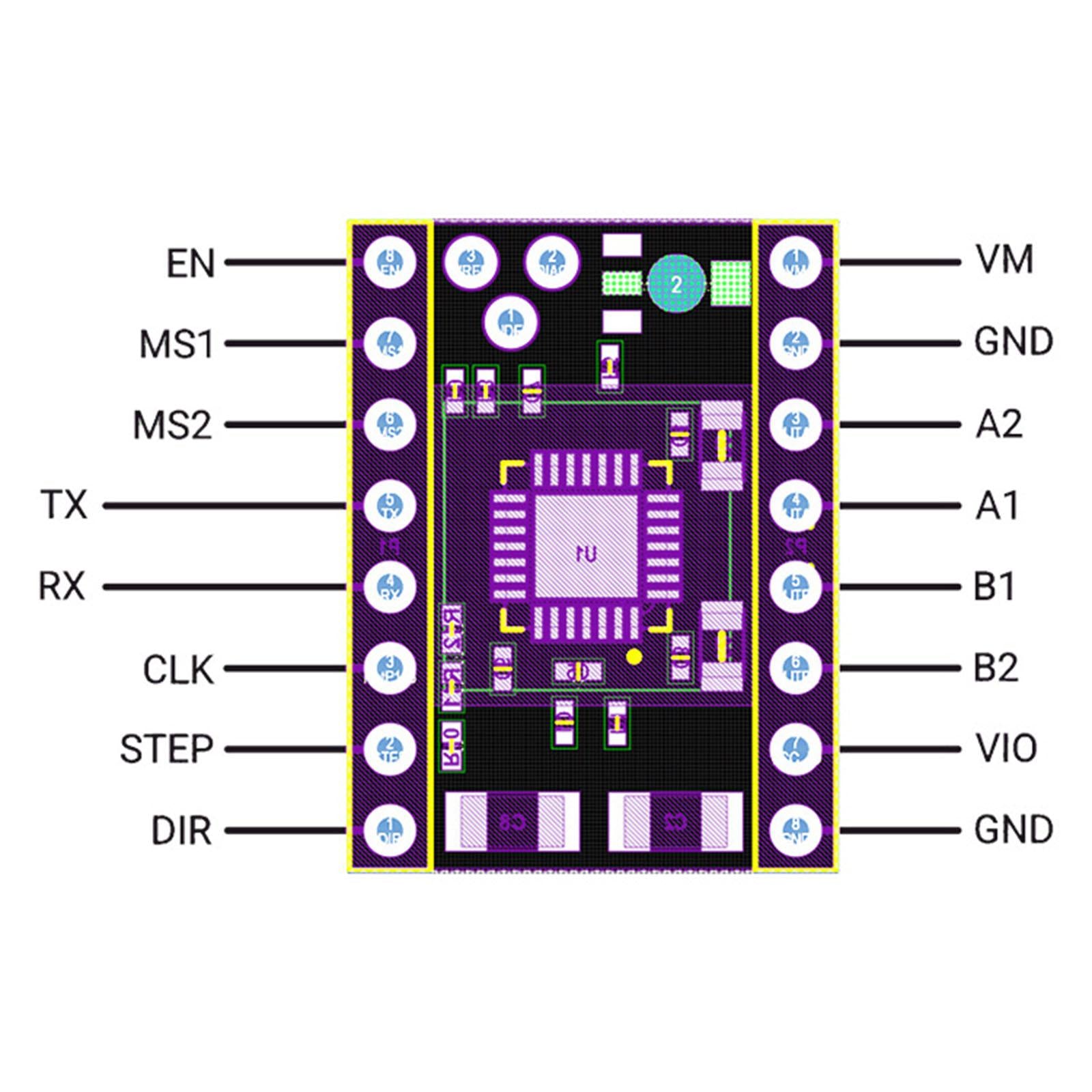

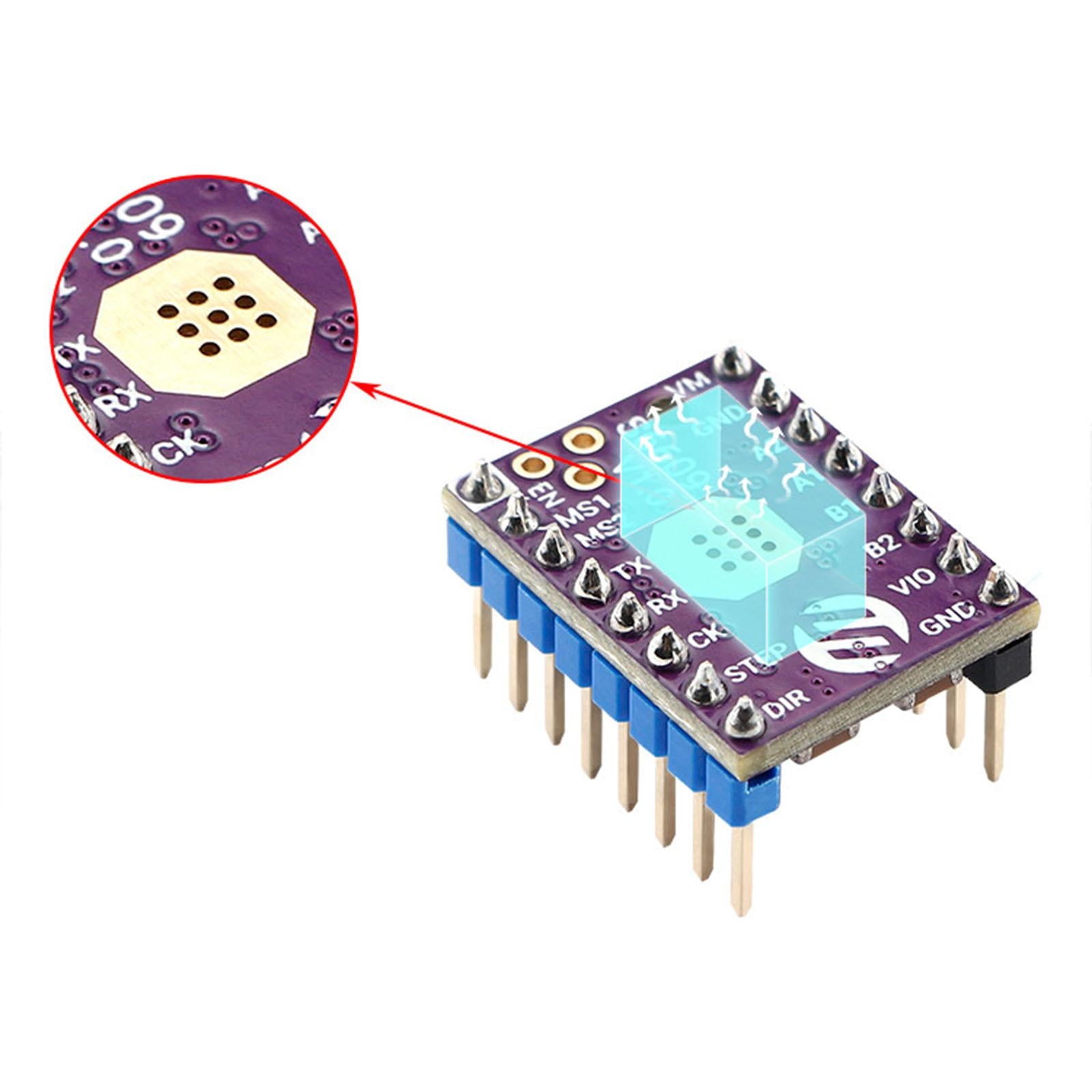

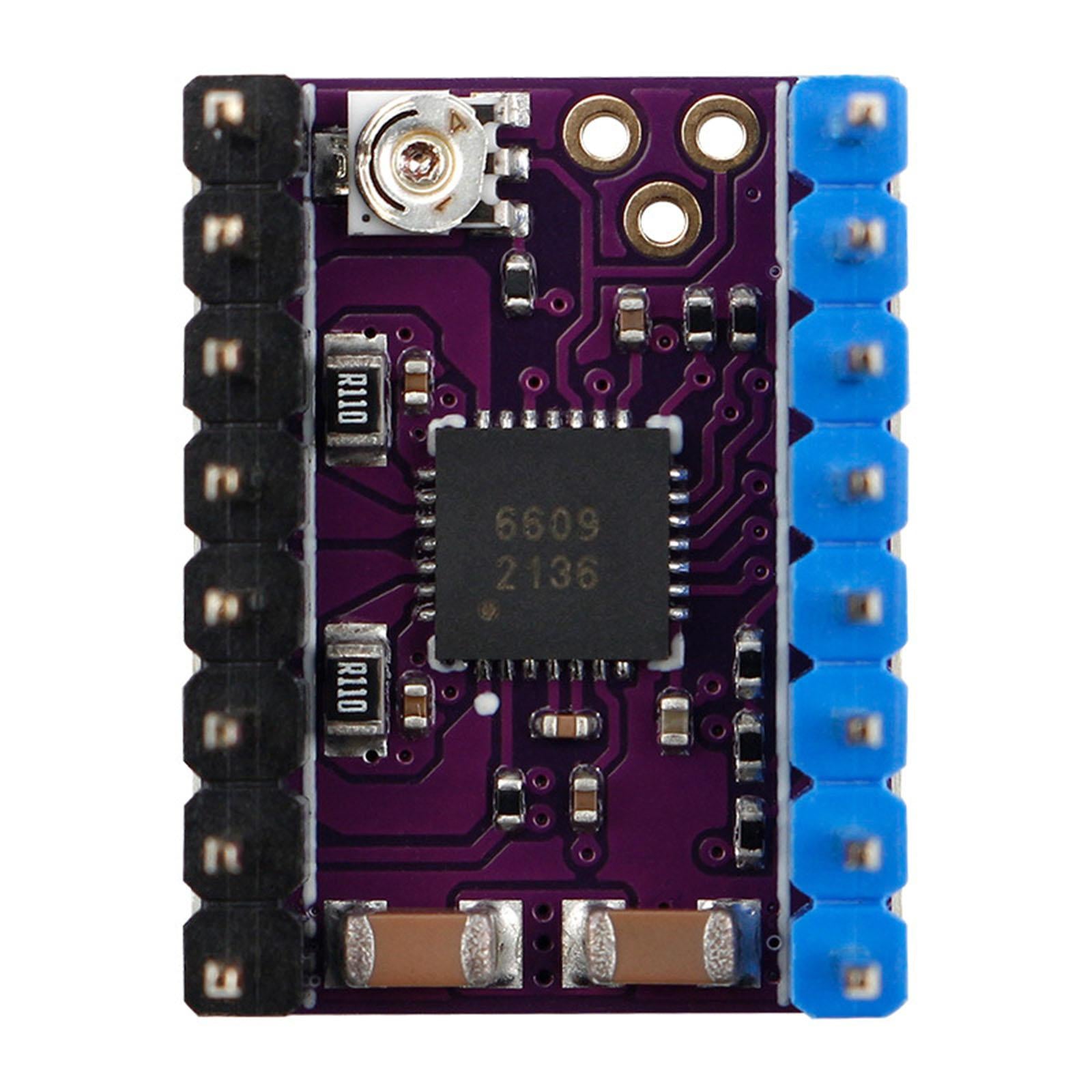

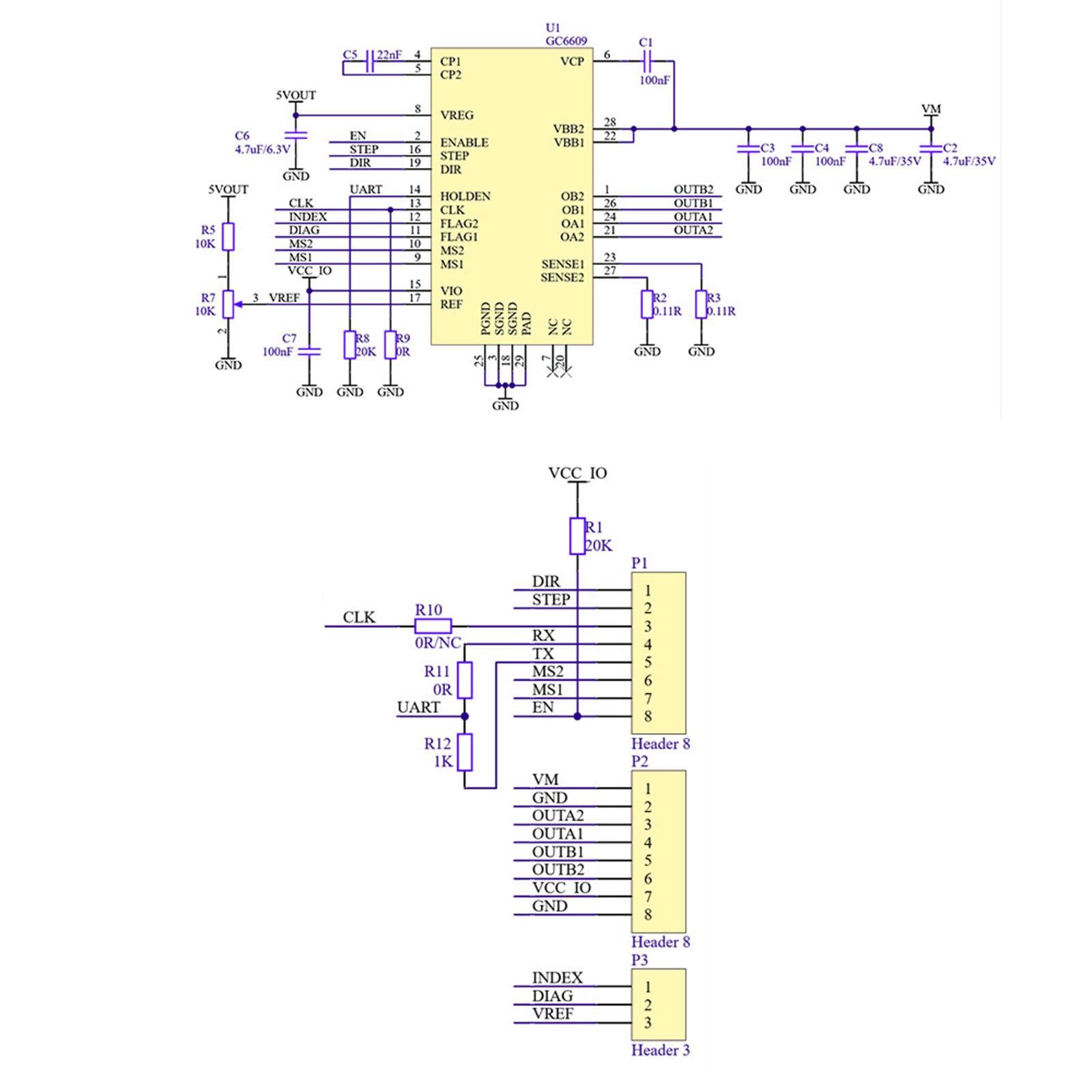

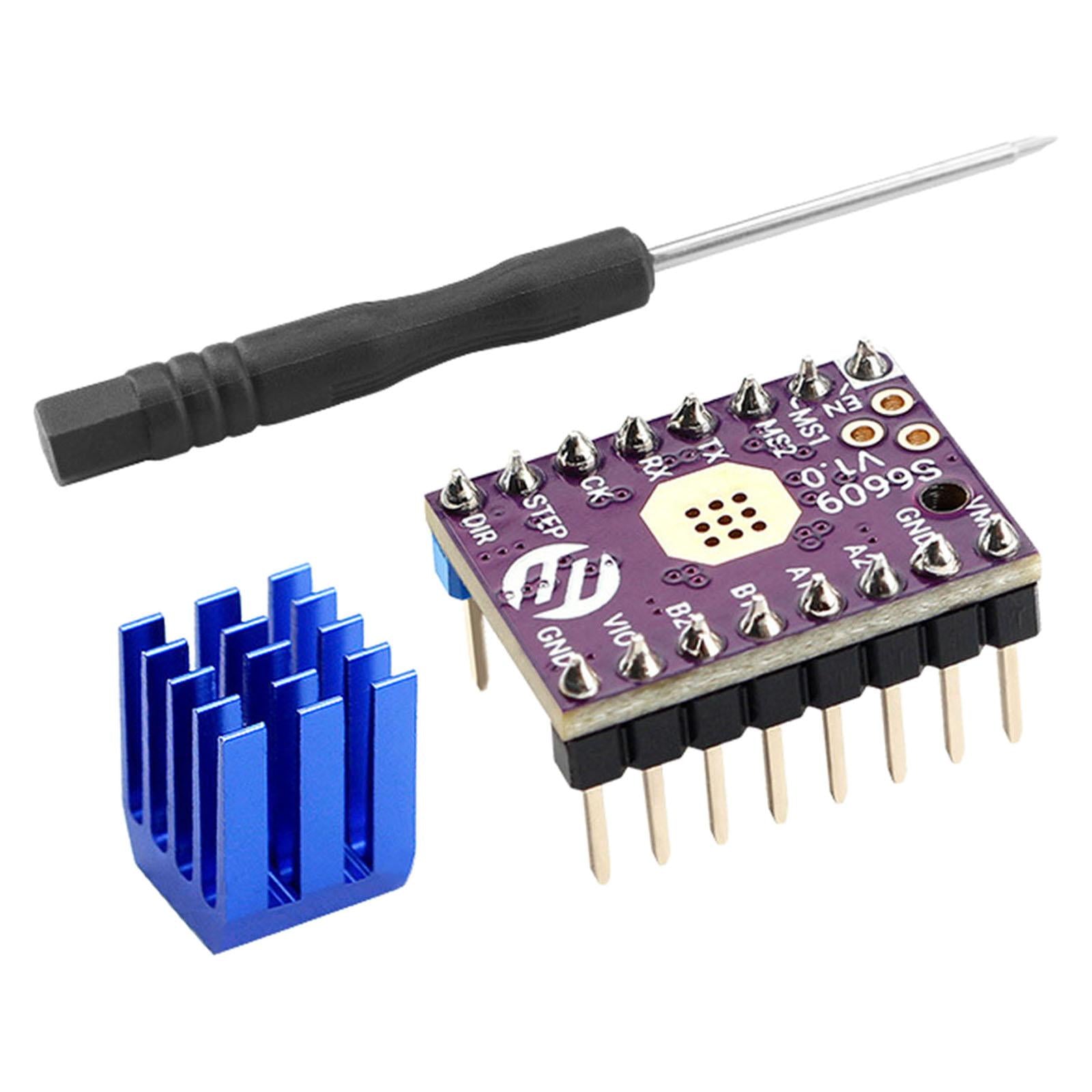

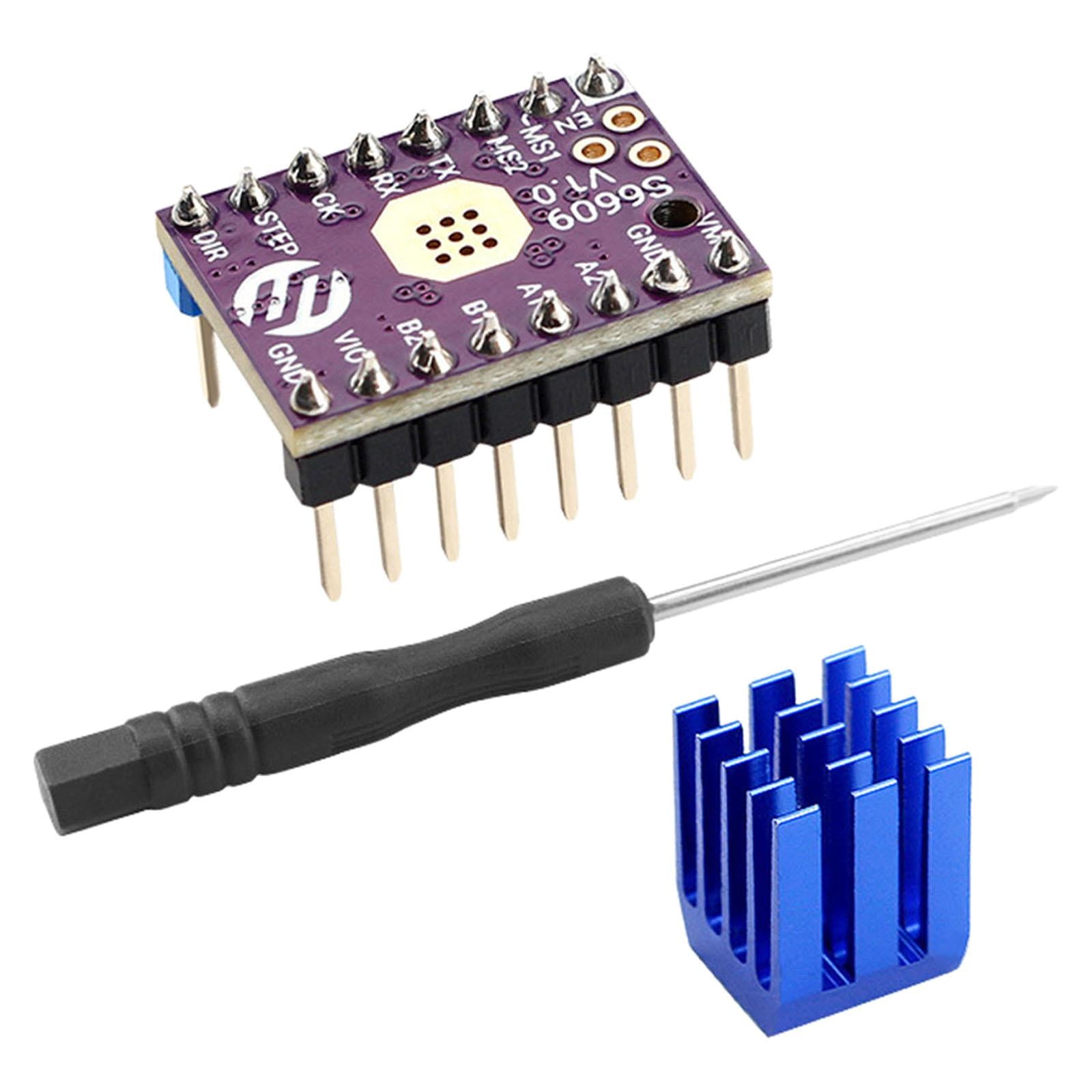

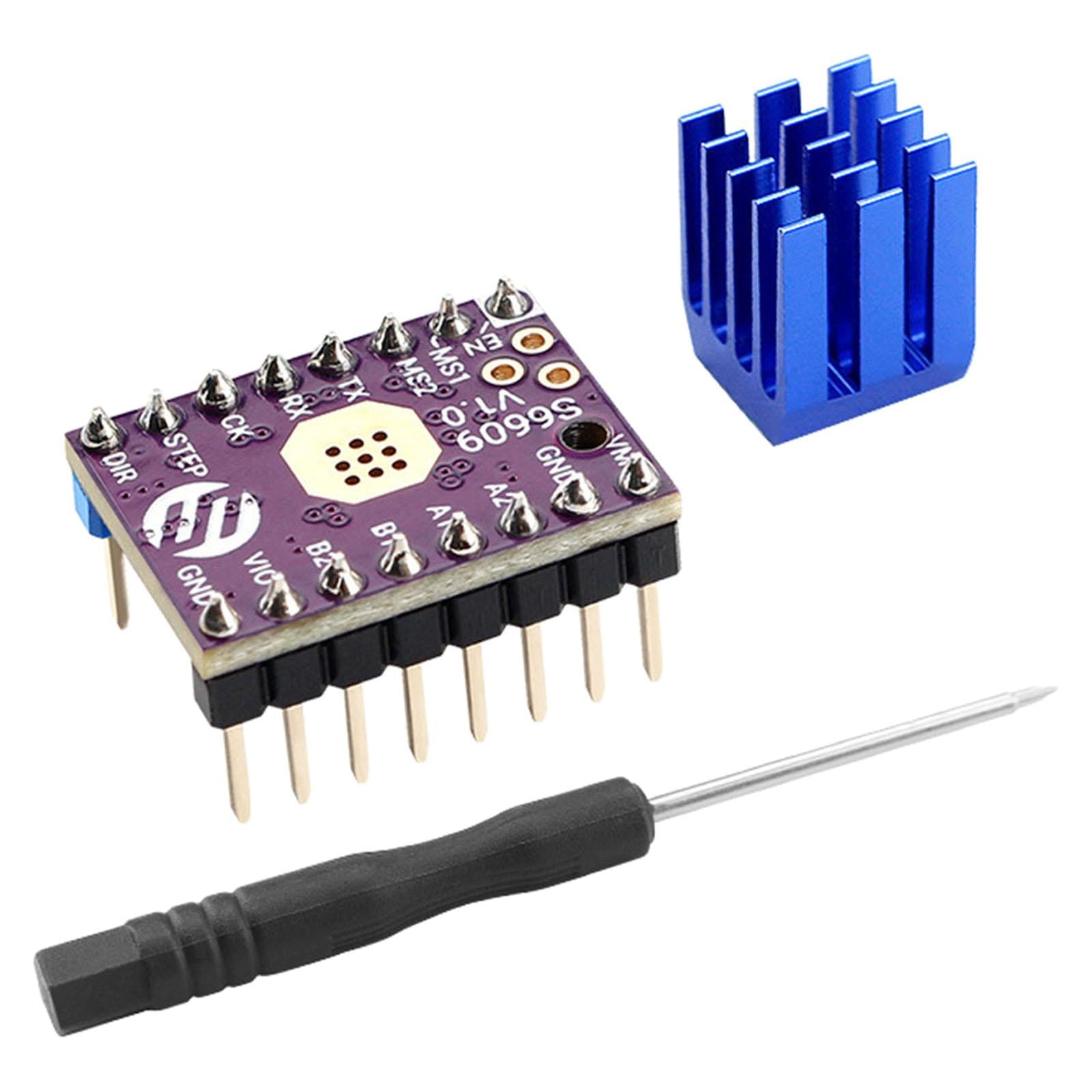

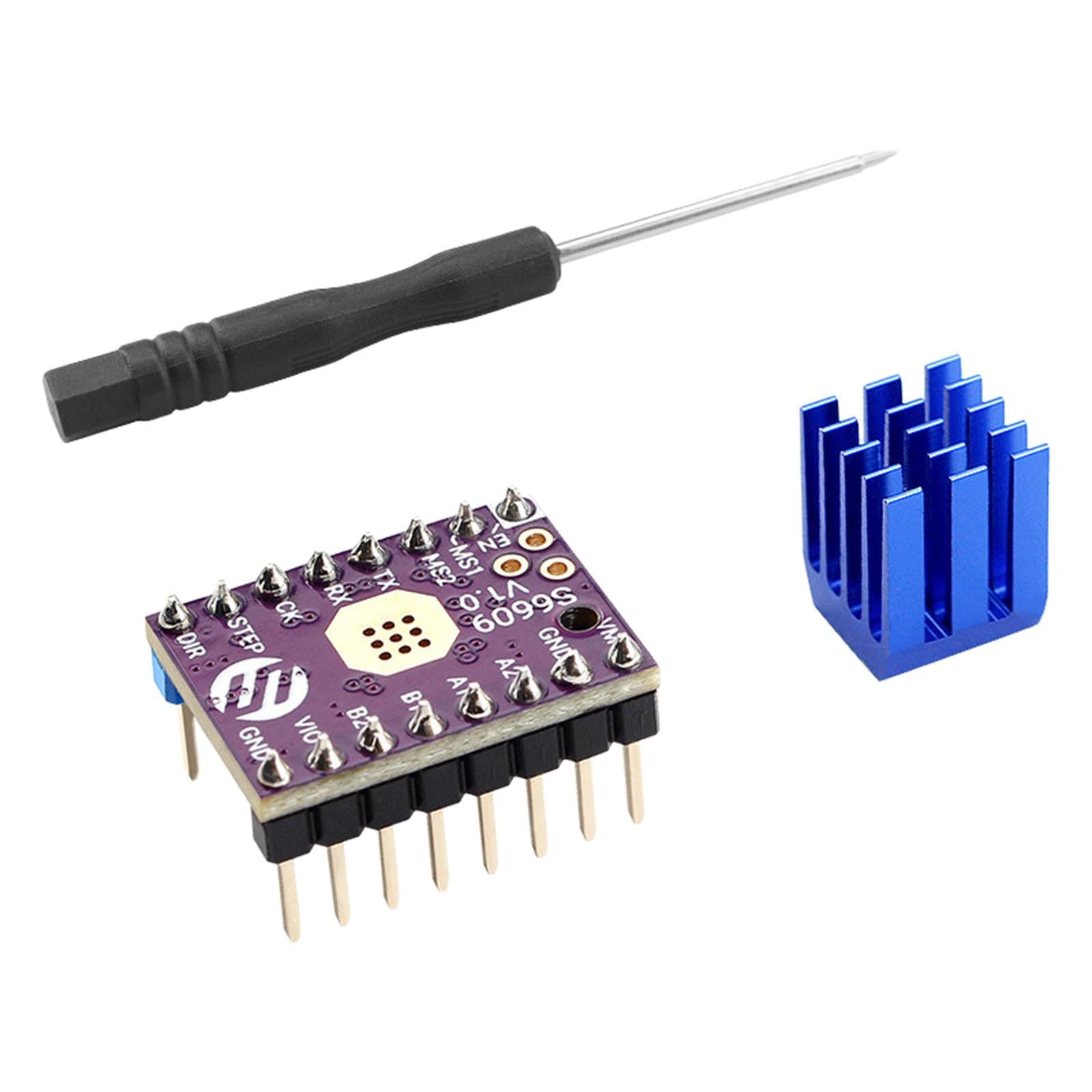

Package Includes:

1 Piece S6609 Stepper Motor Driver Module
1 Piece Heat Sink
1 Piece Screwdriver
