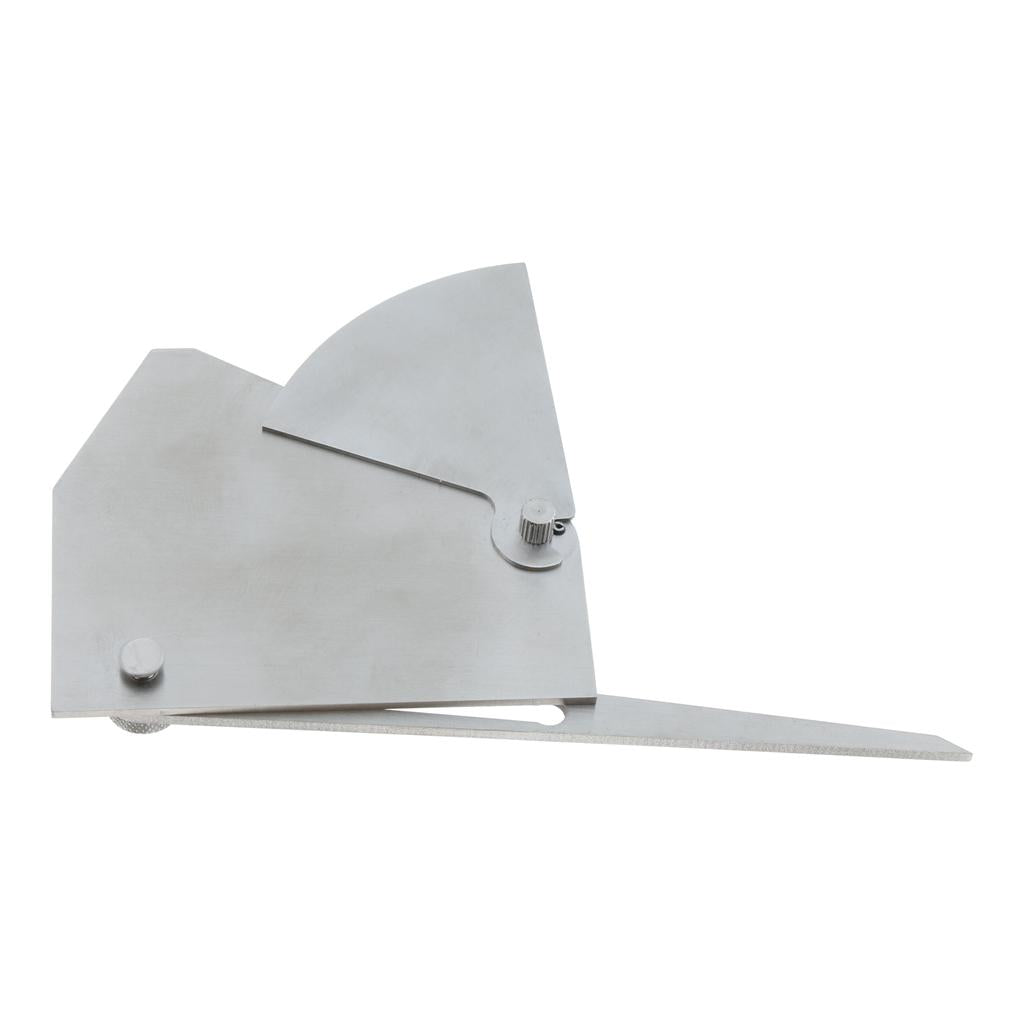

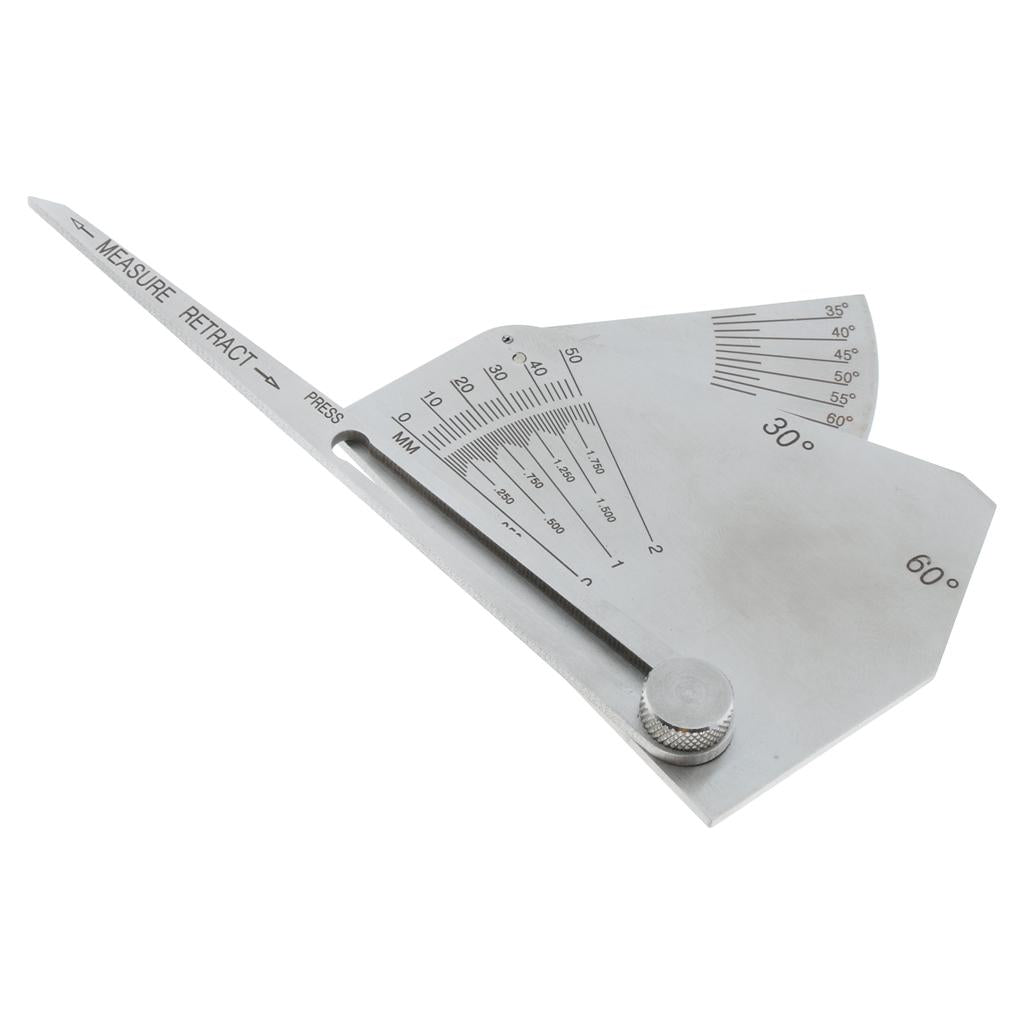

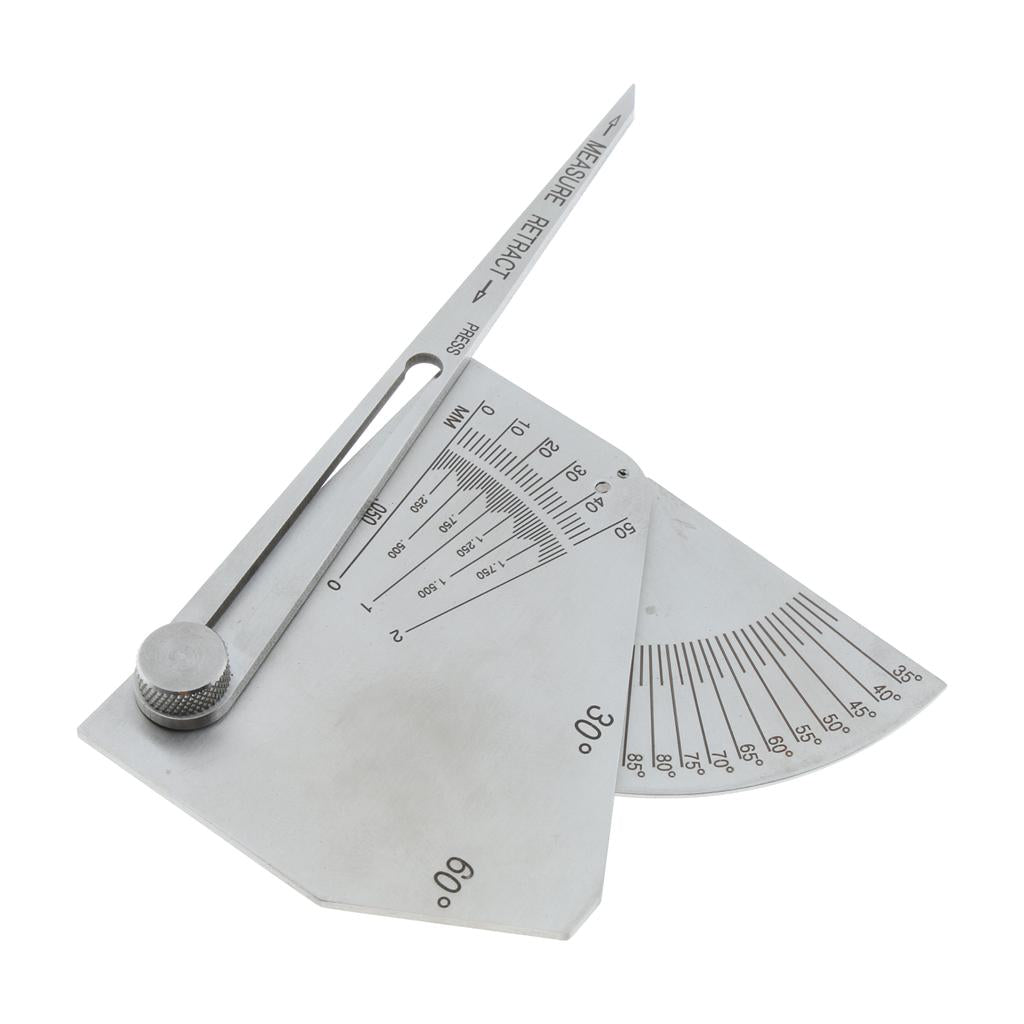

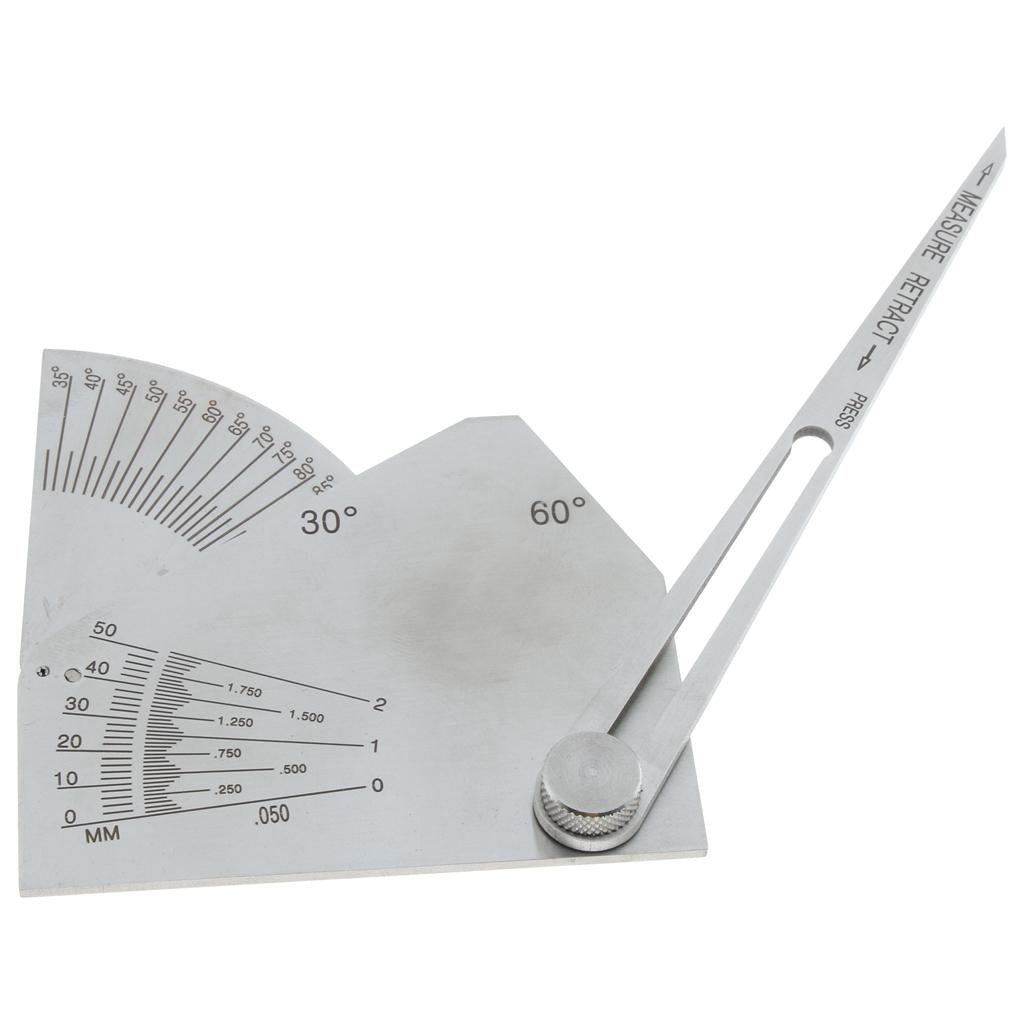

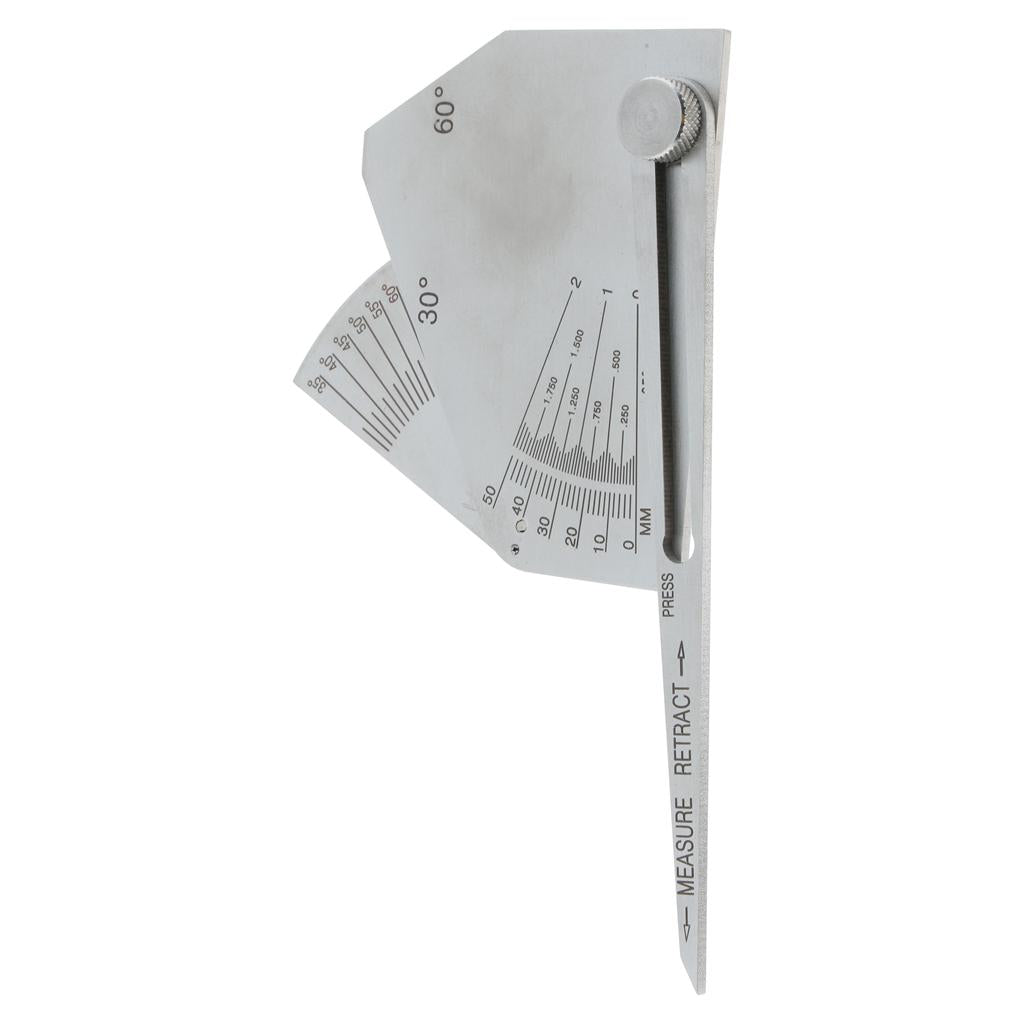

SKEW-T Fillet Weld Gauge Welding Angel Inspection Gage Ulnar Test Ruler

Description:

The gauge inspect angle of the skewed member: 30-90 Degree.

Laser engraving,accurate figures and increments are etched into surface.

SKEW-T Fillet Welding Gauge is Metric reading.

Made of stainless steel,not easy to rust, not easy to bend.

Packed in plastic box with instruction for use.

Specification:

Material: Stainless Steel

Color: Silver

Size(L*W): Approx. 12 x 6.5 cm / 4.72 x 2.56 inch

Metric

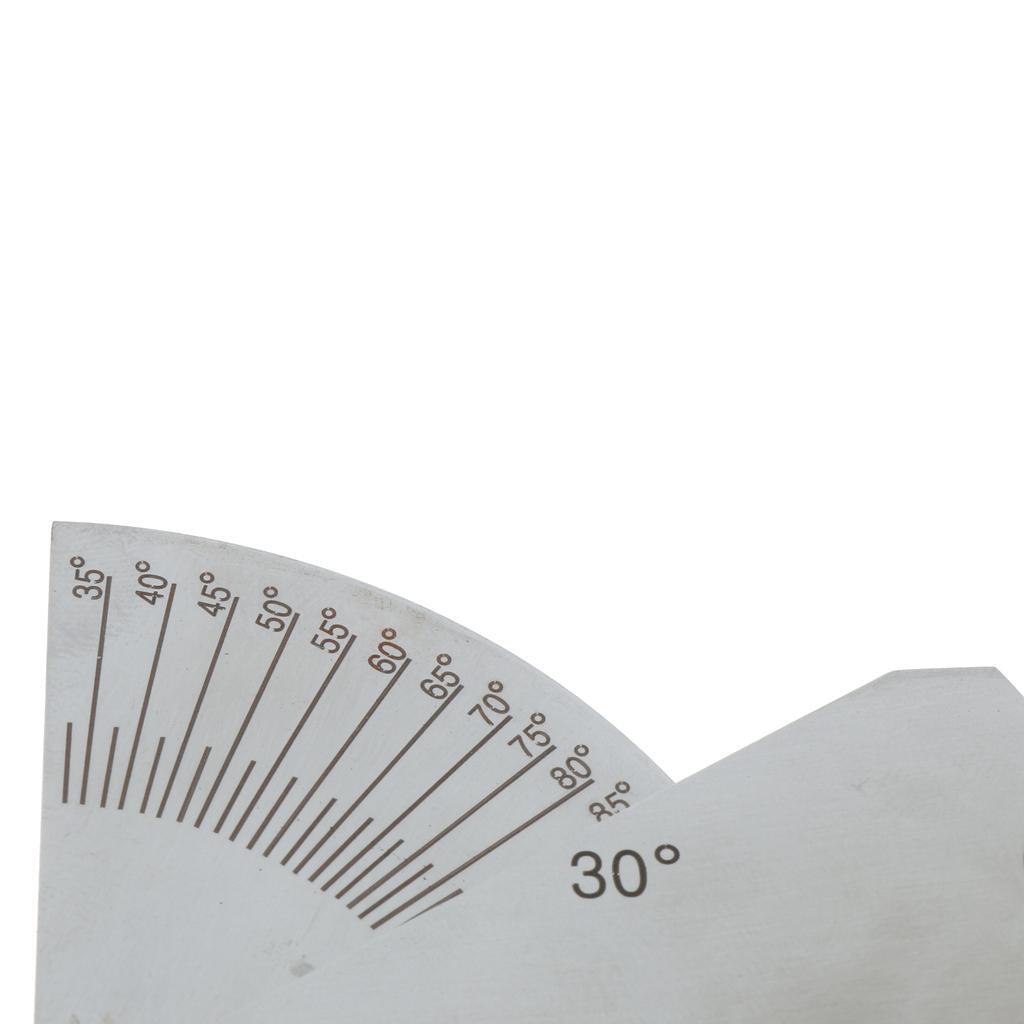

1.Angle of the skewed member: 30-90°

2. Theoretical Throat (in Inch): 0-1.2''

3. Leg Size of Fillet (in Inch): 0-1.6''

4. Inspection Dimension (in Inch): 0-1.6''

Inch

1.Angle of the skewed member: 30-90°

2. Theoretical Throat (in Metric): 0-30mm

3. Leg Size of Fillet (in Metric): 0-40mm

4. Inspection Dimension (in Metric): 0-40mm

Package Includes:

1 Piece SKEW-T Fillet Weld Gauge

Note:

1. Do not stack the welding inspection rule together with other tools to avoid scratches caused by deformation, blurred lines and damaged accuracy.

2. Do not scrub the calibration with amyl acetate.

3. Do not use the gap indicator on the multipurpose gauge as a tool.
