Software Radio Module MSI.SDR Receiver Non-RTL 12-bit ADC Aluminum Case

Description:

Exquisite and sturdy aluminum casing, has a long service life.
Higher sensitivity and fine selectivity.
More often low background noise.
Compatible with all SDRPlay RSP1 software, can receive HF short waves directly without the need of an upconverter, covers all amateur bands, aeronautical bands LF to HF, VHF, UHF, it is possible to see the entire amateur band spectrum at the same time.
Support for mainstream SDR software, available extio-based plugins, support for multi-system platforms.

Specification:

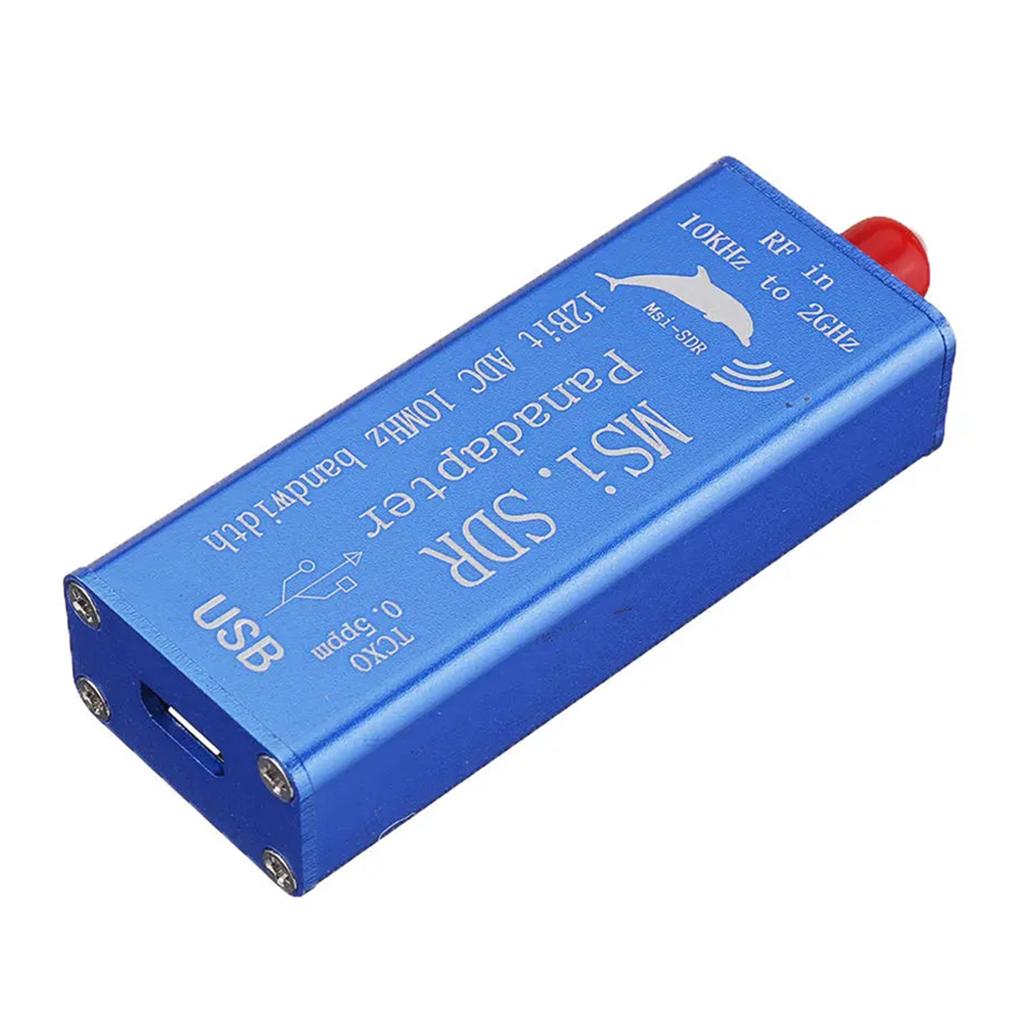

Case Material: Aluminum

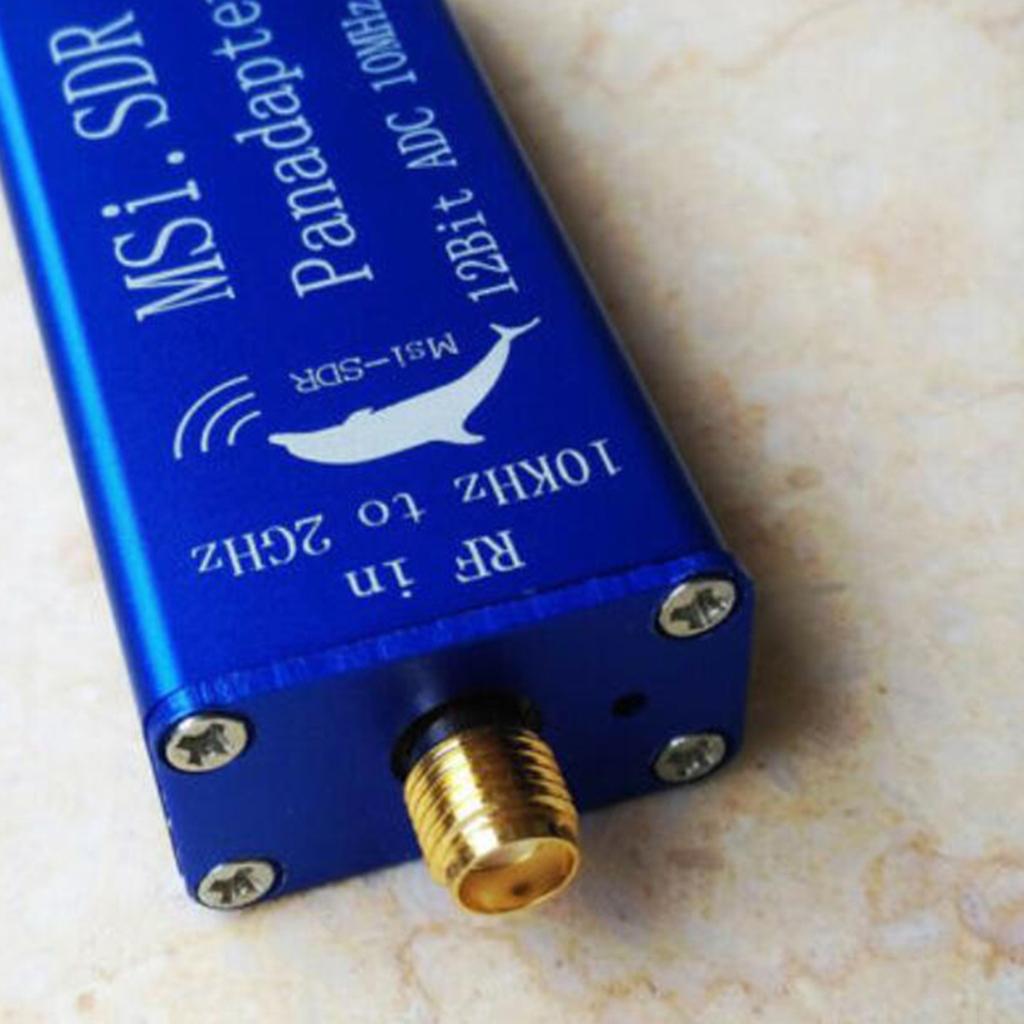

Simple USB interface (micor jack), SMA antenna connector.
USB power supply, does not have a separate power supply.
Frequency continuous coverage from 10KHz to 2GHz.
12-bit ADC chip (not the kind of RTL chip)
Built-in front end filter.
Built-in TCXO (temperature-compensated crystal oscillator) 0.5ppm.
Spectrum bandwidth of up to 10MHz.

Size Chart:

Size: 70x50x40mm / 2.76x1.97x1.57inch

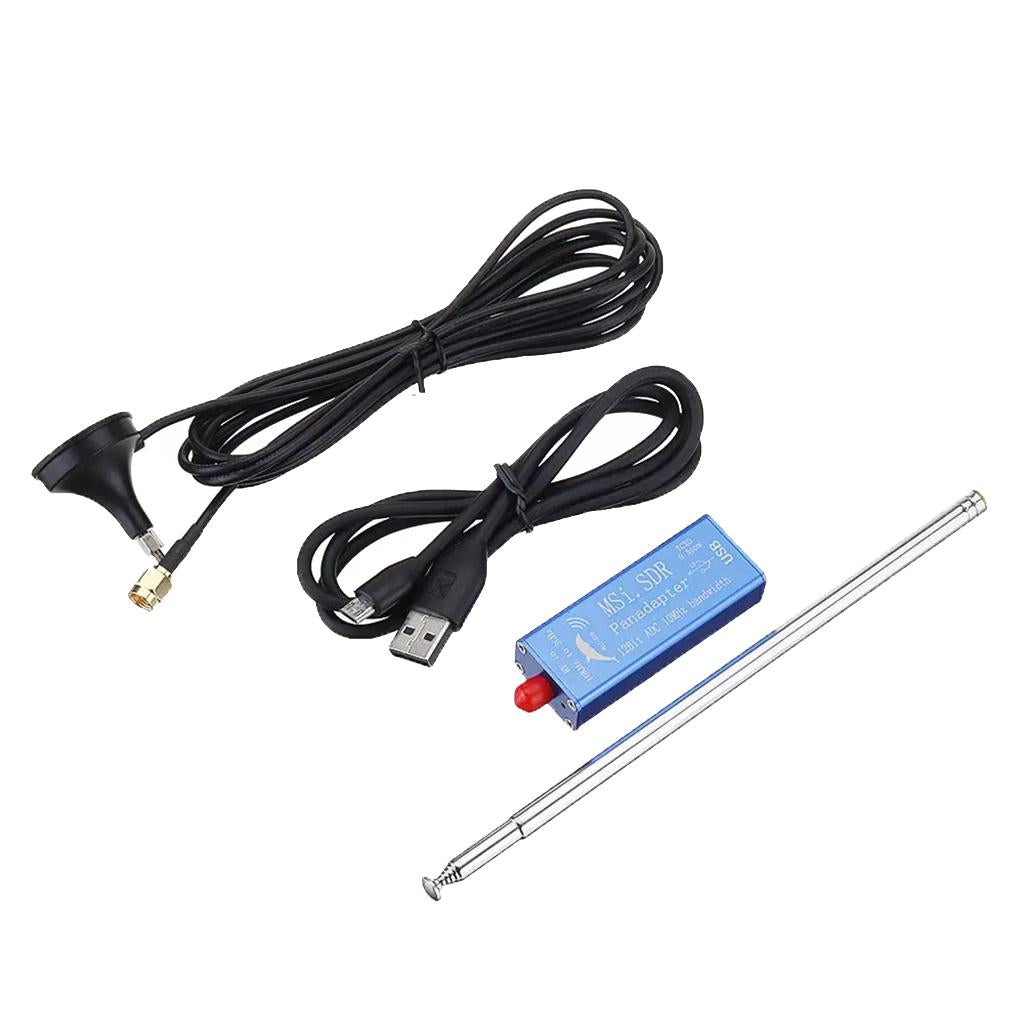

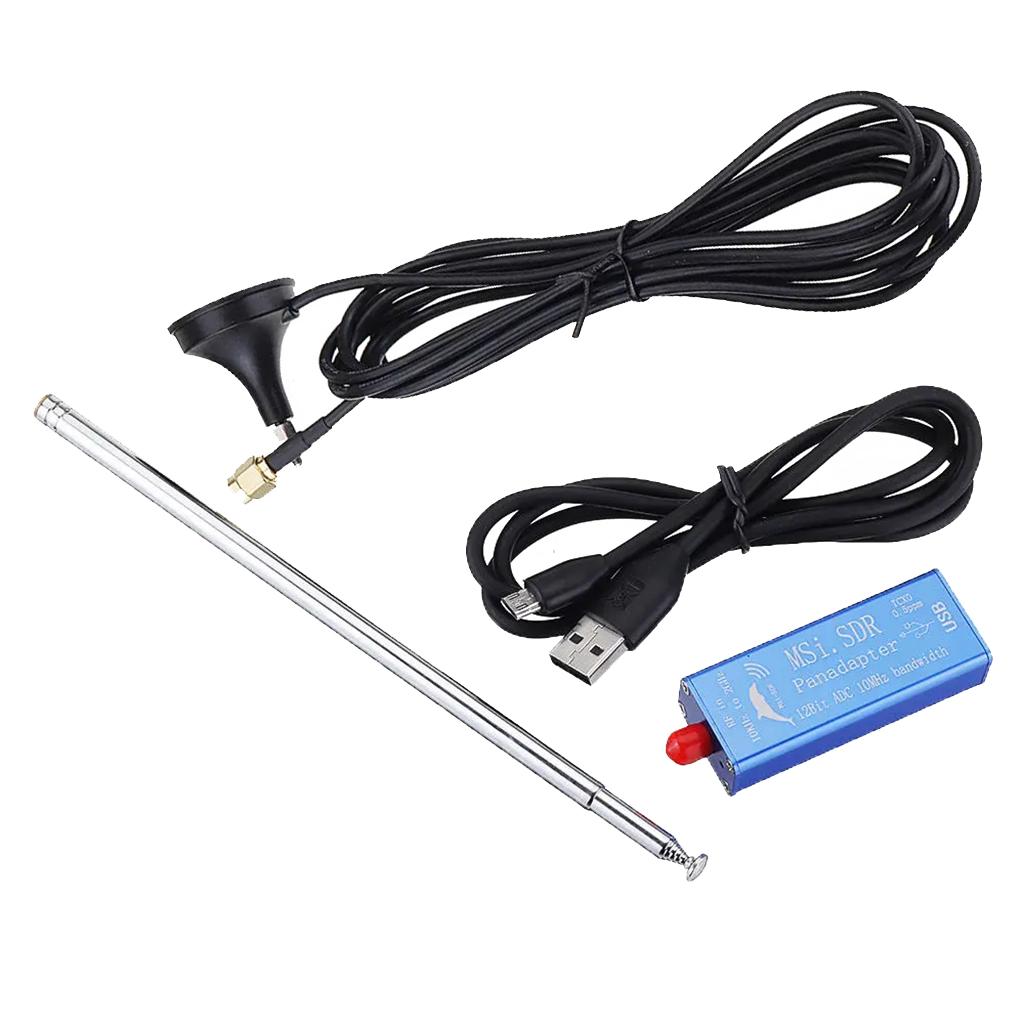

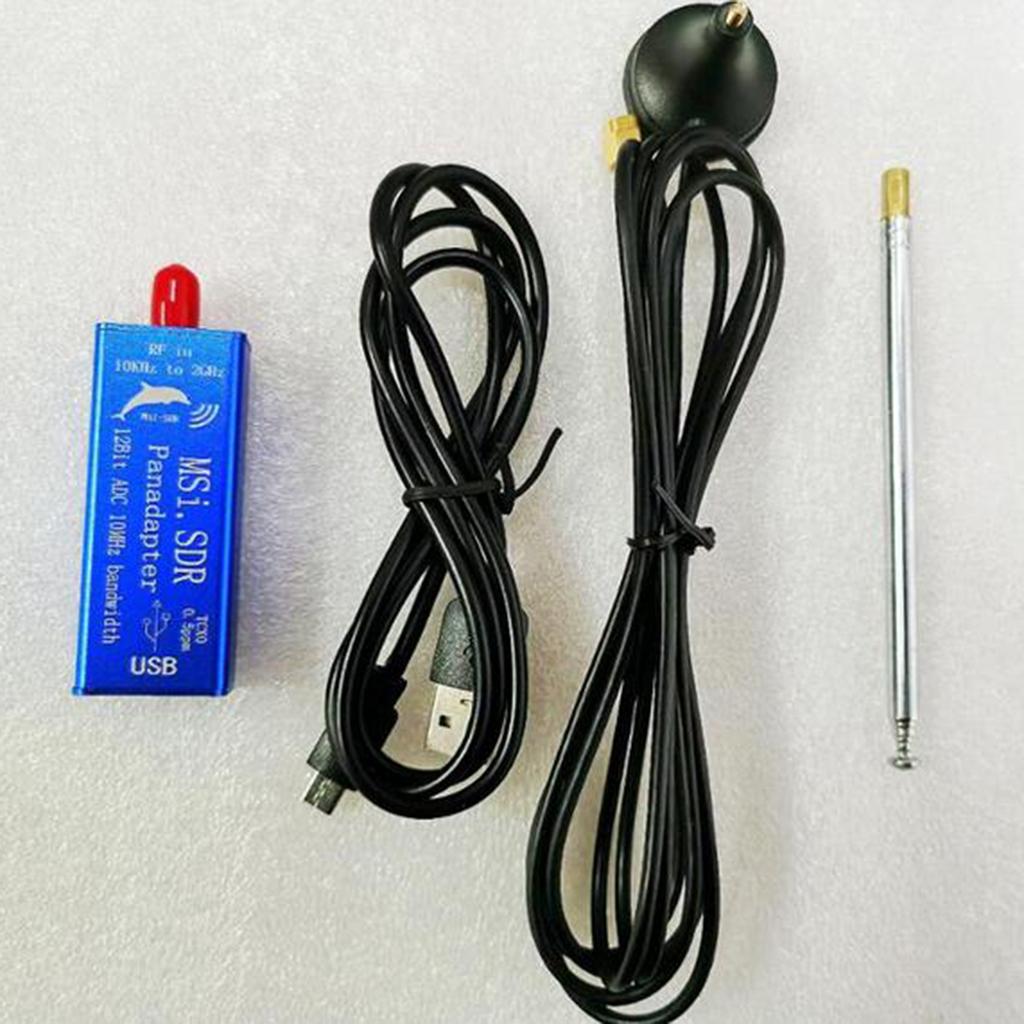

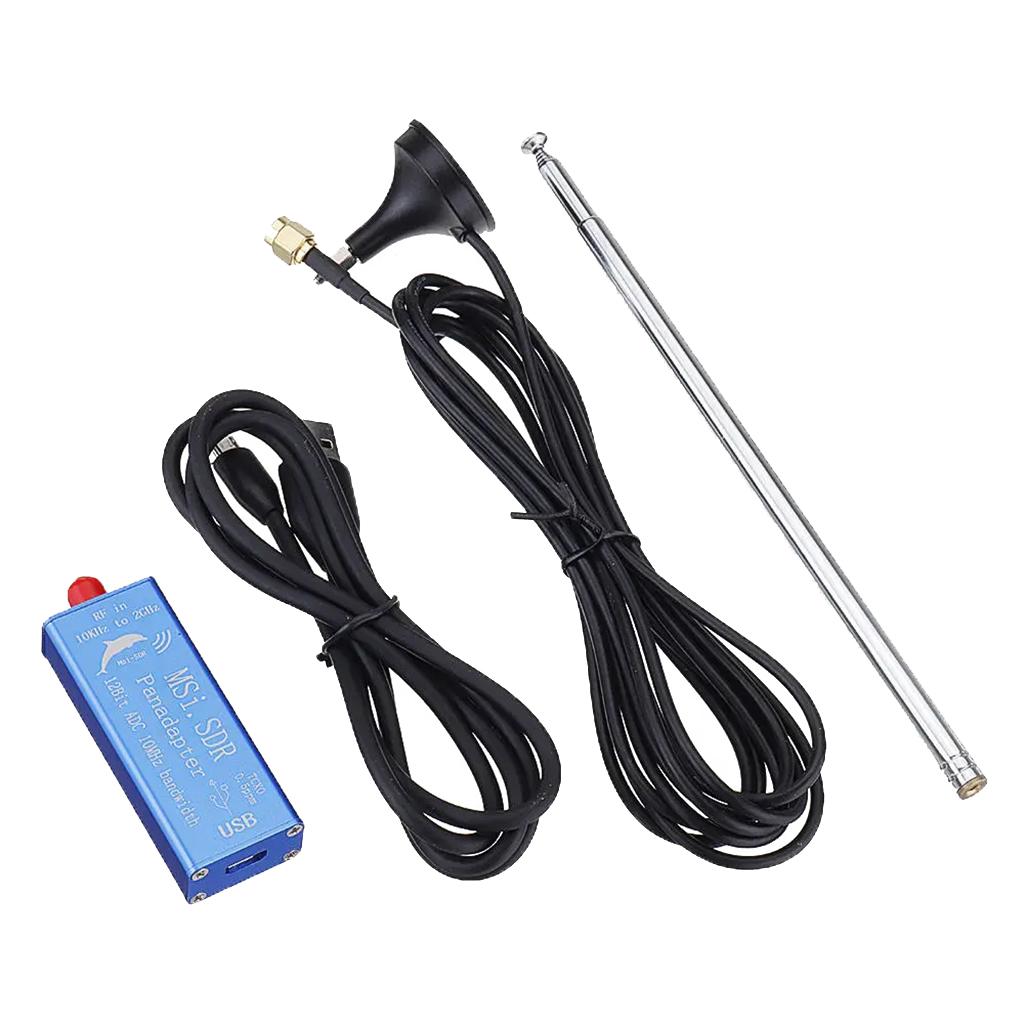

Package Includes:

1 Piece MSI.SDR Host
1 Piece Micor USB Cable
1 Piece Test Antenna

Note:

The color may be different for different display, pls understand
Pls allow 1-3mm error due to manual measurement.
