Stainless Steel D-Shackle Chain Shackle Rigging Fastener M10-M14 M10-10mm

Description:

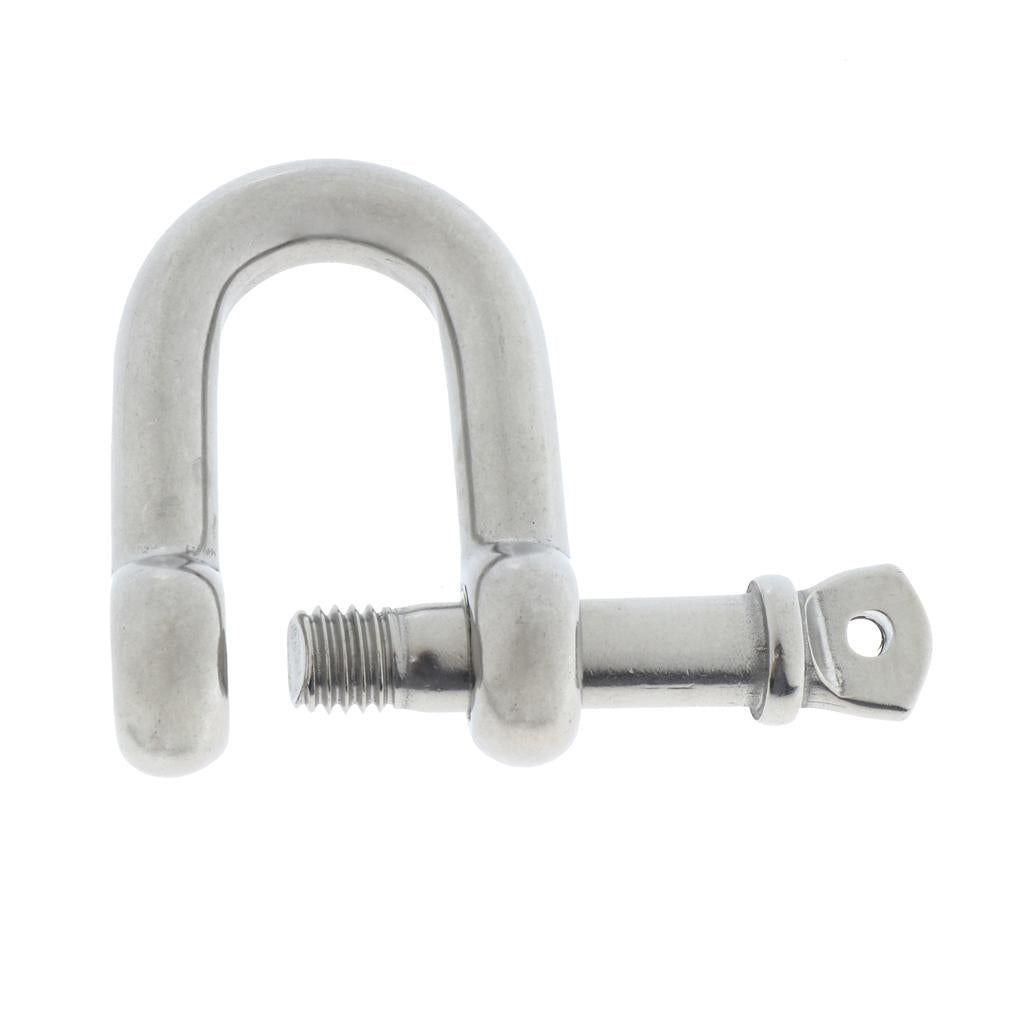

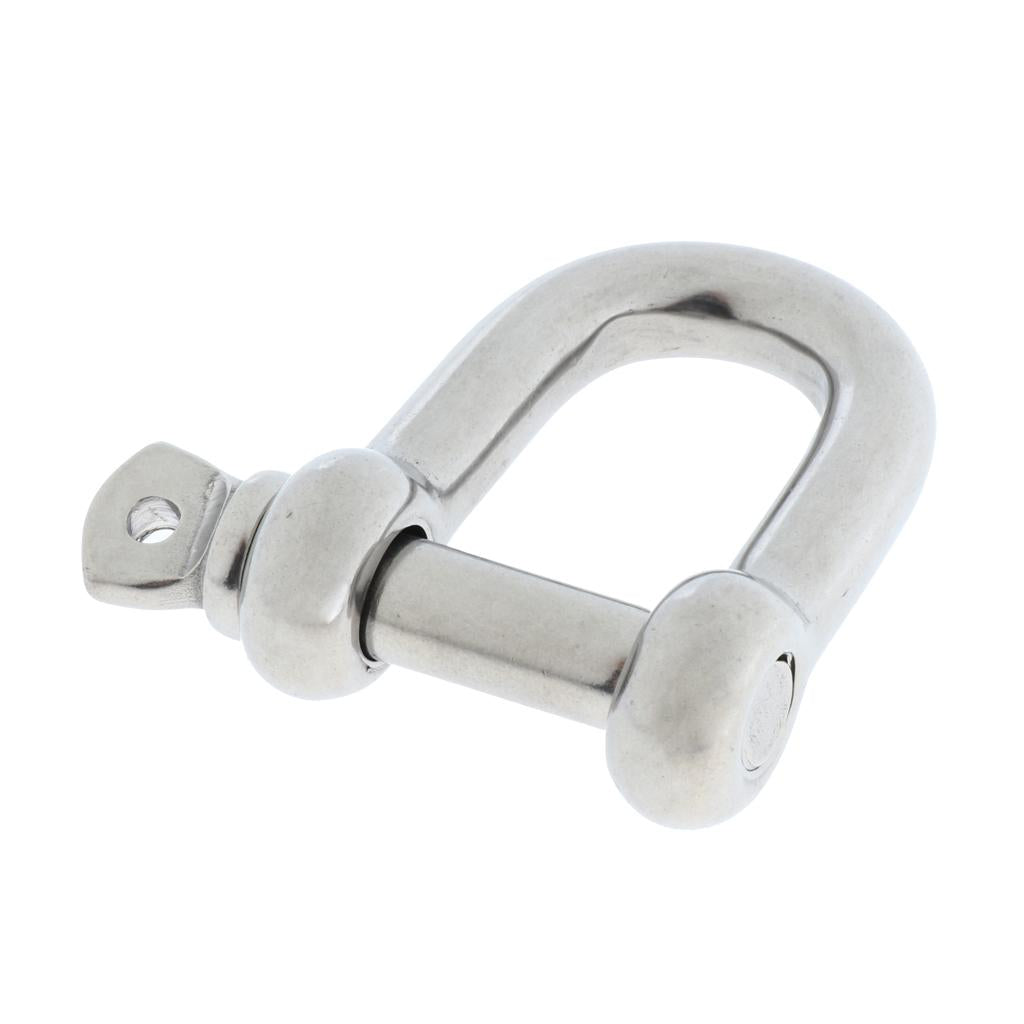

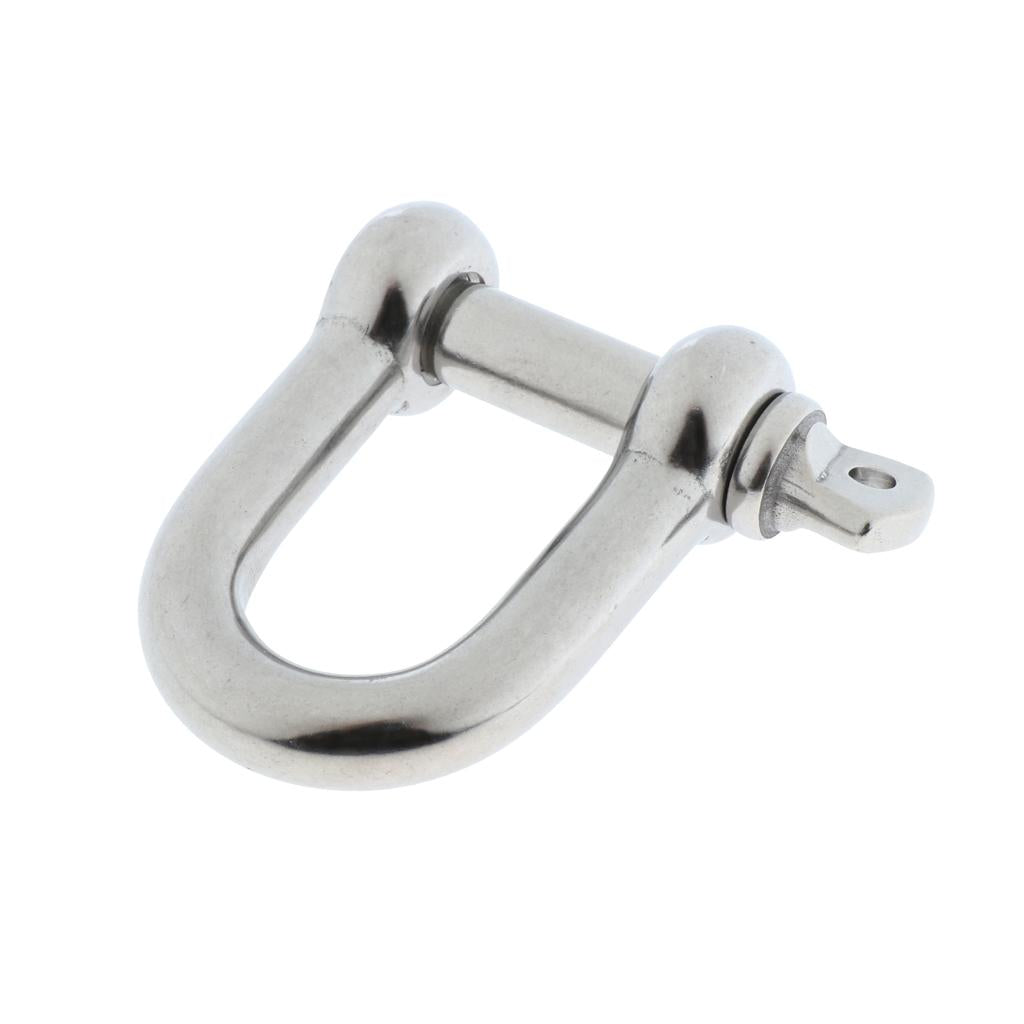

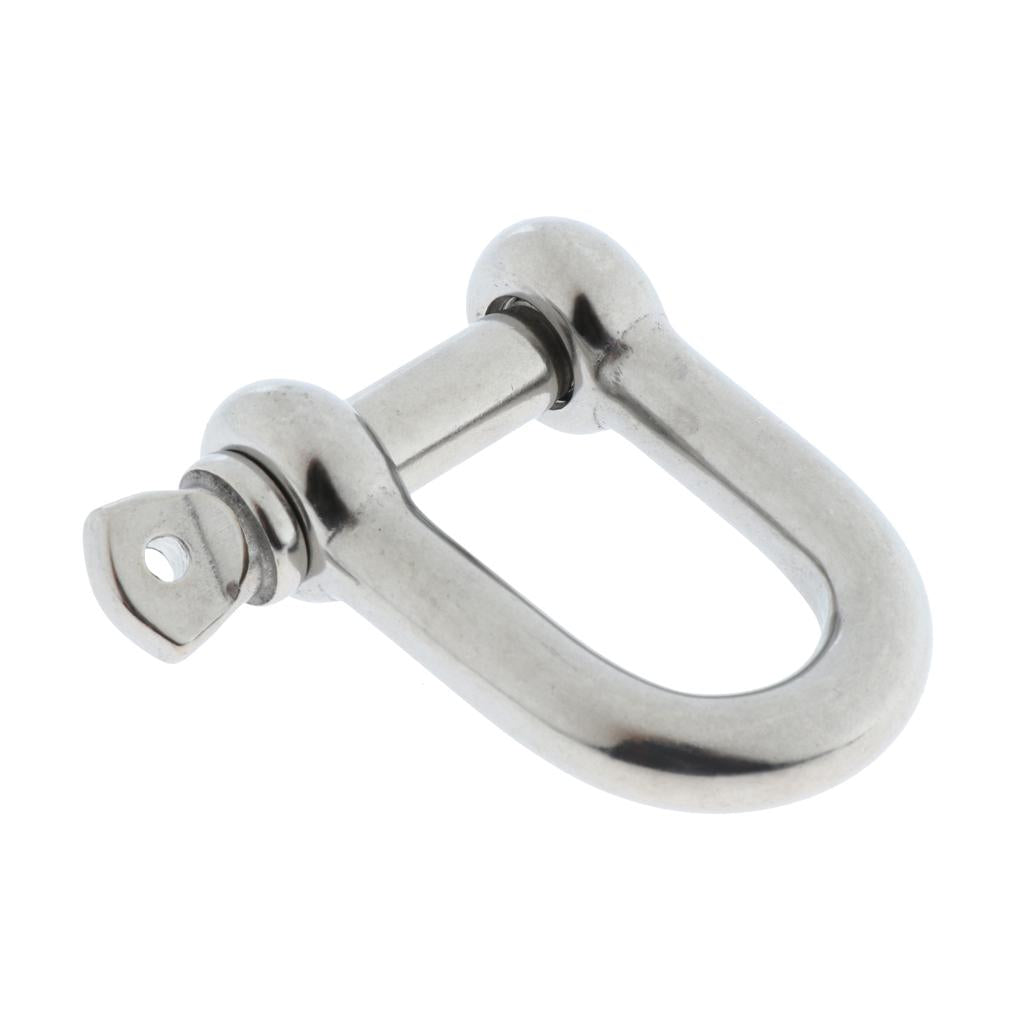

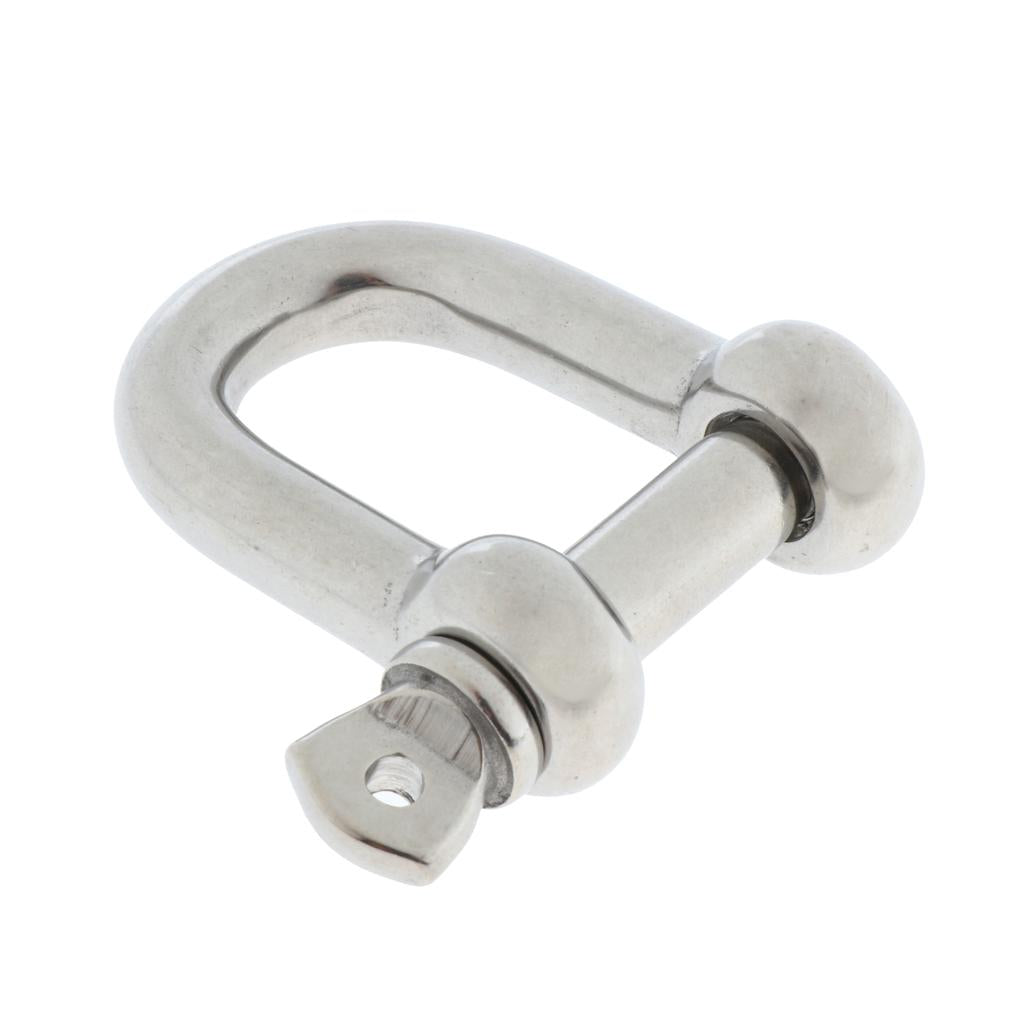

Stainless Steel 304 D Shackle, also known as chain shackles, d shackles, or shackles, both referring to the "D" shape design

Marine-grade corrosion resistant, strong, sturdy, and very duarable even in the grimy, wet conditions found during off-roading

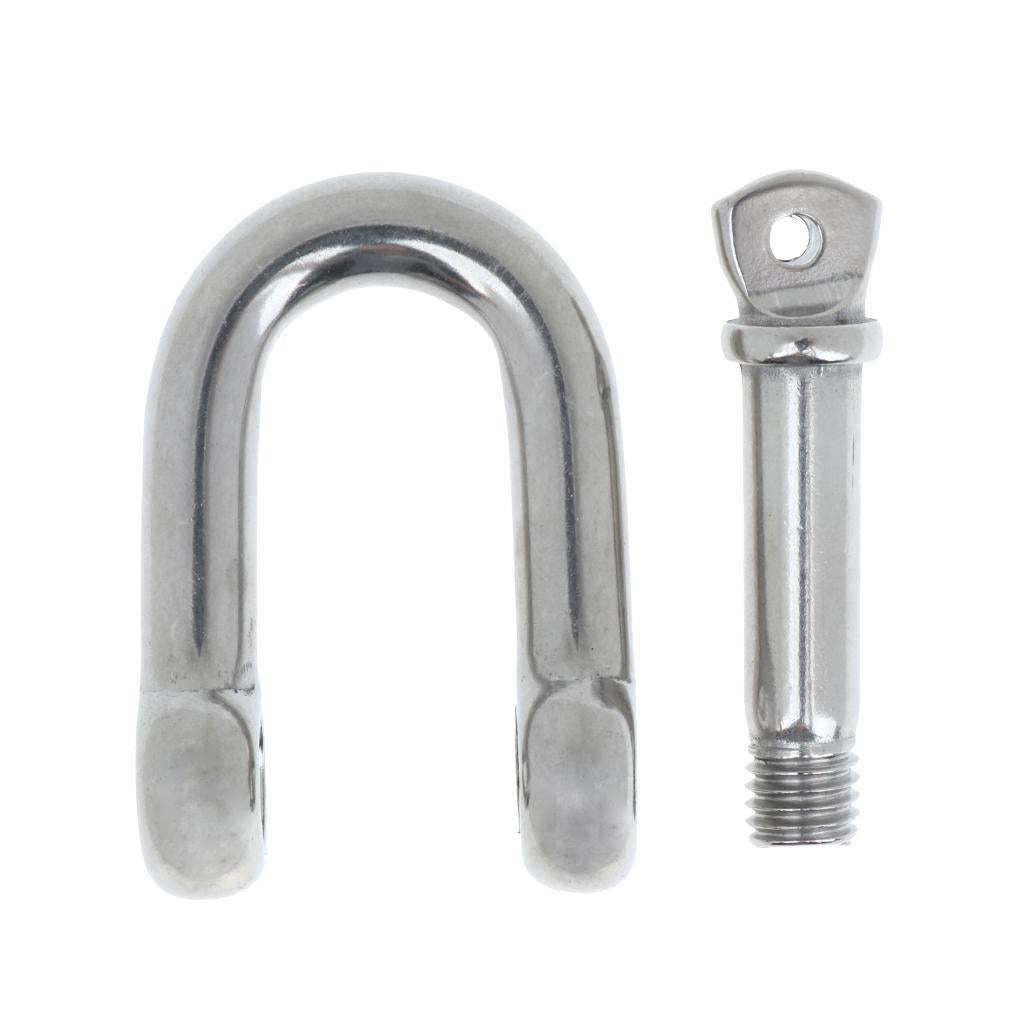

Narrower than a bow or anchor shackle and generally have a threaded pin or pin close

Smaller loop, designed to take high loads primarily straight in line -- Do not use it for side or racking loads

Well suited for attaching ropes, cables, straps, chains and other fastenings for sailing, rigging, lifting and other different situations on the adventurous trail

Specification:

"10mm" is referring to the thread diameter like M10, which also presents the shackle strength. For details such as breakload and overaall size, you can check in the chart.

M10 Thread diameter: 10mm; Breakload of M10 shackle: 3200 kg/ 3.2 t/ 7054 lbs

M12 Thread diameter: 12mm; Breakload of M12 shackle: 4400 kg/ 4.4 t/ 9700 lbs

M14 Thread diameter: 14mm; Breakload of M14 shackle: 5600 kg/ 5.6 t/ 12346 lbs

Package Includes:

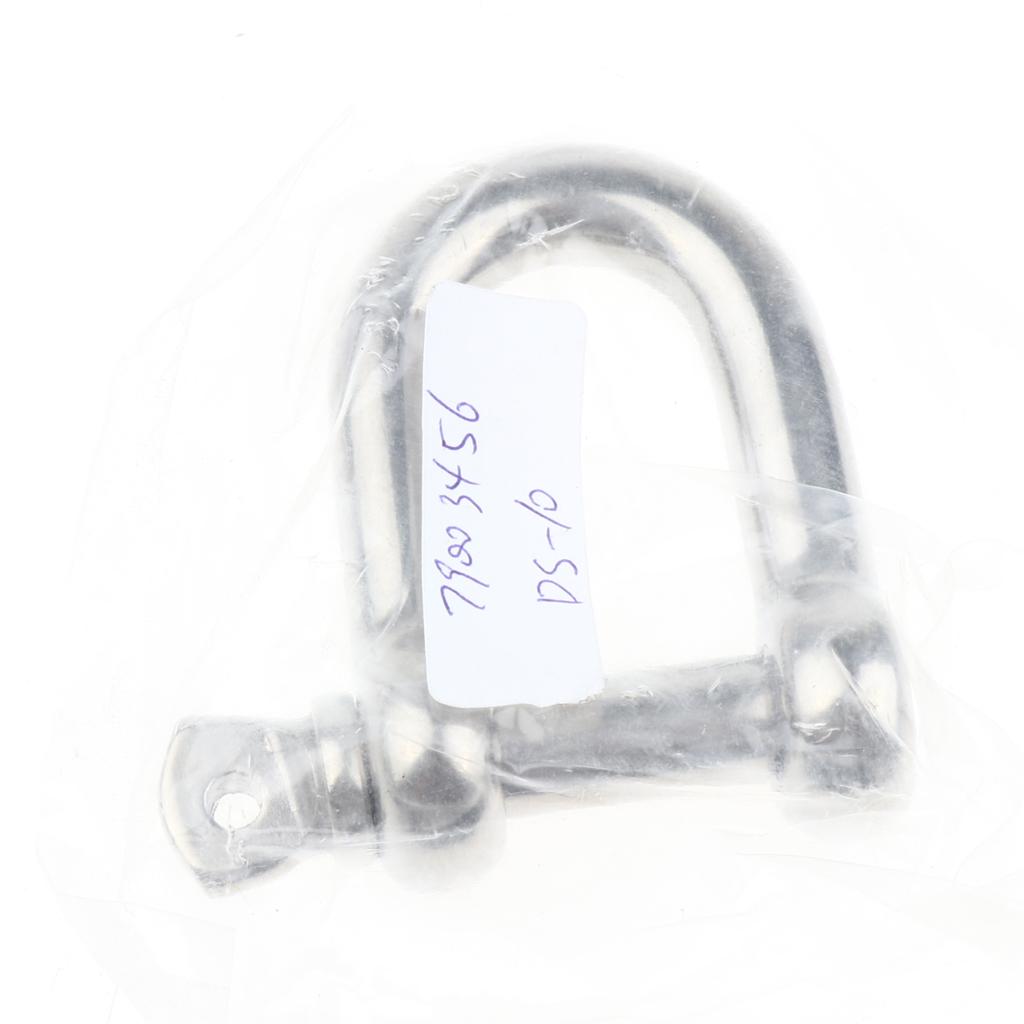

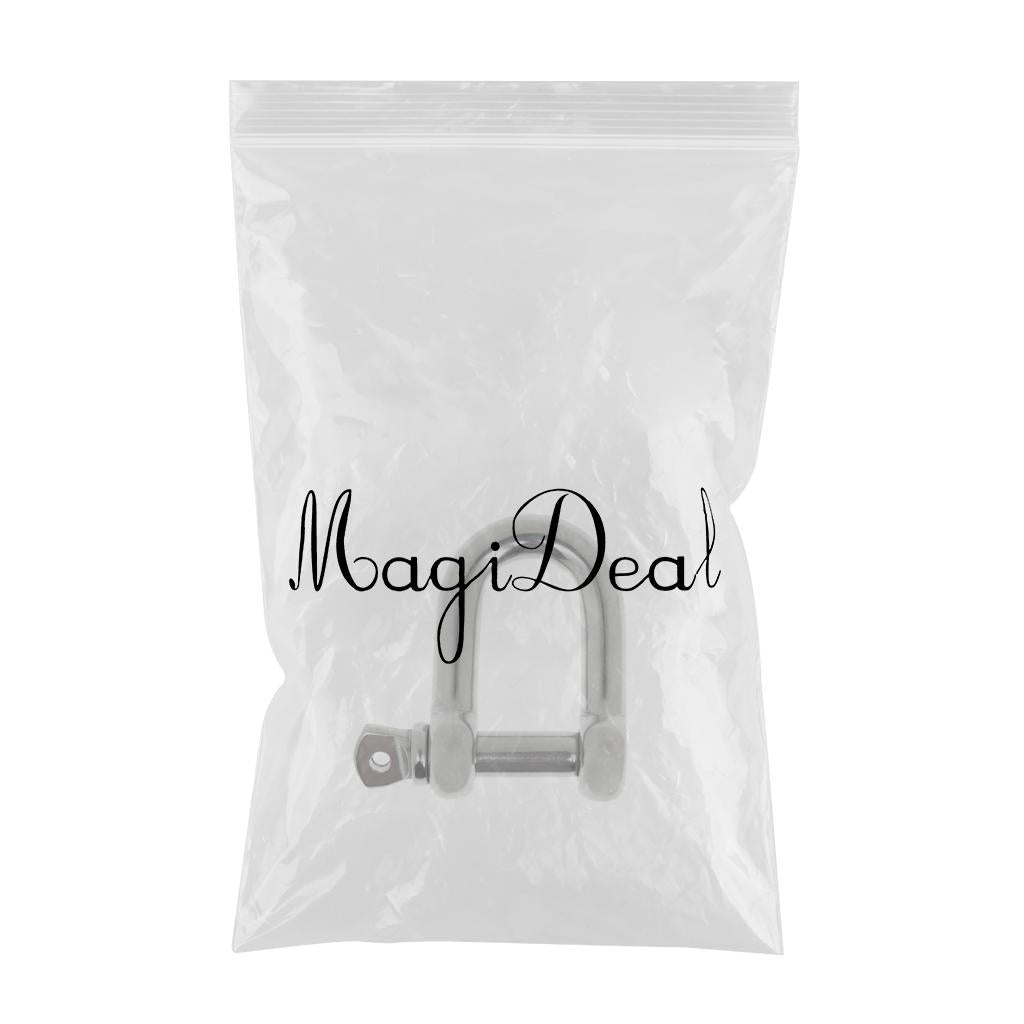

1 piece D-shape shackle

Note:

4mm-8mm diameter of 304 stainless steel shackle is also available in our shop, please check on it.
