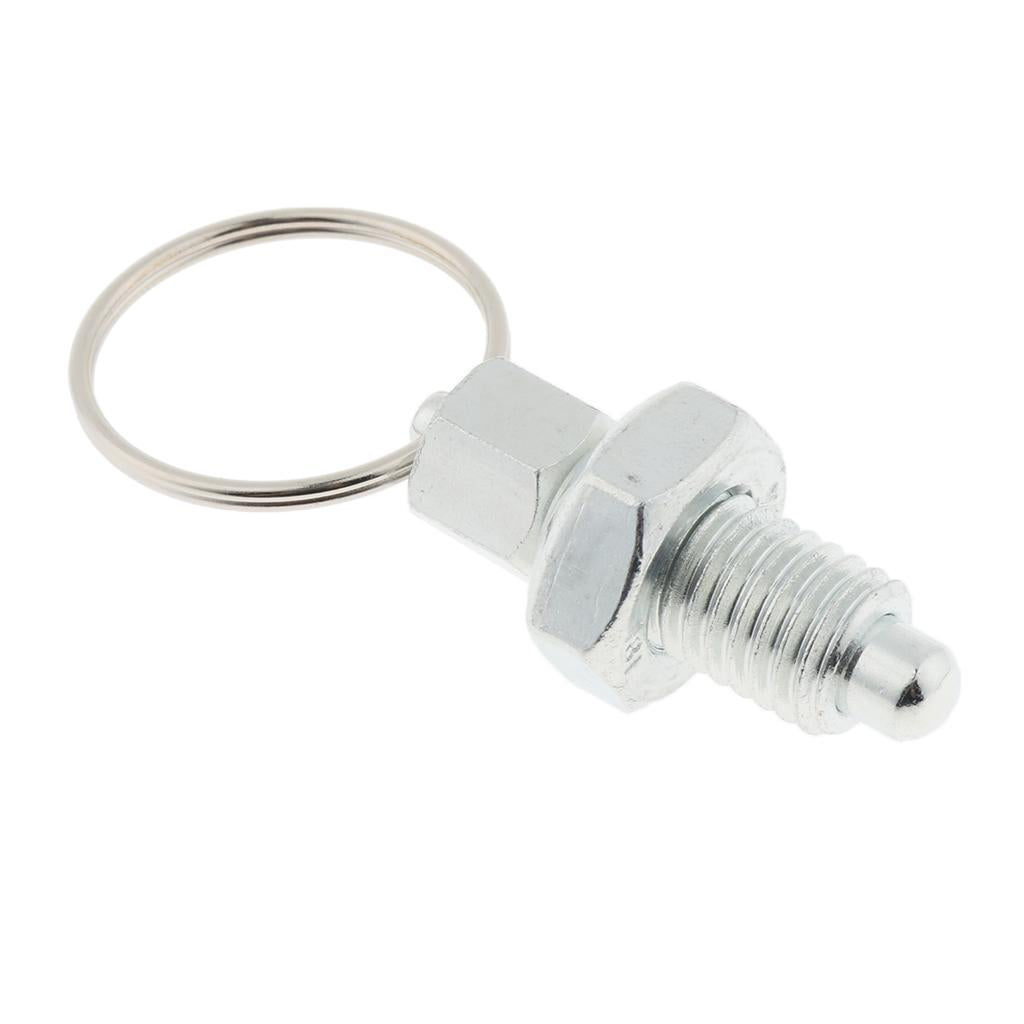

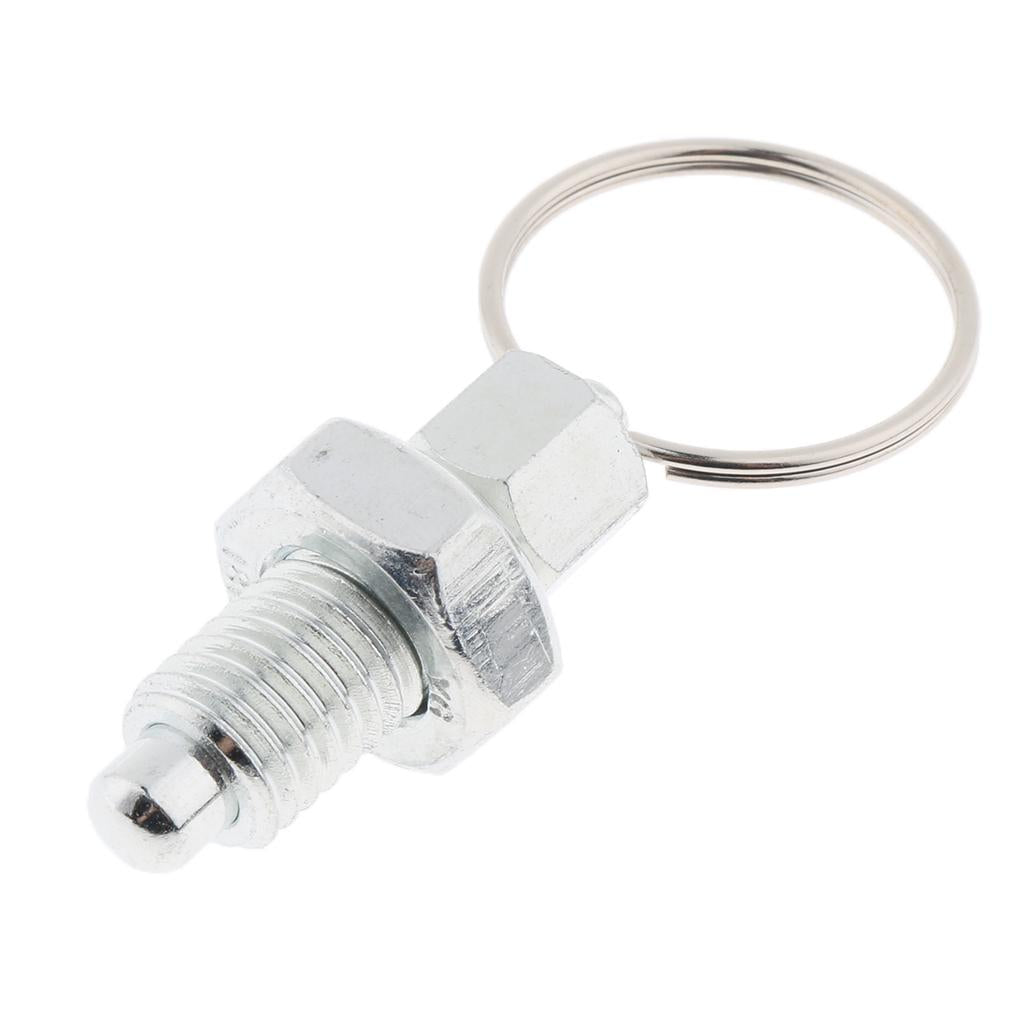

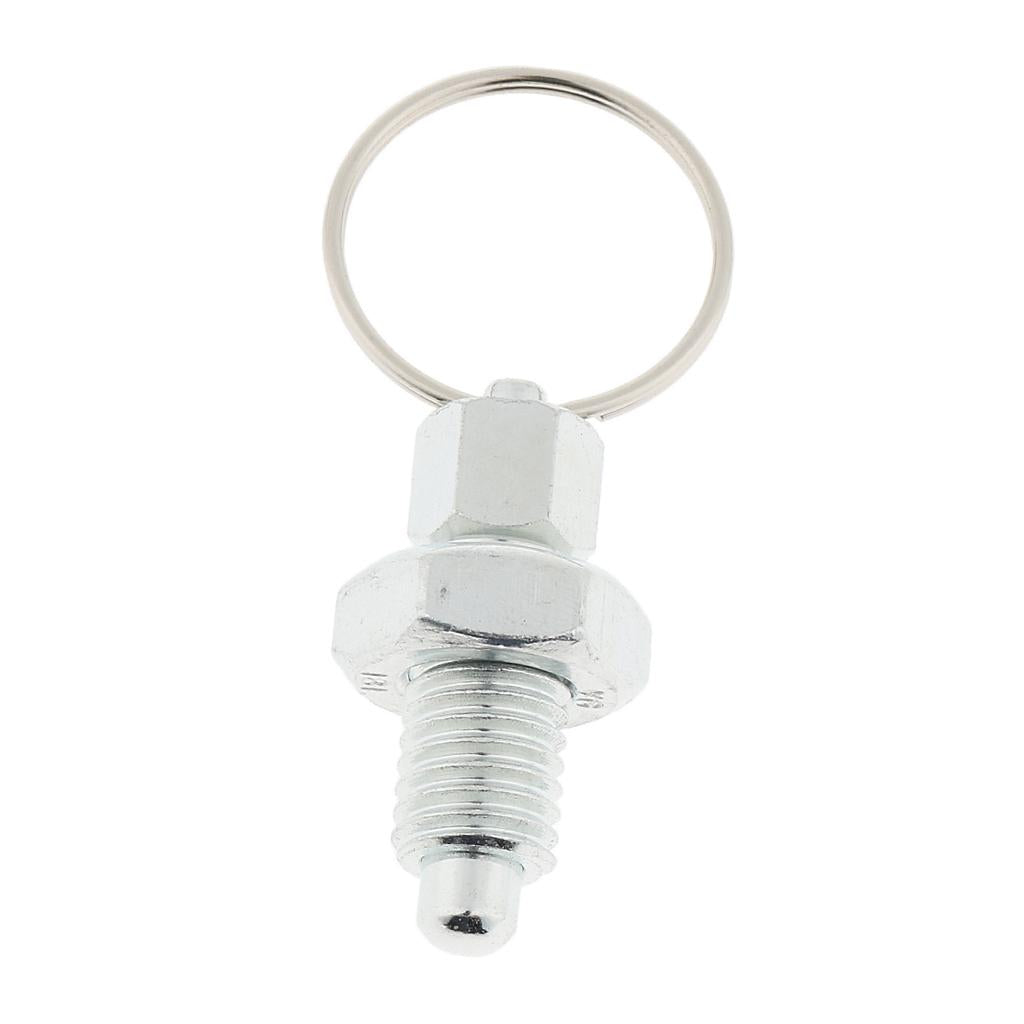

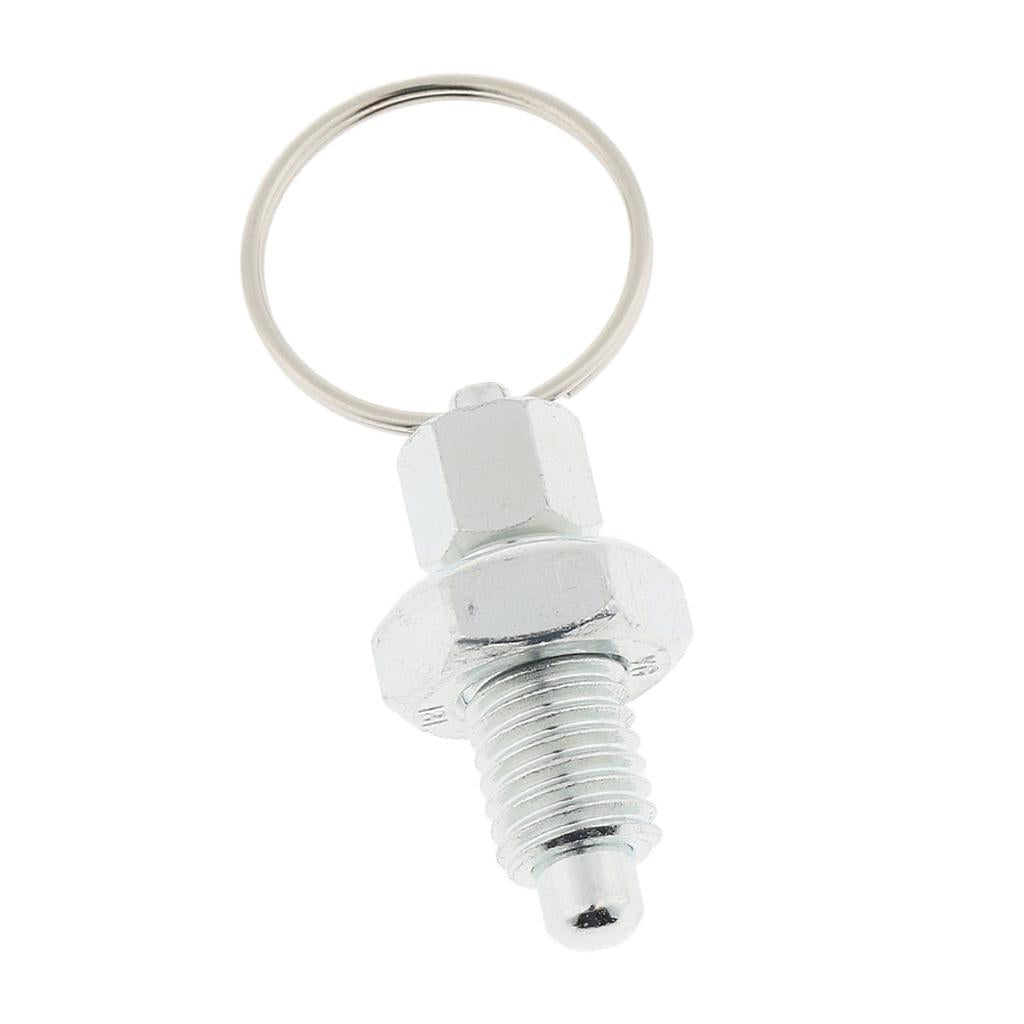

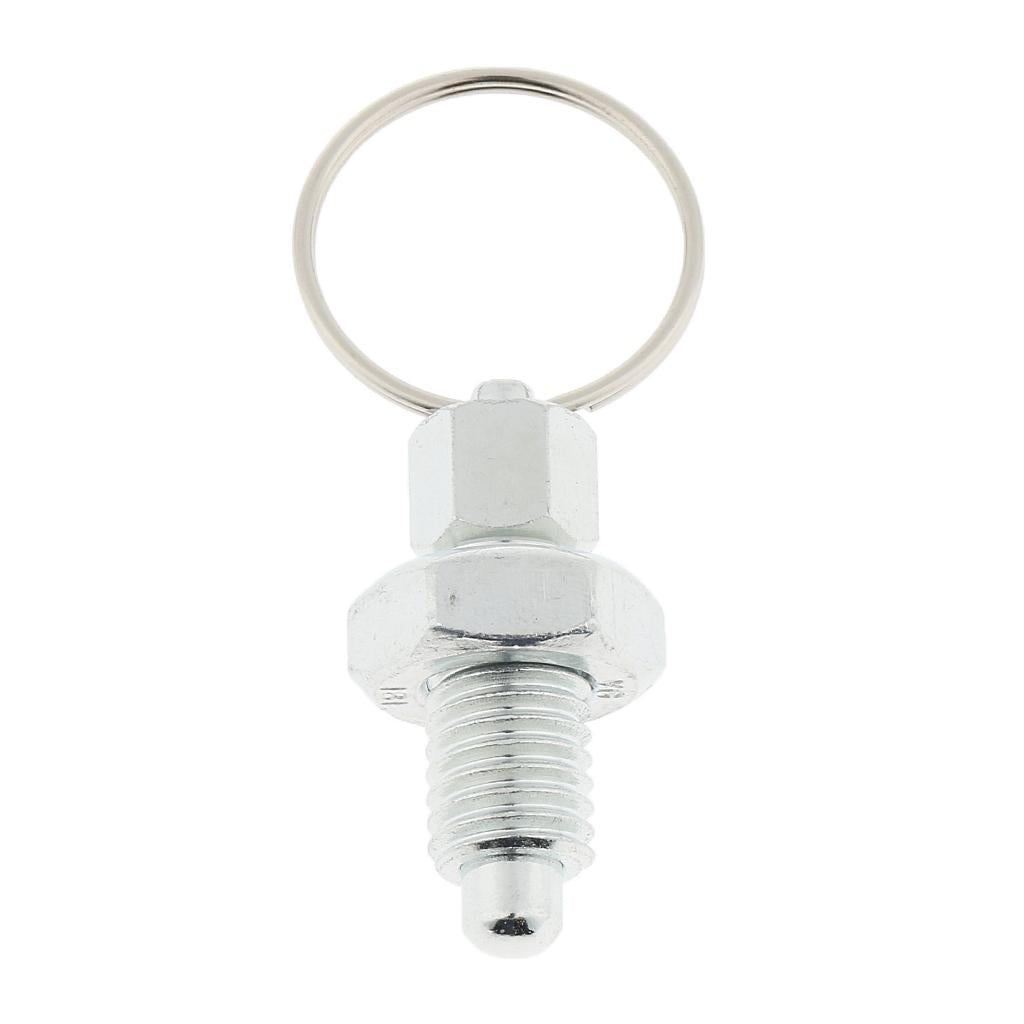

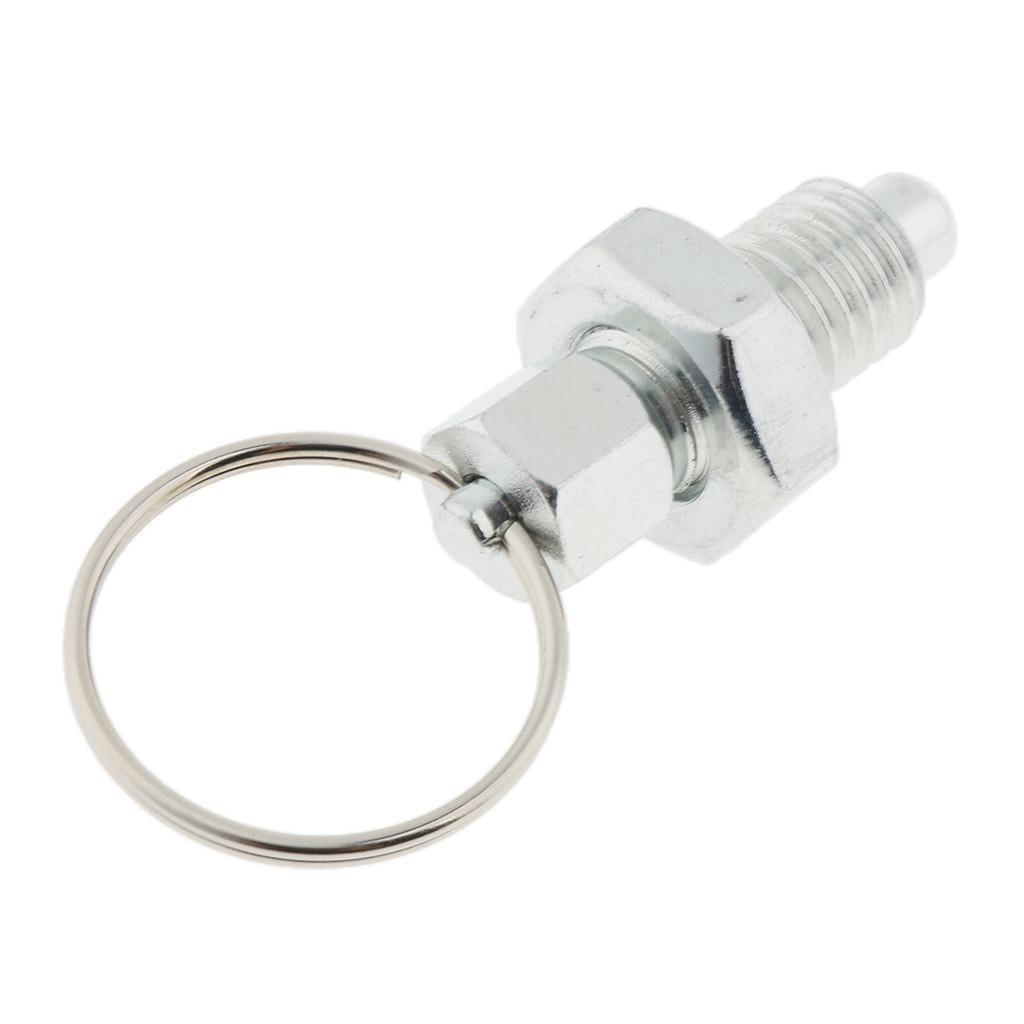

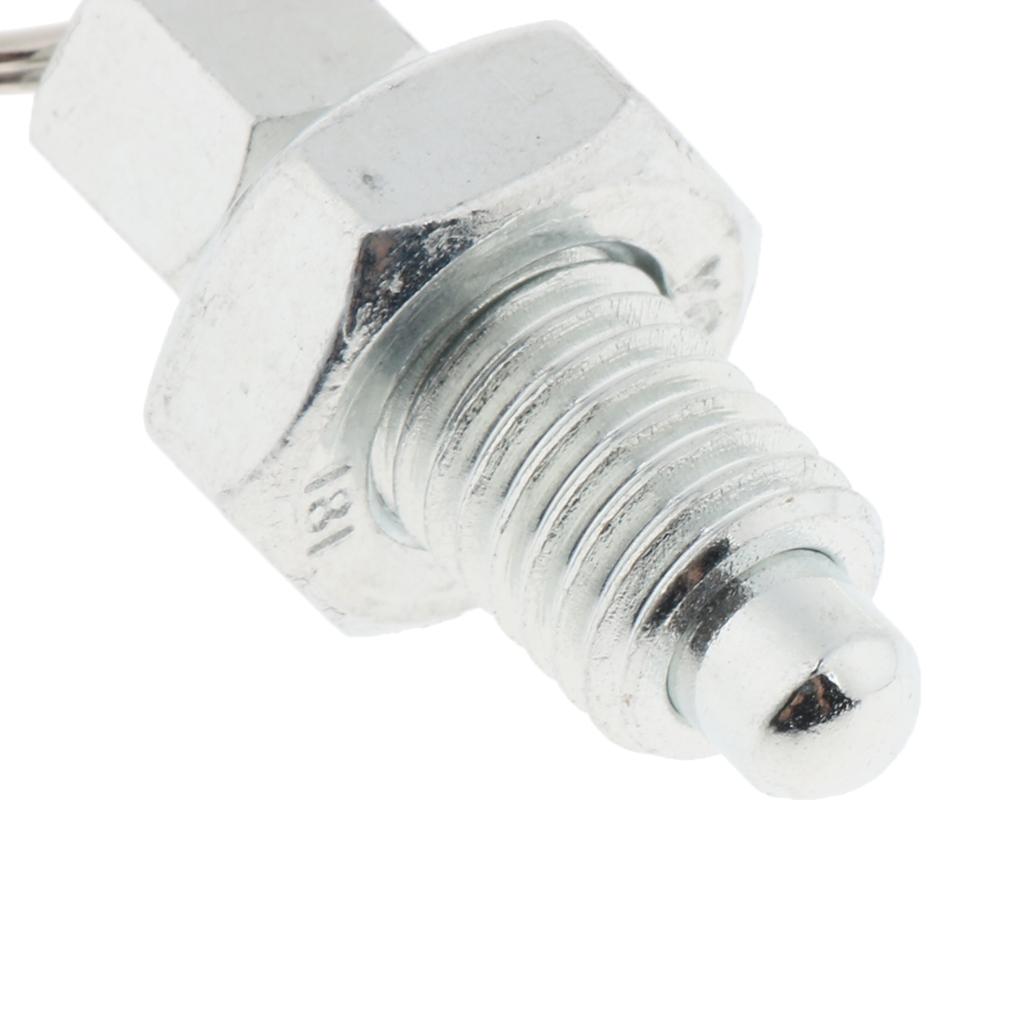

Stainless Steel Non Lock-Out Indexing Plunger with Pull Ring M8 Round

Description:

Stainless Steel plunger body with pin and pull ring, metric coarse thread.

Suit for applications with limited space.

Locking patch available upon request.

Plunger does not lock in fully retracted position.

Material: Stainless steel

Size Chart:

M6 Round--37x16mm/1.46x0.63inch; Pull Ring Diameter: 16mm/0.63inch; Thread: M6; Plunger Diameter: 4mm/0.16inch;

M8 Round--45x20mm/1.77x0.79inch; Pull Ring Diameter: 20mm/0.79inch; Thread: M8; Plunger Diameter: 5mm/0.2inch;

M10 Round--60x25mm/2.36x0.98inch; Pull Ring Diameter: 25mm/0.98inch; Thread: M10; Plunger Diameter: 6mm/0.24inch;

M6 Flat--37x16mm/1.46x0.63inch; Pull Ring Diameter: 16mm/0.63inch; Thread: M6; Plunger Diameter: 4mm/0.16inch;

M12 Flat--58x25mm/2.28x0.98inch; Pull Ring Diameter: 25mm/0.98inch; Thread: M12; Plunger Diameter: 8mm/0.31inch;

Package Includes:

1 Piece Indexing Plunger

Note:

1. Color might be slightly different due to the color calibration of each individual monitor.

2. Please allow the tinny measuring deviation due to manual measurement.
