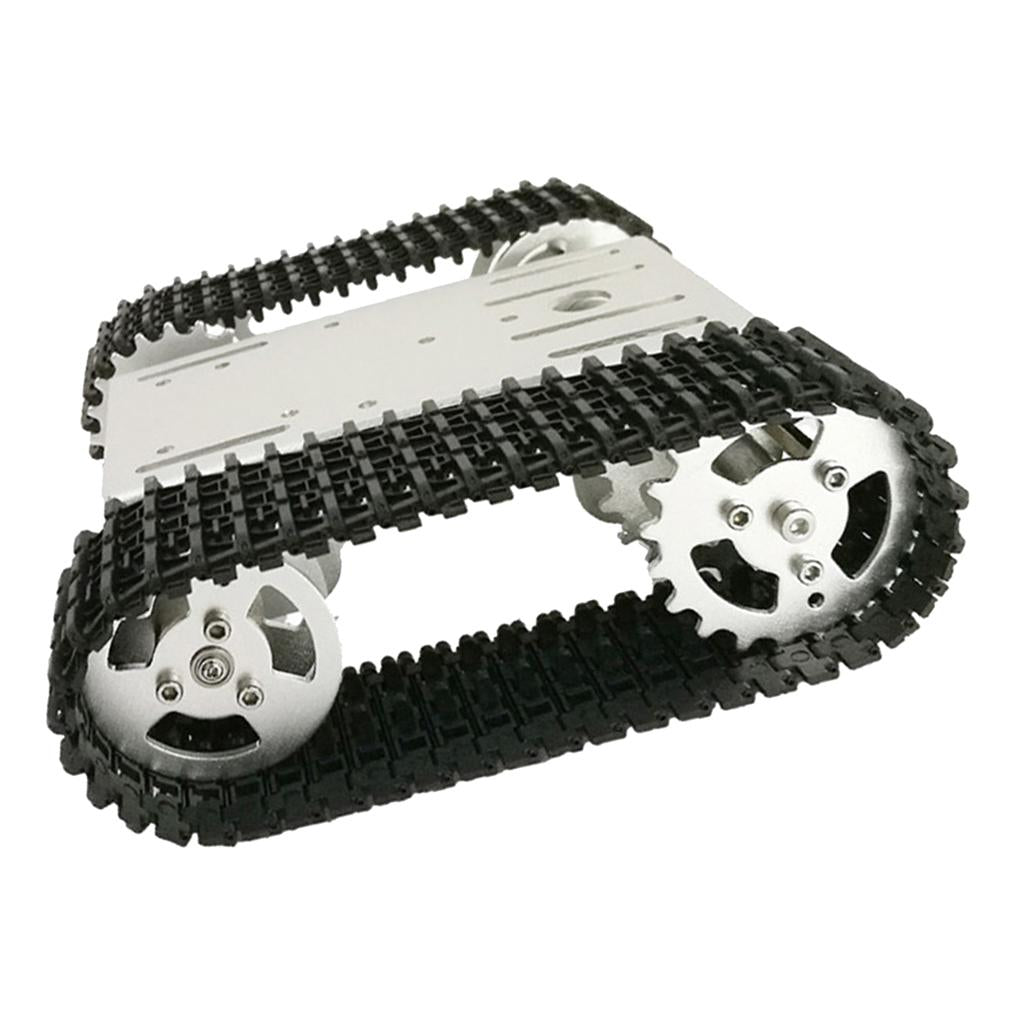

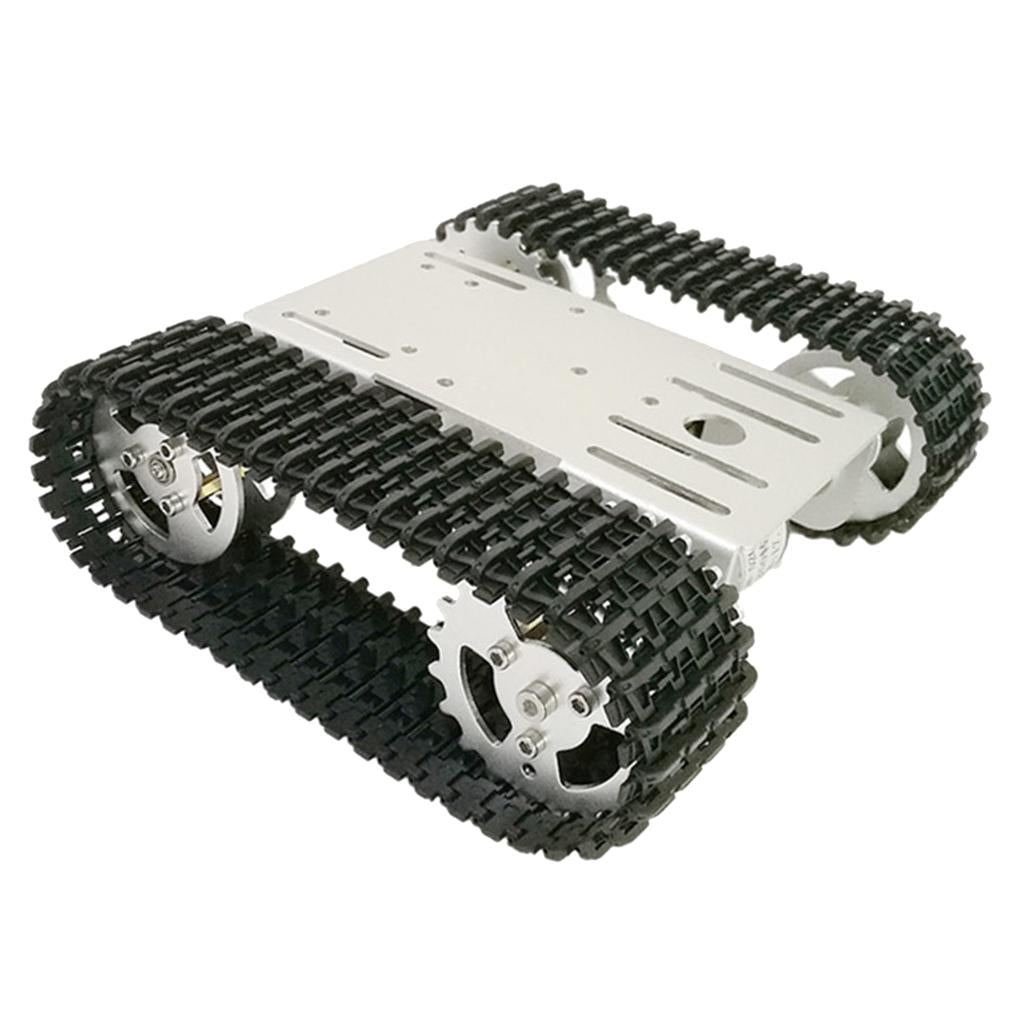

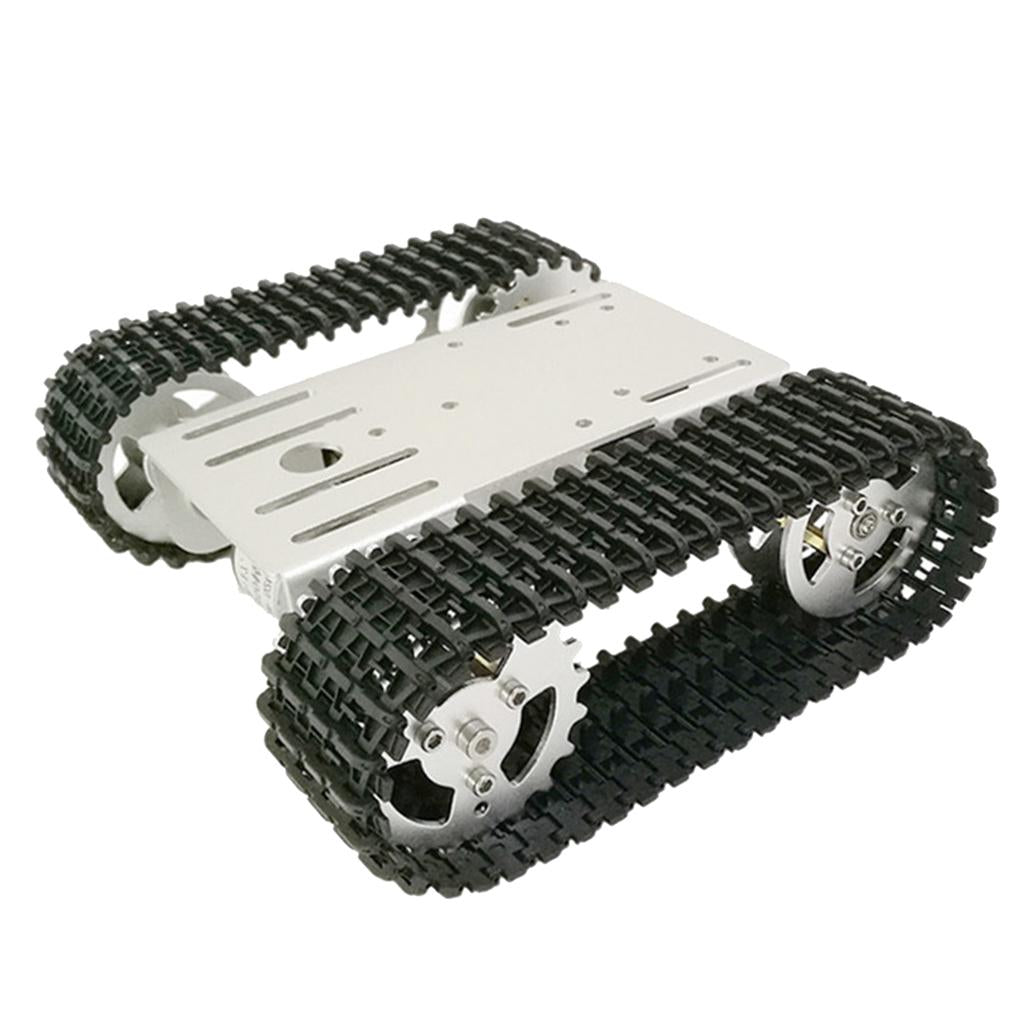

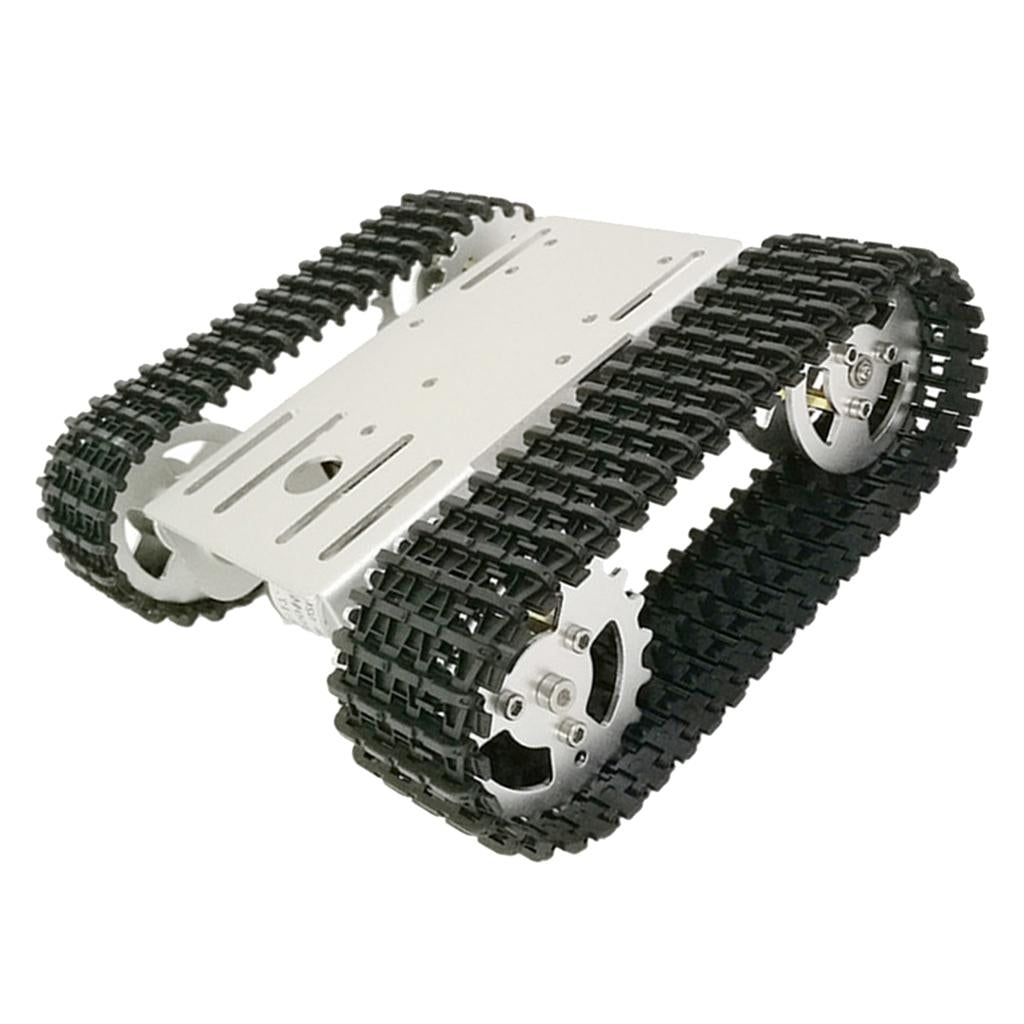

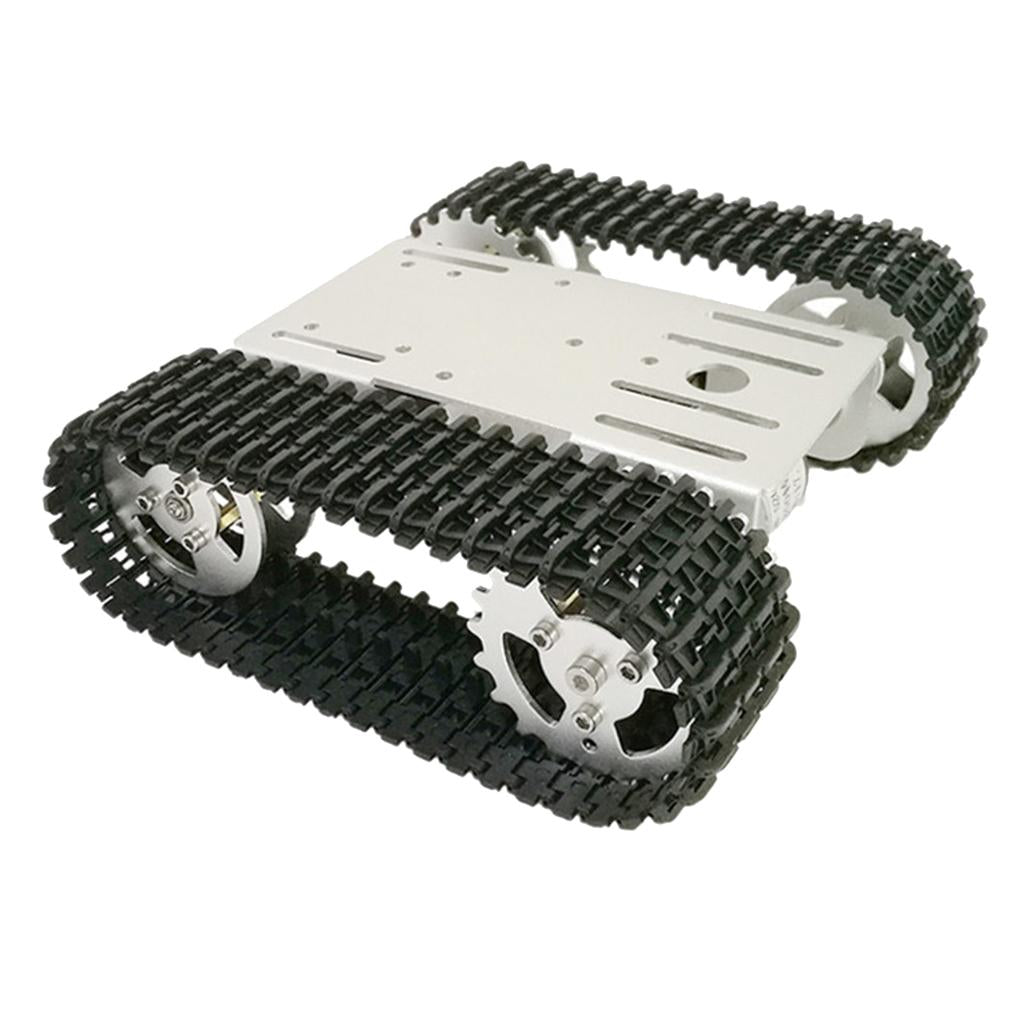

T101 Smart Robot Chassis Tank Followed Car Platform 12V with Code Wheel

Description:

A newly designed tank chassis with a beautiful appearance, fine processing, sandblasted and oxidized into gold and silver. The all-metal construction makes the tank more stable and strong. In this chassis tank a space for servo 9g is left for the ultrasonic sensor and a space for servo is also left to turn the mechanical manipulator!
Using ESP-12 DEV KIT development shield module,Extend the output ports for ESP-12 DEV KIT: SPI,UART, GPIO, AI and 3.3V power interface,Extend 2-ways motor, then can directly -ways motor
Whole car looks very beautiful and generous. Driven by the motor, the car can be flexibly rotated back and forth. The trolley carbon brush DC motor has a Hall sensor for speed measurement and feedback.
Disparate the power of ESP board and motor foravoiding the interference. In our experiments, for convenience, a shortcut module is used to connect VIN and VM for the power of ESP board and motor

Specification:

Product model: T101
Product size: 19x16.5x5.7cm/7.48x6.50x2.24inch (length * width * height)
Product net weight: 0.53kg
Panel material: 2mm/0.08inch aluminum alloy
Surface treatment: sandblasting oxidation
Track: engineering plastics
Wheel: Aluminum alloy

Package Includes:

1 block Panel
2 Piece Motor (12V with code wheel)
2 Piece Track
2 Piece Non-damping load-bearing wheels
2 Piece Non-shock drive wheel
1 set Screw accessories
3 Piece Hex wrench
1 Piece 18650 battery box

Note:

1.Bulk shipment
2.The color of the wheel is gold and silver. Please note if ordering, otherwise the wheel color is random.
