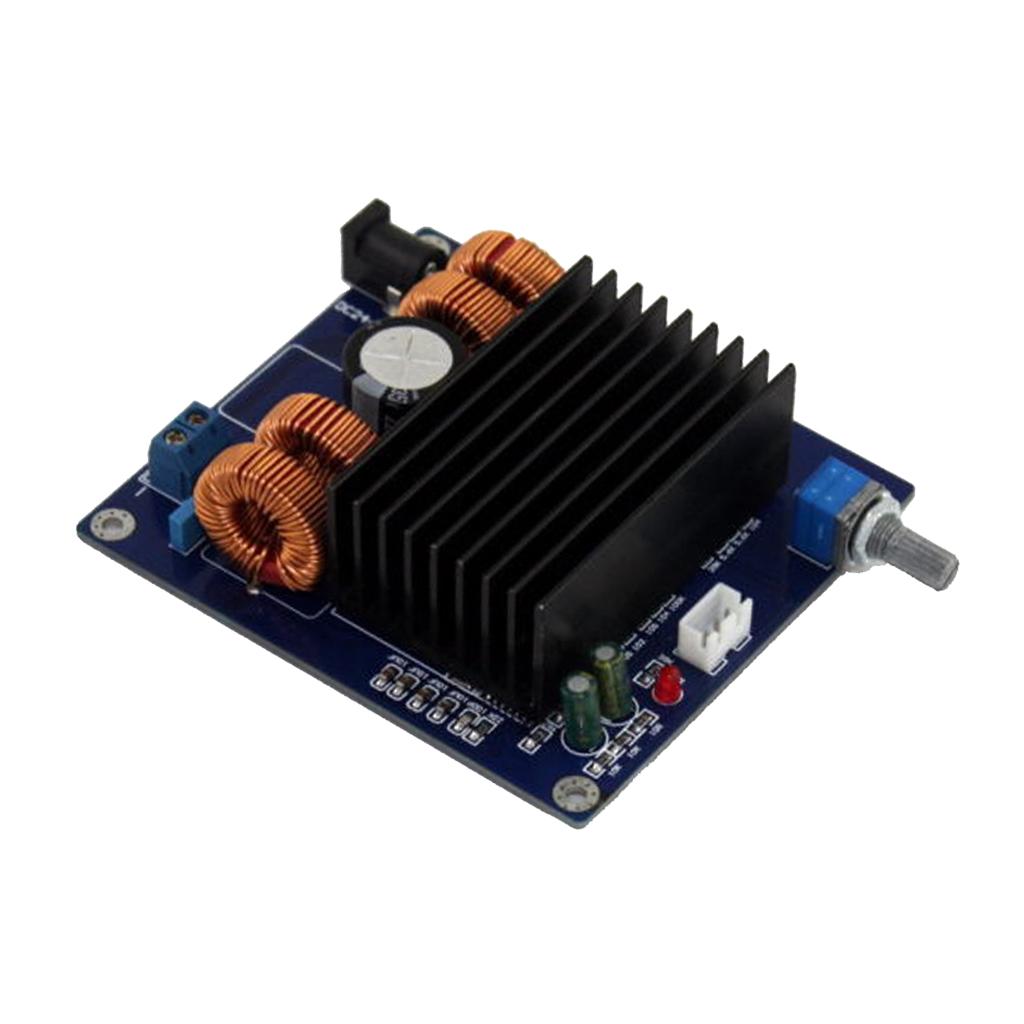

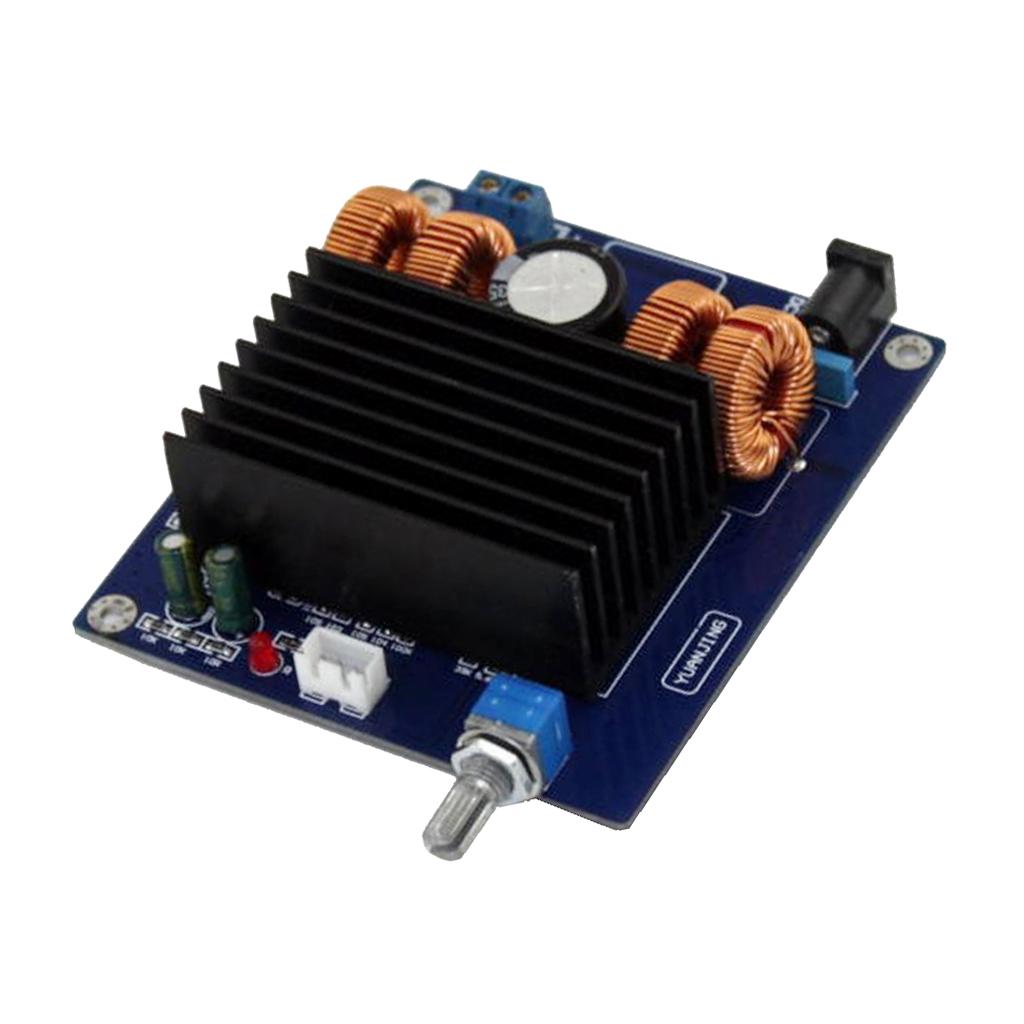

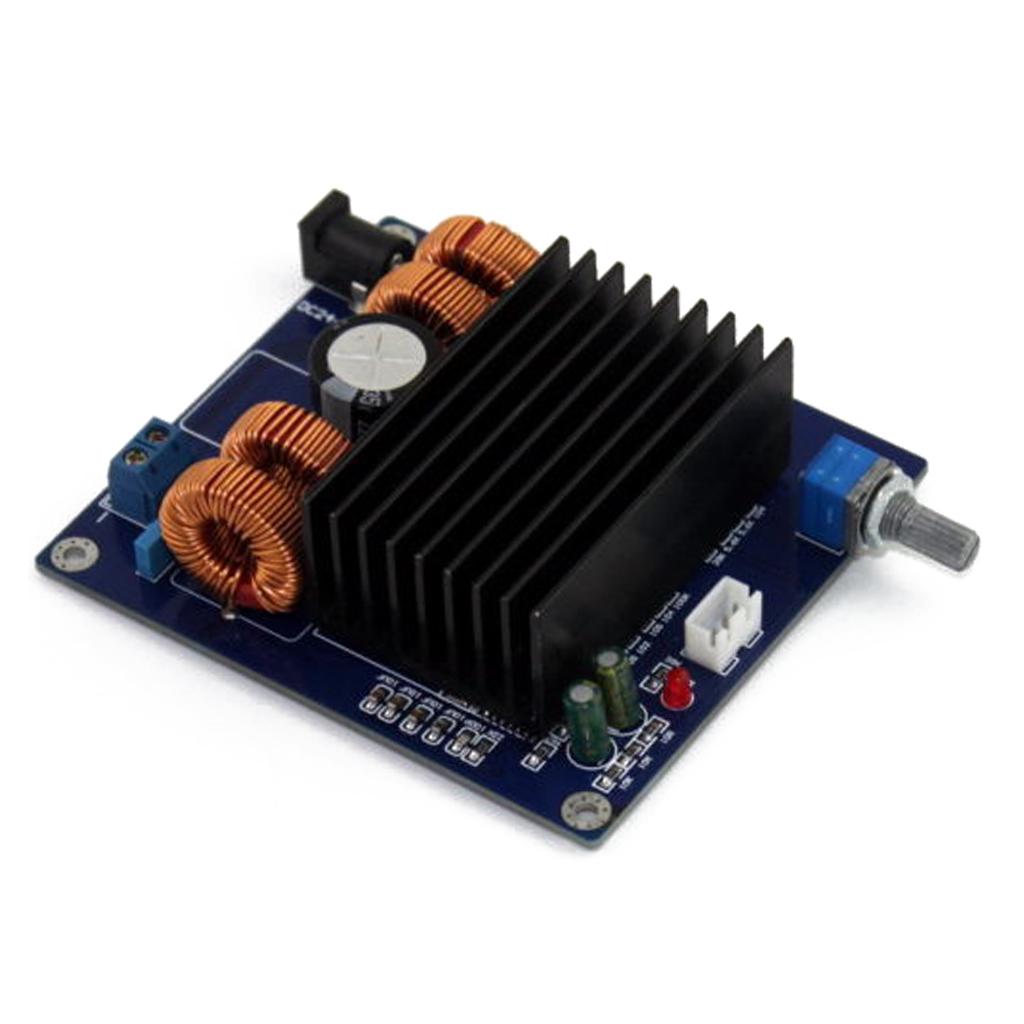

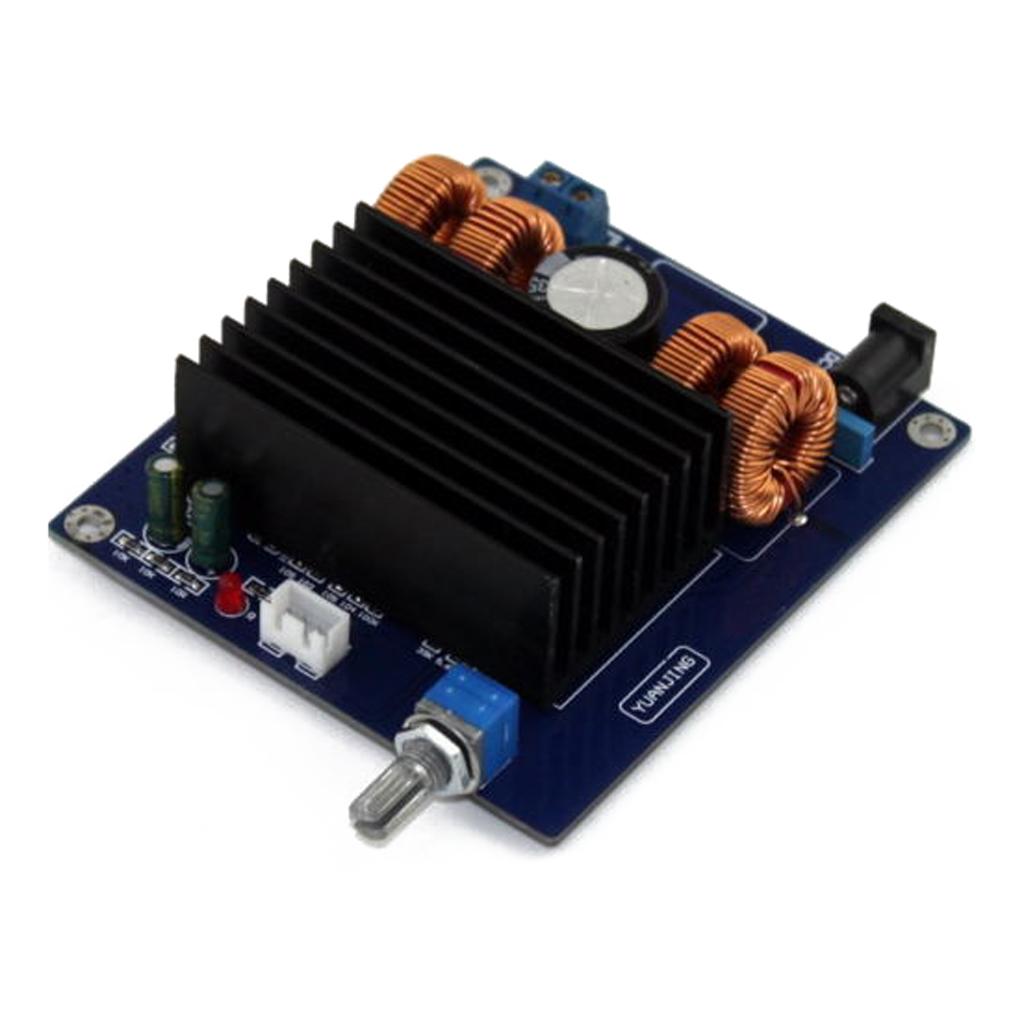

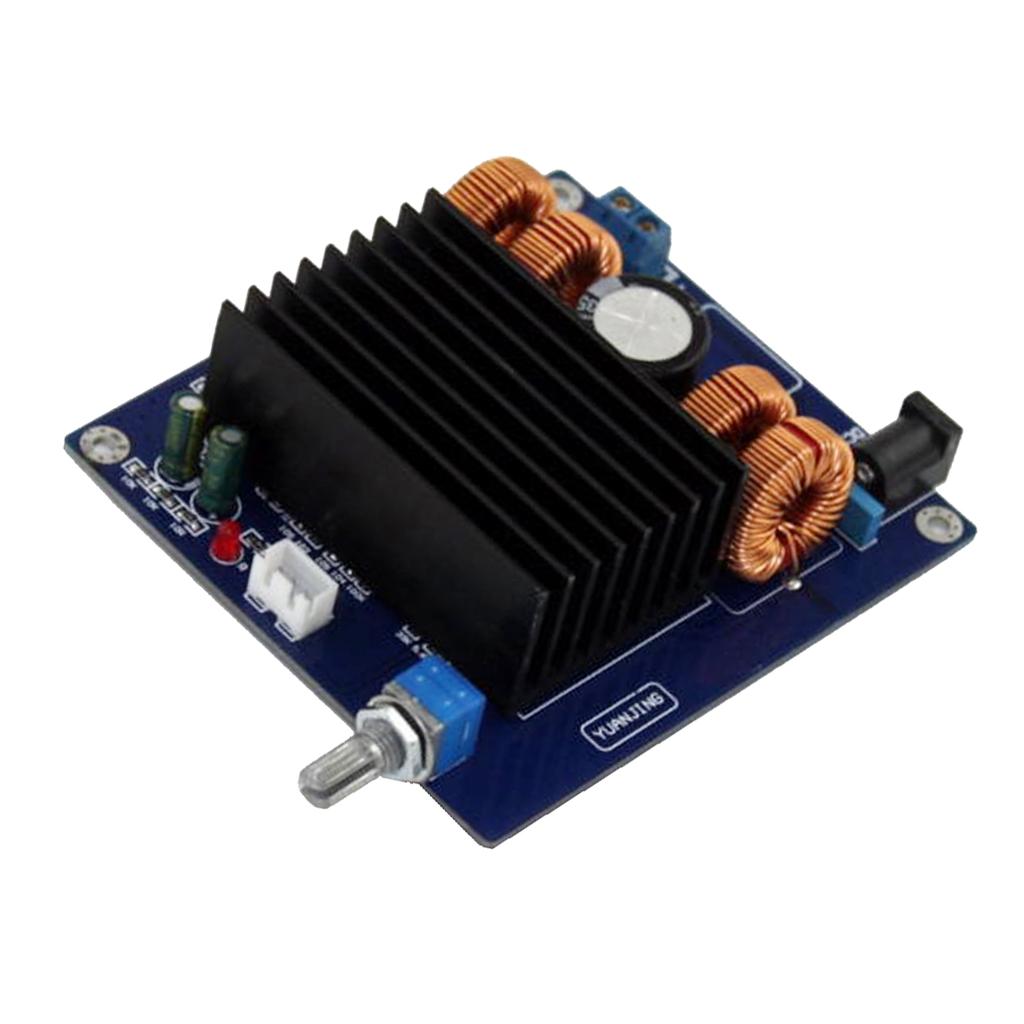

TDA7498 Class D Subwoofer Amplifier 100W Bass Digital Power Amplifier Board

Description:

Features an advanced sixth generation BCD6S process (bipolar / CMOS / DMOS) that monolithic integrated analog, logic and high voltage capability.
Compared with other Class D amplifiers, ST's BCD6S process achieves higher chip area energy efficiency, crosstalk reduction and improved sound quality.
In addition, the BCD6S allows NMOS and PMOS complementary transistors to be integrated into high-power output circuits.
The electrolytic capacitor adopts imported 2200UF / 35V electrolysis, and the resistor uses 1206 0805 high-precision chip resistor to ensure a good signal-to-noise ratio of the whole machine.
With a fully enclosed dust-proof potentiometer, the performance is more stable and more durable than ordinary potentiometers. Both power and sound exceed TA2024 TDA7492.
PCB board adopts 1.6mm thick double-sided sheet, 2.0 oz copper thickness, and the whole process of tin-spraying ensures the good passing performance of the current. First-class PCB quality.

Specification:

Basic parameters:
Way of working: Class D
Quiescent current: 20mA
Work efficiency: 90%
Rated output power: 150W x 1
Working voltage: DC 18V-32V
Recommended power supply voltage: DC 24V
Maximum output current: 6A
Speaker impedance: 4-8 Ohm
PCB size: 92mm x 83mm / 3.62x3.27 inch
Use original TDA7498.
Small size and high power.
Noise, circuit design is very reasonable, without any low noise.

Package Includes:

1 Piece TDA7498 Subwoofer Amplifier Board
