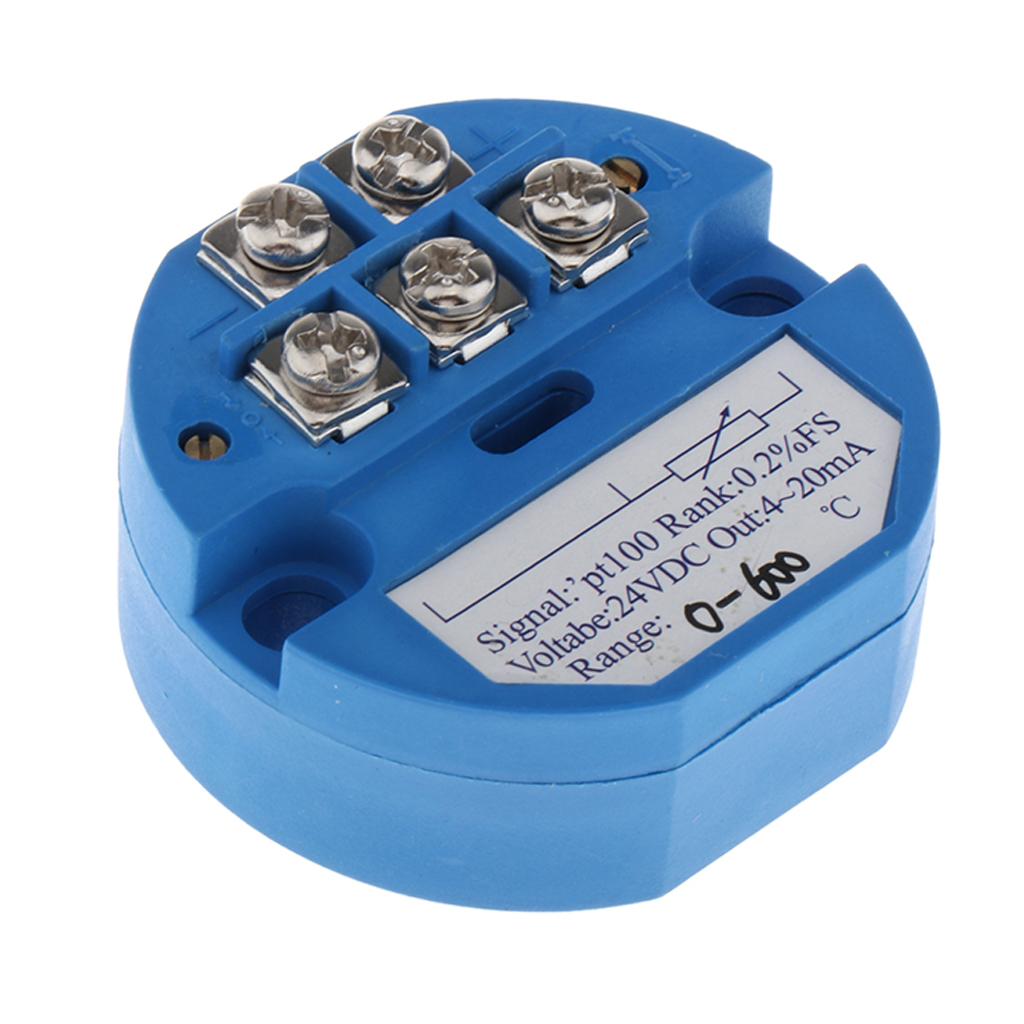

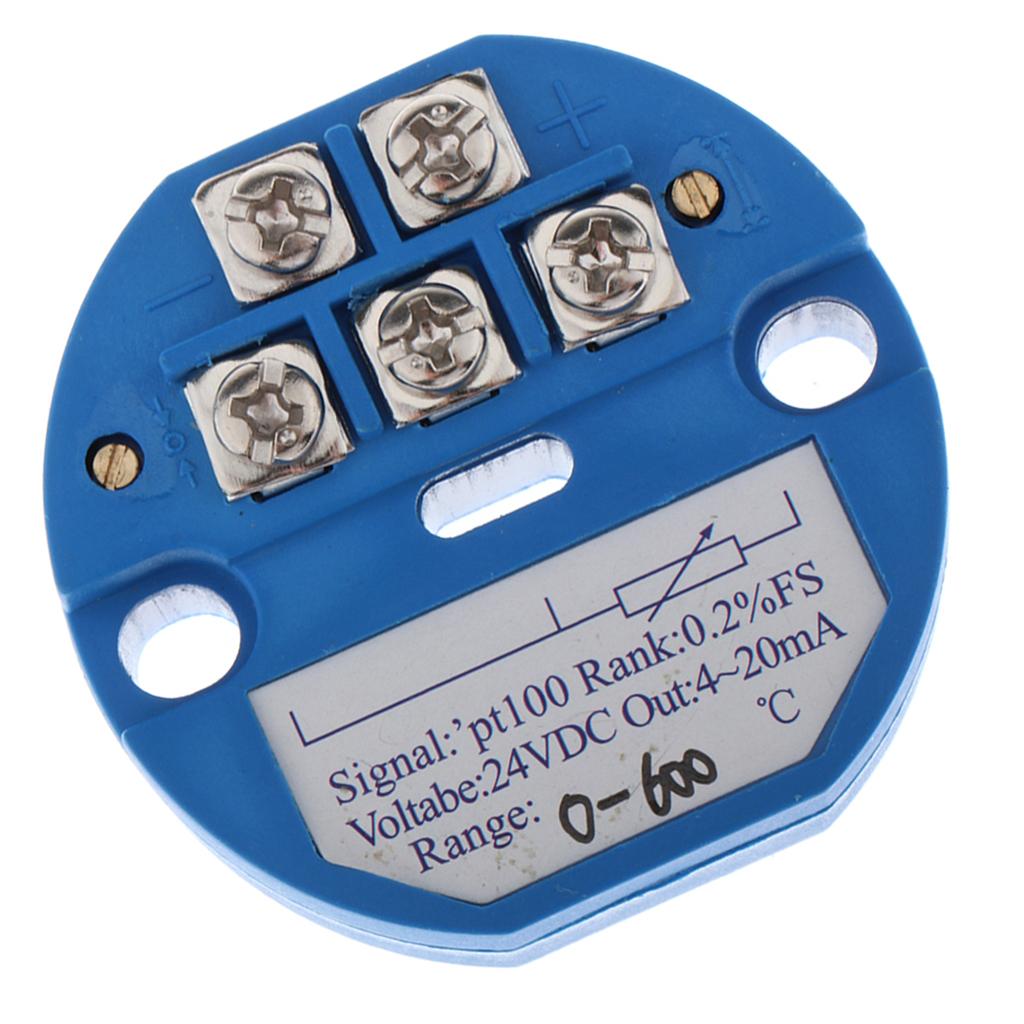

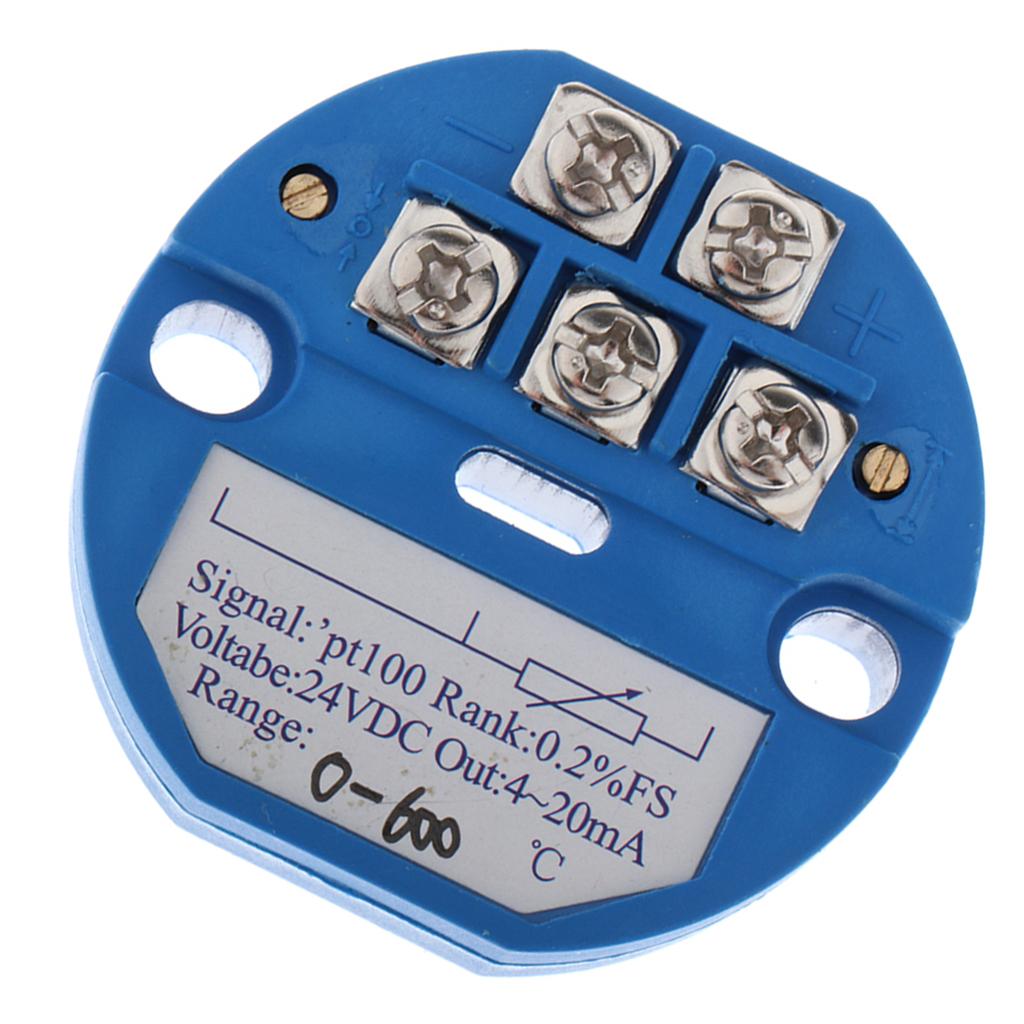

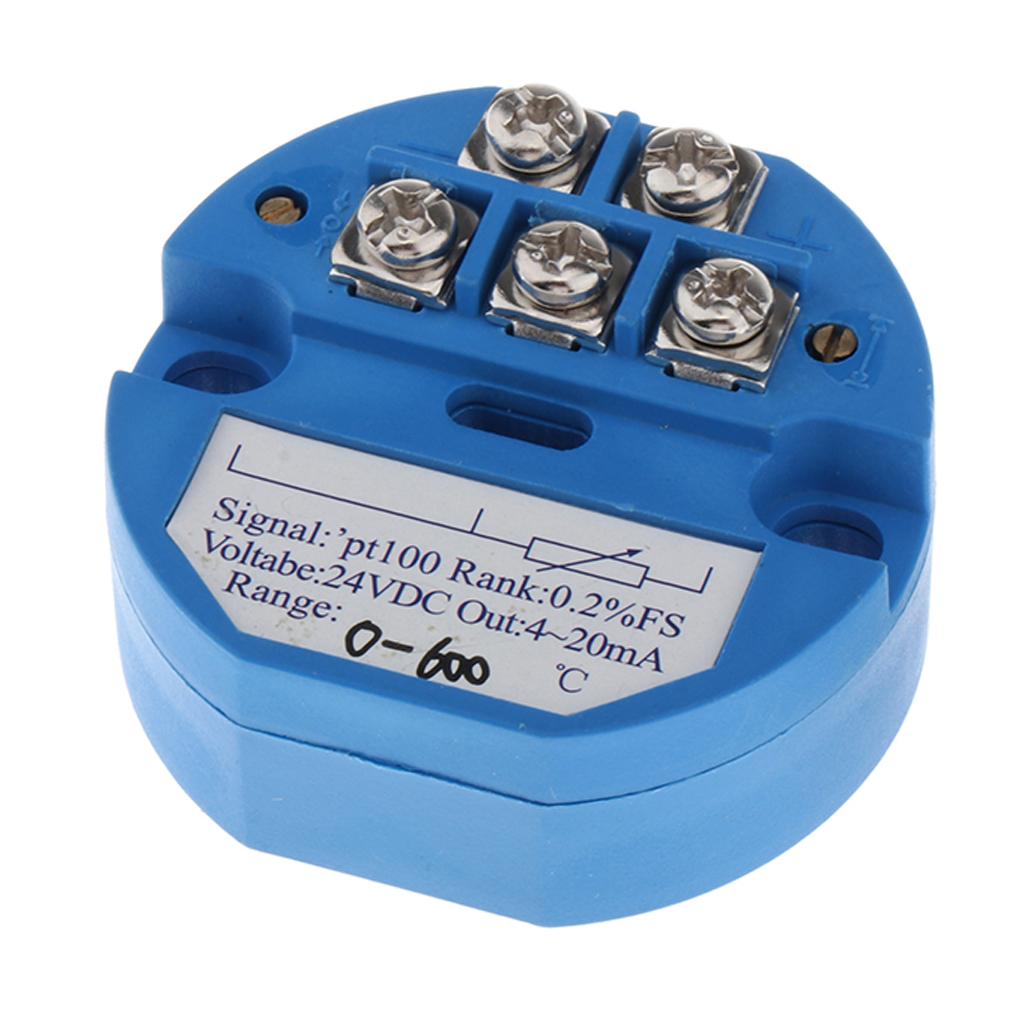

Temperature Sensor Transmitter Module 24VDC 4-20MA PT100 SBW 0-600 Degree

Description:

PT100 Temperature Sensor Transmitter, more stable and stronger anti-interference function
Input voltage: 24V DC; Output Current: 4-20mA
Widely used for Integrated Thermal Resistance/Thermocouple, PLC Module and Temperature Control Instrument
We have 12 types different temperature range for you
Material: Plastic

Specification:

The excitation current: <800uA
Accuracy: +/- 0.2F.S
Temperature coefficient: <150ppm/K F.S.
Working temperature: -20℃ ~ 85℃
Working humidity: <98% RH
Operating atmospheric pressure: 80-110KPa

Size Chart:

Size: Approx. 4.2x4x1.8cm / 1.65x1.57x0.71inch

Package Includes:

1 Piece Temperature Transmitter Module
