TGS2610 Liquefied Petroleum Gas Coal Gas Propane Butane Gas Detection Module

Description:

Suitable for families, factories, underground workshops, mines and other ambient gas leak detection, see Parameters for different gases, the specific contact Want advice.
The qualitative detection of gas concentrations in the environment of different alarm output.
The sensor response time is very fast, the output of the switching signal can be connected PLC, SCM, exhaust fans and other control processing.
Wide range power supply module, fit different voltages.
Alarm concentration range can be adjusted to facilitate customer is free to set.
Long life, good stability and durability.
Module with guide housing, easy to install.
Heating voltage: DC 7-12V
Working current: 120mA
Alarm: sound and light alarm
Output voltage: relay output 3A
Detection concentration range: 500-10000ppm
Warm-up time: 30-50 minutes
Sensitivity: ≥3%
Response time: ≤300ms
Response time: ≤20S
Component Power: ≤1.5W
Working temperature: -10 ~ 50℃
Humidity: 95% RH (nominal humidity 65% RH)

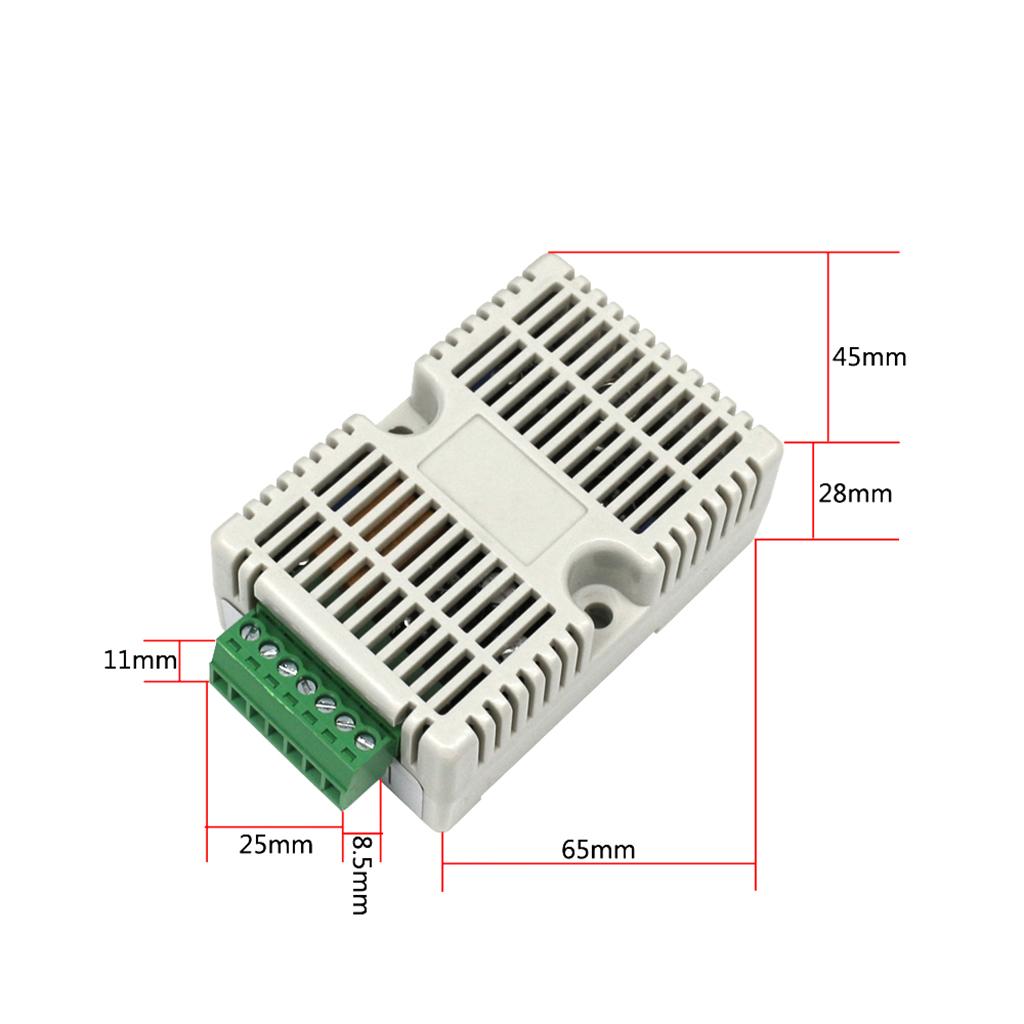

Size: approx. 65 x 45 x 28mm

Specification:

Test for Petroleum Gas Coal Gas Propane Butane Gas

Package Includes:

1 Piece Gas Detection Module
