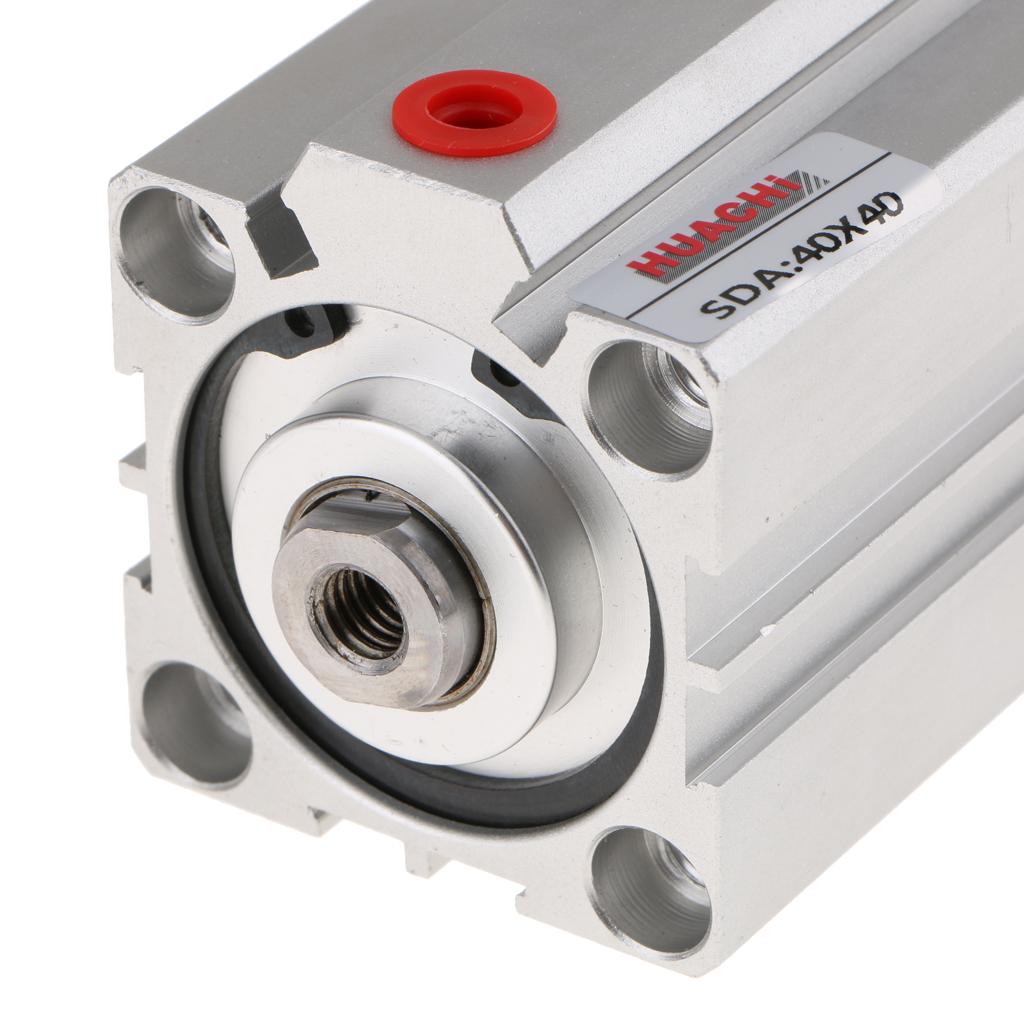

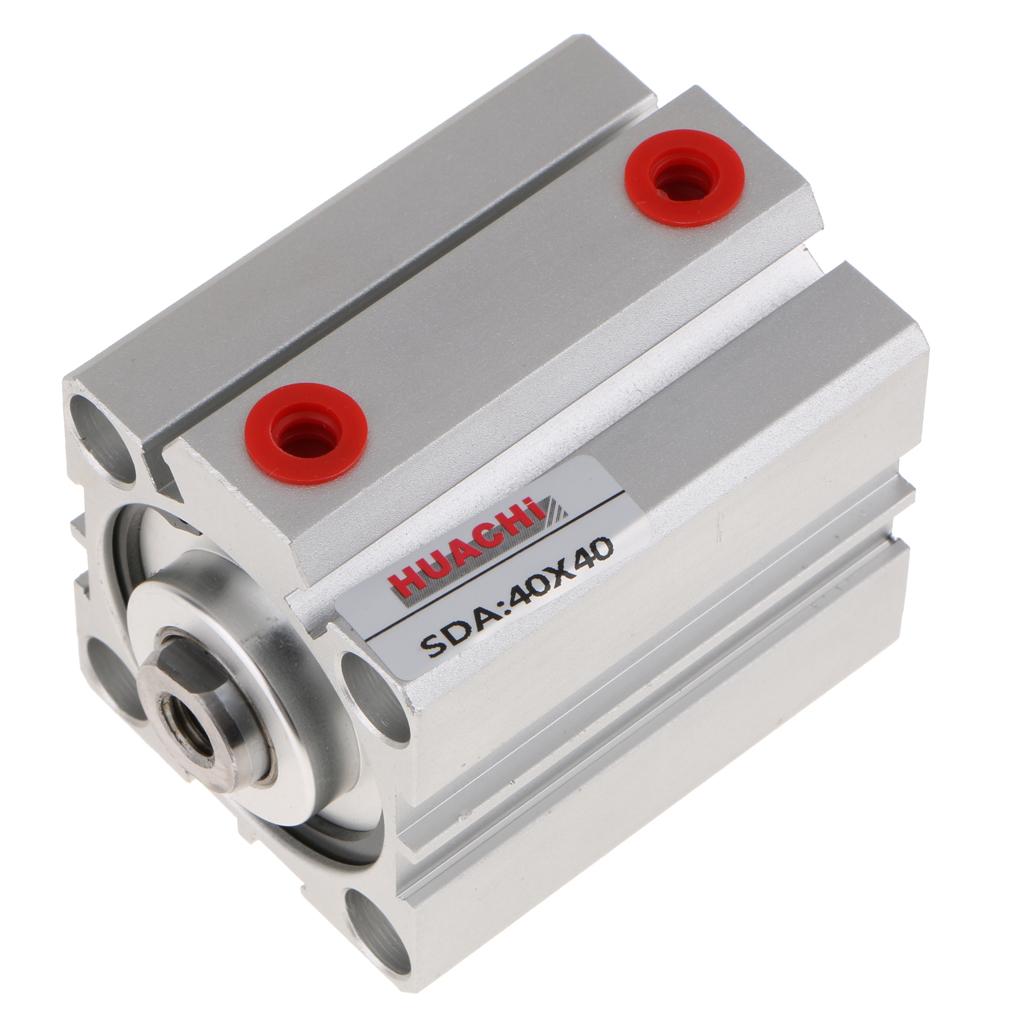

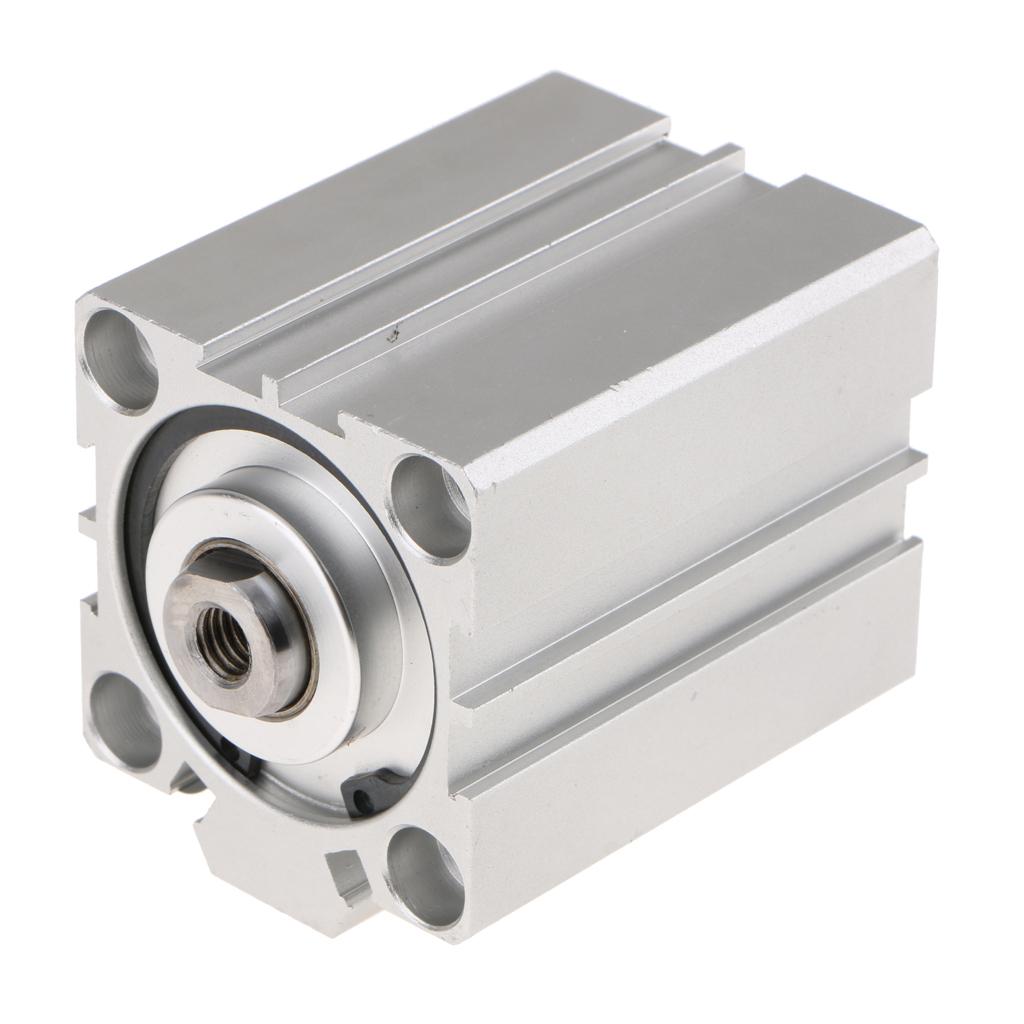

Thin Air Cylinder Series SDA40 Cylinder Pneumatic Element Bore 40mm SDA40X40

Description:

Model Series: SDA 40

Working Medium: Pass Filtered & Lubricator Compress Air

Motion Type: Double Action

Bore: 40mm

Working Pressure: 0.1-1.0Mpa

Ensured Pressure Resistance: 1.5Mpa

Working Pressure: -20-80℃

Working Speed Range: 30-500mm/s

Inlet / Outlet Thread Diameter: PT1/8

Fitment: Printing(tension control), semicondcutor(spot welder,chips grinding), automatic control system,etc.

This thin air cylinder has heavy load can used for high turque output.

Well adapted to working evironment, especially for the hostile environment like inflammable,explosive, dusty,ferromagnetic etc. Which is superior than hydraulic, electronic,electric controls.

Specification:

Main Material: Aluminum Alloy

Color: Silver Tone

Size: SDA40*40(LxWxH): approx.73x52x59mm/2.9x2.0x2.3inch

Package Includes:

1 Piece Thin Air Cylinder SDA 40
