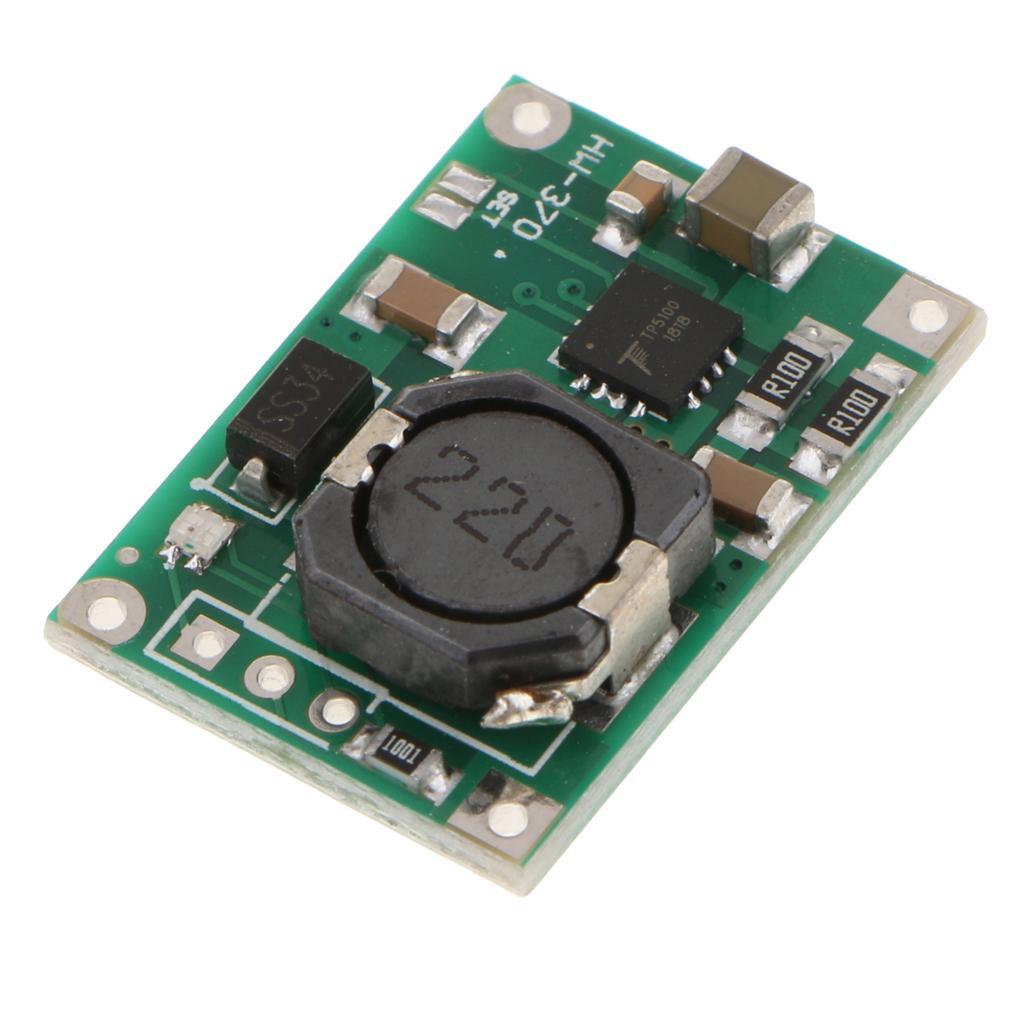

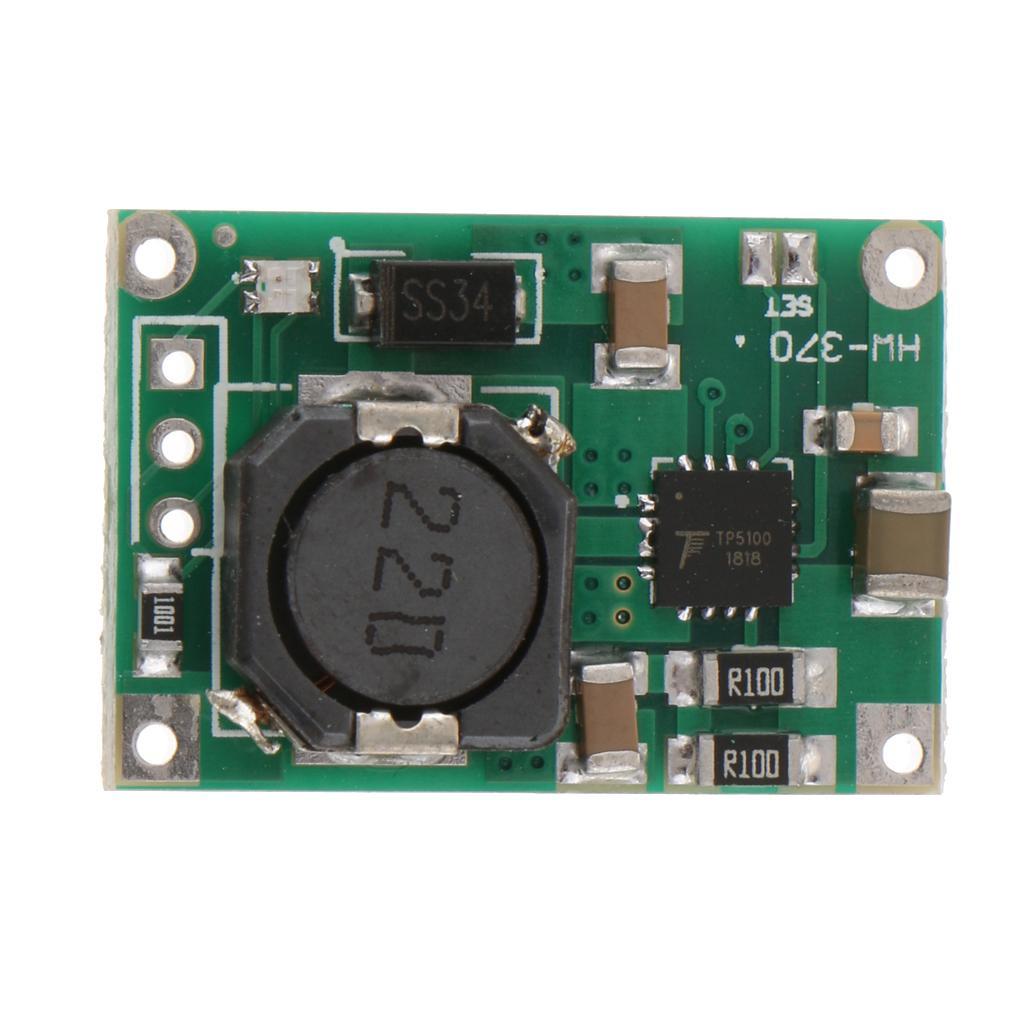

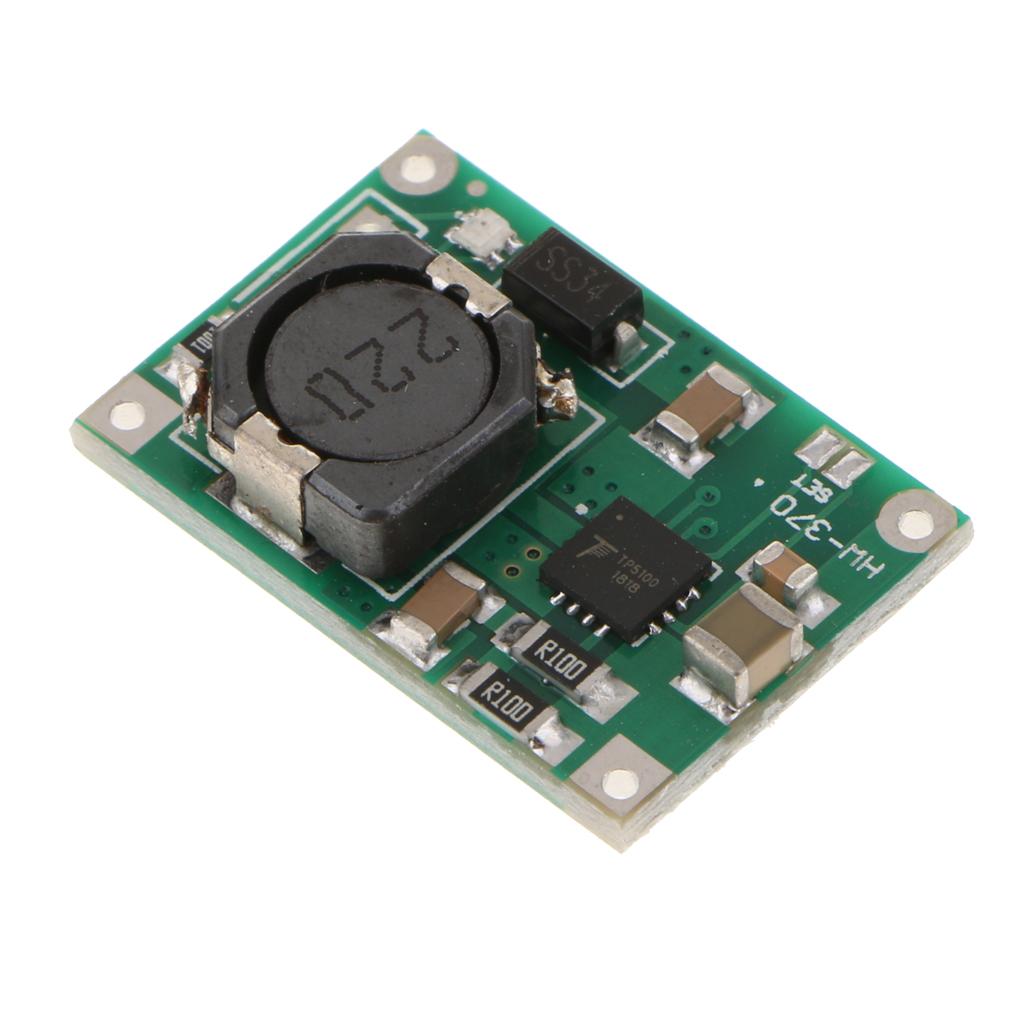

TP5100 Single 4.2V/Dual 8.4V2A Battery Charging Module Overcharge Protection

Description:

Input voltage: 5-12 V DC power supply
Charging status: blue light full and no charge, red during charging
The voltage adjustment must be operated in the power state. When the switch is installed, the input must be disconnected and then switched.
It can also be used for LED white constant current LED: set a single lithium unit, set up a double lithium unit 2 strings.
Suitable for portable devices, various chargers, smart phones, tablets, power tools, walkie-talkies, etc.

Specification:

Material: plastic
Size: 2.5x1.7 cm
Static input power (VIN): 20V
BAT: -8.4V~20V
BAT short circuit duration: continuous
Maximum junction temperature: 120 ° C
Working temperature: -40 ° C ~ 85 ° C
Storage temperature: -65 ° C ~ 125 ° C

Package Includes:

1 Piece Charge Controller Module
