TPMS Tire Pressure Monitoring System

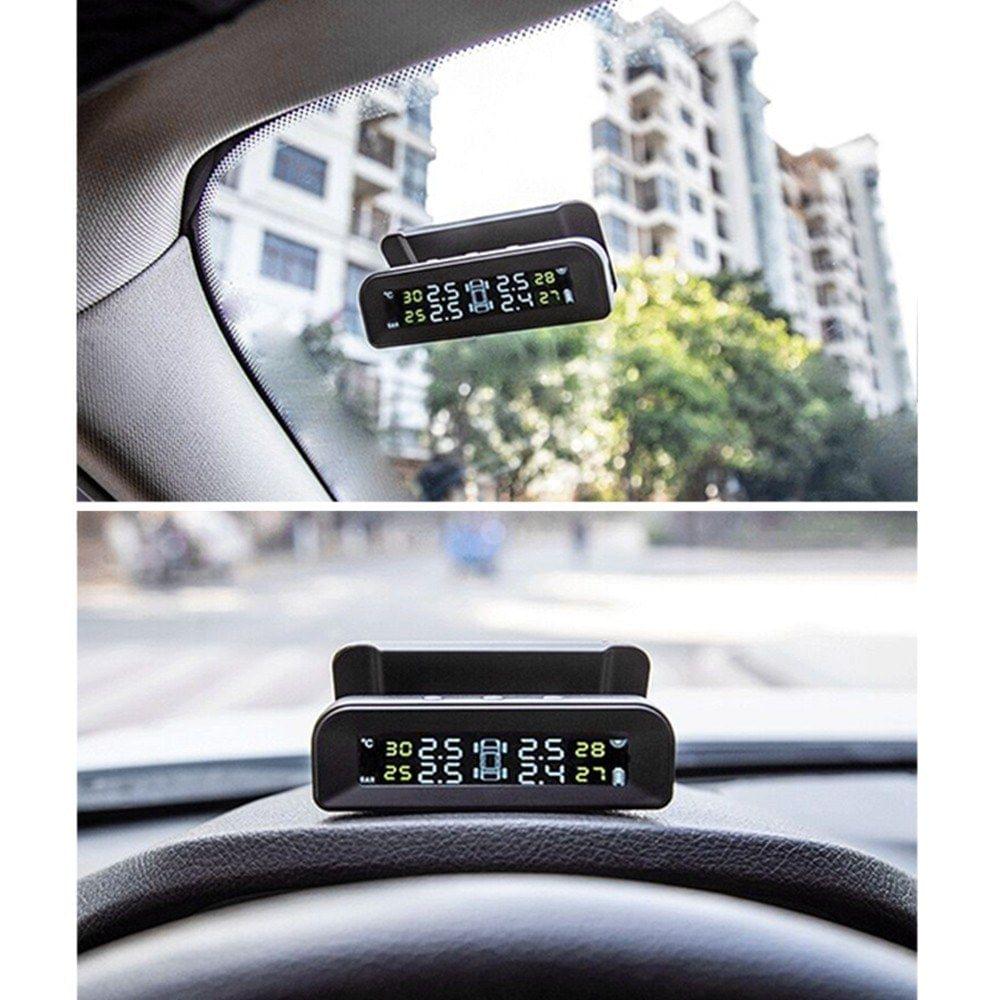

Features: Real-time Monitoring: LCD display shows the pressure and temperature of 4 tires simultaneously, letting you get real-time information about the tire condition.

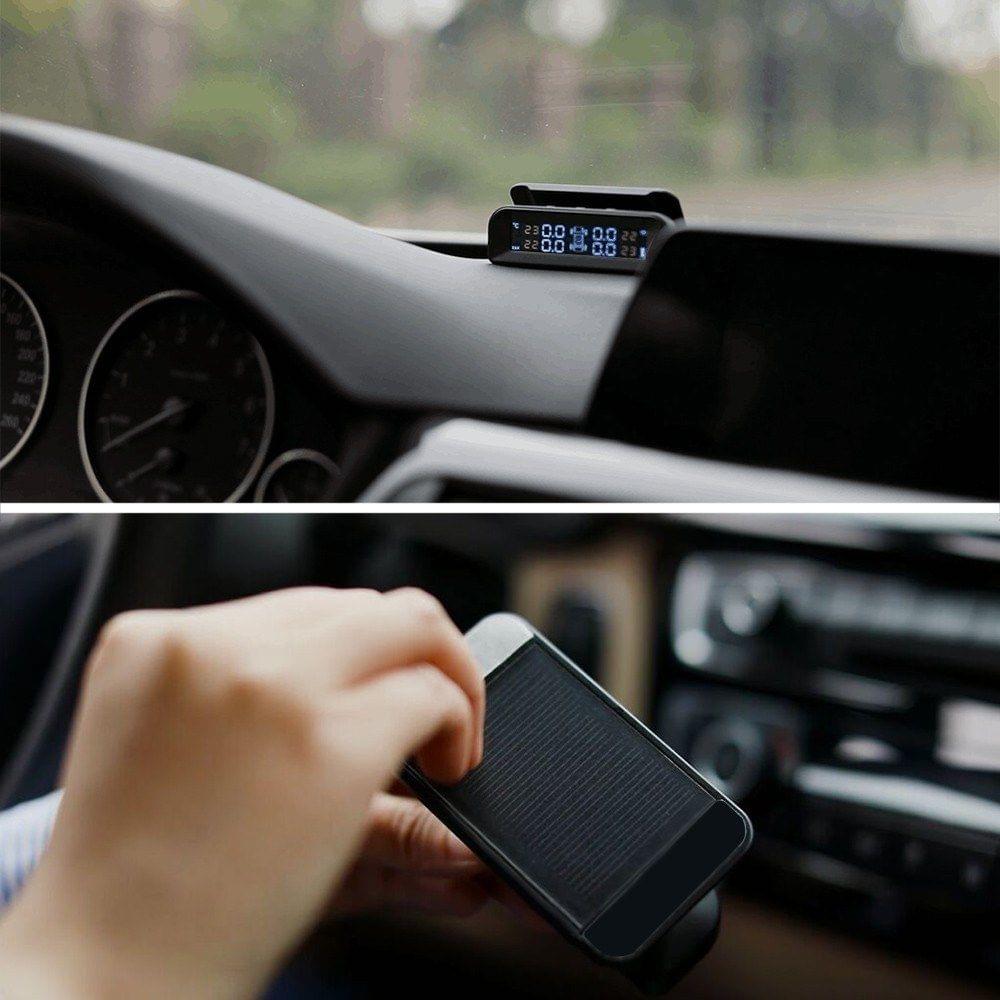

Two Charge Methods: Tire pressure monitoring system is combined with the solar energy panel, quickly charge, also support USB charge (USB cable is not included).

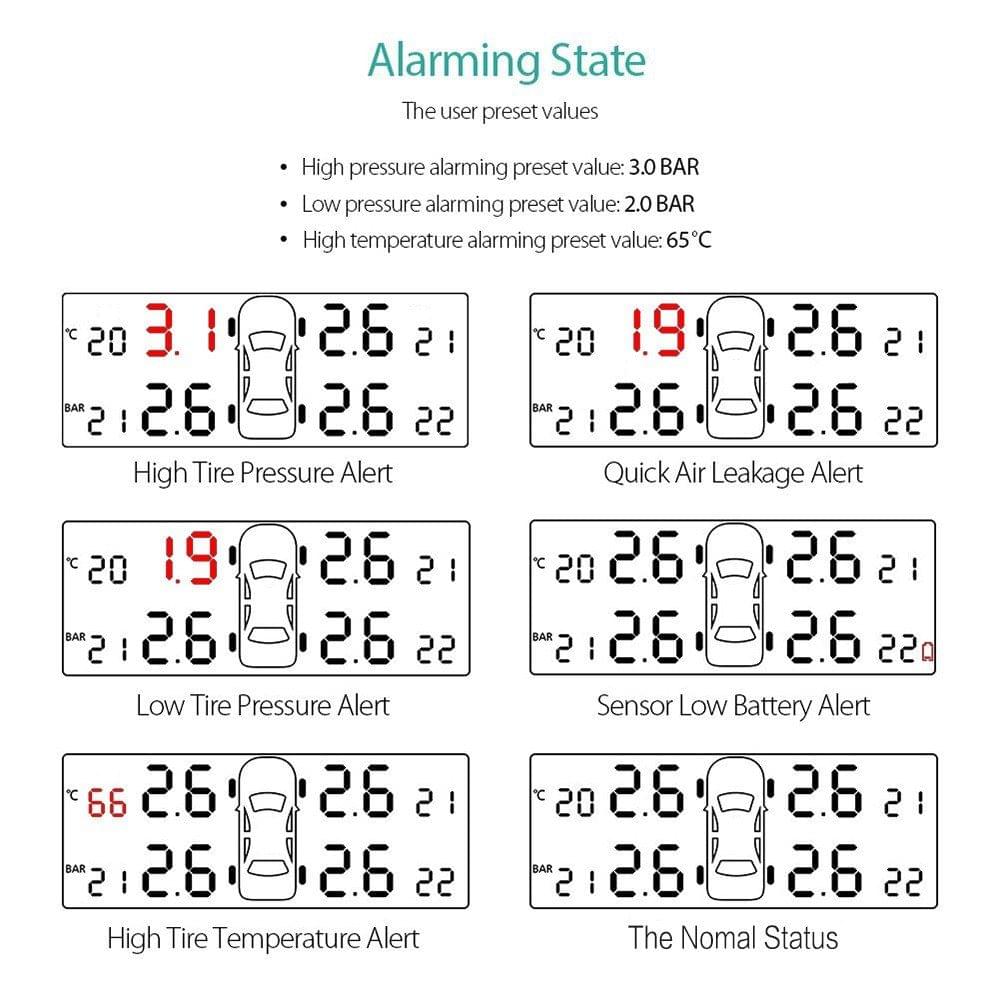

Intelligent Alarm: Once there is an abnormal status, a warning happens, such as leakage alert, high temperature alert, high pressure alert, low pressure alert.

LCD Digital Screen: Bright backlist for clear readings; Pressure unit is BAR/PSI, and temperature unit is ℃/℉, all real-time data of car tires is clear at a glance.

Effective  Protection: 4 high sensitive sensors has waterproof and anti-corrosion, anti -theft features, there is no worry even in rainy days, ensuring your driving safety.

Specification:

Monitor: Display

screen: LCD

Operating temperature: -20℃ ~ 80℃

Working voltage: 3.5-4.2V

Daytime operating current/Night operating current/Standby current:＜20mA/＜4mA/＜50uA

Transmission frequency: 433.92MHZ+/-20KHZ

Transmission mode: FSK

Pressure unit: BAR/PSI

Charging ways: Solar energy/USB (USB cable is not included)

Battery: 1 * 402040 3.7V 300mAh(Not included)

Monitor size: Approx.9.5*3*1.5cm

Monitor weight(with solar panel): Approx.71g

Sensor: Operating temperature: - 20℃ ~ 80℃

Working voltage: 2-3.6V

Standby current:＜1uA

Transmission frequency: 433.92MHZ+/-20KHZ

Transmitted power:＞8dBm

Open Distance:＞30M

Battery (each sensor): 1 * CR1632 3V Sensor size (each): Approx.2*2*2cm

Sensor weight (each): Approx.8g

Package Size: 21*15*6cm / 8.27*5.91*2.36in.

Package Weight: 233g / 8.22oz

Package List:

1 * Displayer

4 * External Sensors

1 * Wrench

4 * Nut

1 * User Manual(English)
