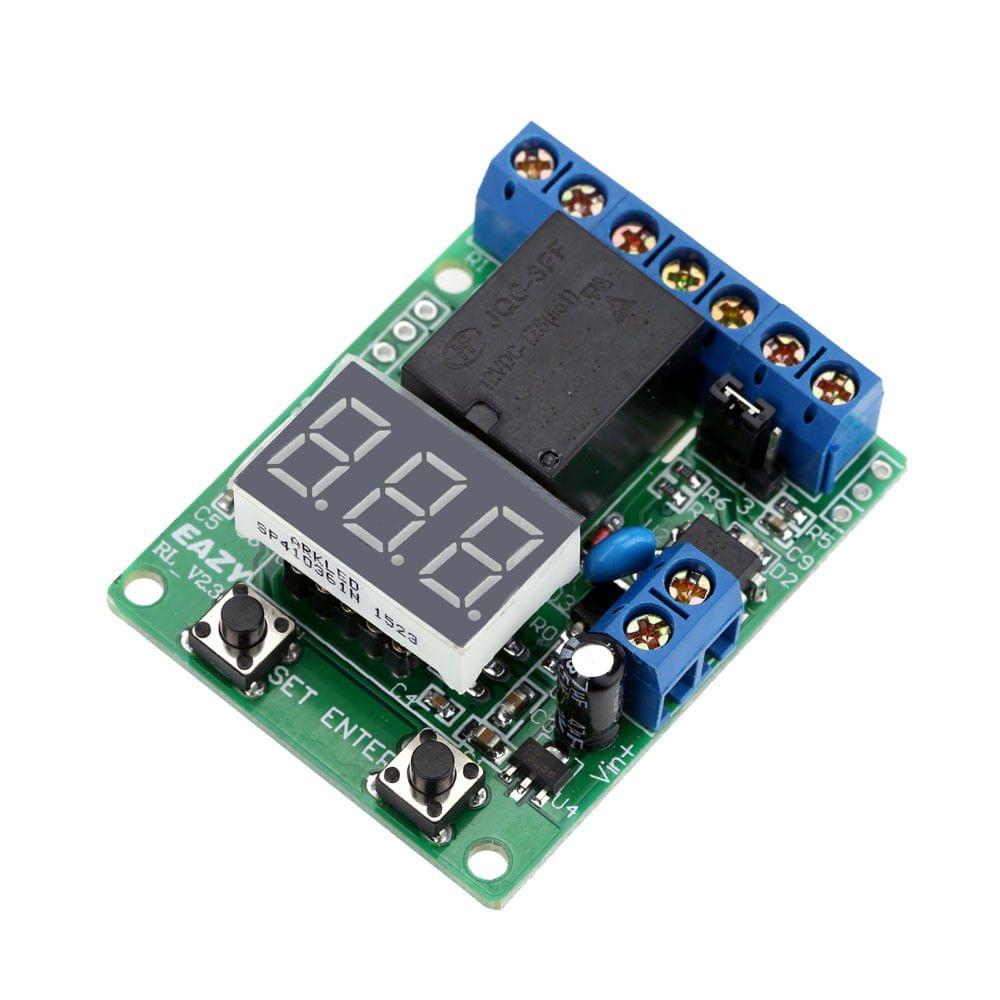

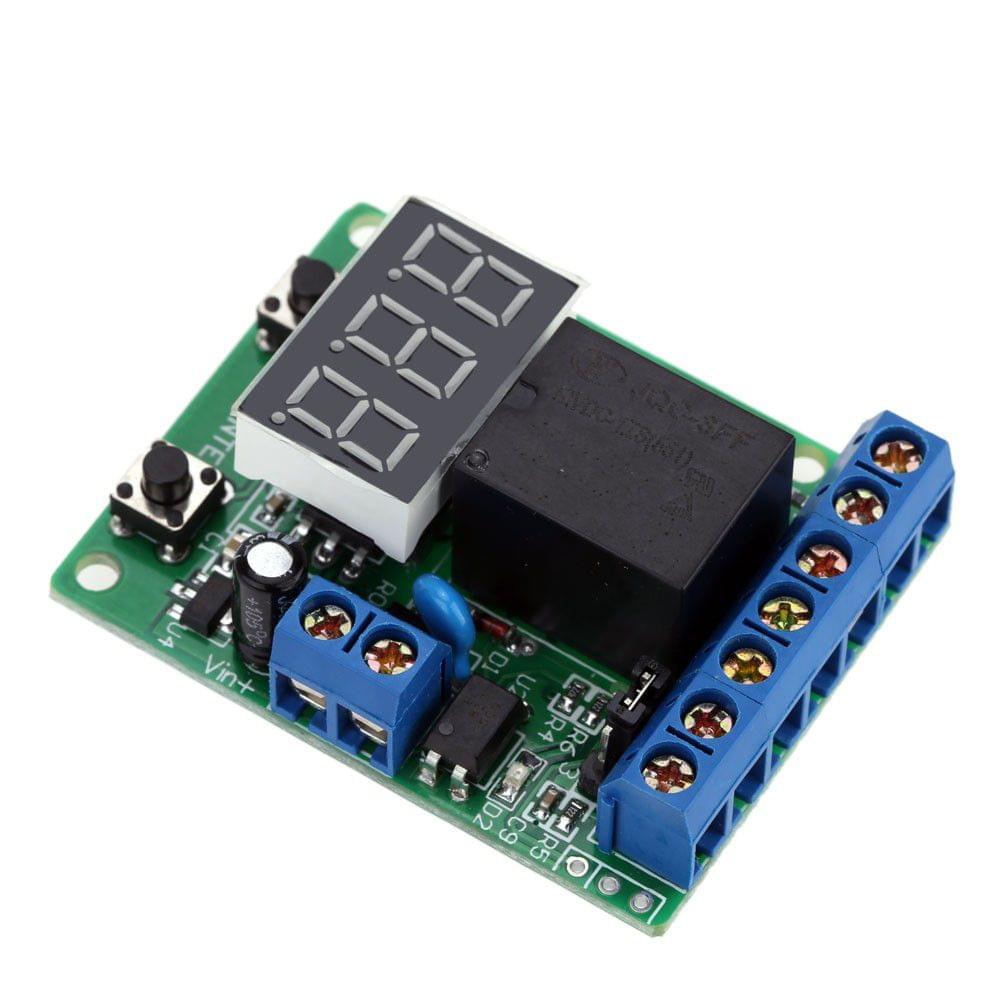

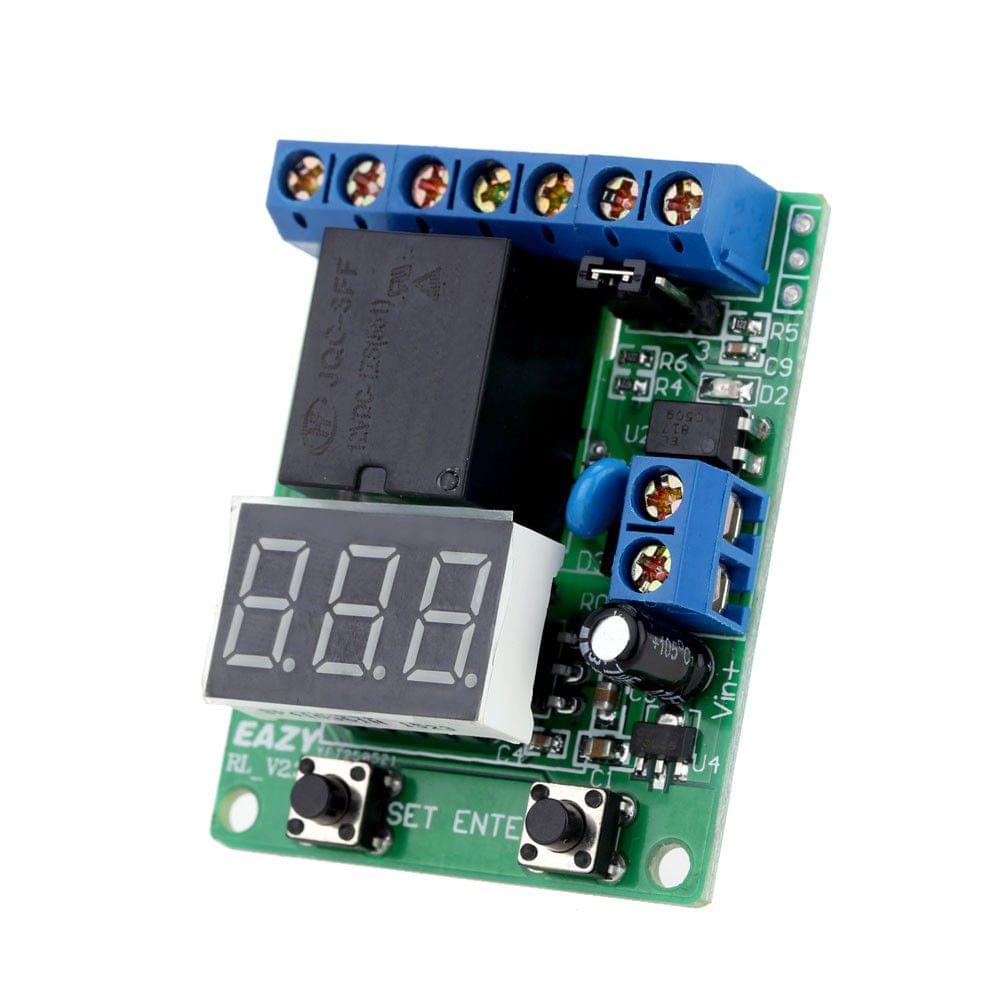

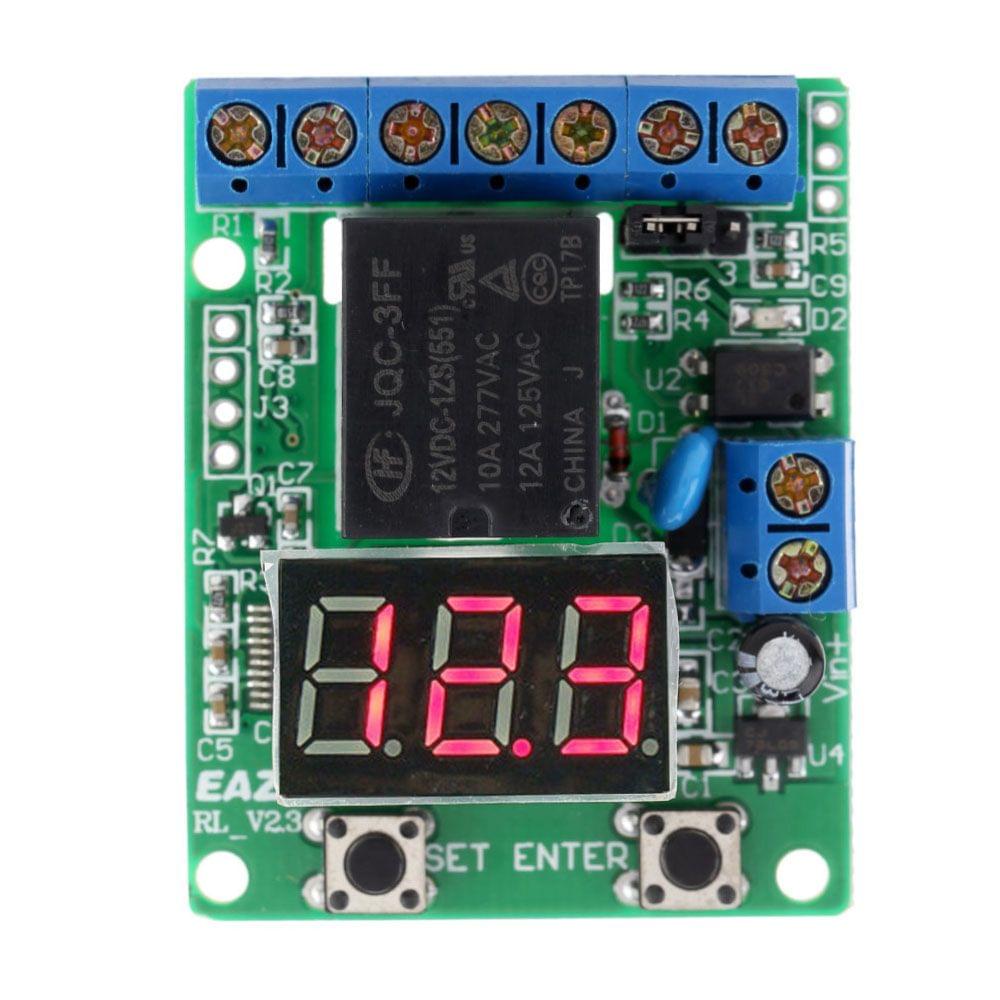

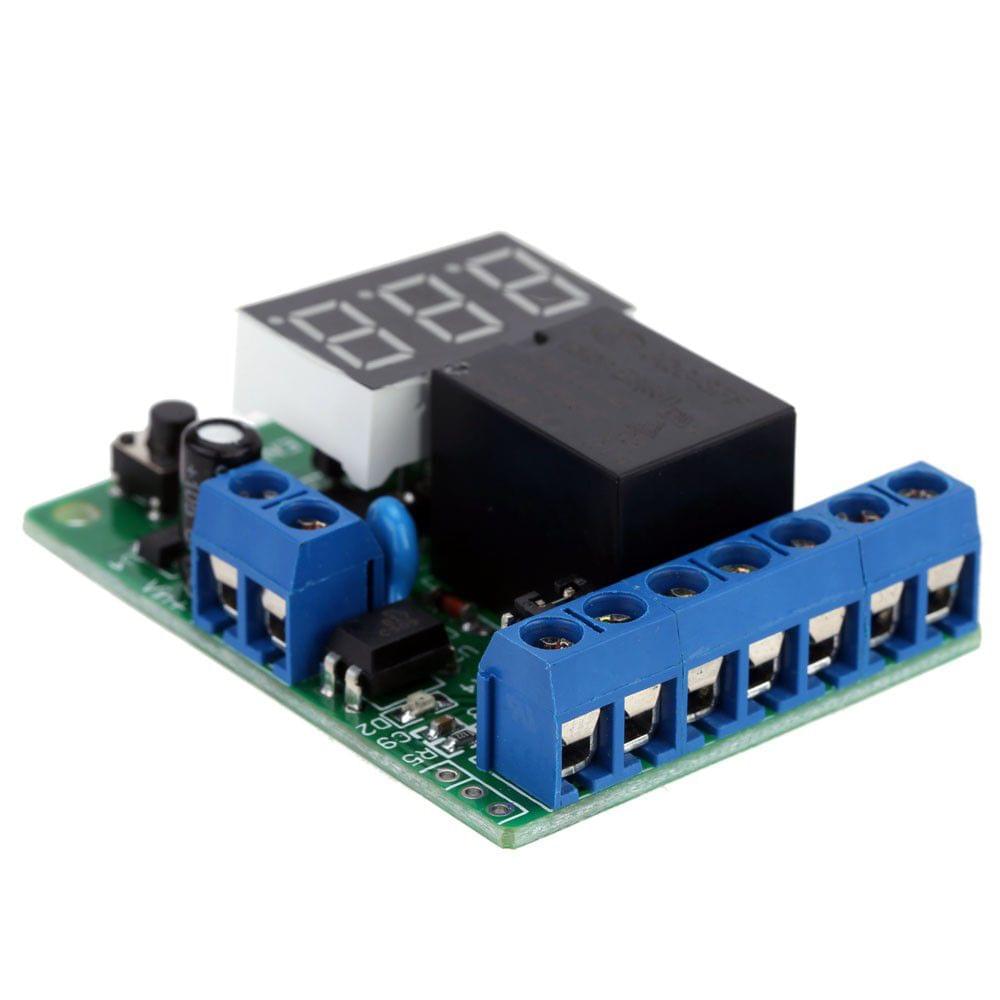

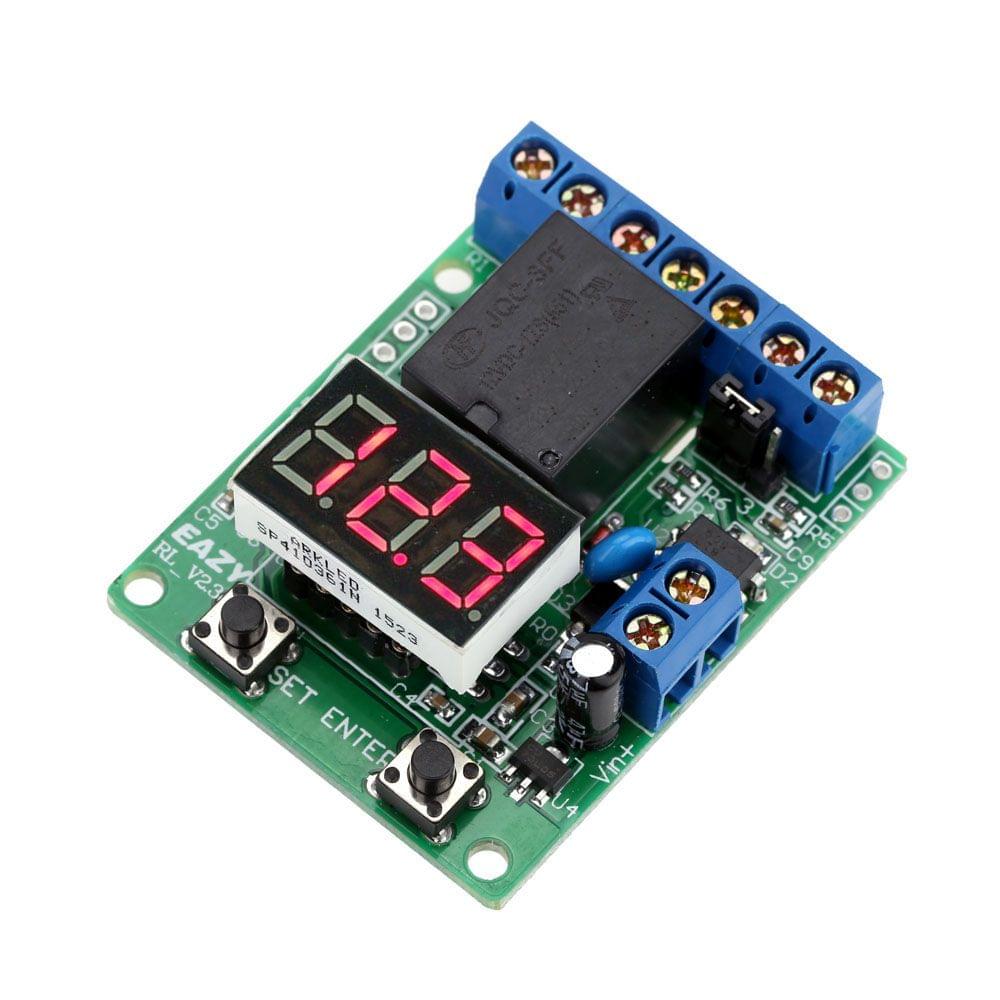

Ts1.2 Time Relay Controller Relay Module Relay-operated

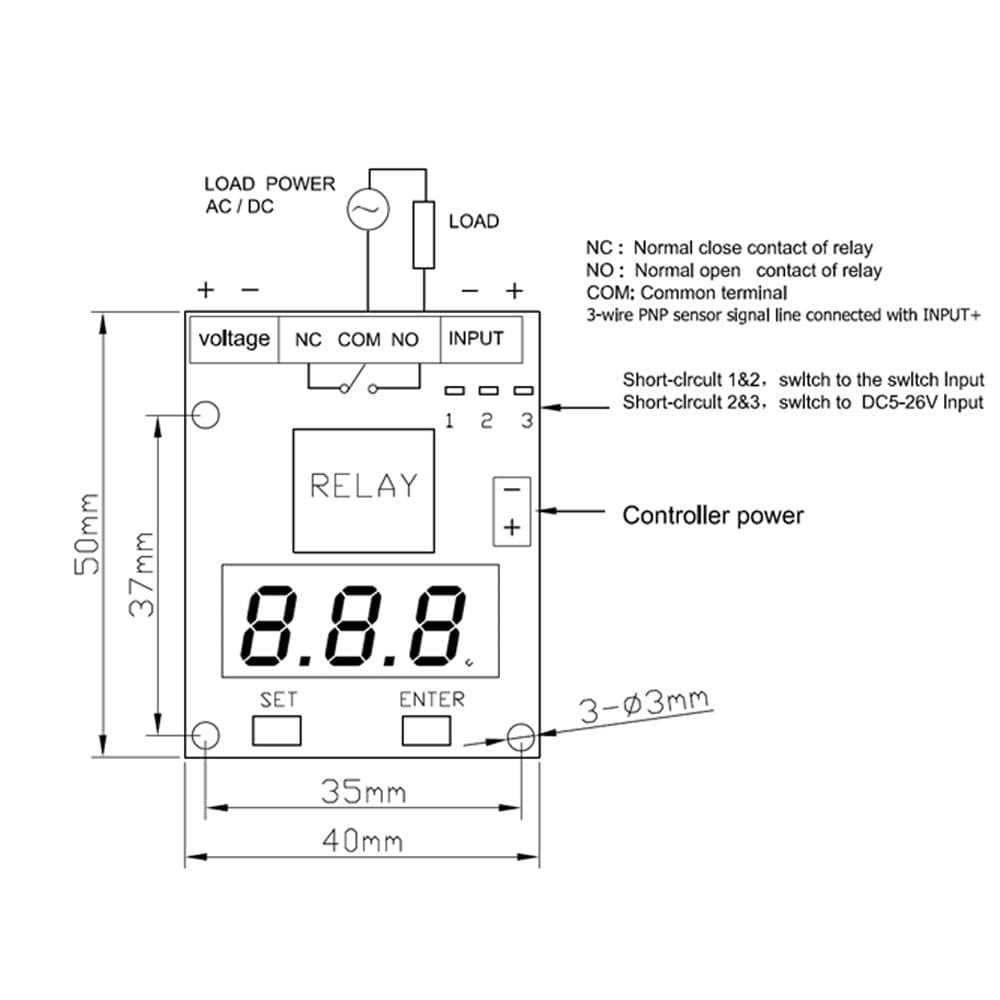

Features:8 trigger modes can be set to achieve trigger start trigger restart signal maintenance running trigger reset (watchdog function) force stop and other functions.Timing Range: 0.1 seconds~999 minutes adjustable.(three range adjusting among 0.1~99.9sec. 1~999sec. and 1~999min.)Relay can be closed first and then opened it can be also opened first and then closed. cycles 0~9999 times. (0 means infinite cycles).The pre-set parameters can be saved after power off.A set of conversion (normally opened and normally closed).Specifications:Material: PCBOperating Power: DC12V (10~18V)Contact Load: 10A/277V AC or 10A/30V DC Contact Resistance: 100m? (1A 6VDC)Electricity Durability: 100 000 (10A-250VAC)Mechanical Durability: 10 millionsOperating Temperature: -40~85?Item Size: 50 * 40 * 20mm / 1.97 * 1.57 * 0.79inItem Weight: 27g / 0.95ozPackage Weight: 30g / 1.06ozPackage Size: 5 * 4 * 2cm / 1.97 * 1.57 * 0.79inPackage List:1 * Module
