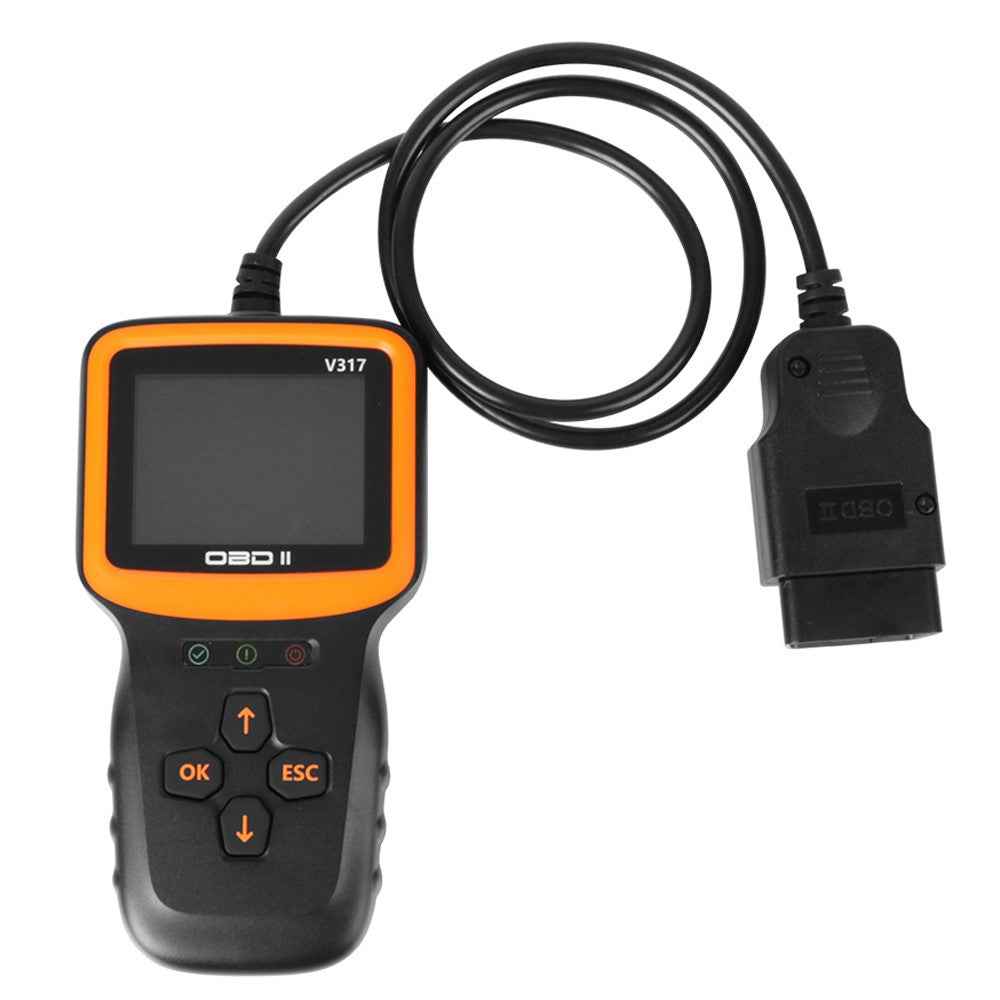

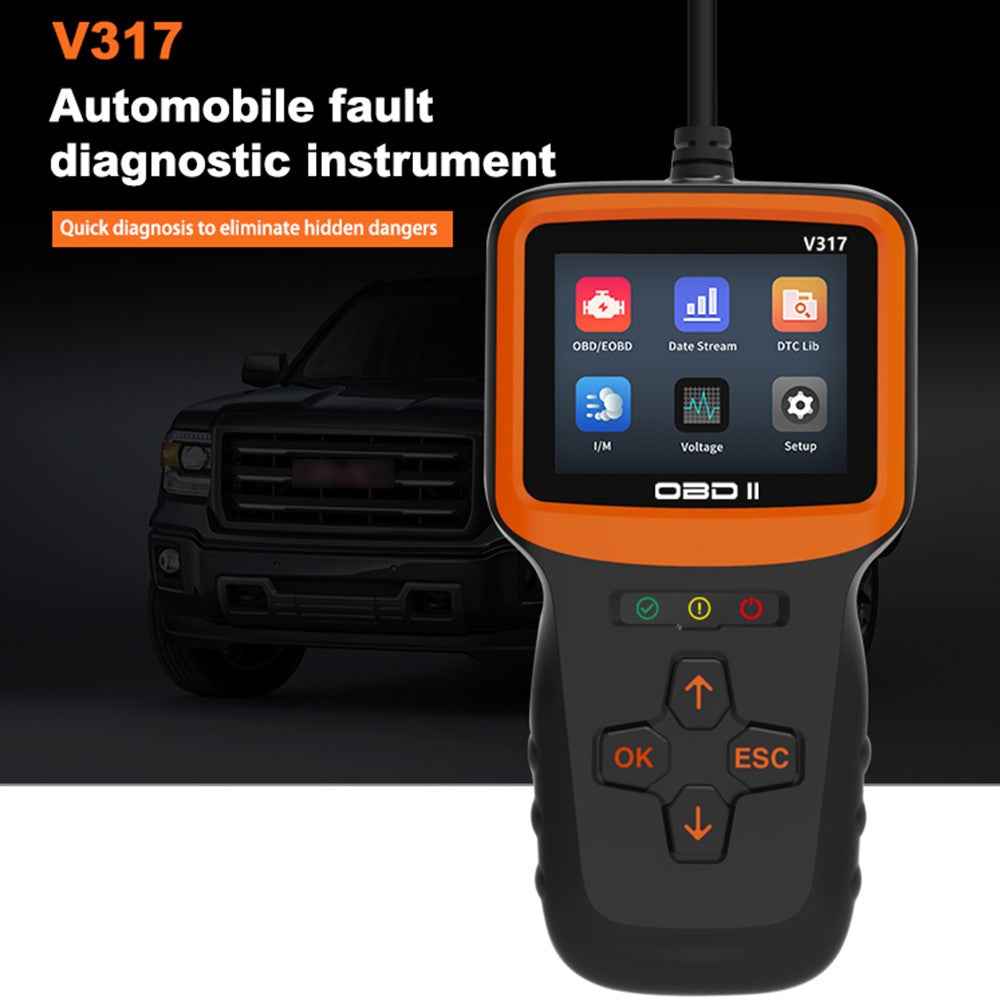

V317 OBD II Diagnostic Car Fault Detector Engine Tester Tool elm327 Car Reading Code Card Car Diagnostic Instrument

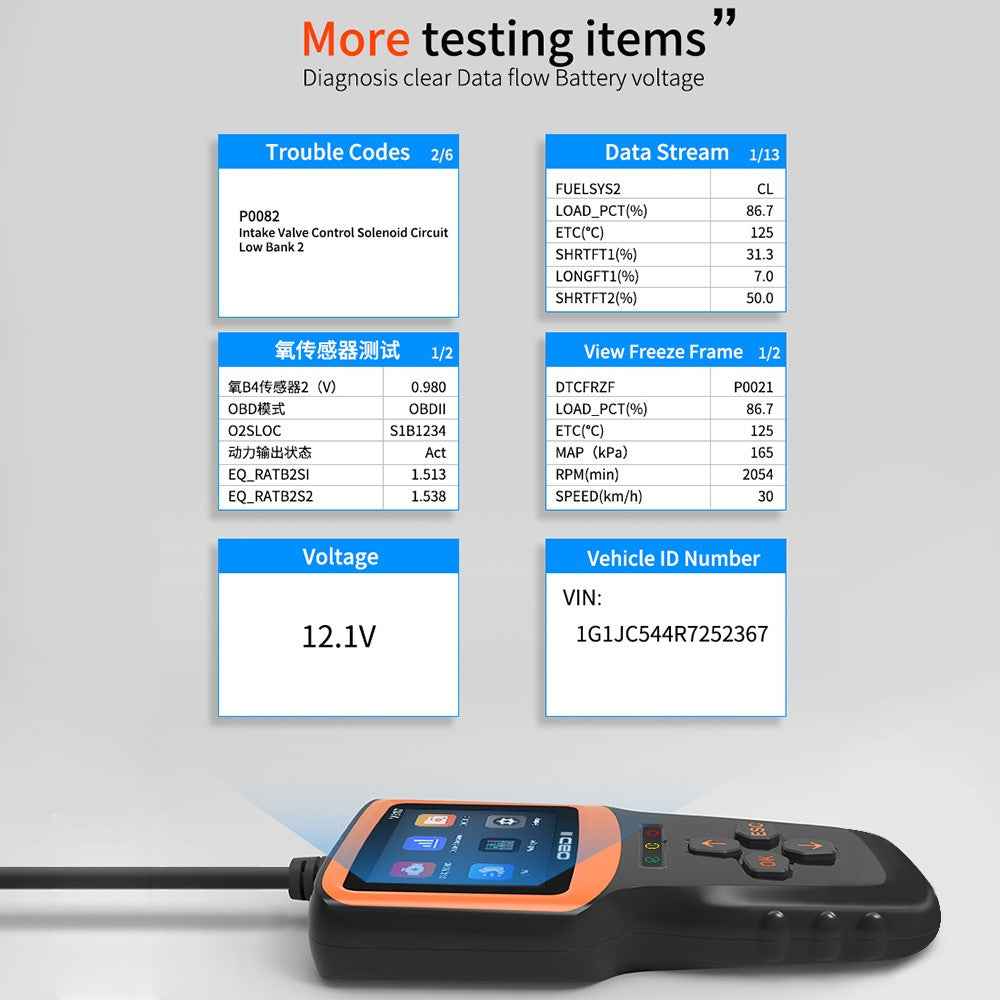

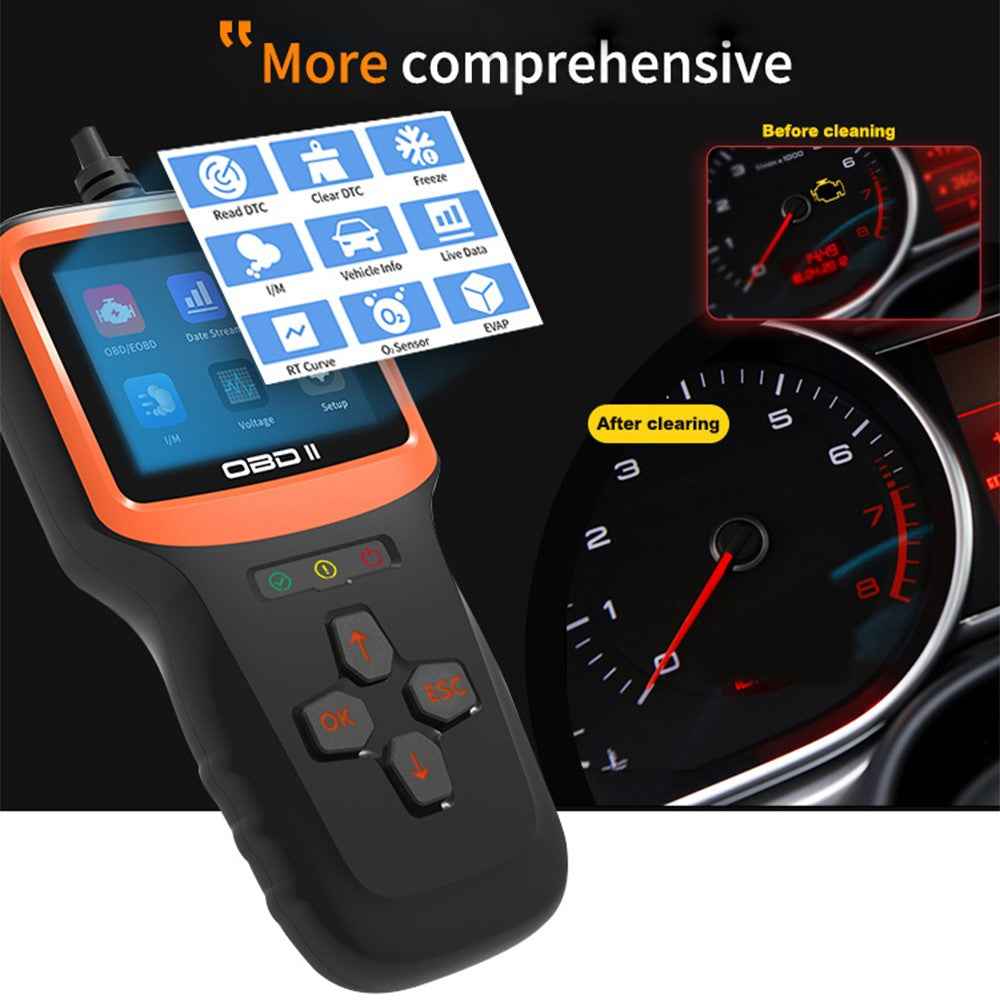

• Read errors and clear diagnostic codes
• Easily determine the cause of the check engine light
• Oxygen sensor test
• EVAP test
• Freeze frame data
• I/M data
• View vehicle information
• Vehicle data flow
• Real-time curve
• Battery voltage detection

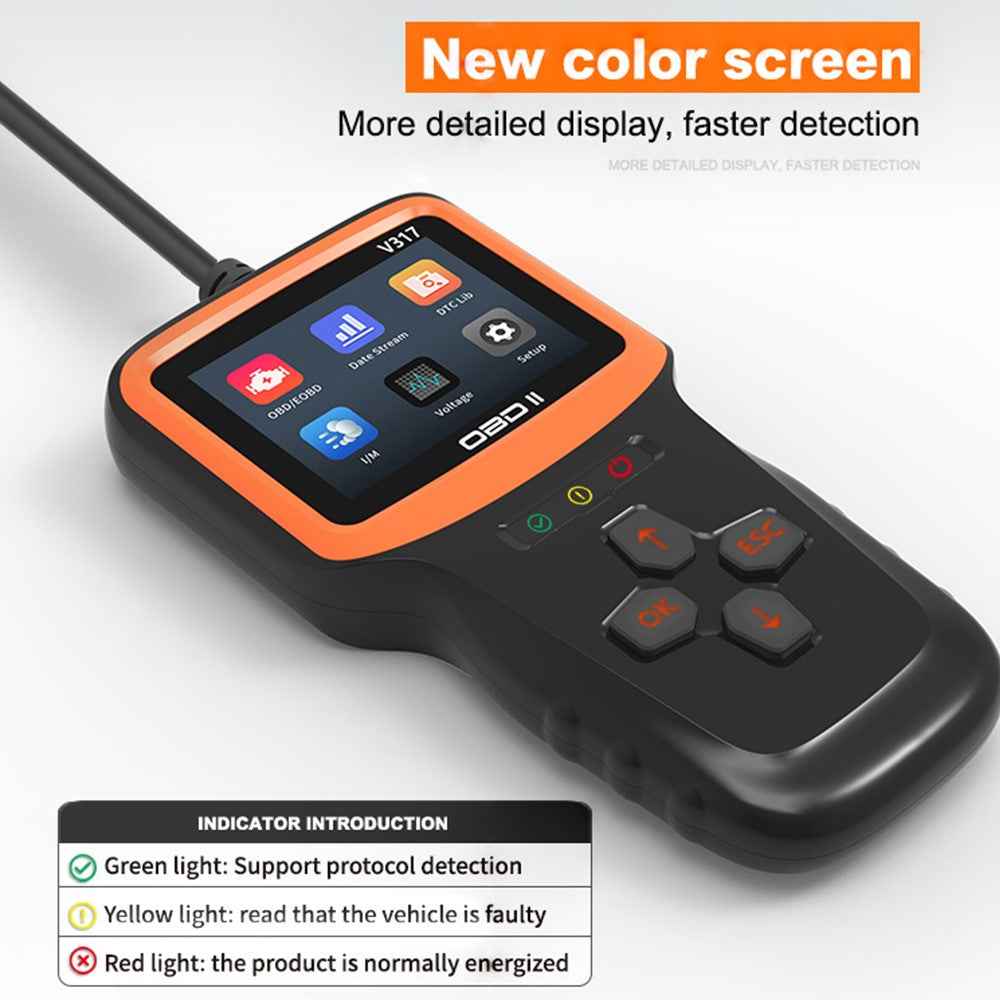

• Intelligent indicator
• Support 8 languages English, German, Dutch, Italian, Spanish, French, Russian, Chinese
• The color screen display is 2.8"

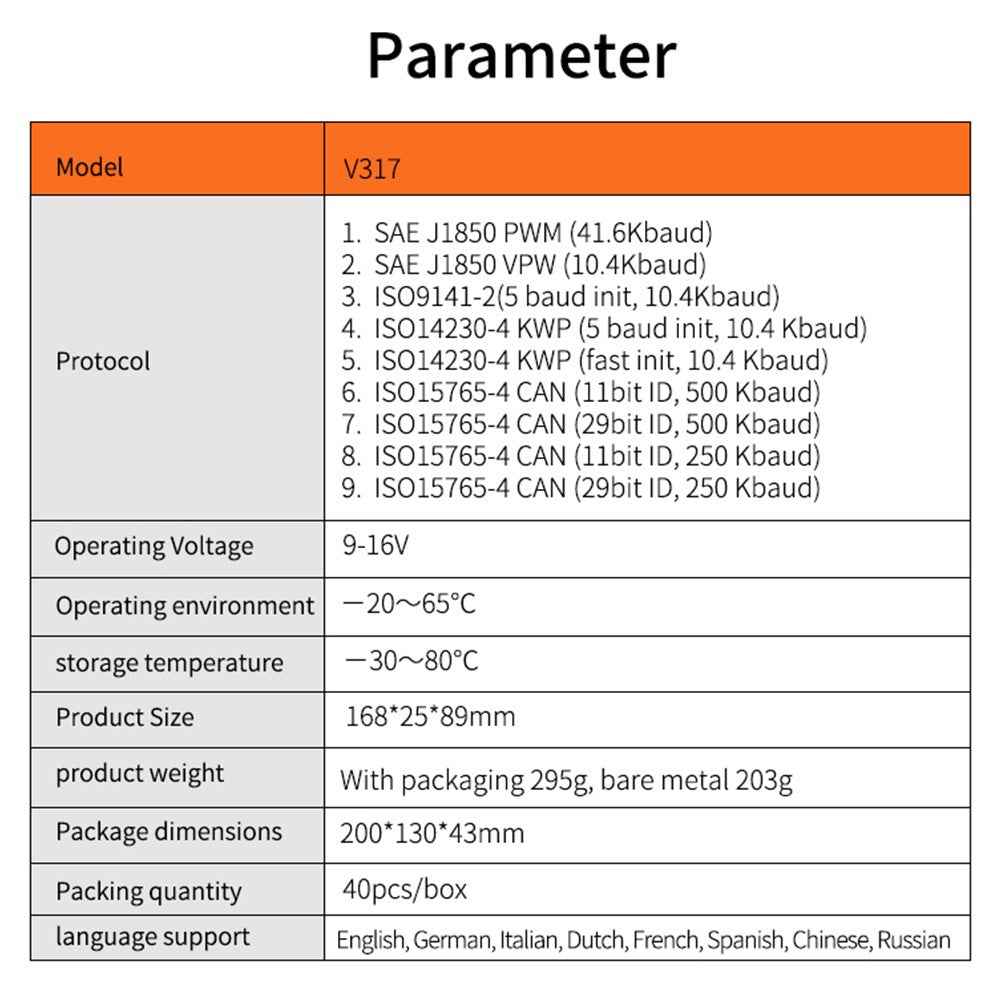

Specifications:

• Main control chip: Epistar
• Working voltage: 12V
• Operating current: 51mA
• Standby current: 50mA
• Operating environment: -30-70?
• Storage temperature: -30-70?

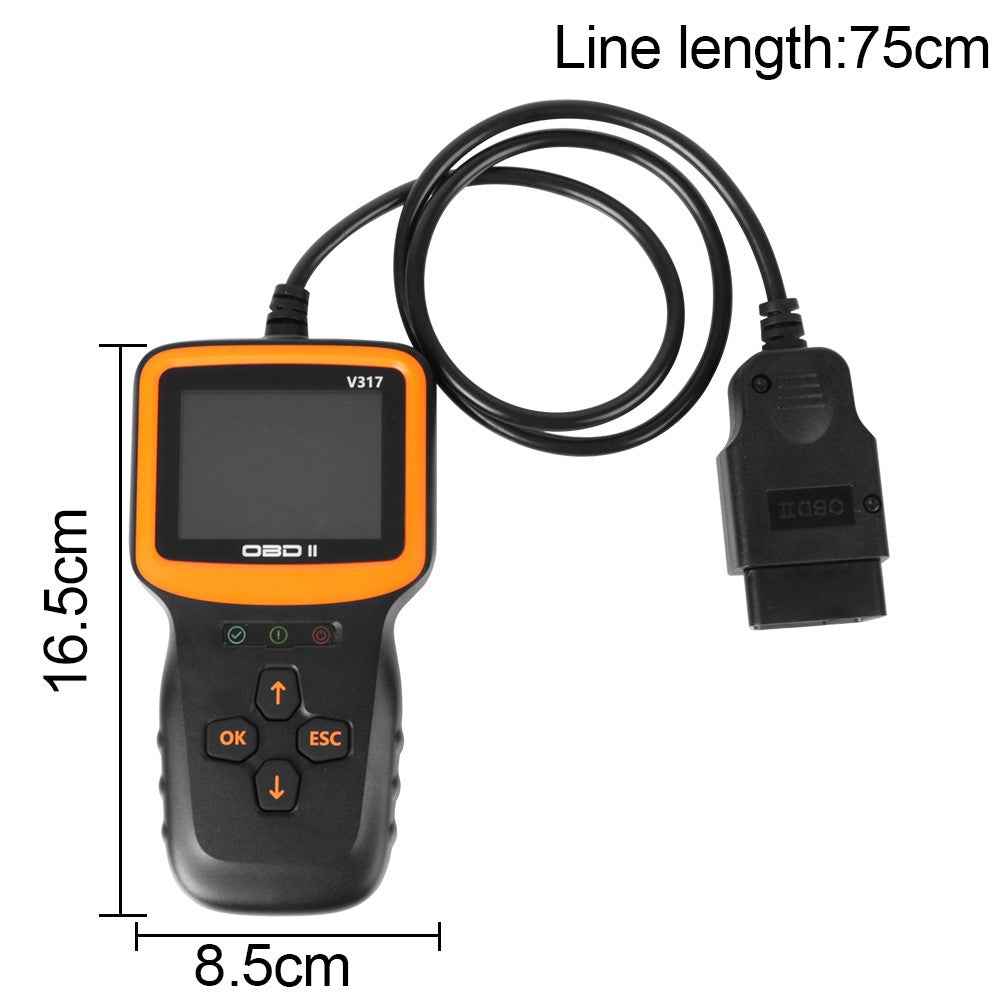

• Dimension: 168 x 897 x 24mm

Protocol:

• SAE J1850 PWM (41.6Kbaud)
• SAE J1850 VPW (10.4Kbaud)
• ISO9141-2 (5 baud init, 10.4Kbaud)
• ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
• ISO14230-4 KWP (fast init, 10.4 Kbaud)
• ISO15765-4 CAN (11bit ID, 500 Kbaud)
• ISO15765-4 CAN (29bit ID, 500 Kbaud)
• ISO15765-4 CAN (11bit ID, 250 Kbaud)
• ISO15765-4 CAN (29bit ID, 250 Kbaud)
