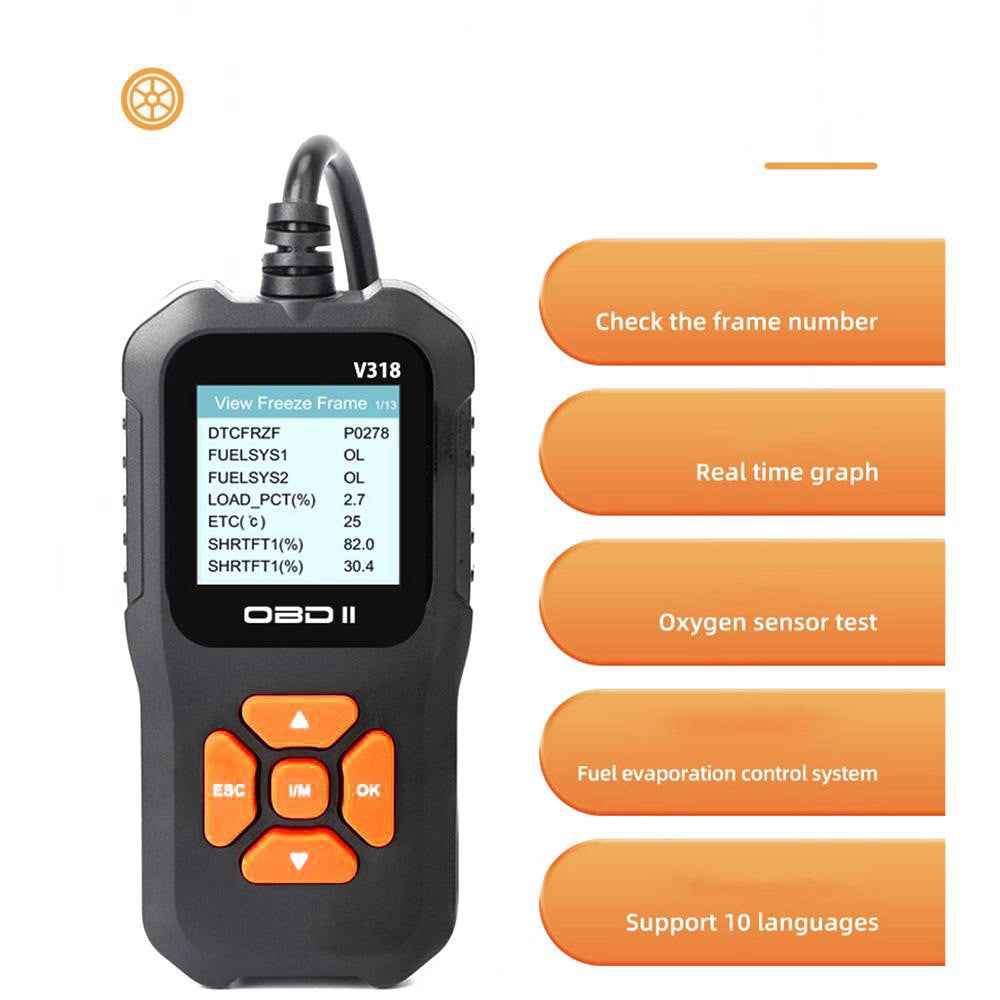

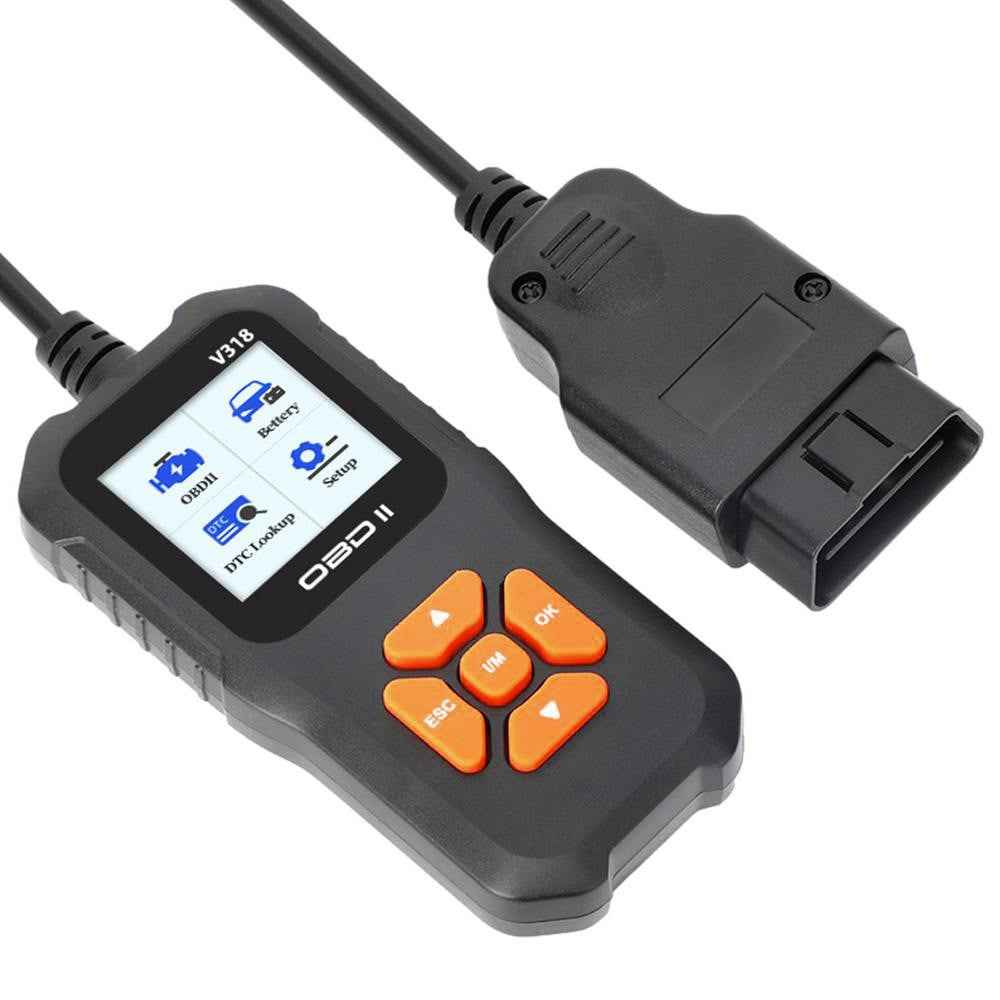

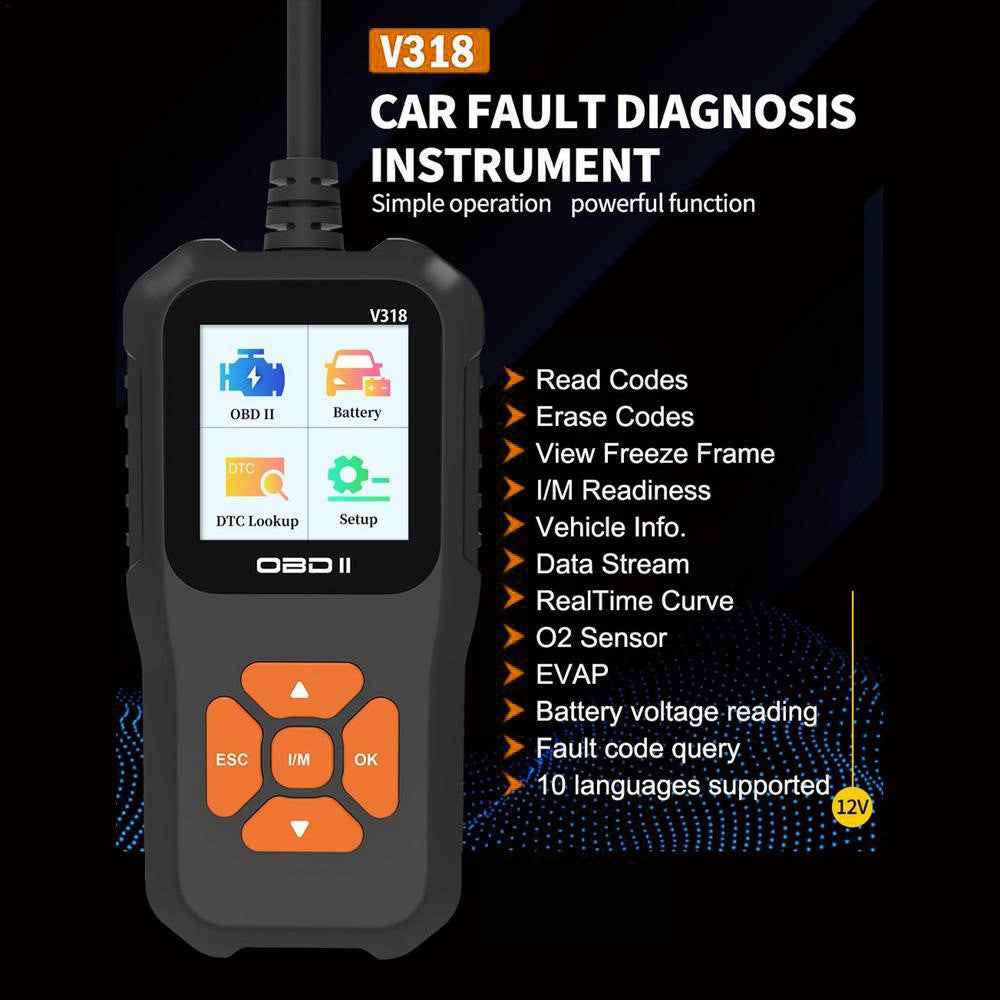

V318 OBD2 1.8-inch Car Fault Diagnosis Instrument Engine Tester Diagnostic Tool Battery Detector

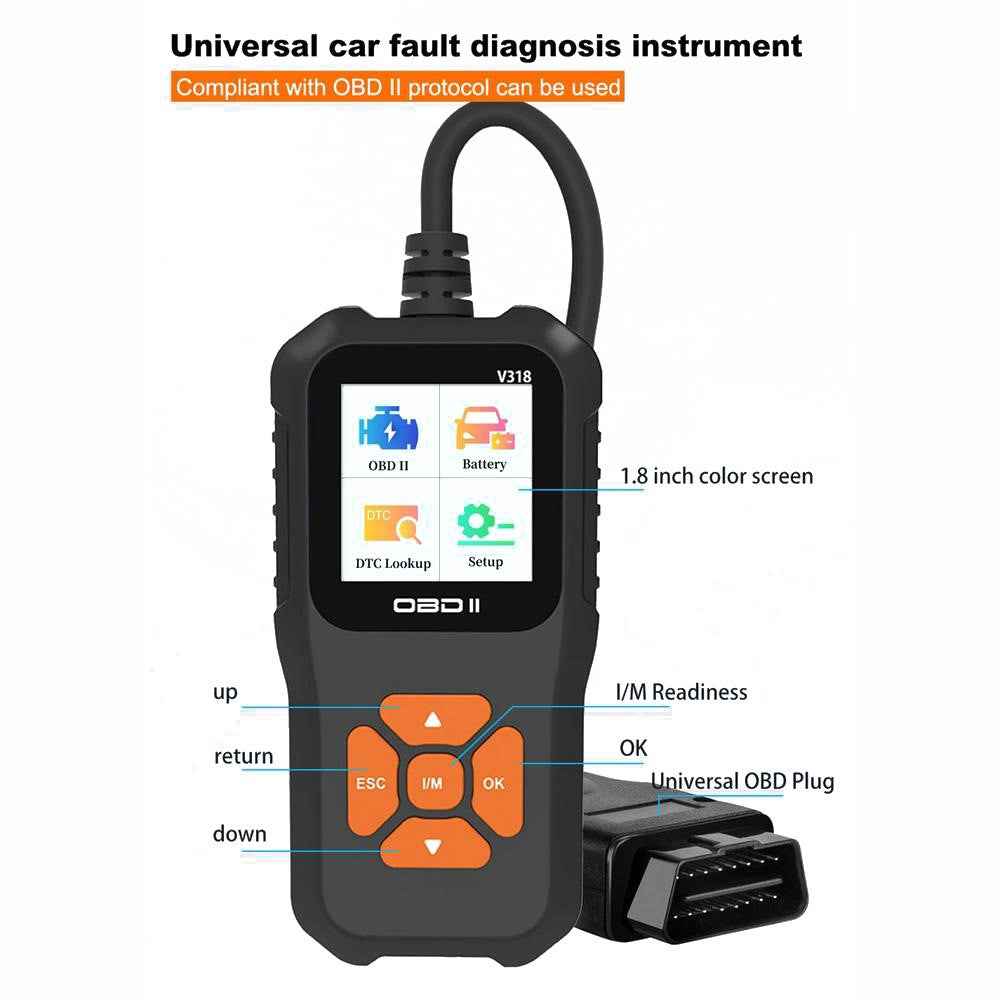

• Color screen display 1.8 inch
• CE/FCC/ROHS/UKCA certification
• Quickly read the car engine fault
• Clear engine fault light

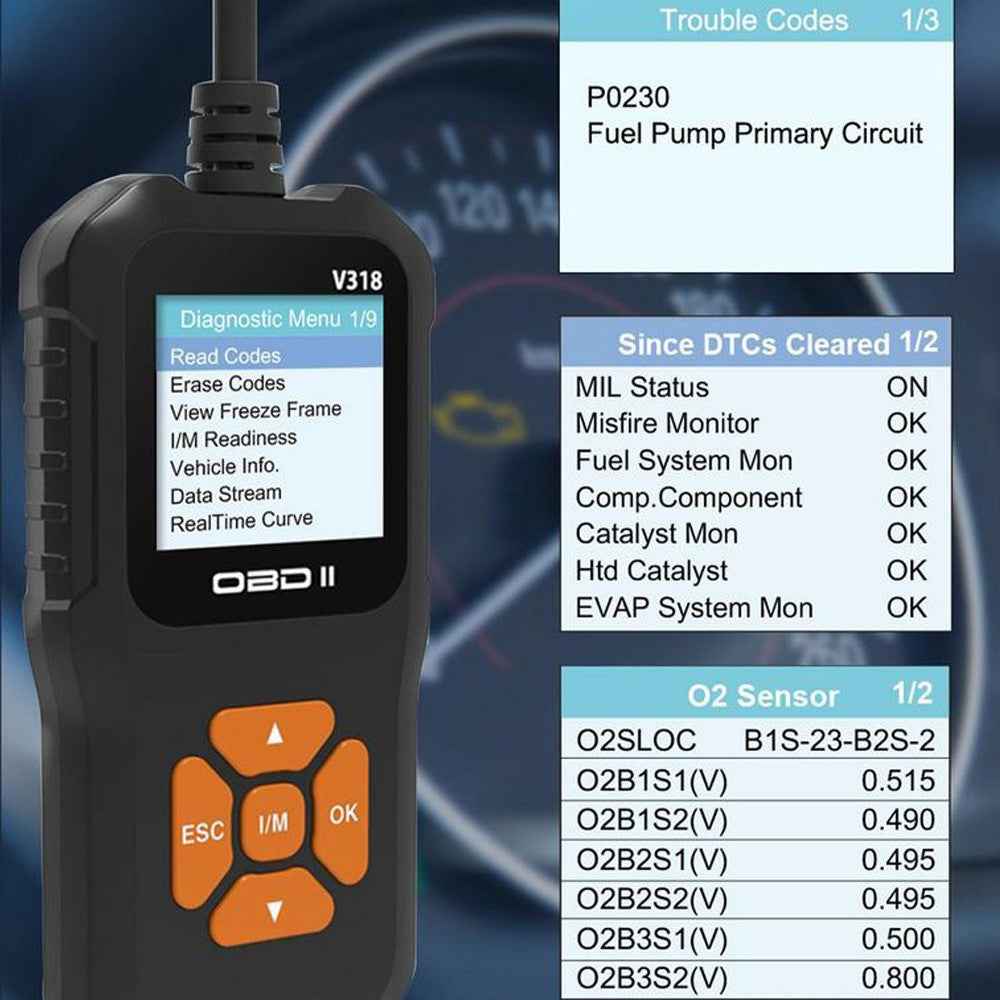

• View freeze frame data
• I/M ready status
• View frame number
• Read car data flow
• Real-time graph
• Oxygen sensor test
• Fuel evaporation control system
• Support 10 languages: German, Dutch, English, Spanish, French, Italian, Russian, Chinese, Japanese, Korean

Specifications:

• Storage temperature: -30~70?
• Working voltage: DC12V
• Working current: 59mA
• Product size: 130 x 70 x 25mm
• Communication mode: OBD interface

Protocol:

• SAE J1850 PWM (41.6Kbaud)
• SAE J1850 VPW (10.4Kbaud)
• ISO9141-2 (5 baud init, 10.4Kbaud)
• ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
• ISO14230-4 KWP (fast init, 10.4 Kbaud)
• ISO15765-4 CAN (11bit ID, 500 Kbaud)
• ISO15765-4 CAN (29bit ID, 500 Kbaud)
• ISO15765-4 CAN (11bit ID, 250 Kbaud)
• ISO15765-4 CAN (29bit ID, 250 Kbaud)
