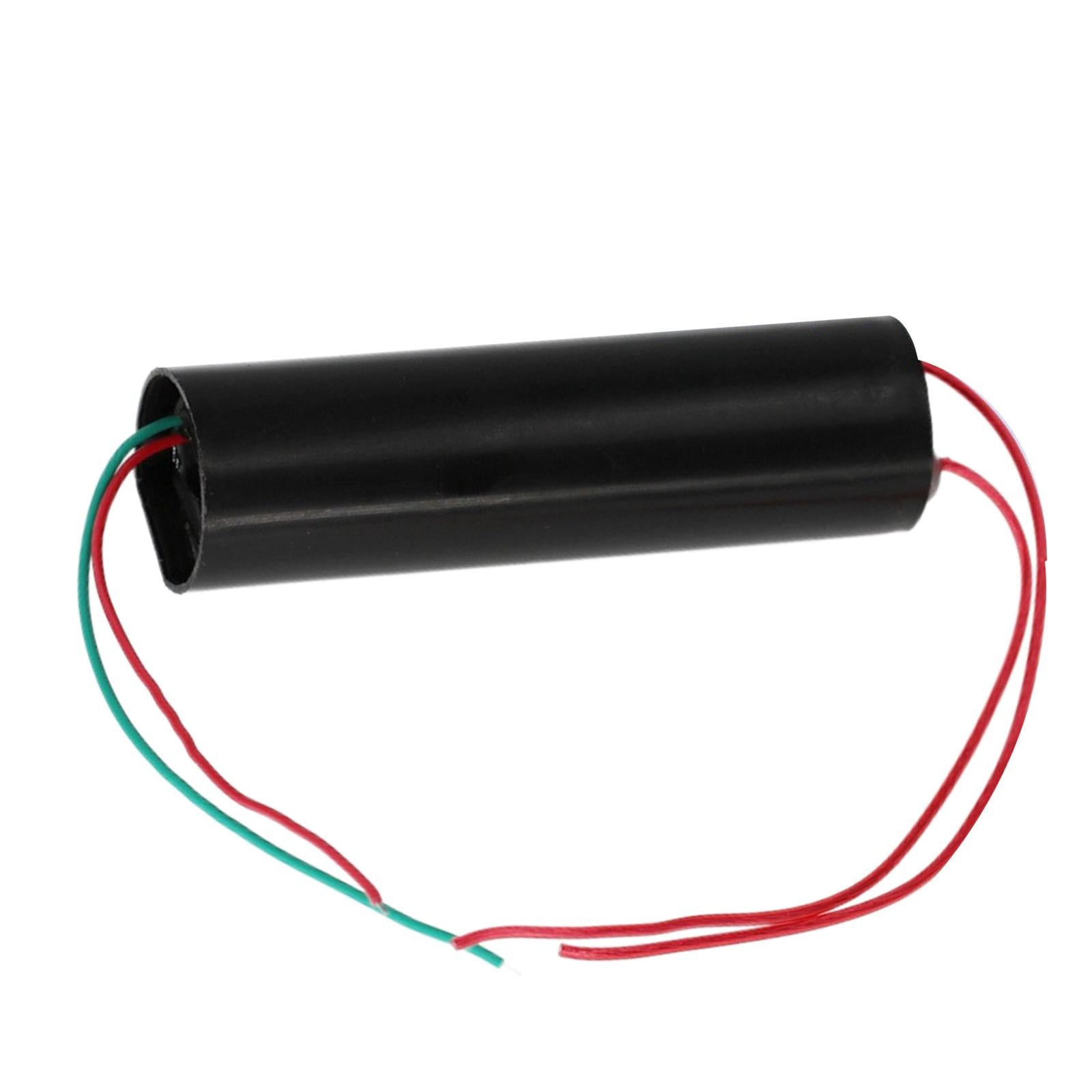

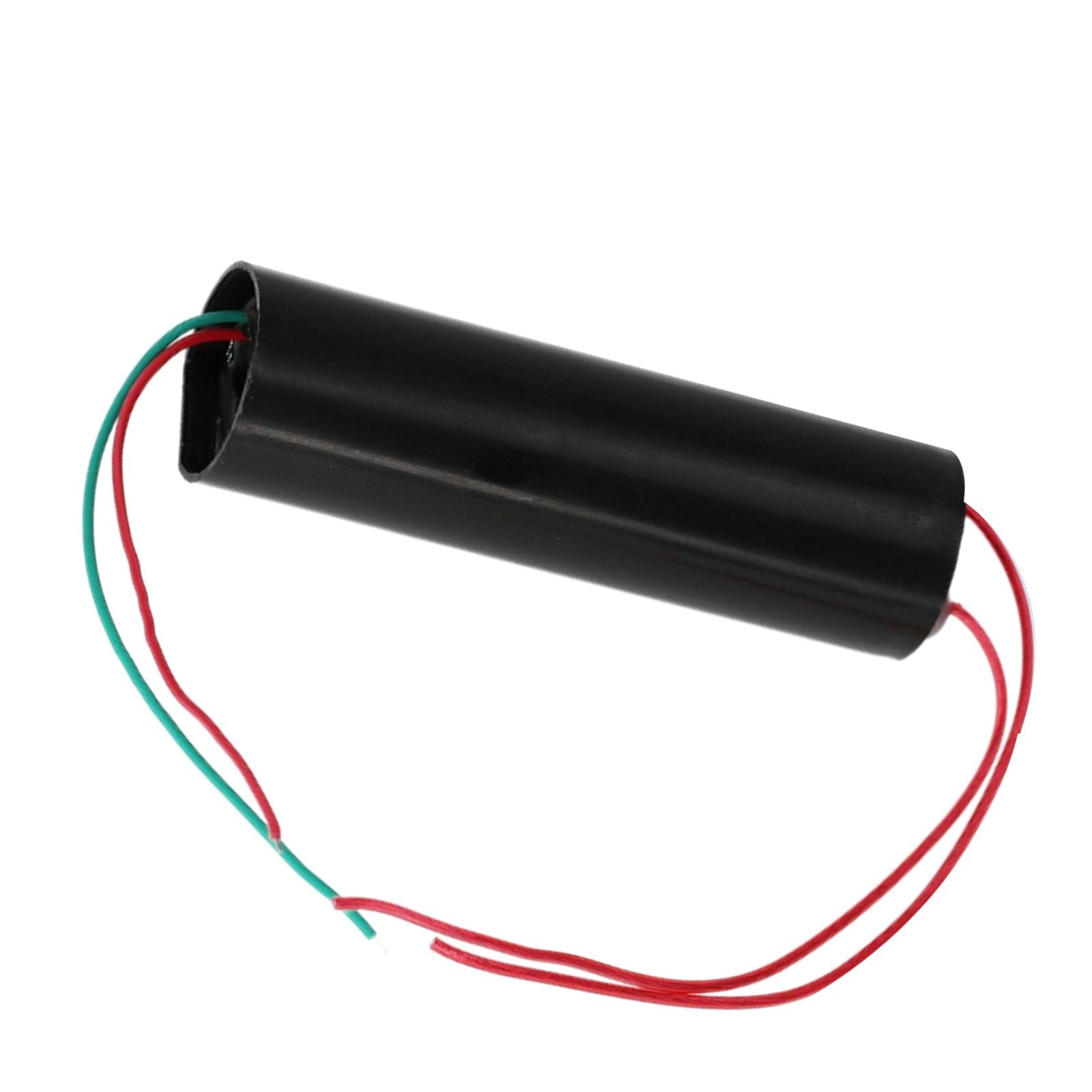

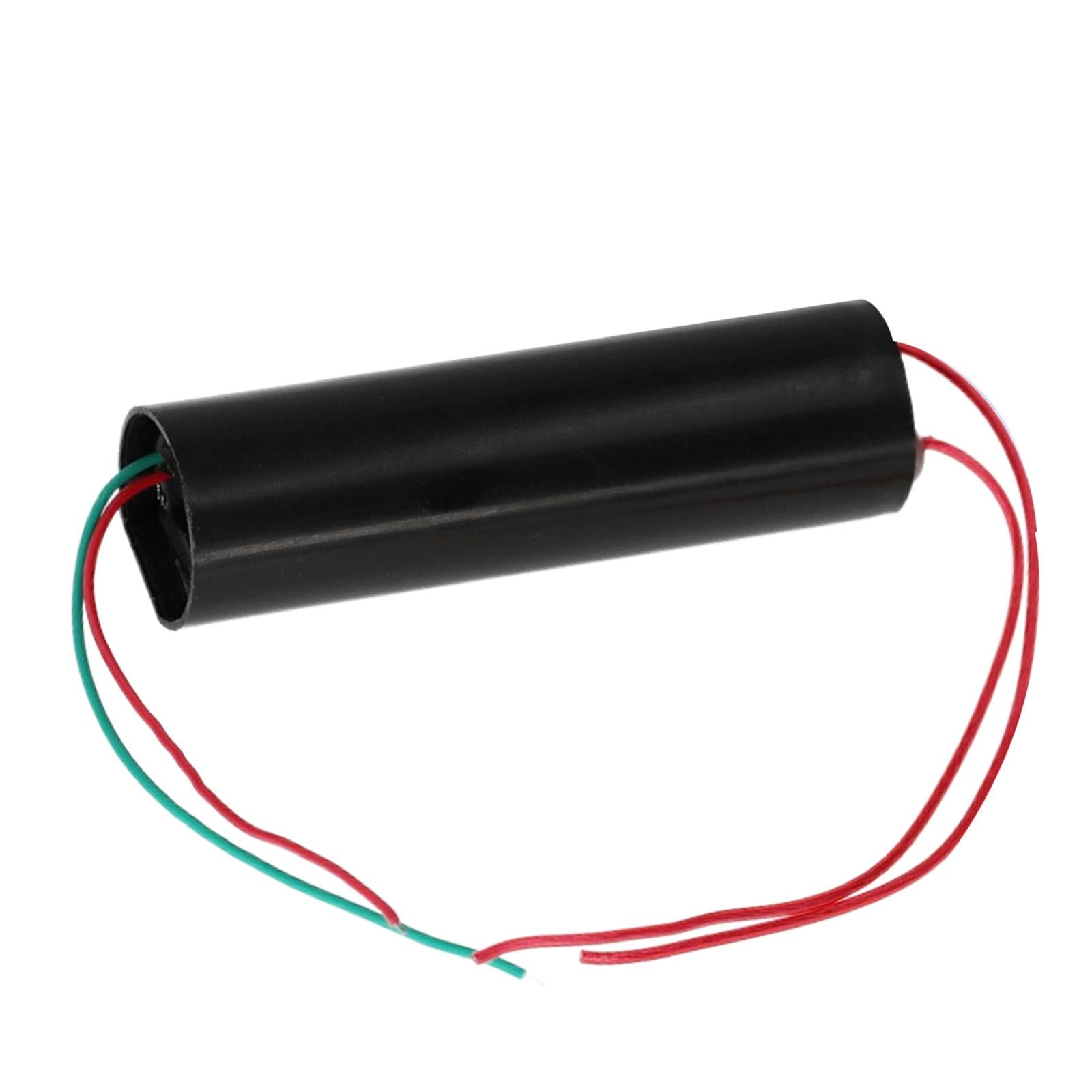

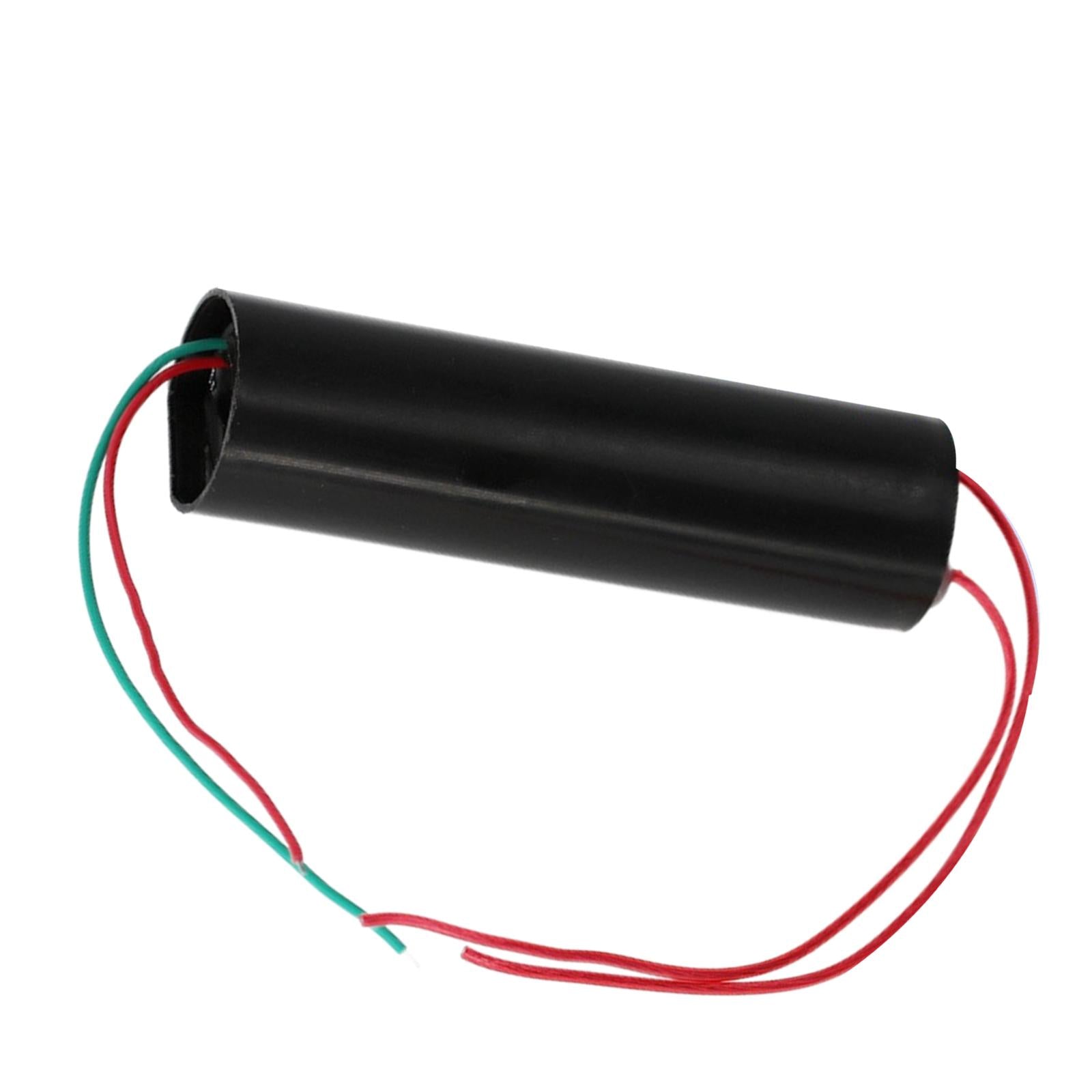

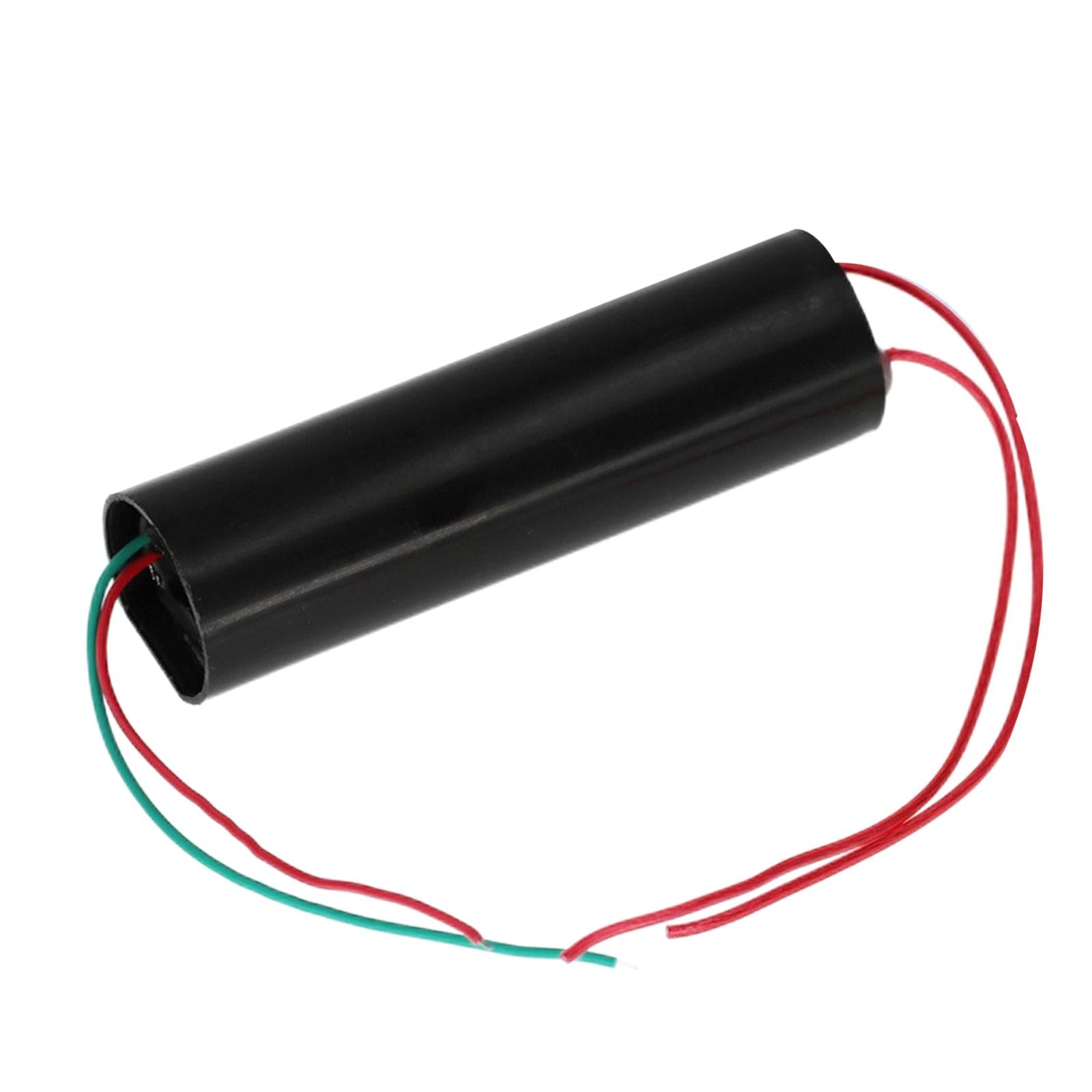

voltage 3.7-7.4V 4A Scientific Experiment

Description:

This module is a voltage module/voltage made of a voltage package/transformer through a circuit composed of components. Can be used as a voltage source for students' science experiments/electronic instruments/negative generators/science productions.

The module is made of coil principle, output voltage , high efficiency and violent discharge intensity.

How : The module is divided into input terminal and output terminal. The red and green wires are the input terminals, and red and green wires are negative. The output terminals are two voltage wires of the same color. When the input terminal is connected to the battery, a voltage arc can be generated.

voltage module should avoid the use of voltage not load, power must be adjusted before voltage line of right distance, voltage wire drawing distance and use of battery voltage and capacity is proportional to.

Testing arc distance from short, long experiment, when power is prohibited over longest arc distance, due to high pressure energy could not be releasedsimple to damage the module.

power the module, the internal heat is not heat, not a long time .

Specification:

Input :3.7-7.4V/4A
Line length: 10 cm (red for positive, green negative)

Output :800-1000KV/0.5A
Line length: about 16 cm

voltage the poles discharge distance: 1.5 to 2cm (do not exceed)

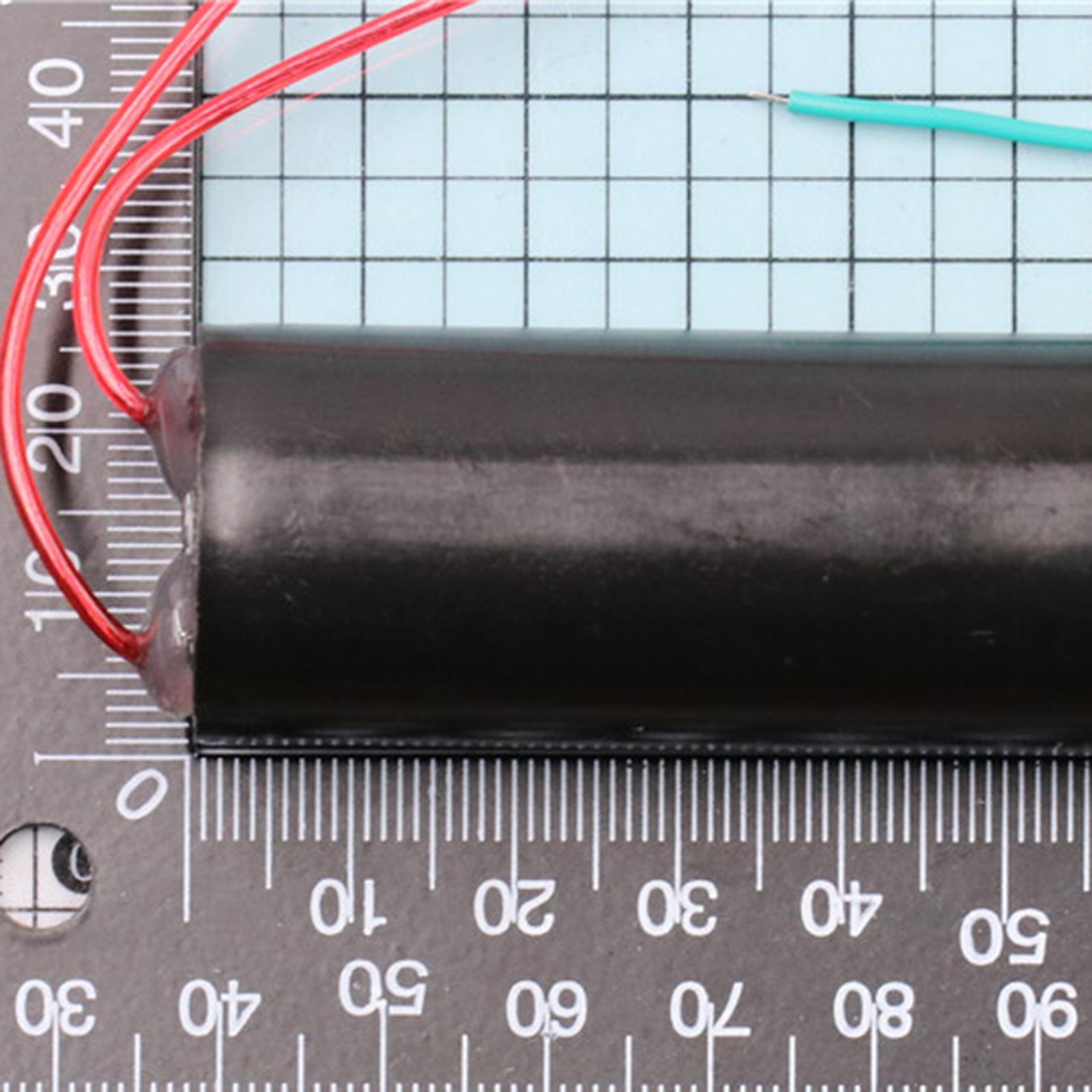

Size Chart:

Length: 8.85cm/3.48inch

Diameter: 2.6cm/1.02inch

Section: 2.4cm/0.94inch

Package Includes:

1 Piece

Note:

Please allow slightly errors due to manual measurement and different monitors.
