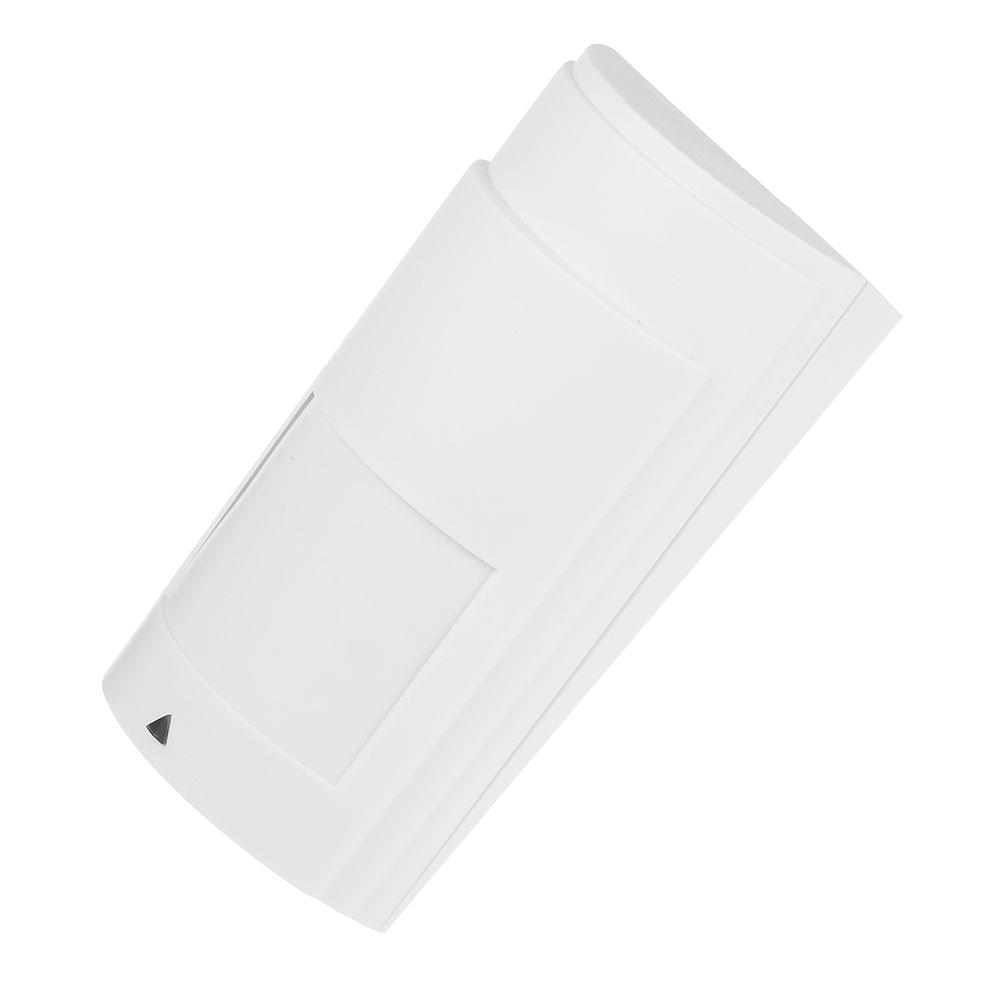

Wall Mounted Wired Infrared Motion and Microwave Detector

Overview:This product is a digital PIR+MW detector exquisite design easy installation. It contains digital processing software which USES the infrared sensor as the main detection unit. When the infrared sensor detects the movement signal it is supplemented by microwave detection to determine whether the movement signal is real. It can avoid false alarm caused by outdoor interference stable and reliable water/dust/insects/wind proof. Imported high-end infrared sensor can be integrated with a wired alarm host. Fit for the locations of the balcony window door corridors outdoor etc.Features:A new generation of professional movement spread spectrum analyzing PIR MW detectors.Dual element PIR sensor and Microwave for outstanding detection performance and elimination of false alarms.Unique microwave motion sensor module with microstrip patch antenna.VLSI based electronics with movement speed spectrum analysis.2-way Microwave sensitivity adjustment. 2-way PIR sensitivity adjustment.BI directional temperature compensation.Environmental immunity.Note: Do not mount the unit in direct sunlight or near heat sources.Specifications:Working Voltage: 10V-16V DCCurrent Consumption: 30mAWide Detector Angle: 90 (14mX14m)Detection Speed: 0.2-7m/sInstallation Height: 2.1m10% (Recommended)Detection Method: PIR + Microwave DetectorPIR Sensor Element Type: DualMicrowave Frequency: 10.525GHZAlarm Solid-state Output: N.C. 28Vdc 150mAAnti-tamper Switch: N.C. 28Vdc 150mACasing Material: ABSOperating temperature: -20C to 50CColor: White Item Size: Approx. 126*65*53mm/4.96*2.56*2.08inItem Weight: Approx. 100g/3.52ozPackage Size: Approx. 130*69*55mm/5.12*2.76*2.16inPackage Weight: Approx. 122g/4.28ozPackage List:1 * Wired PIR Sensor1 * User Manual (EN/FR/ES)
