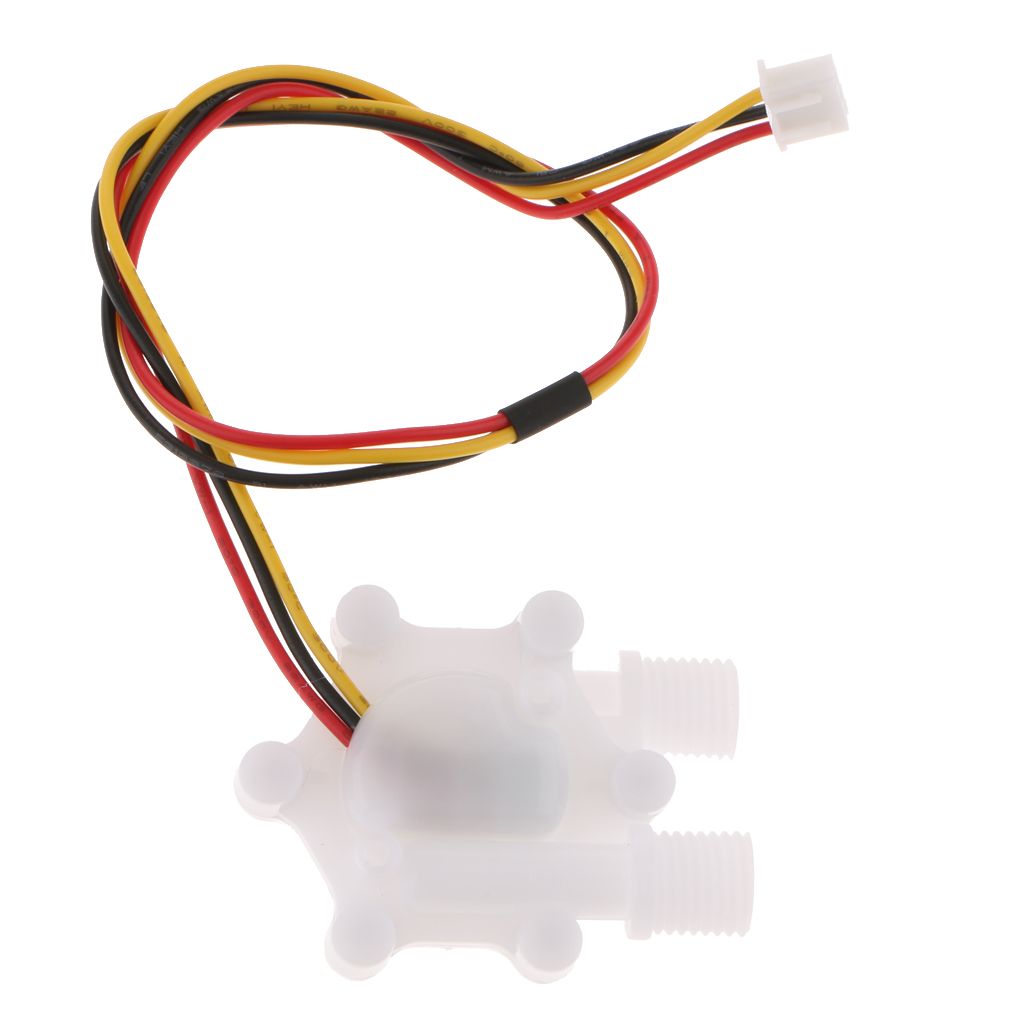

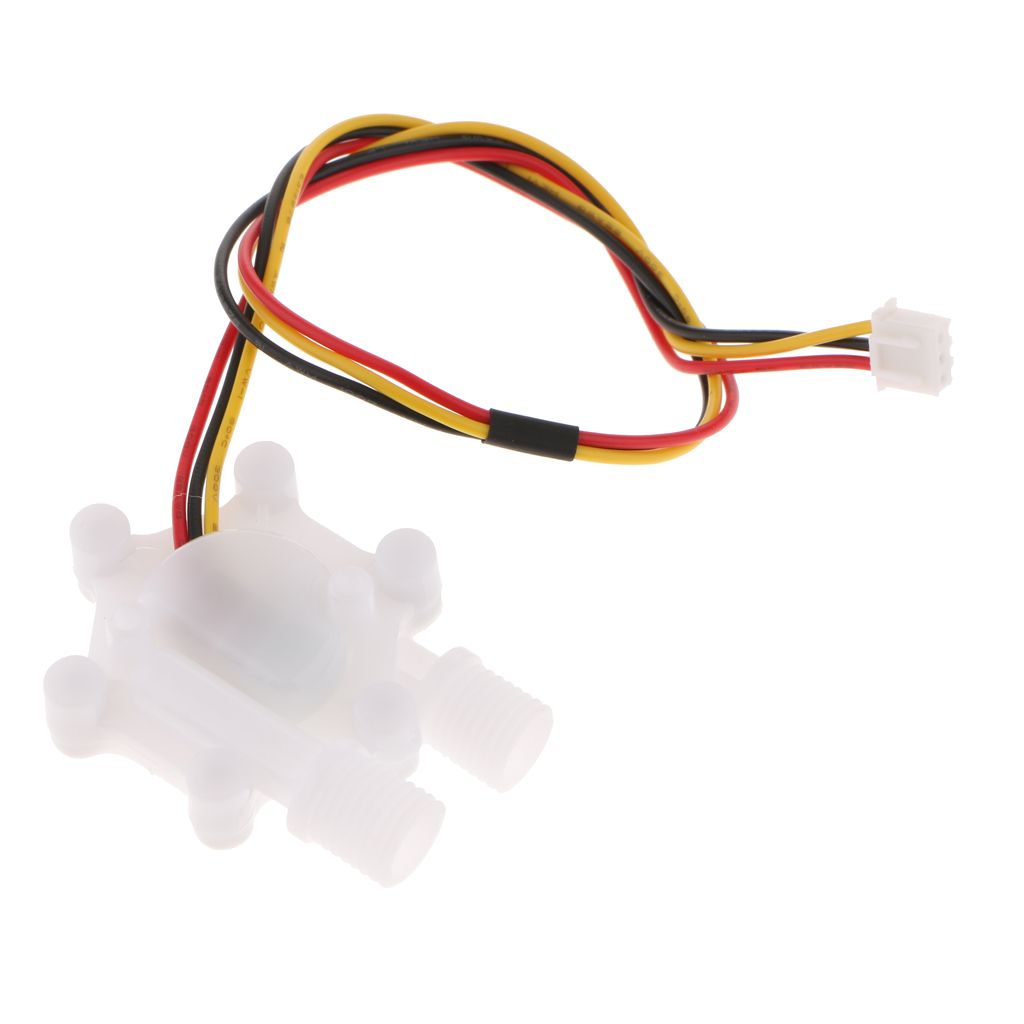

Water Coffee Flow Sensor Switch Meter Flowmeter Fluid Control Type 3

Description:

- The water flow sensor is applied for water heater, imprinter, automatic water machine, and other flow metering equipment.
- With stainless steel ball inside of the impeller, wear-proof.
- Up and down structure stress applied for the seal ring, avoid to leak.
- With imported Hall element, and adopt pouring sealant encapsulation to avoid to leak and age.
- Install arbitrary direction, Medium temperature should not be exceeded 60 degree.

Specification:

Range of Flow: 0.3-3.5L/min
- Working medium: Water (≤60℃)
- Water pressure: ≤1.2MPa
- Voltage Range: DC 4.5 - 18V
- Rated Working Voltage Range: DC 5V
- Load capacity: ≤10 mA
- Insulation Resistance: ＞100M Ohm
- Dielectric Strength: AC 500V, 50Hz
- Size: approx. 55 x 40 x 20mm
- Wire Length: 340mm

Package Includes:

1 Piece Flowmeter
