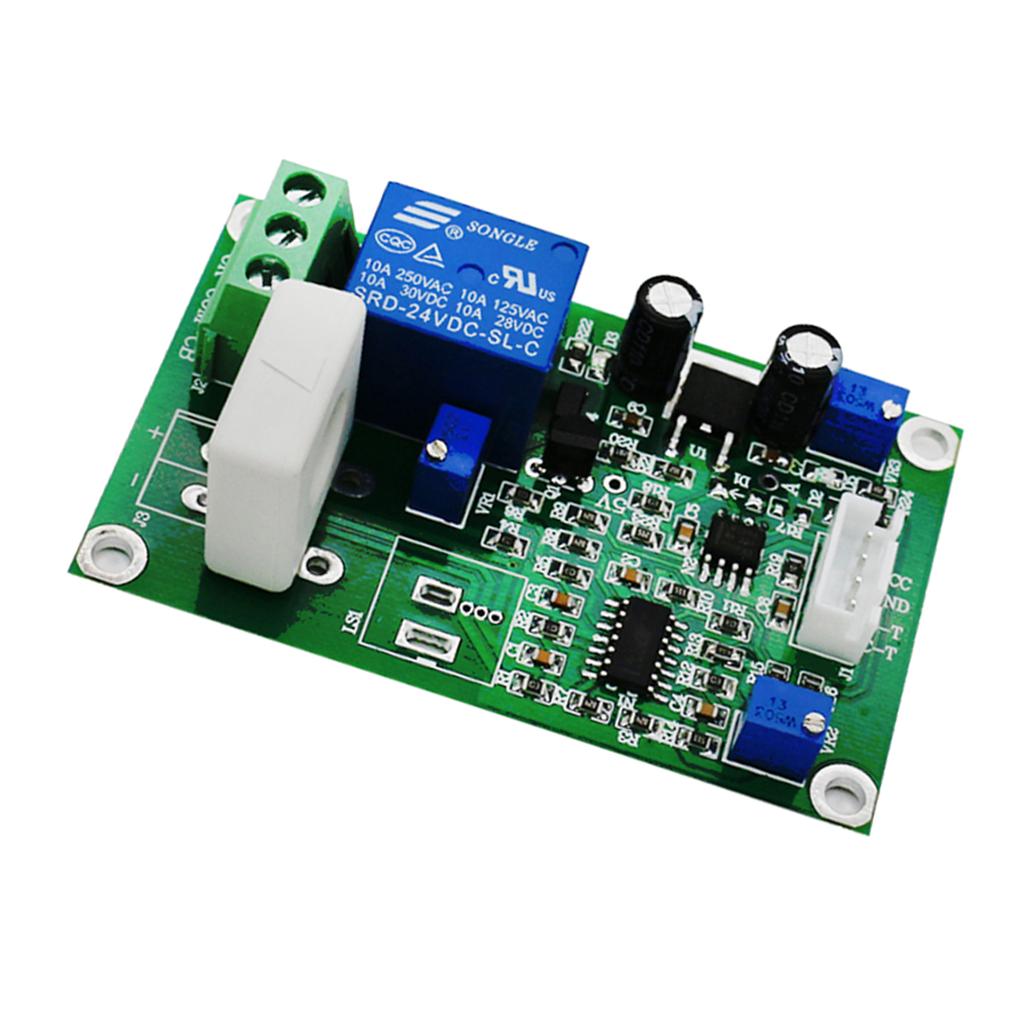

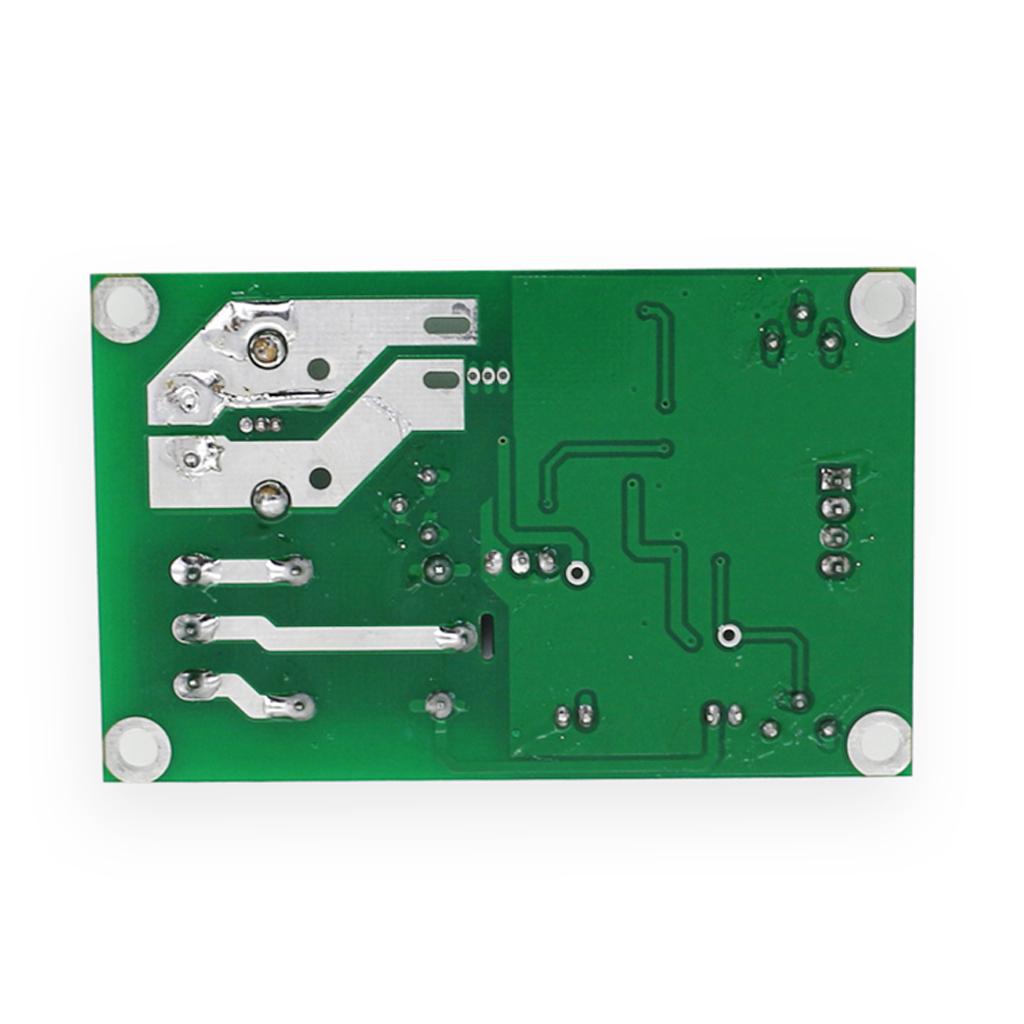

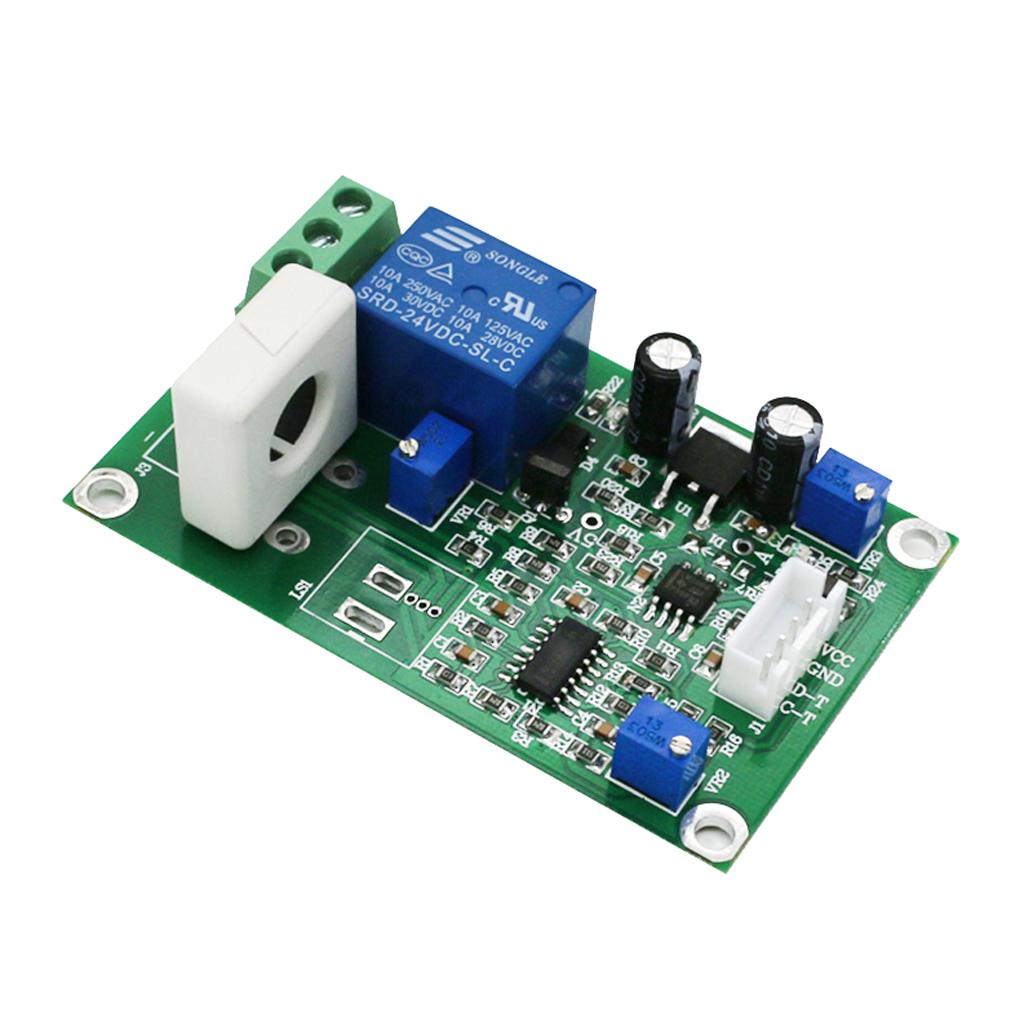

WCS1800 Hall Current Detection Sensor Module DC 0-35A Output 24V

Description:

Has a signal output indicator, Wide current detection range DC: 0-35.

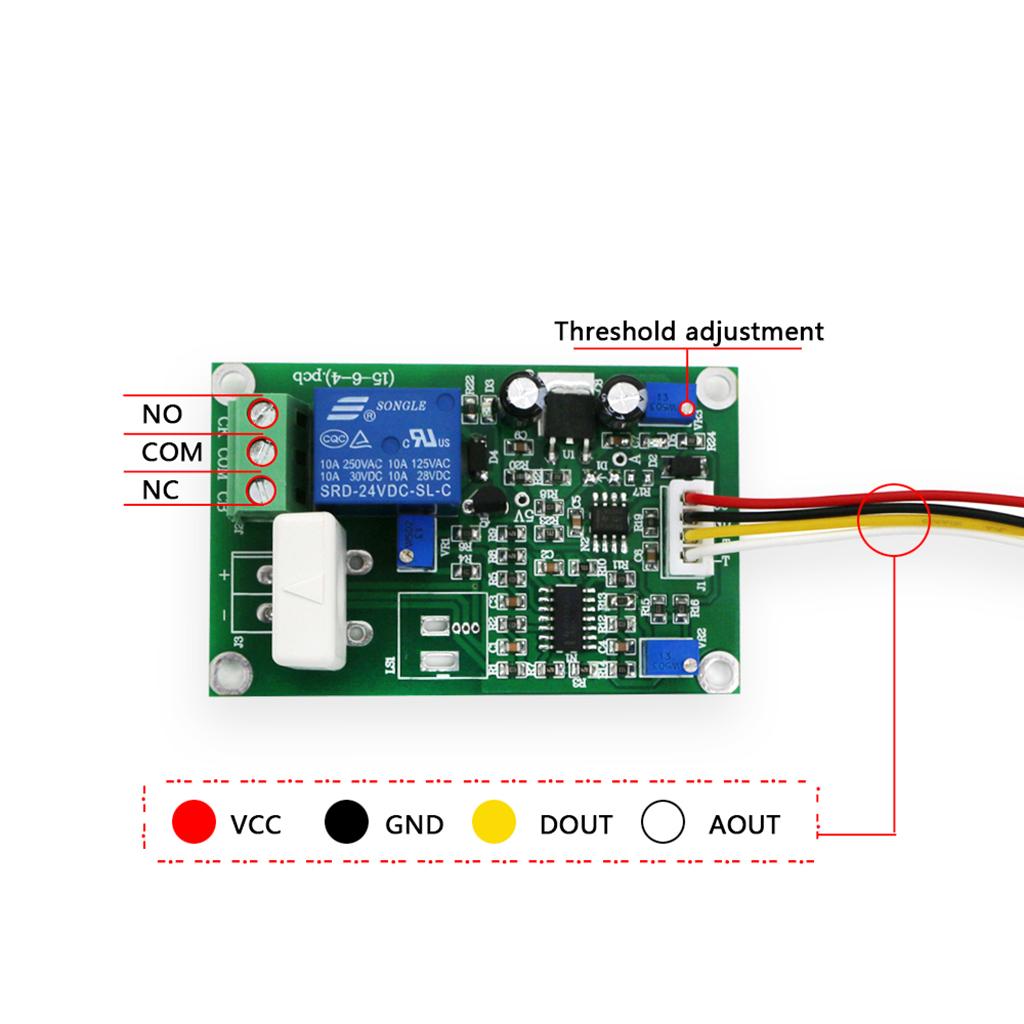

Output overcurrent relays normally open and normally closed output.
Over-current signal is set to a full range of adjustable.
Converting analog signals sampled current output, which can be accessed ADC, TTL-level signal output can be connected to the microcontroller IO port control.
In addition to the module above the threshold adjustment potentiometer outside the other two potentiometers prohibit transfers.
Working voltage: DC 24V
Output: relay output; analog output (0-5V linear output corresponding to 0-35A).
With mounting holes for easy installation of firmware.

Specification:

Applications:

Smart car motor overcurrent detection, stall protection current detection, short circuit protection testing, demonstration teaching experiments and so on, to facilitate the secondary development;

Size Chart:

With Base Type Size: approx. 89 x 48 x 56mm
No Base Type Size: approx. 72 x 45 x 23mm

Package Includes:

1 Piecee DC Current Sensor Module
