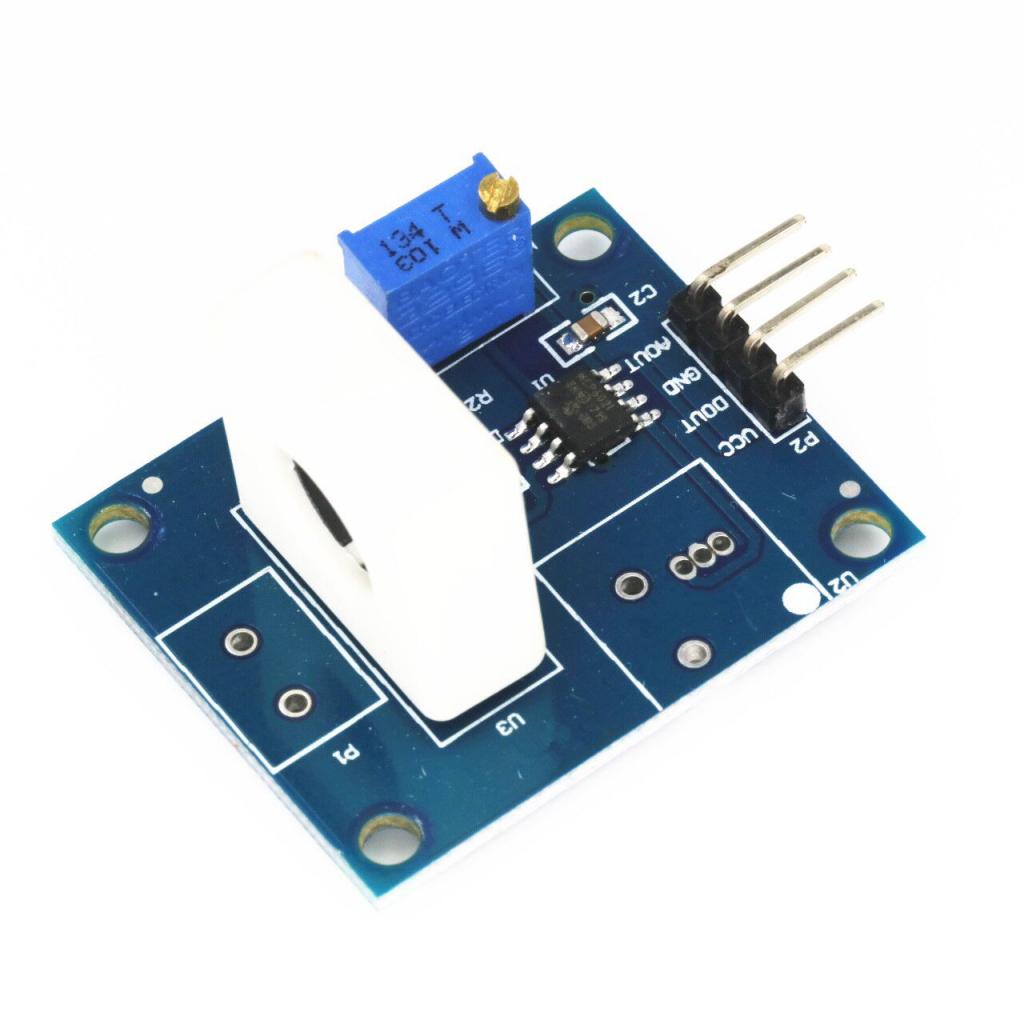

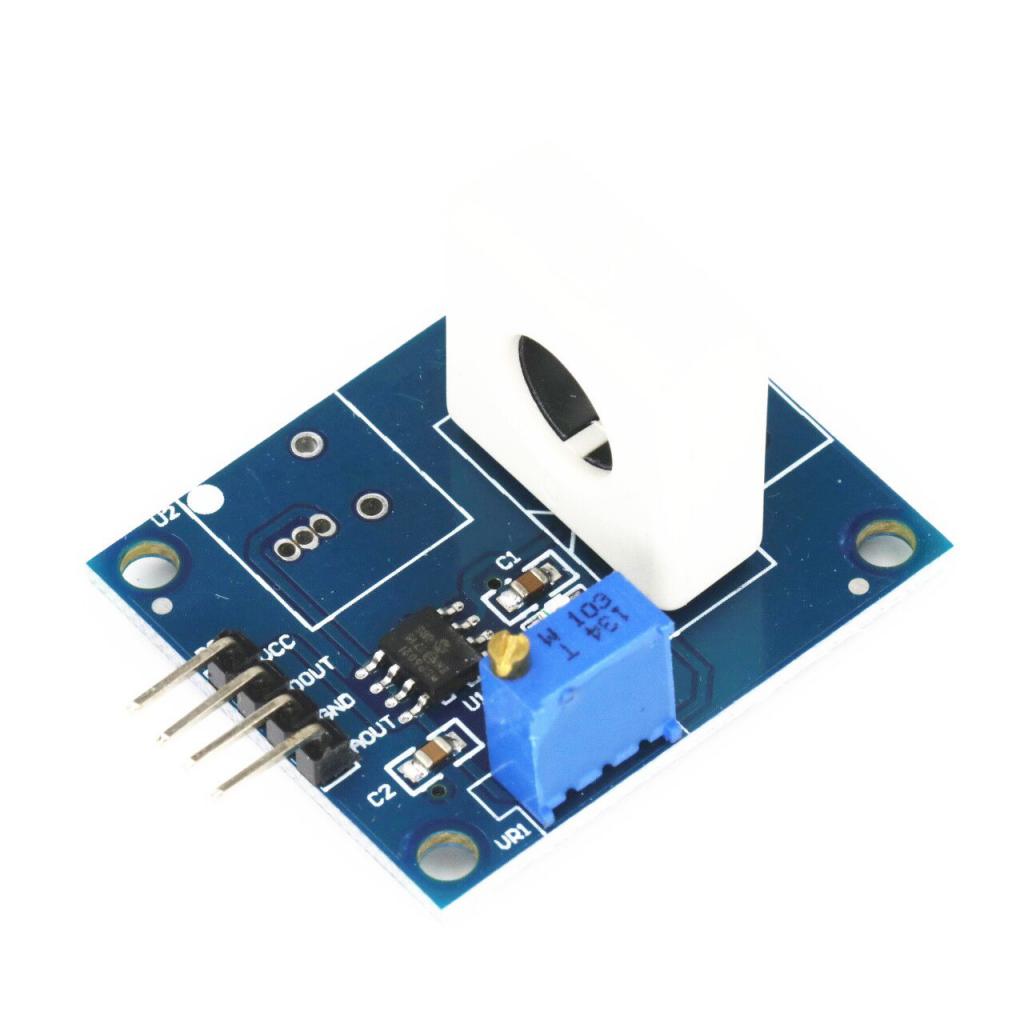

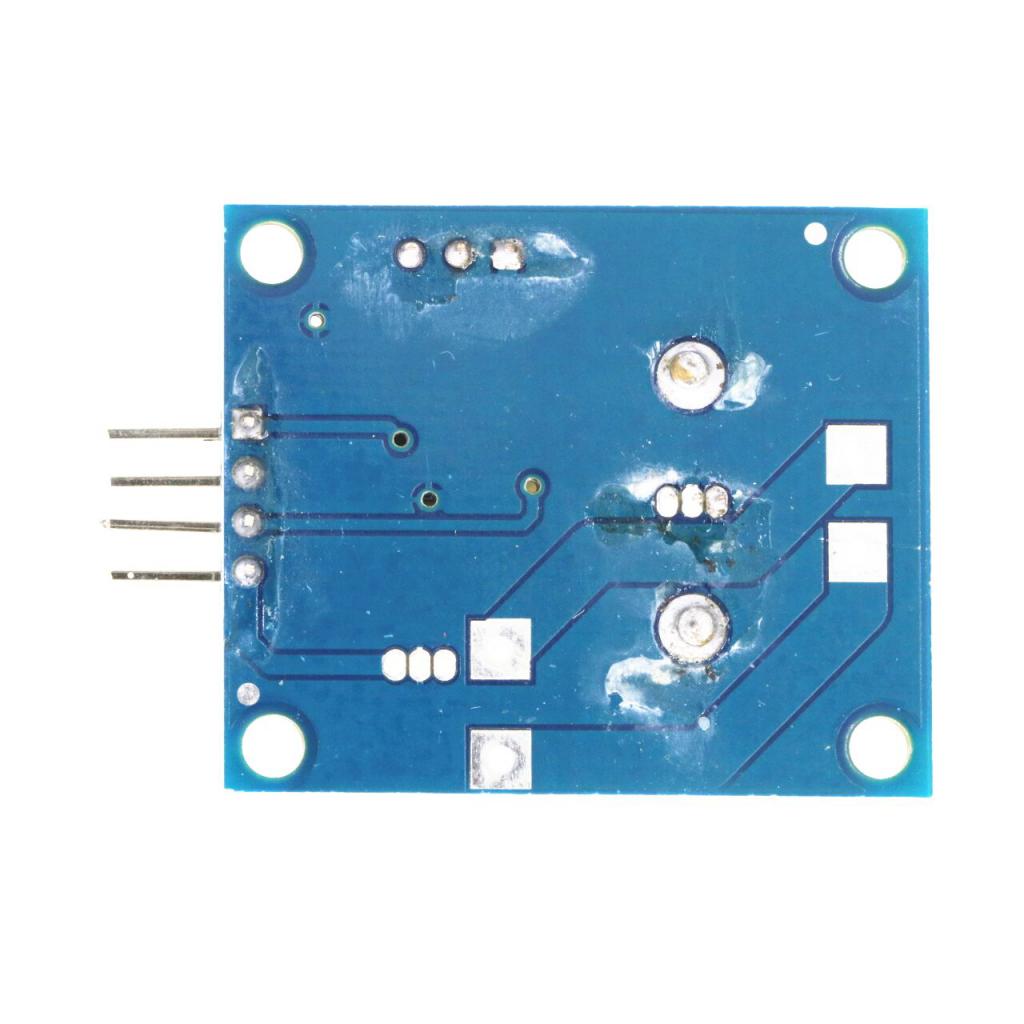

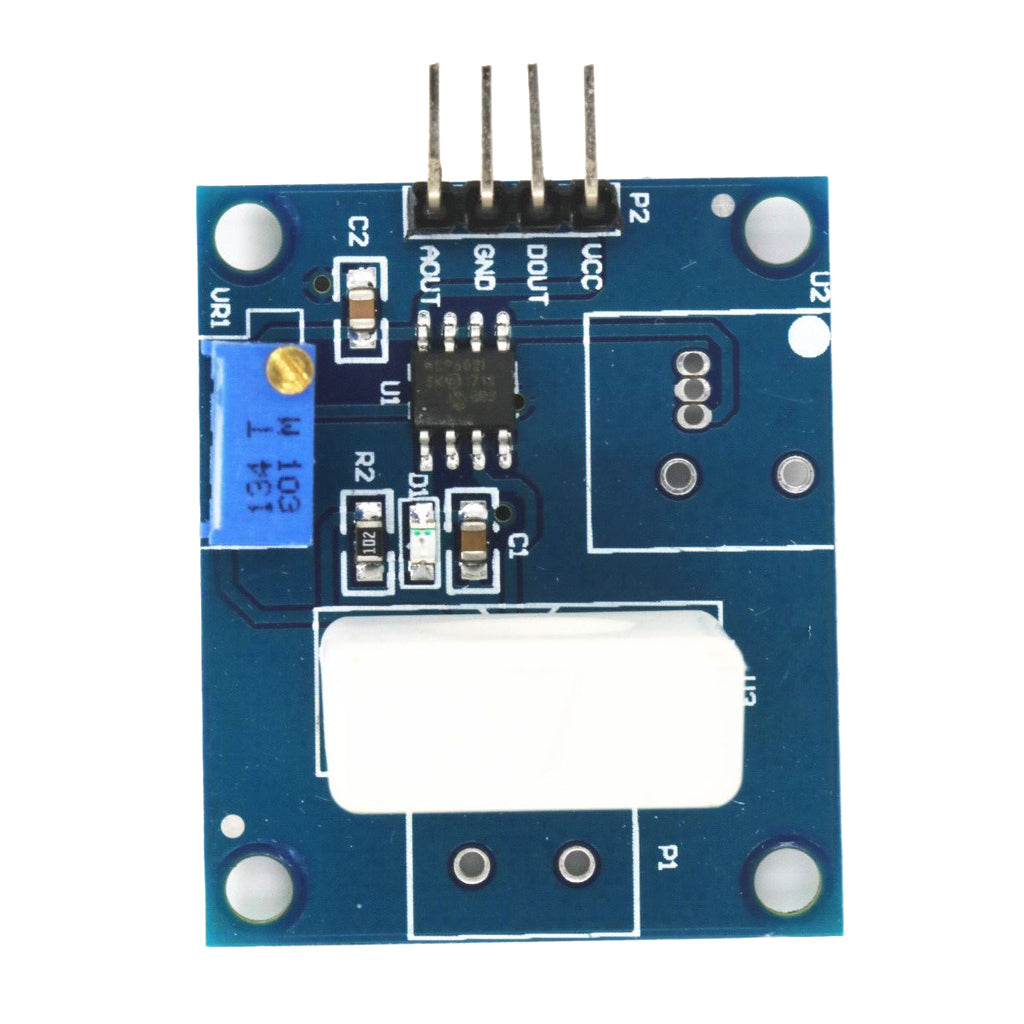

WCS1800 Hall Current Sensor 35A Short Circuit / Overcurrent Aegis Module

Description:

With the signal output indicator;

Output overcurrent signal indication;

Overcurrent signal is set critical point adjustable, set the resolution 1.5A;

With mounting holes for easy firmware installation;

The sampling current conversion analog signal output, which can be accessed ADC, TTL level signal output, which can be accessed microcontroller IO port control.

Specification:

dimensions: length 37mmX high 16.5mm wide 31mmX

the main chip: LM393 op amp, WCS1800

the working voltage: DC DC5V

the current detection range DC ± 35A AC: 25A;

the current detection resolution of 60mV / A;

Package Includes:

1 Piece Sensor module
