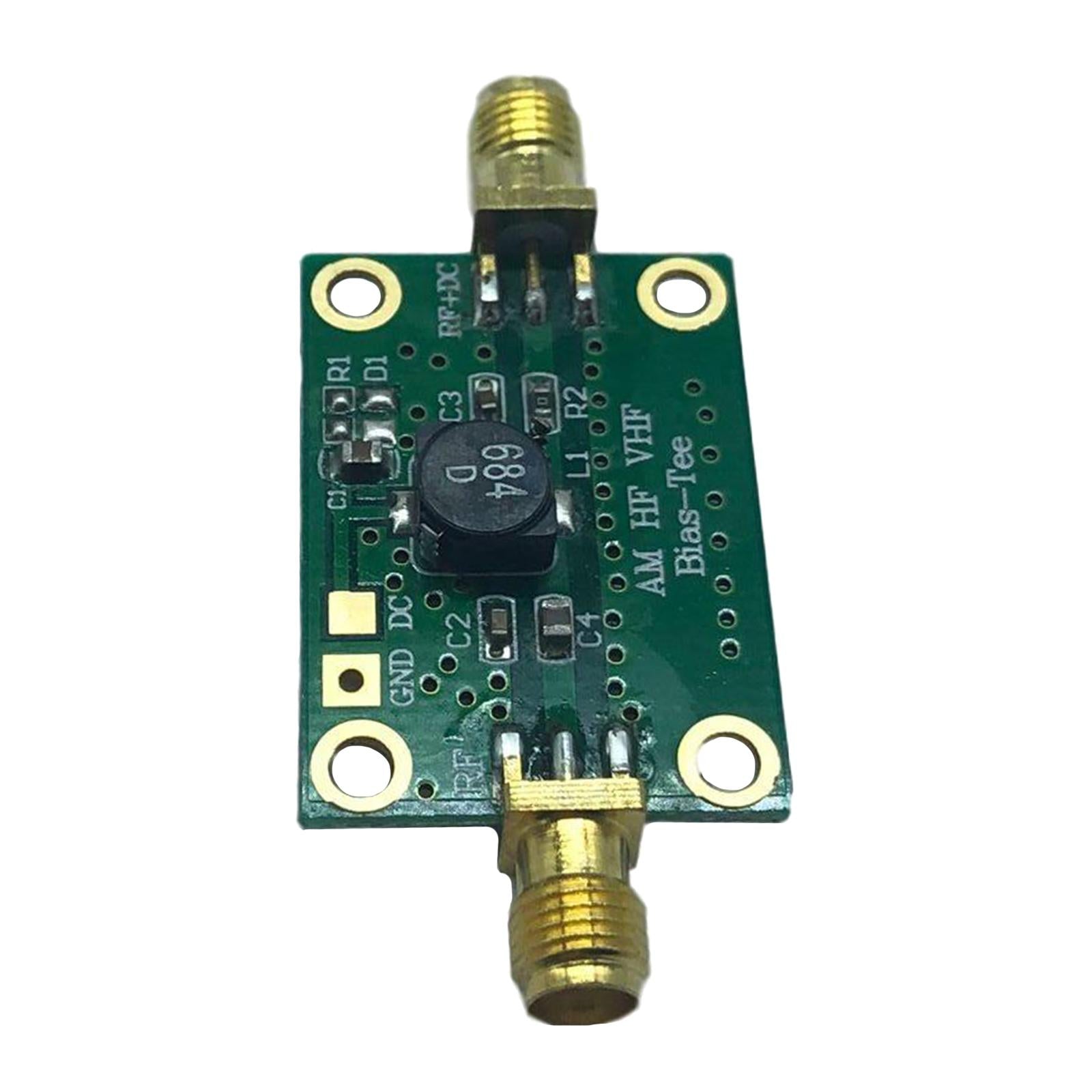

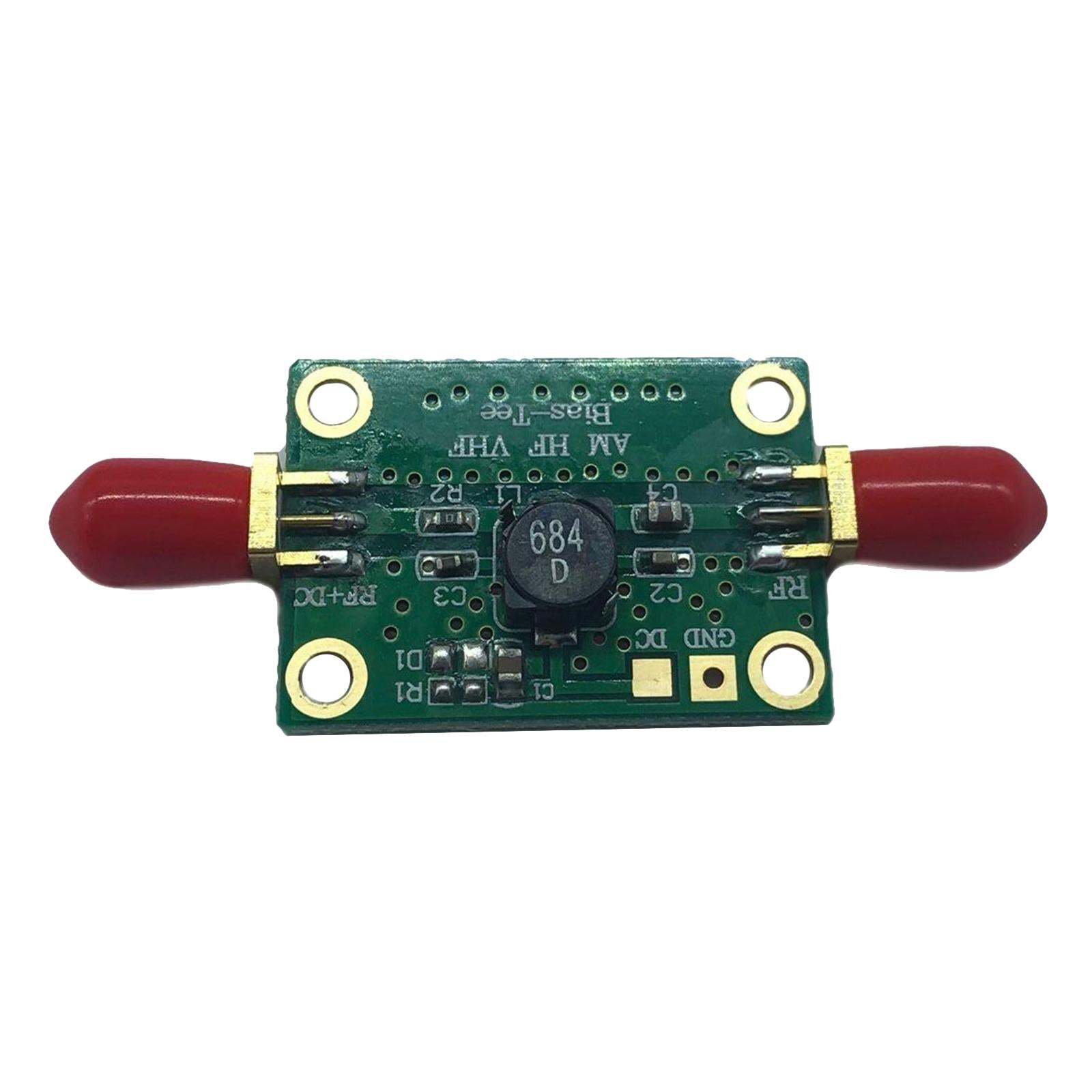

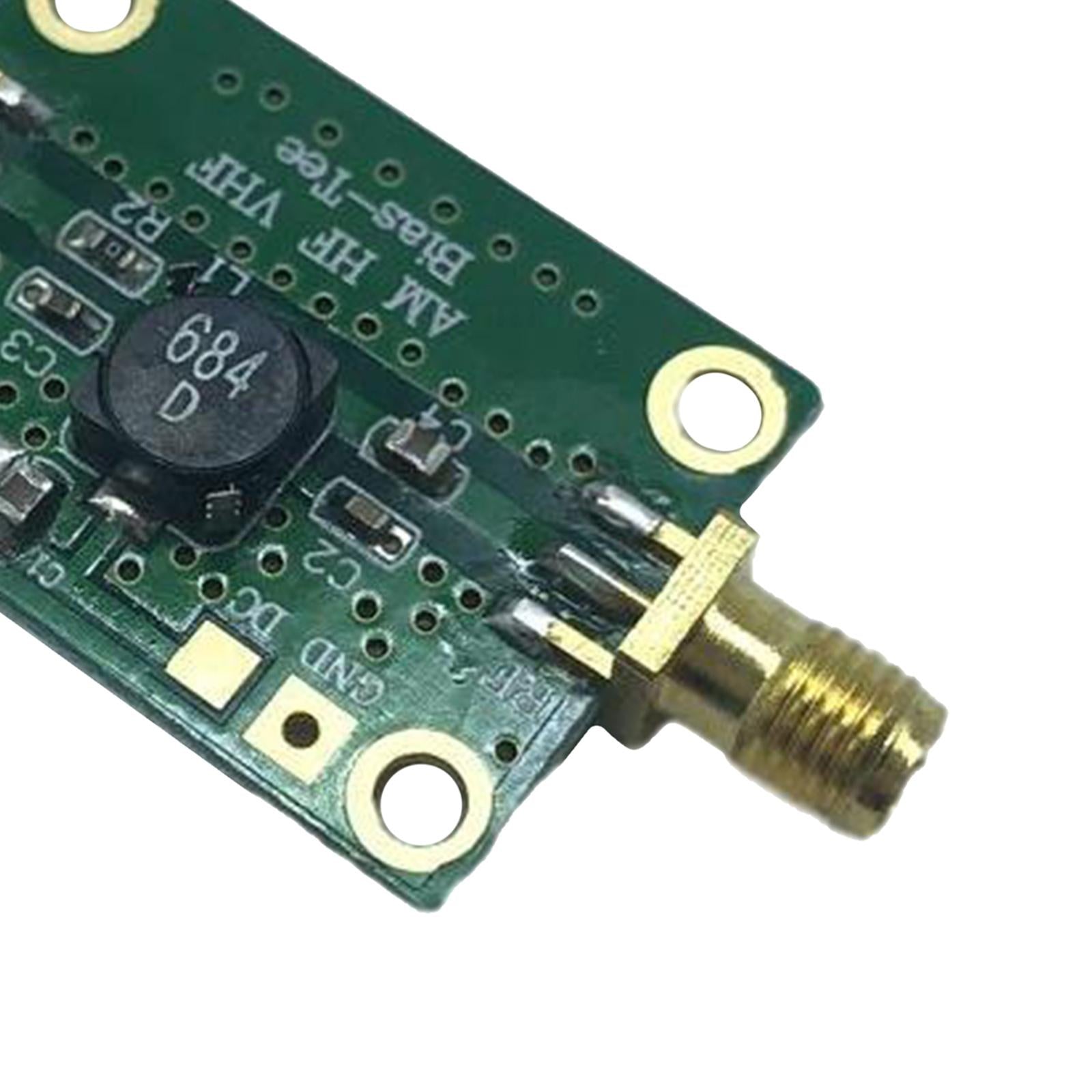

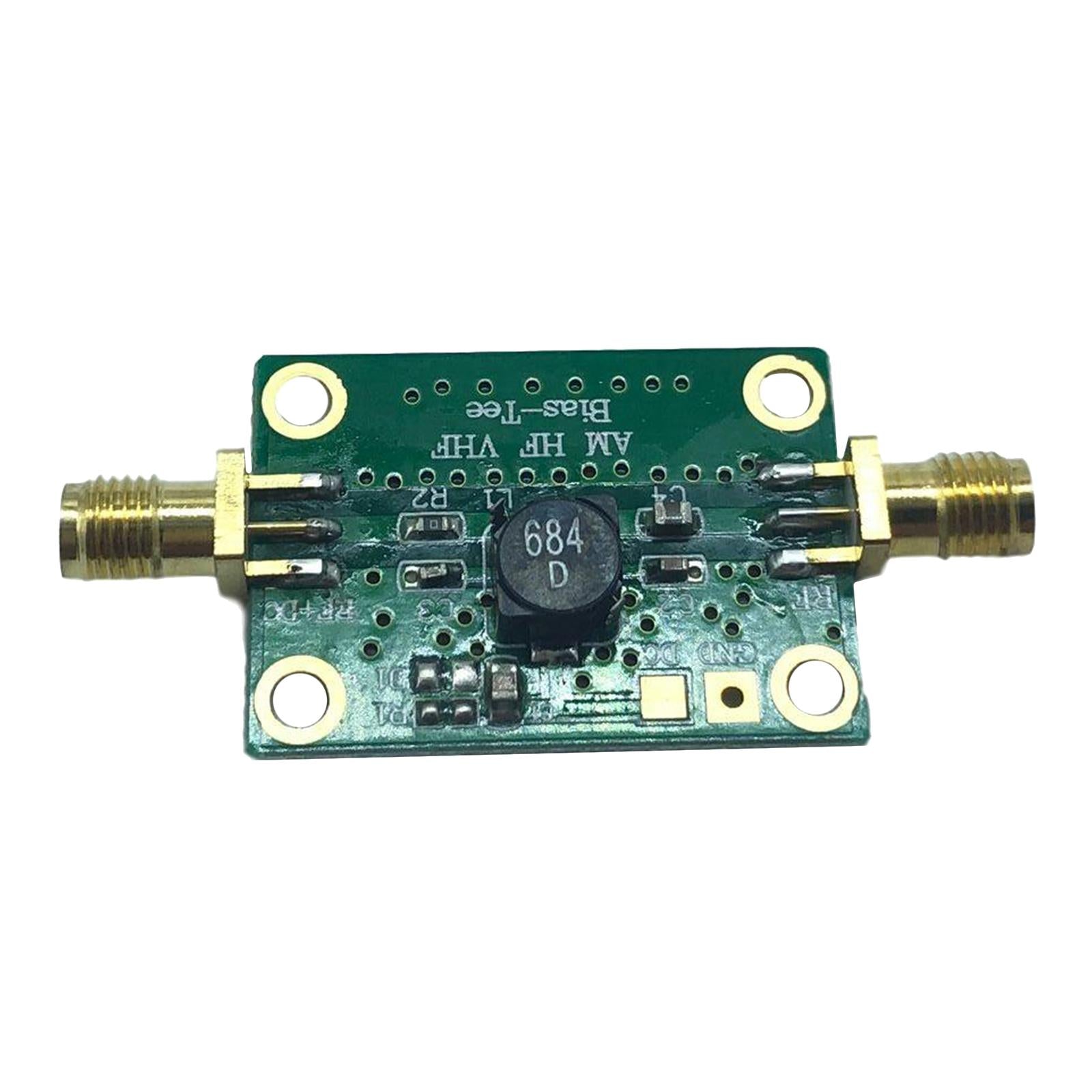

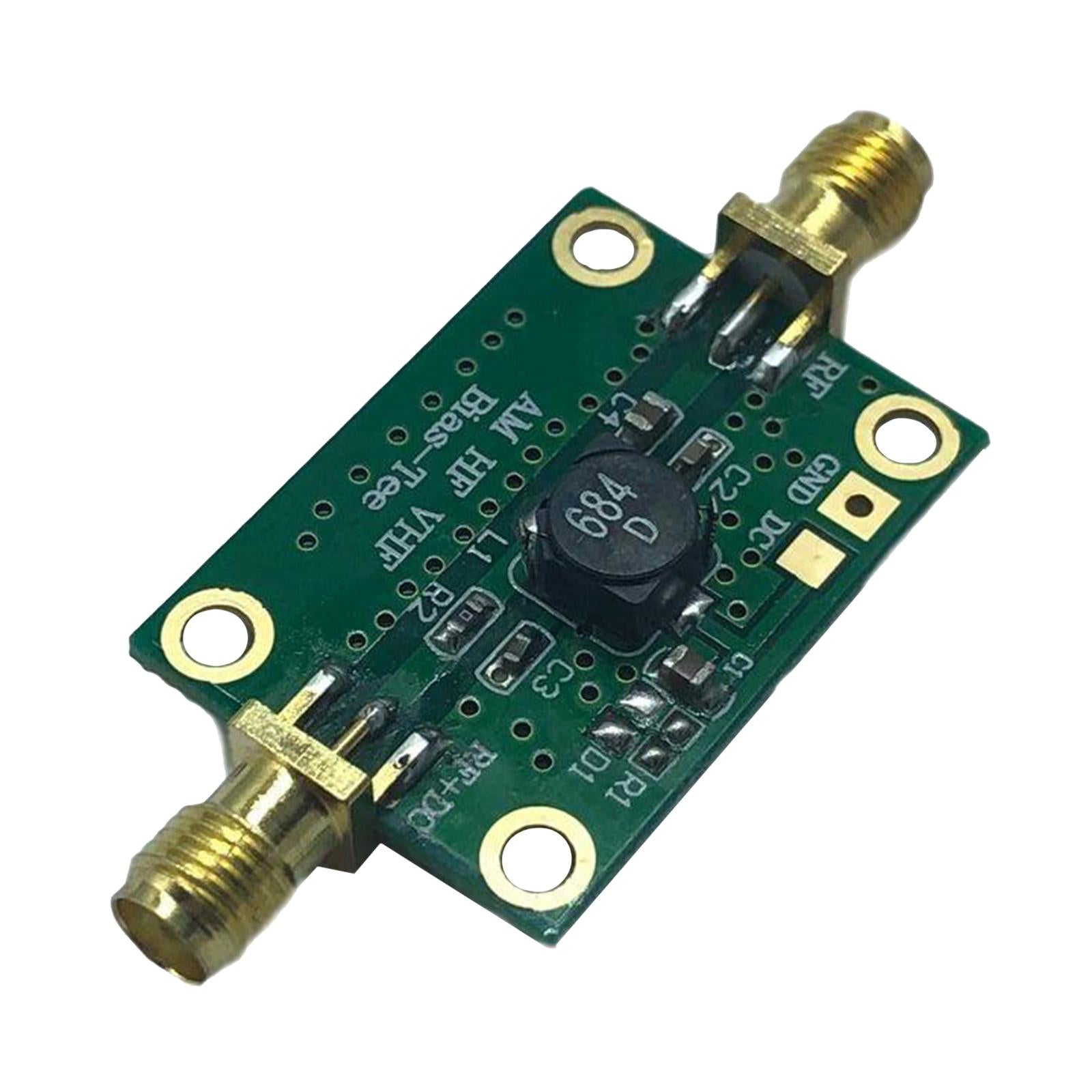

Wide Range Receiver 25K-100mhz HF Bias Tee Amplifier LNA Broadband Board

Description:

25k-100MHz RF wide band amplifier.
It consists of high frequency inductors and capacitors with ultra-wideband, near idealized and no resonance points.
Isolate DC to prevent DC voltage from leaking to subsequent circuits or test instruments.
Isolation of AC information to prevent high frequency signals from leaking into the power system.
Widly use for broadband amplifiers, fiber optic communications, optical modulation drivers, and other test and measurement applications.

Specification:

Material: Electronic Components
Working frequency Freq: 25K-100mhz
Insertion loss Insertion loss was Insertion loss<1dB
Operating Voltage: DC1-50V
Maximum working current: < 0.6a
Weight: 8g

Package Includes:

1 Piece Bias Tee

Note:

Please allow slight dimension difference due to different manual measurement.
