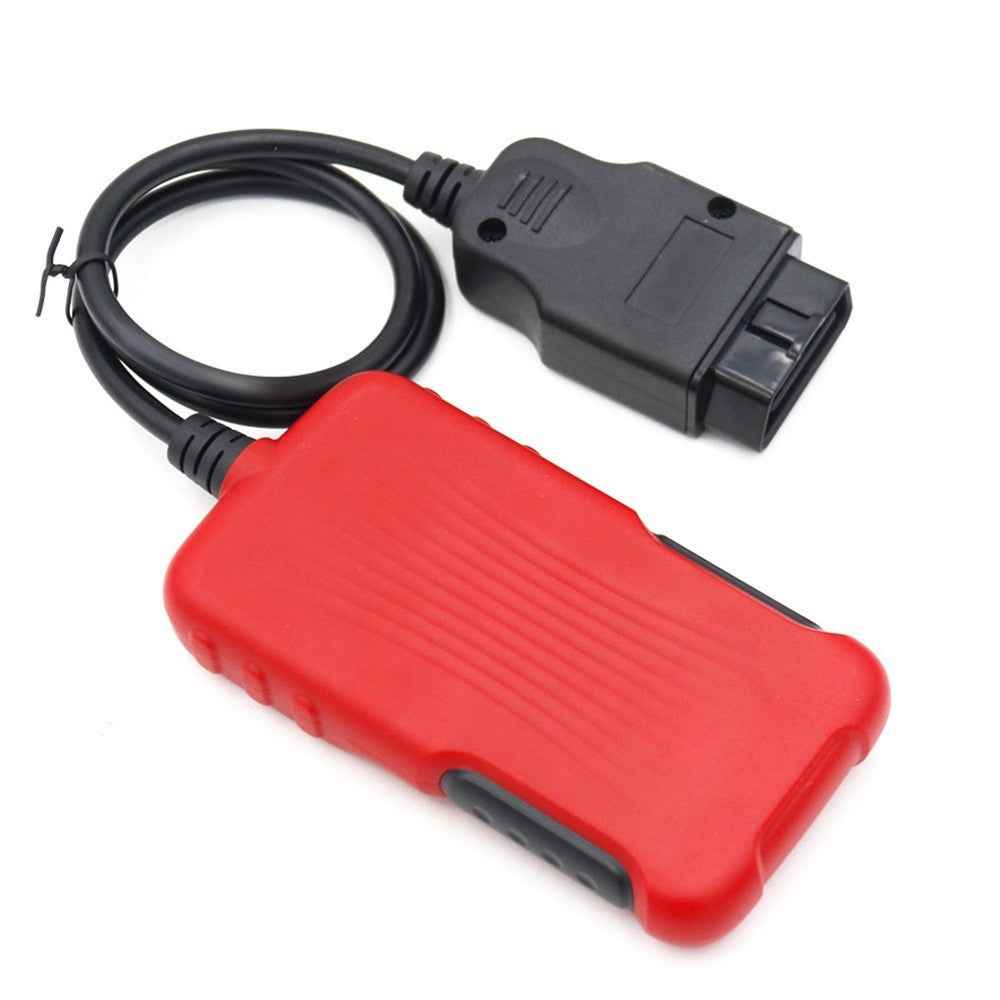

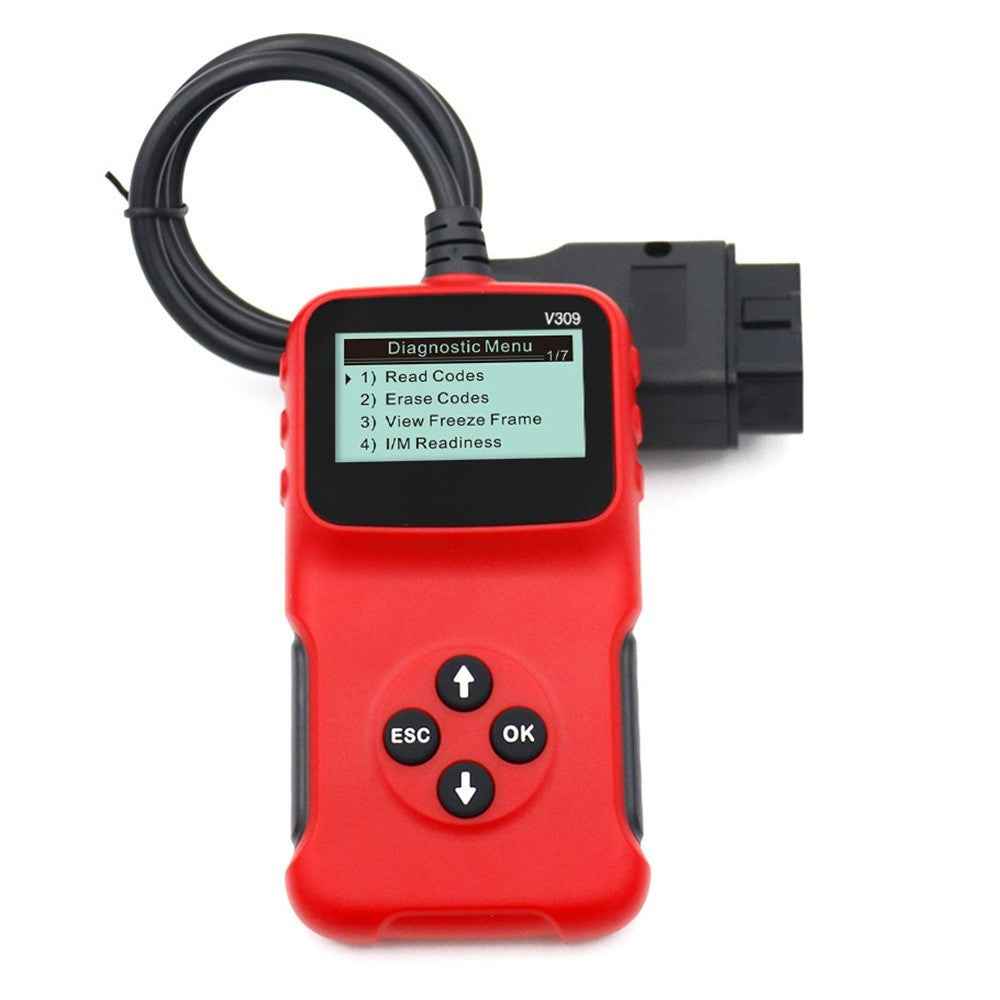

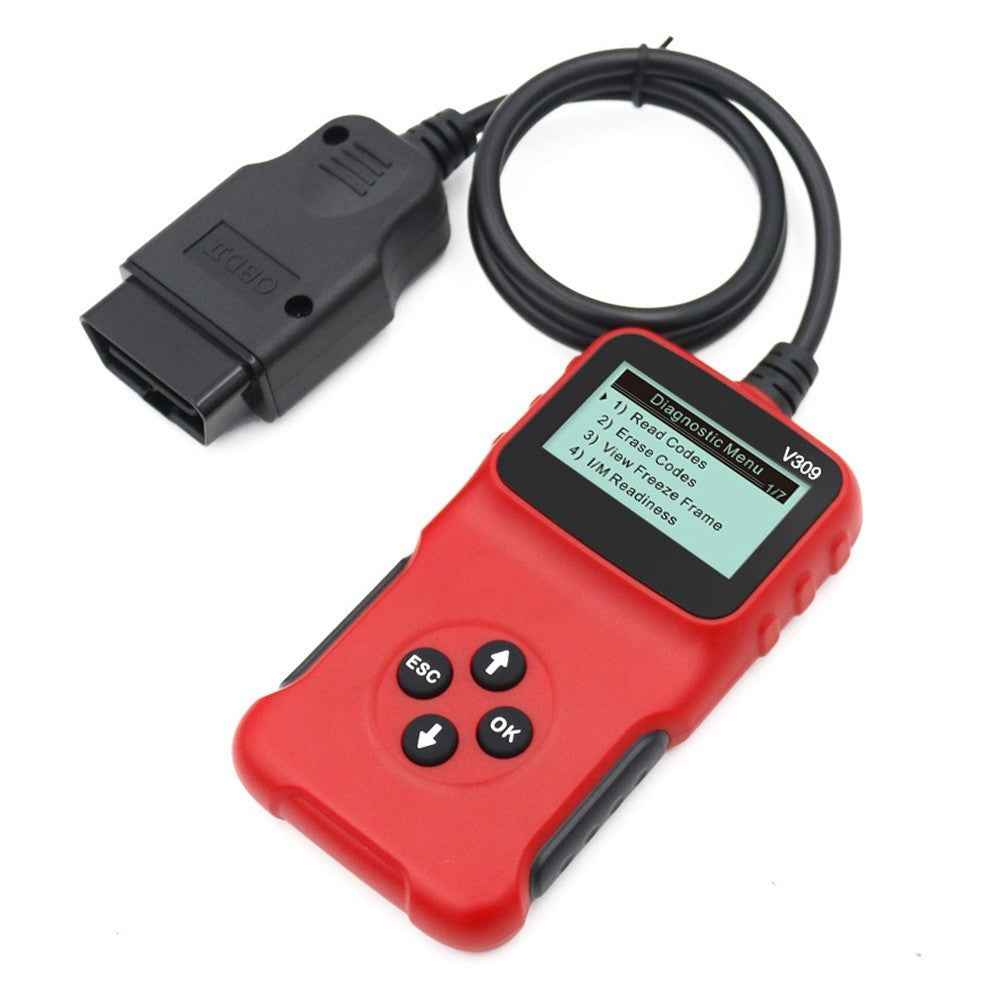

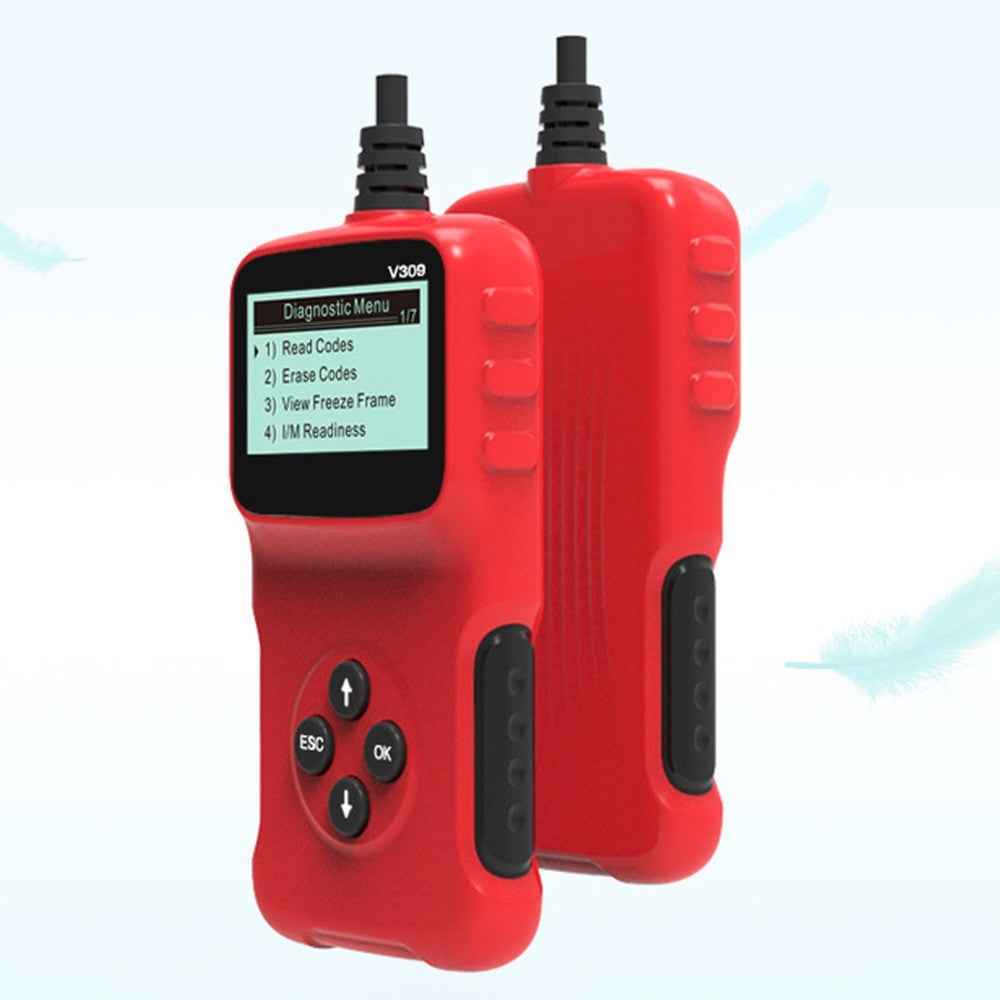

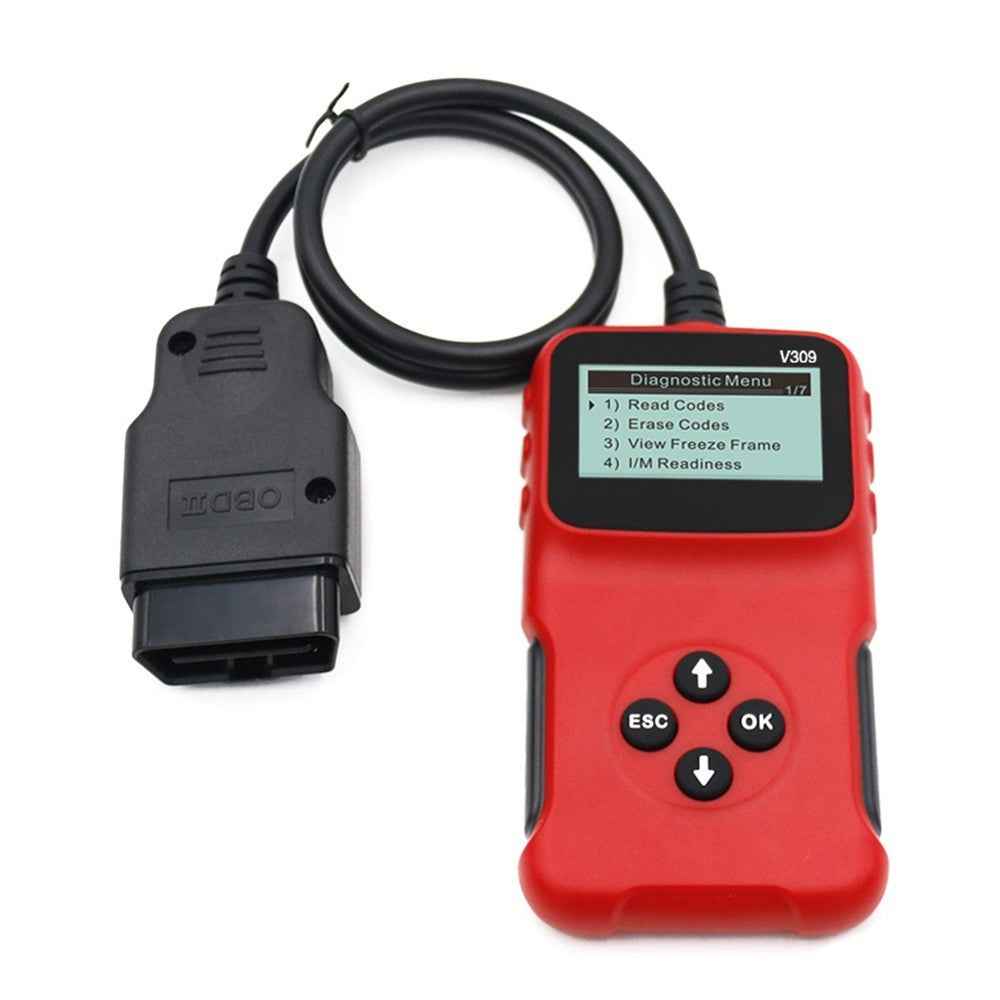

Wired Car OBD Scanner Plug and Play Car Fault Code Reader Auto Diagnostic Scanner Tool Engine Tester

• 5 languages supported

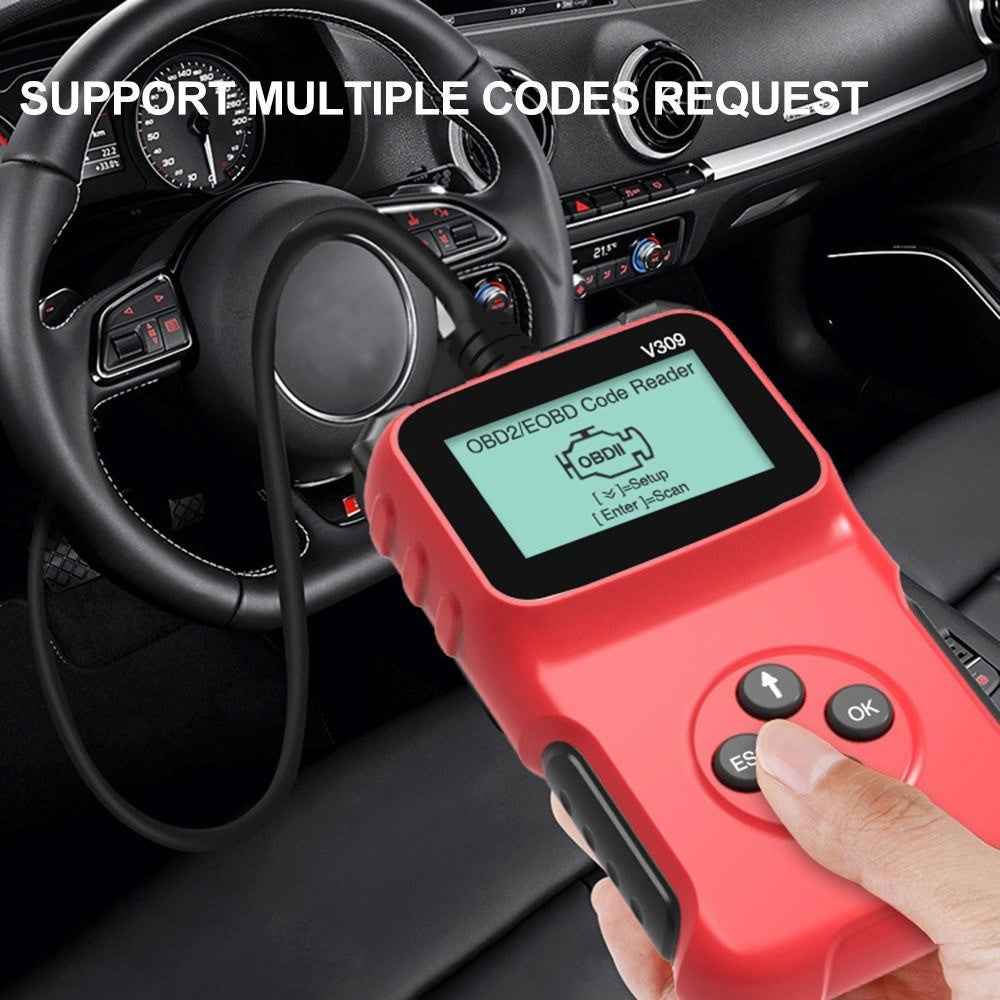

• Support multiple codes request
• Read freeze frame data which shows engine condition

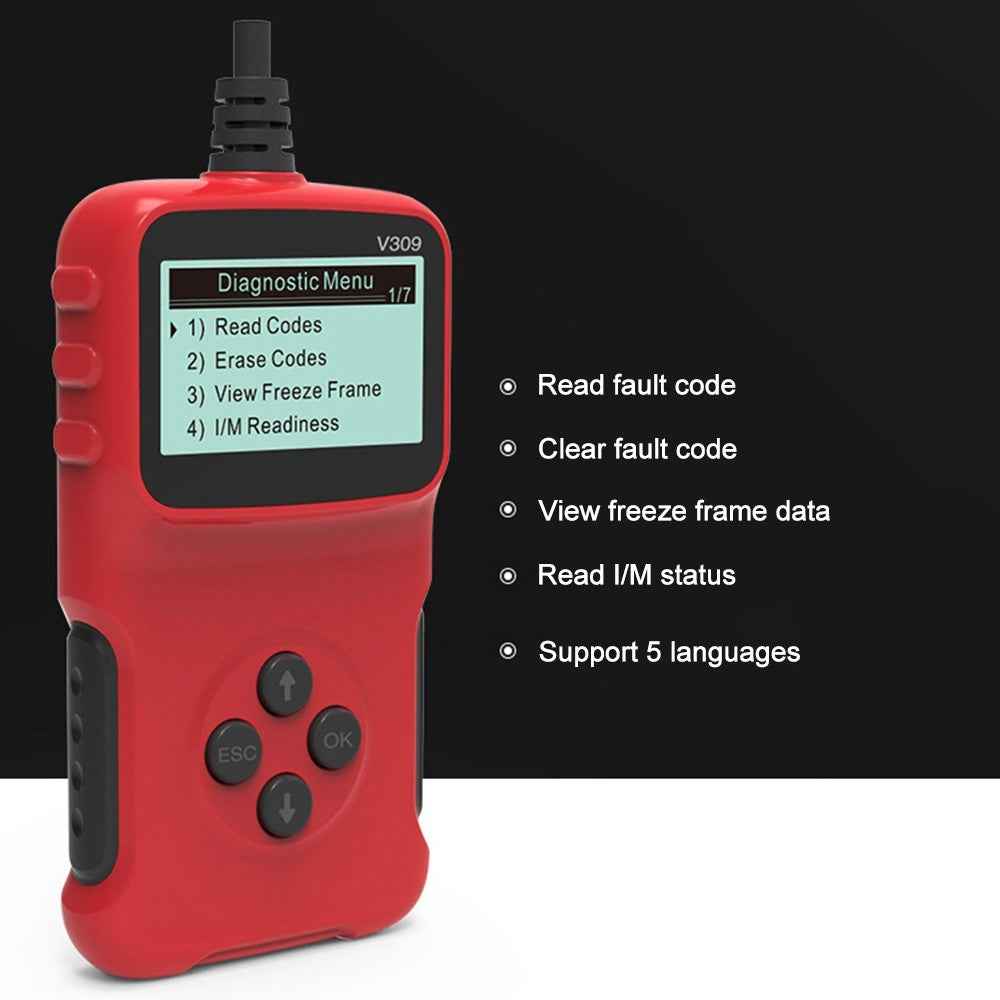

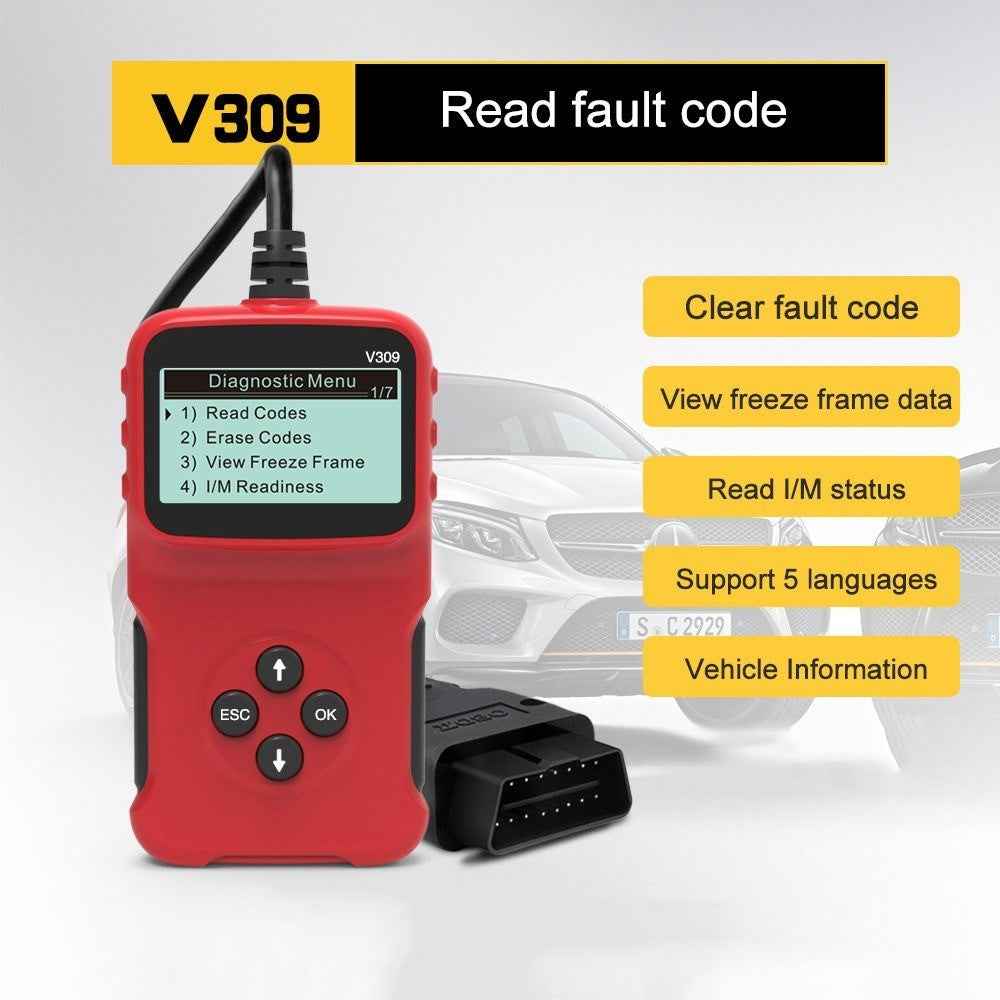

• It is capable of reading/erasing, showing error code definitions, reading I/M and view freeze frame
• Easier to read manufacture specific codes
• Clearly arranged keypad, menu-driven navigation, hot-keys and TFT color screen together make it extremely easy to use

Specifications:

• Communication protocol:
• SAE J1850 PWM (41.6 Kbaud)
• SAE J1850 VPM (10.4 Kbaud)
• ISO 9141-2 (5 baud init,10.4 Kbaud)
• ISO 14230-4 KWP (5 baud init,10.4 Kbaud)
• ISO 14230-4 KWP (fast init,10.4 Kbaud)
• ISO 14230-4 CAN (11bit ID,500 Kbaud)
• ISO 14230-4 CAN (29bit ID,500 Kbaud)
• ISO 14230-4 CAN (11bit ID,250 Kbaud)
• ISO 14230-4 CAN (29bit ID,250 Kbaud
• Working voltage: 9-16v
• Working current: 80mA
• Operating environment: - 30-70 ° C
• Storage temperature: - 30-80 ° C
• Item size: 95.5 72.18 22.2mm
