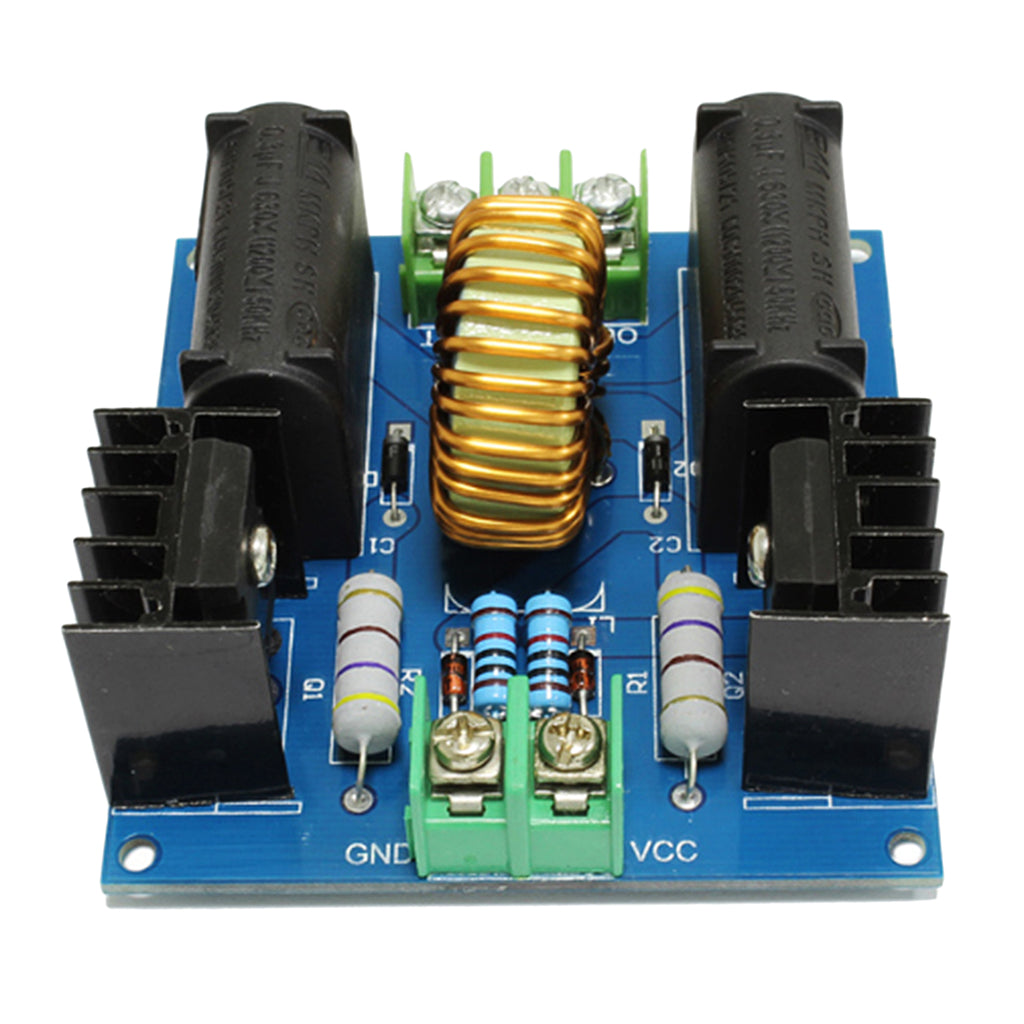

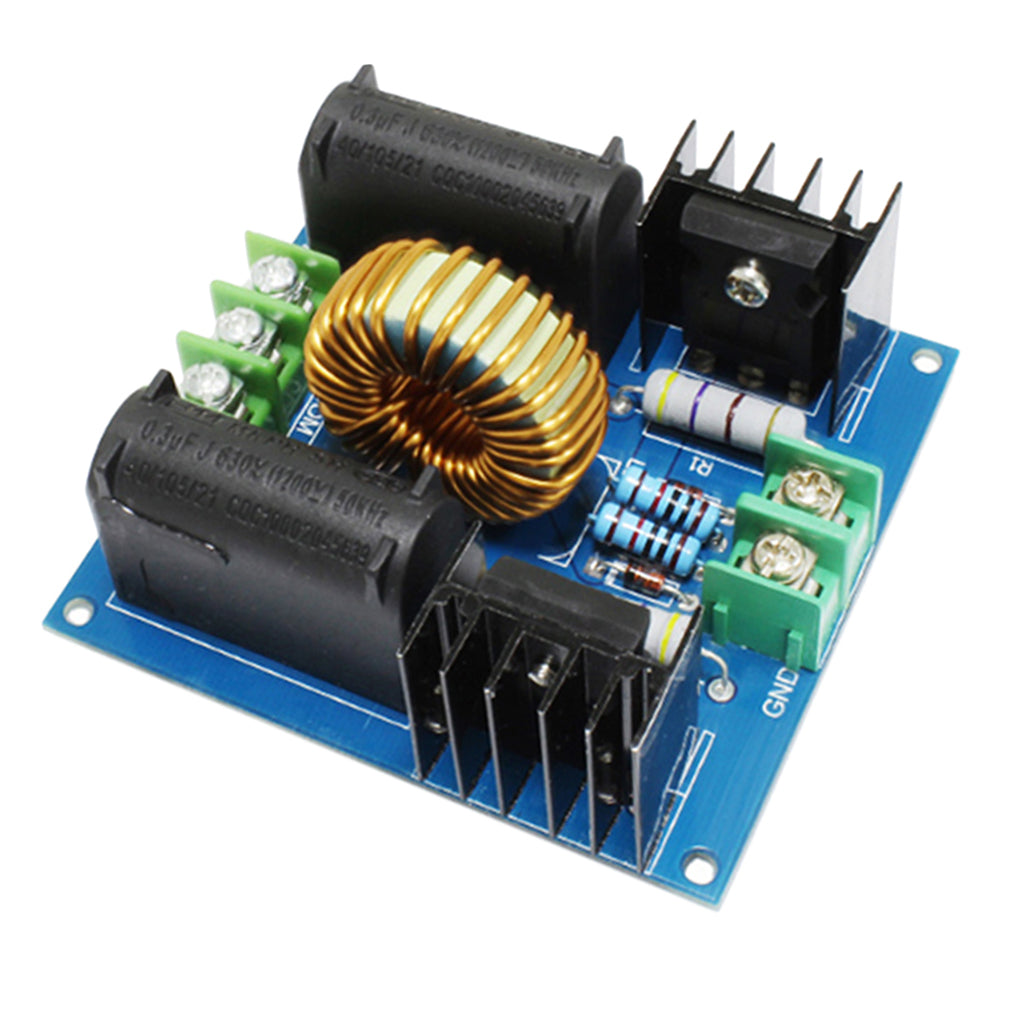

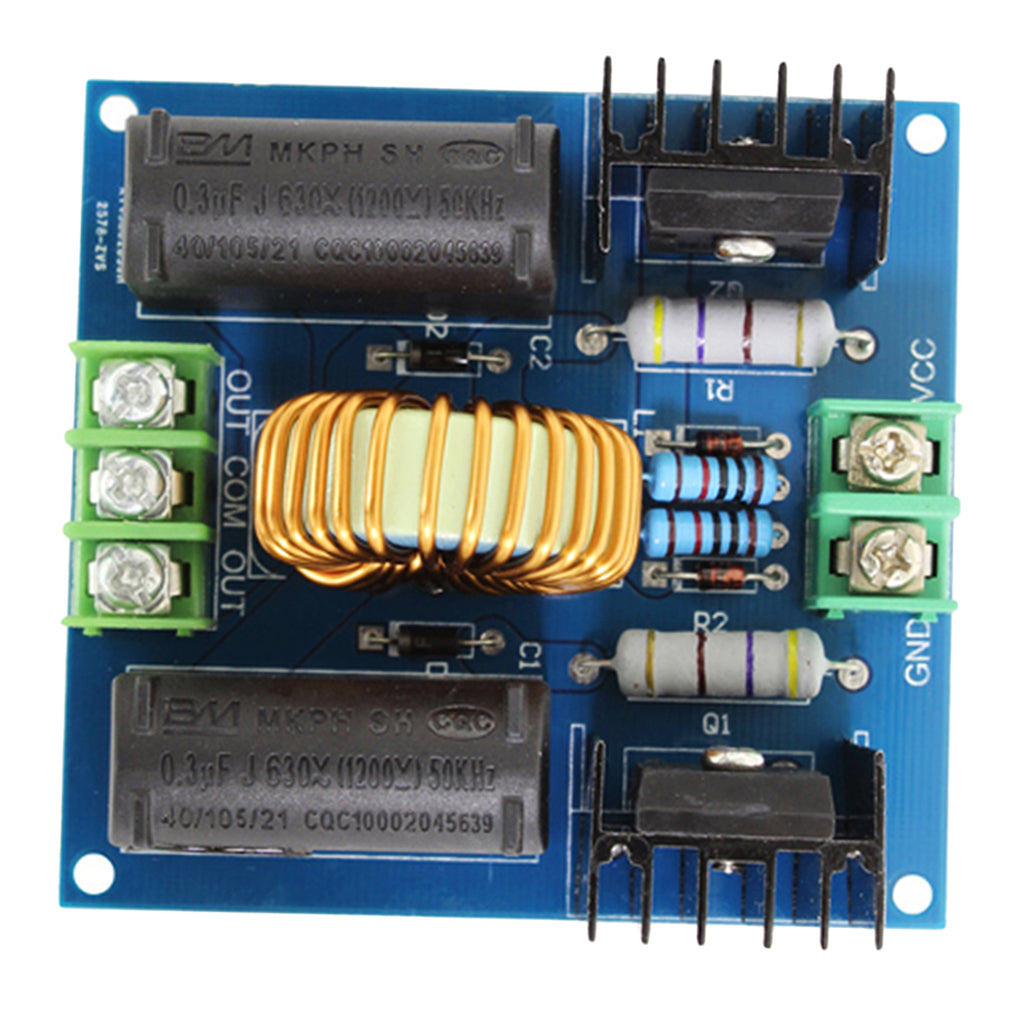

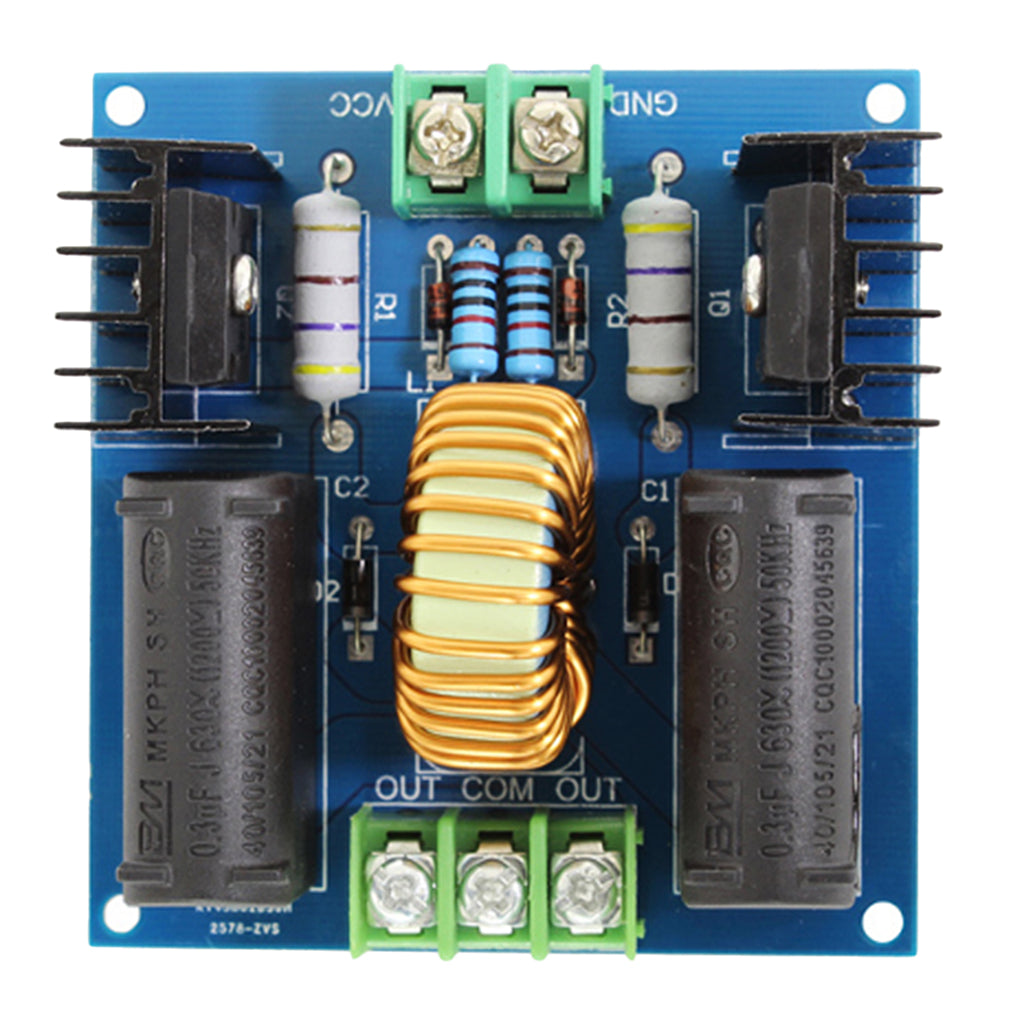

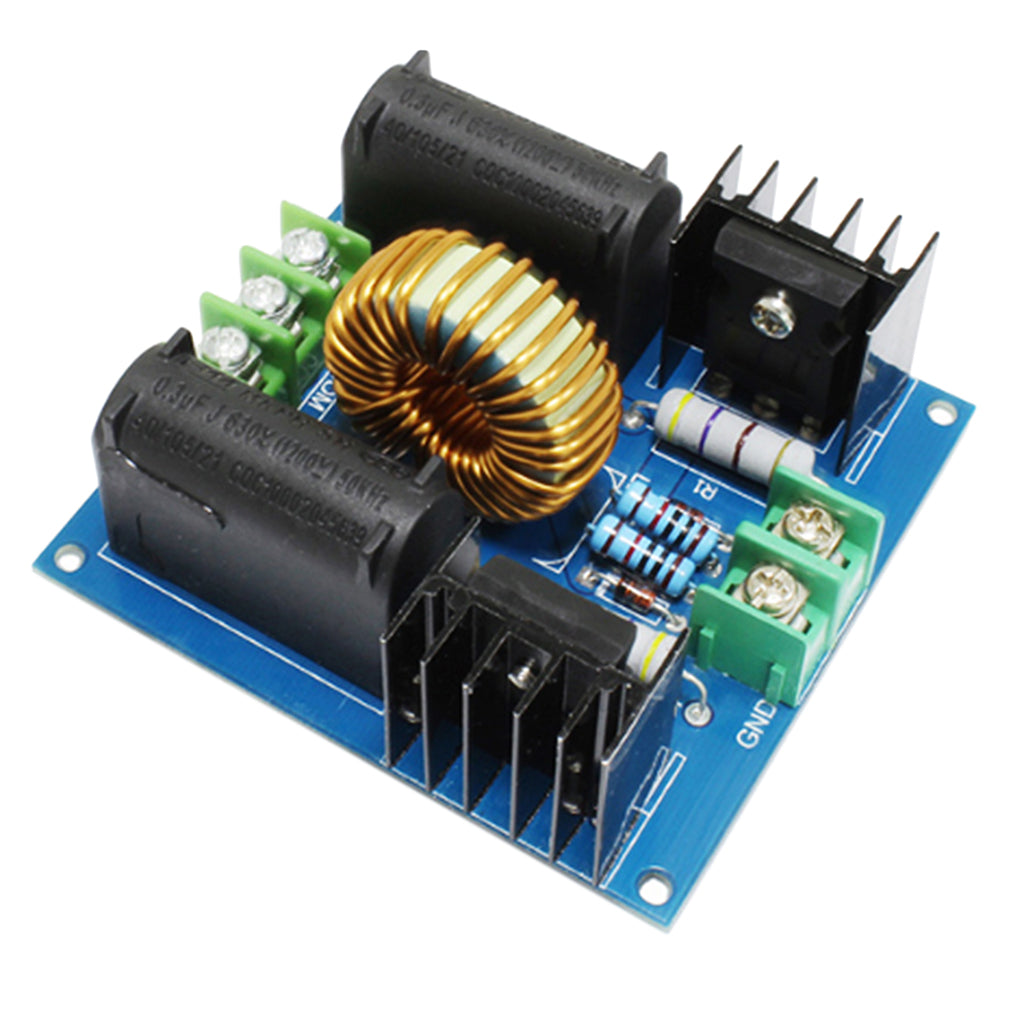

ZVS Tesla Coil Power Voltage Generator Drive Plate Induction Heating Module

Description:

ZVS tesla coil power supply without tap ZVS, tesla coil power supply high voltage generator drive plate.
Making use of military grade 1.6MM double faced glass fiber board.
Adopt factory custom inductor, the parameters are consistent and the performance is more stable (30MM large magnetic ring, 1.2MM pure copper wire winding).
All resistors adopt five ring compact resistance (five ring precision resistor error is smaller, work more stable).
Circuit board at the bottom of the large current part of all tin (can be used for induction heating, the general business in order to save cost to save the window and tin can only do high pressure package drive, once used in induction heating will burn, because light by copper overcurrent is not enough).

Specification:

Material: Mixture
Product Size: 8 x 8 x 4.2mm/0.31 x 0.31 x 0.17inch
Generally use 12-30V DC power supply, the current also needs to be more appropriate in the 10A, because the drive board is working in the zero voltage and voltage switch state (Zero Voltage Switching), his efficiency is the highest, the other drive is no comparison, the higher the voltage, the longer the pull arc (this person personally experimentation with 27V/15A switching power can be used. " To pull 80MM above the arc, basically no heat), can also do induction heating or quenching, this is the higher the voltage, the faster the heating, and the greater the heat, it is suggested that the diameter of the solid object does not exceed the 2/3 of the coil.

Package Includes:

1 Piece ZVS Tesla Coil Module
